elco OSC1-UC2B6-Q8/485 Instructions

Deviation Correction Sensor
——OSC1 Controller
INSTRUCTIONS
1.Product description

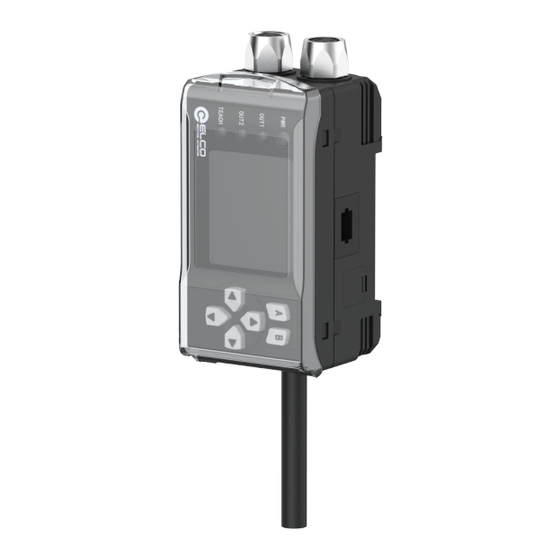

OSC1 controllers are used in combination with OSMT60
sensor head, with teaching mode, multiple working modes
and output modes.
2.Product features
*High-precision,sensor head and controllers are installed
separately.
*Support multiple detection modes and multiple
scene applications.
*OLED display, optional in Chinese and English.
3.Model description
Type Output
OSC1-UC2B6-Q8/485 NPN/PNP+485
4.Technical specification
Power supply DC 12...24V±10%
Current
≤ 200mA ( DC12V)
consumption
Sensor head
MAX 2,M8-4pin connector
connections
Sensor head
RS485
communication
Power:green/red
Indicator
Output/teaching:orange
Measured 0~9.999mm
value -9.999~0mm
Distance
Key setting
adjustment
5.Line sequence and wiring diagram
5.1Line sequence colors and definitions
Function Color
1
V+ 12...24VDC Brown
2
GND Blue
3
NPN/PNP1 Yellow
4 NPN/PNP2
White
485A
5 Pink
6
485B Green
Sensor head Number of sensor
connection mode head connections
M8-4pin connector MAX.2
Resolution 1μm
Output 2*PNP/NPN options Max.100mA/DC24V;
modes RS485
Circuit Reverse polarity protection,Short-circuit protection,
protection Over-load protection
Ambient -10...+50°C/35~85%RH
temperature (No condensation or
Storage -20...+60°C/35~85%RH
temperature (No condensation or
Protection IP50
Housing PC
5.2Wiring diagram（NPN）
+V
Control output
0V
6.Dimensions
Connection
2M cable
10.9
2- M8 female adapter
icing)
icing)
Power indicator (green/red)
Ch1
Ch2
Output indicator (orange)
Teaching indicator (orange)
Tianjin Elco Automation Co.,Ltd
No.12, 4th XEDA Branch Rd,Xiqing Economic-Technological Development Area,
Tianjin 300385,P.R.China
Tel: +86 22 23888288
Fax: +86 22 23788399
www. elco-holding .com
5.3Wiring diagram（PNP）
Load
+
12VDC-
-
24VDC±10%
150mA MAX
485A
485
communication
485B
equipment
81.3
69
Cascade socket
Panel diagram
Germany Tel +49 70626599-260
Germany Fax +49 70626599-261
Manufactured in China
+V
+
12VDC-
Control output
-
24VDC±10%
150mA MAX
Load
0V
485A
485
communication
485B
equipment
33.7
10
15.3
Cascade plug
4.5
Dip switch
