Window Rinse Controller Quick Start Guide
General Operation
This controller works in cycles. The system will either be on (sending RO water to window rinse
manifolds) for a certain amount of time, and then will be off (in standby) for a certain amount of

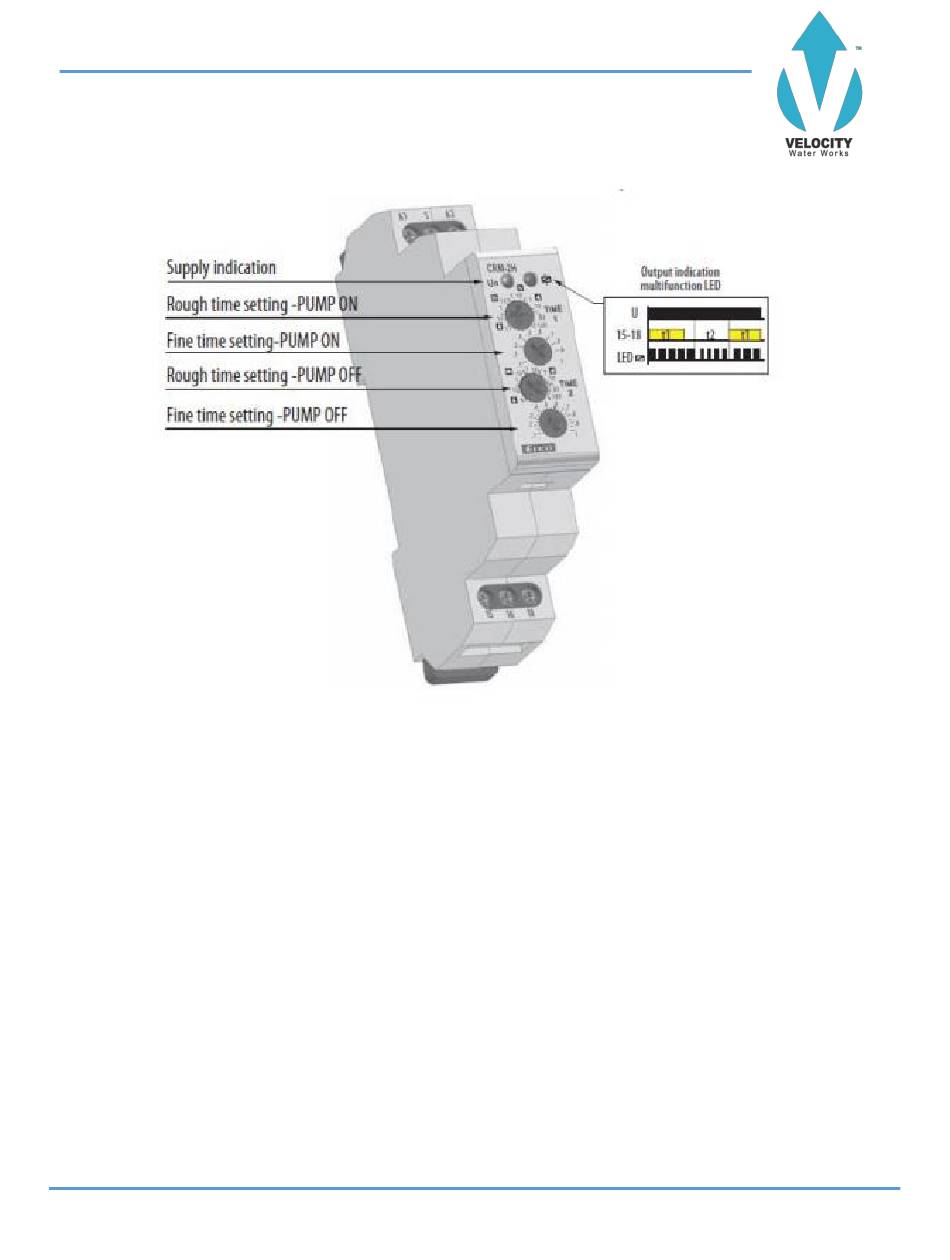

time. The amount of time for each cycle can be programed by using the four screws shown
above
Setting Each Cycle Time
The "Rough time setting-PUMP ON" screw and "Fine time setting-PUMP ON" screw shown
above are used to program the amount of time that the windows will be rinsed. The "Rough time
setting-PUMP OFF" screw and "Fine time setting-PUMP OFF" screw represent the amount of
time between window rinses.
600 Randolph Drive, Suite B
Appleton, WI 54913
Office: (920) 423-7170
info@velocitywaterworks.com
www.velocitywaterworks.com
Fax: (844) 348-9001
Advertisement
Related Manuals for elco CRM-2H
Summary of Contents for elco CRM-2H
- Page 1 Window Rinse Controller Quick Start Guide General Operation This controller works in cycles. The system will either be on (sending RO water to window rinse manifolds) for a certain amount of time, and then will be off (in standby) for a certain amount of time.
- Page 2 Set the Rough Time: The rough time represents a range of time that the system will be on for. Ranges are shown to the right: Set the Fine Time: The fine time represents a fraction of the rough time. For example, if the rough time was set to s10 and the fine time was set to 0.5, then the system would run for 5 seconds (10 seconds x 0.5).
- Page 3 Window Rinse Controller Examples: Example 1: Example 2: Example 3: Rinse Window 30 seconds Rinse Window 45 seconds Rinse Window 1 minute Once every hour. Once every 2 hours. once every 30 minutes Example 5: Example 6: Example 4: Rinse Window 3 minutes Rinse window 30 minutes Rinse Window 10 minutes once every 8 hours.
