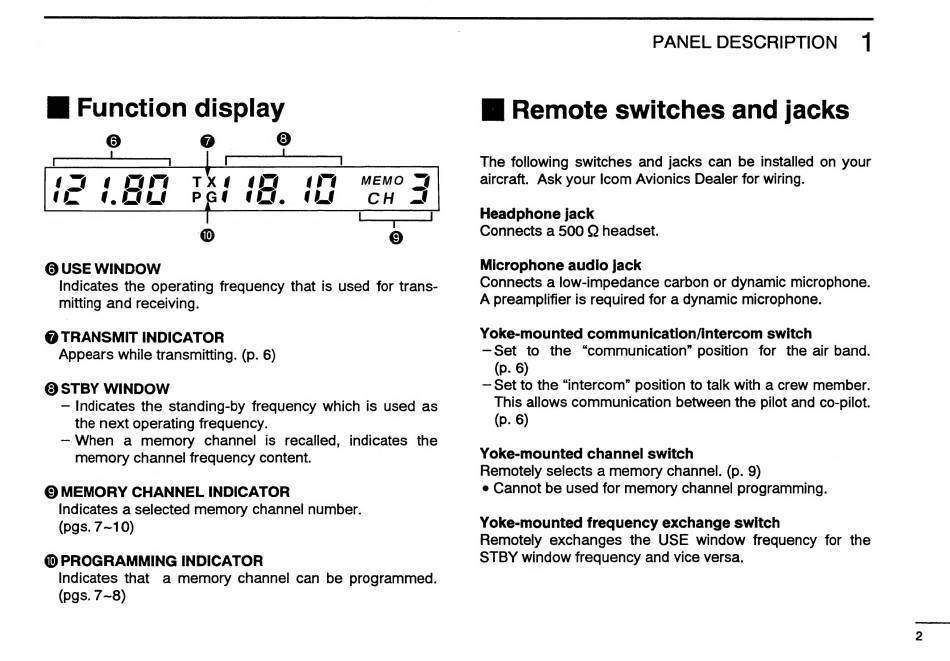

Icom IC-A200 Instruction Manual page 5

@ USE WINDOW
Indicates the operating frequency that is used for trans-
mitting and receiving.
@ TRANSMIT INDICATOR
Appears while transmitting. (p. 6)
© STBY WINDOW
— Indicates the standing-by frequency which is used as
the next operating frequency.
— When a memory channel is recalled, indicates the
memory channel frequency content.
© MEMORY CHANNEL INDICATOR
Indicates a selected memory channel number.
(pgs. 7~10)
@ PROGRAMMING INDICATOR
Indicates that a memory channel can be programmed.
(pgs. 7~8)
PANEL DESCRIPTION 1
Hi Remote switches and jacks
The following switches and jacks can be installed on your
aircraft. Ask your Icom Avionics Dealer for wiring.
Headphone jack
Connects a 500 Q headset.
Microphone audio jack
Connects a low-impedance carbon or dynamic microphone.
A preamplifier is required for a dynamic microphone.
Yoke-mounted communication/intercom switch
— Set to the "communication" position for the air band.
(p. 6)
— Set to the "intercom" position to talk with a crew member.
This allows communication between the pilot and co-pilot.
(p. 6)
Yoke-mounted channel switch
Remotely selects a memory channel. (p. 9)
e Cannot be used for memory channel programming.
Yoke-mounted frequency exchange switch
Remotely exchanges the USE window frequency for the
STBY window frequency and vice versa.
