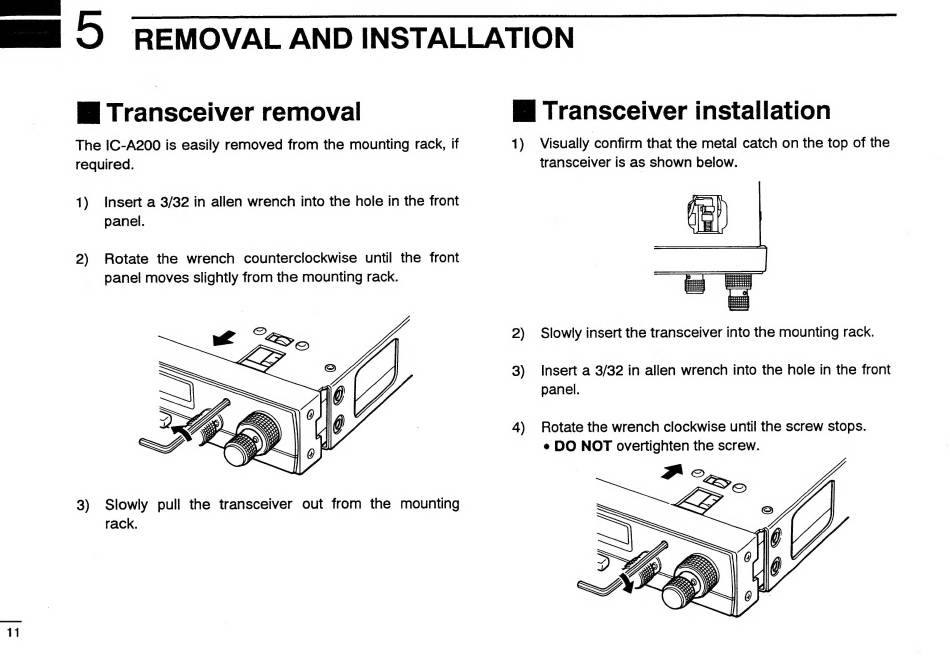

mg O REMOVAL AND INSTALLATION
1)
Insert a 3/32 in allen wrench into the hole in the front
panel.
2)
Rotate the wrench
counterclockwise
until the front
panel moves slightly from the mounting rack.
2)
Slowly insert the transceiver into the mounting rack.
3)
Insert a 3/32 in allen wrench into the hole in the front
panel.
4)
Rotate the wrench clockwise until the screw stops.
e DO NOT overtighten the screw.
3)
Slowly pull the transceiver
out from the mounting
rack.
