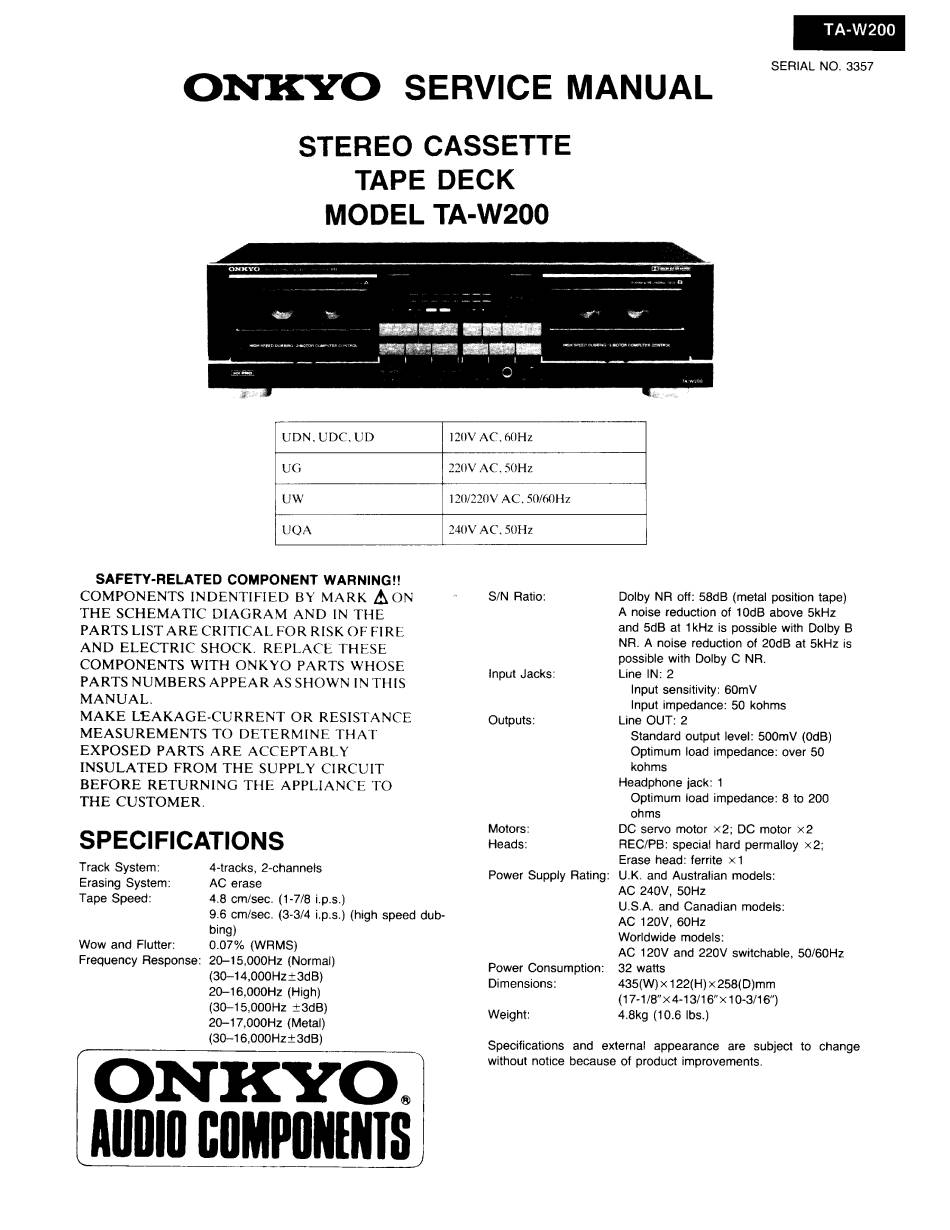

Onkyo TA-W200 Service Manual

TA-W200
SERIAL NO. 3357
ONKYO SERVICE MANUAL

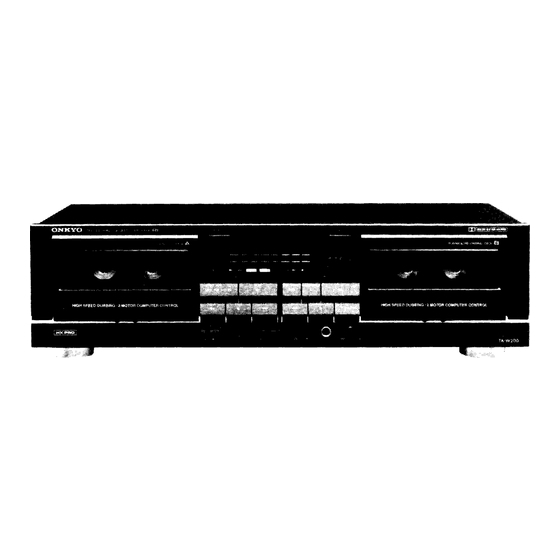

STEREO CASSETTE
TAPE DECK
MODEL TA-W200
UDN, UDC, UD 120V AC, 60Hz
UG 220V AC, SOHz ;
UW 120/220V AC, 50/60Hz
UQA 240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS INDENTIFIED BY MARK AON ' S/N Ratio: Dolby NR off: 58dB (metal position tape)
THE SCHEMATIC DIAGRAM AND IN THE A noise reduction of 10dB above 5kHz
PARTS LIST ARE CRITICAL FOR RISK OF FIRE and 5dB at 1kHz is possible with Dolby B
AND ELECTRIC SHOCK. REPLACE THESE NR. A noise reduction of 20dB at 5kHz is
possible with Dolby C NR.
Input Jacks: Line IN: 2
Input sensitivity: GOmV
COMPONENTS WITH ONKYO PARTS WHOSE
PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL. Input impedance: 50 kohms
MAKE LEAKAGE-CURRENT OR RESISTANCE Outputs: Line OUT: 2
MEASUREMENTS TO DETERMINE THAT Standard output level: 500mV (OdB)
EXPOSED PARTS ARE ACCEPTABLY Optimum load impedance: over 50
INSULATED FROM THE SUPPLY CIRCUIT kohms
BEFORE RETURNING THE APPLIANCE TO Headphone jack: 1
THE CUSTOMER. spimum load impedance: 8 to 200
Motors: DC servo motor x2; DC motor x2
SPECIFICATIONS Heads: REC/PB: special! hard permalloy x2;
Track System: A-tracks. 2-ch | | Erase head: ferrite x1
rac! ystem: FaCKS, <-CNannels Power Supply Rating: U.K. and Australian models:
Erasing System: AC erase AC 240V. 50Hz
Tape Speed: 4.8 cm/sec. (1-7/8 i.p.s.) USA and Canadian models:
9.6 cm/sec. (3-3/4 i.p.s.) (high speed dub- AC 120V, 60Hz
bing) ;
Wow and Flutter: 0.07% (WRMS) Worldwide models:
AC 120V and 220V switchable, 50/60Hz
Frequency Response: 20-15,000Hz (Normal) Power Consumption: 32 watts
(30—14,000Hz + 3dB)
4 Dimensions: 435(W) x 122(H) x 258(D)mm
te 00 2 (Fgh) (17-1/8"x 4-13/16"x 10-3/16")
(30-15,000Hz +38) Weight: 4.8kg (10.6 lbs.)
20-17,000Hz (Metal)
(30-—-16,000Hz=+ 3dB)
ONKYO.
AUDIO COMPONENTS
Specifications and external appearance are subject to change
without notice because of product improvements.
