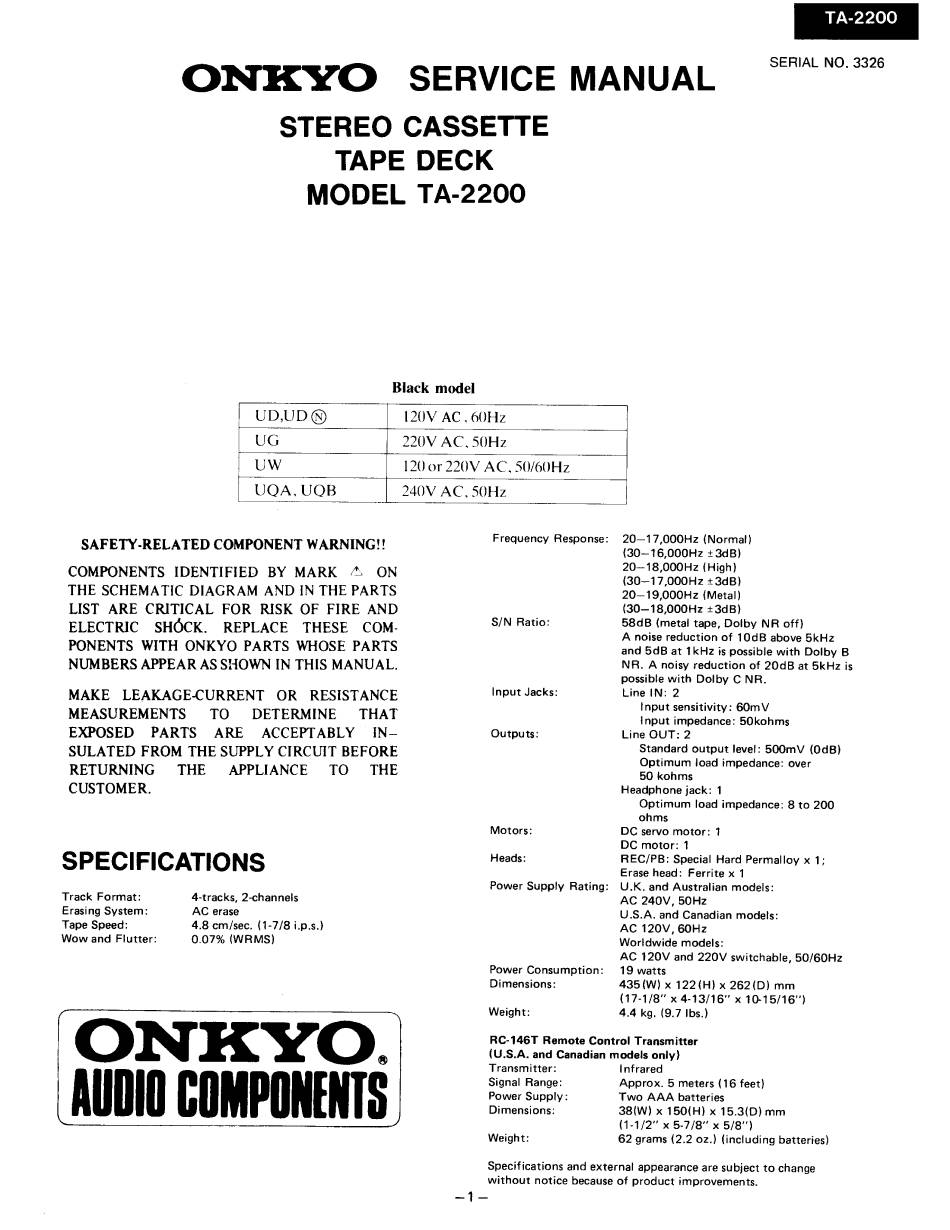

ONKYO
SERVICE MANUAL
TA-2200
SERIAL NO. 3326

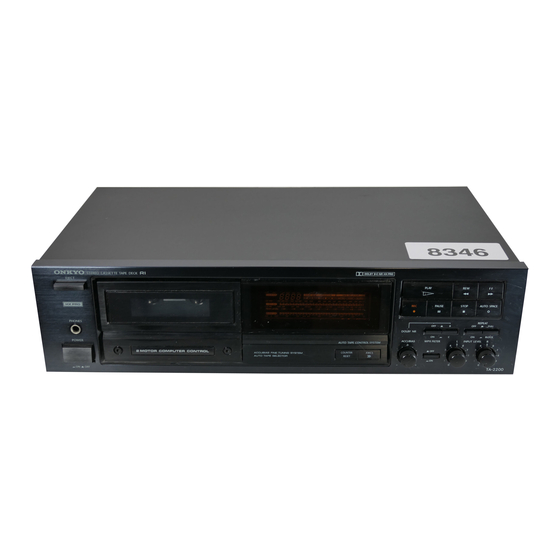

STEREO CASSETTE
TAPE DECK
MODEL TA-2200
Black model
| UDUD®
|
120V AC , 60Hz
UG
ia 220V AC, 50Hz
UW
120 or 220V AC, 50/60Hz
UQA.UOB
| 240V AC. 50Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS
IDENTIFIED
BY MARK
"~
ON
THE SCHEMATIC DIAGRAM
AND IN THE PARTS
LIST ARE CRITICAL
FOR
RISK OF FIRE AND
ELECTRIC
SHOCK.
REPLACE
THESE
COM.-
PONENTS
WITH ONKYO
PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE
LEAKAGE-CURRENT
OR
RESISTANCE
MEASUREMENTS
TO - DETERMINE'
THAT
EXPOSED
PARTS
ARE
ACCEPTABLY
IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING
THE
APPLIANCE
TO
THE
CUSTOMER.
SPECIFICATIONS
Track Format:
4-tracks, 2-channels
Erasing System:
AC erase
Tape Speed:
4.8 cm/sec. (1-7/8 i.p.s.)
Wow and Flutter:
0.07% (WRMS)
Frequency Response:
20—17,000Hz (Normal)
(30—16,000Hz +3dB)
20—18,000Hz (High)
(30—17,000Hz +3dB}
20—19,000Hz (Metal)
(30—18,000Hz +3dB)
S/N Ratio:
58dB (metal tape, Dolby NR off)
A noise reduction of 10dB above 5kHz
and 5dB at 1kHz is possible with Dolby B
NR. A noisy reduction of 20dB at 5kHz is
possible with Dolby C NR.
Input Jacks:
Line IN: 2
Input sensitivity: G(OmV
input impedance: 50kohms
Outputs:
Line OUT: 2
Standard output level: 5}00mV (OdB)
Optimum load impedance: over
50 kohms
Headphone jack: 1
Optimum
load impedance:
8 to 200
ohms
Motors:
DC servo motor:
1
DC motor: 1
Heads:
REC/PB: Special Hard Permalloy x 1;
Erase head:
Ferrite x 1
Power Supply
Rating:
U.K. and Australian models:
AC 240V, 50Hz
U.S.A. and Canadian
models:
AC 120V, 60Hz
Worldwide models:
AC 120V and 220V switchable, 50/60Hz
Power Consumption:
19 watts
Dimensions:
435 (W) x 122(H) x 262(D) mm
(17-1/8" x 4-13/16"
x 10-15/16")
Weight:
4.4 kg. (9.7 Ibs.)
RC-146T
Remote Control Transmitter
(U.S.A. and Canadian models only)
Transmitter:
infrared
Signal Range:
Approx. 5 meters (16 feet)
Power Supply:
Two AAA batteries
Dimensions:
38(W) x 150(H) x 15.3(D) mm
(1-1/2" x 5-7/8" x 5/8")
Weight:
62 grams (2.2 oz.) (including batteries)
Specifications and external appearance are subject to change
without notice because of product improvements.
