If the running belt on the 10TRX is tracking left or right during use, the most likely cause is that the belt needs
to be tightened or adjusted via the tail roller adjustment screws. Use the instructions below to adjust the screws
to properly align the belt and rollers. If after aligning the belt, it still does not track straight, it may need to be
replaced if the belt is worn.

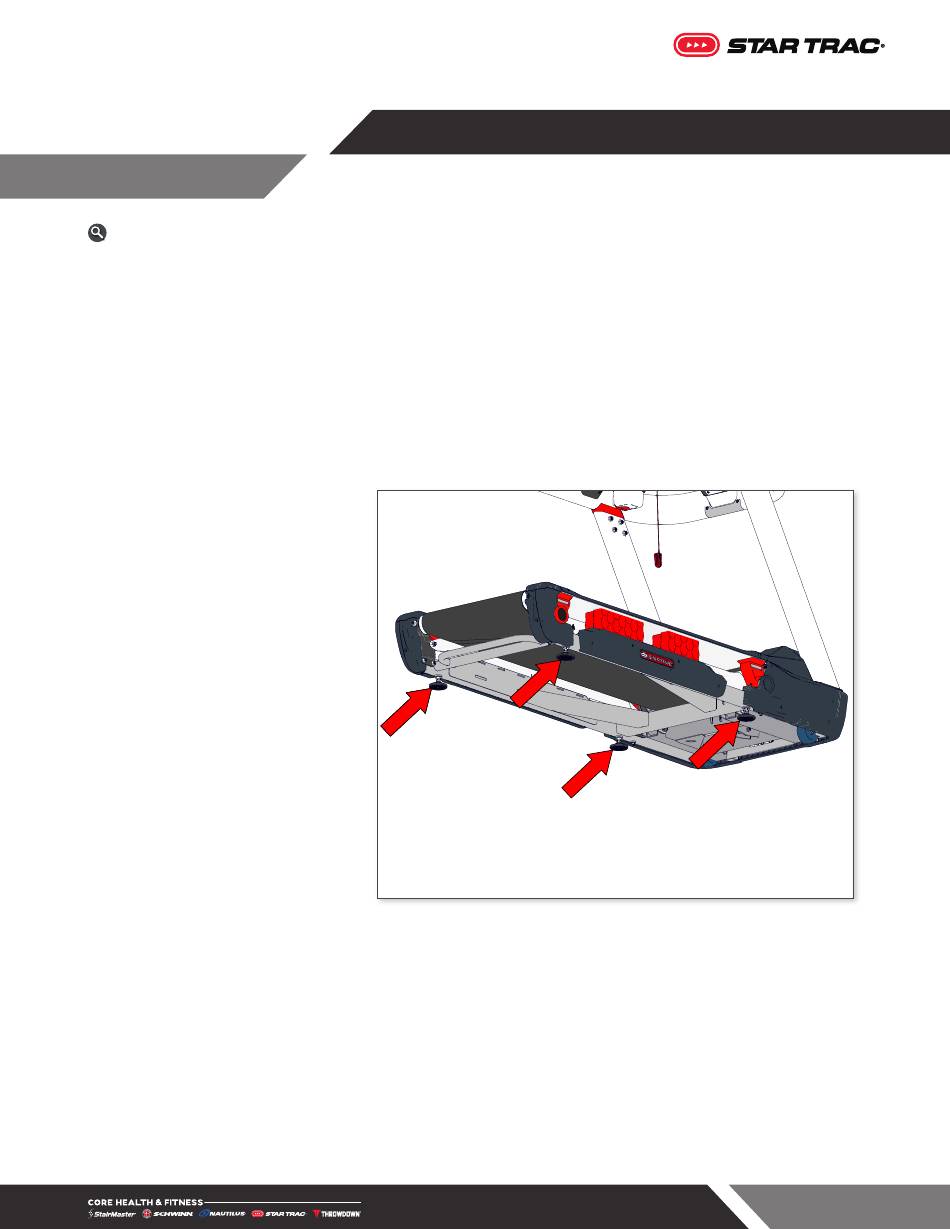

1. Ensure that the treadmill is level.
If it is not level, use a 9/16"
open-ended wrench to adjust the
leveling feet until the treadmill is
level.
2. Once the treadmill is level, use
a 3/4" open-ended wrench to
tighten to lock nuts on the leveling
feet to lock them in place.
3. Test the treadmill, if the belt does
not track straight, continue to the
next step.
10TRX Belt Not Tracking Straight
Applies to: 10TRX (9-9271 + 9-9274)
Fig. 1
Page 1
637-9011 Rev. A
