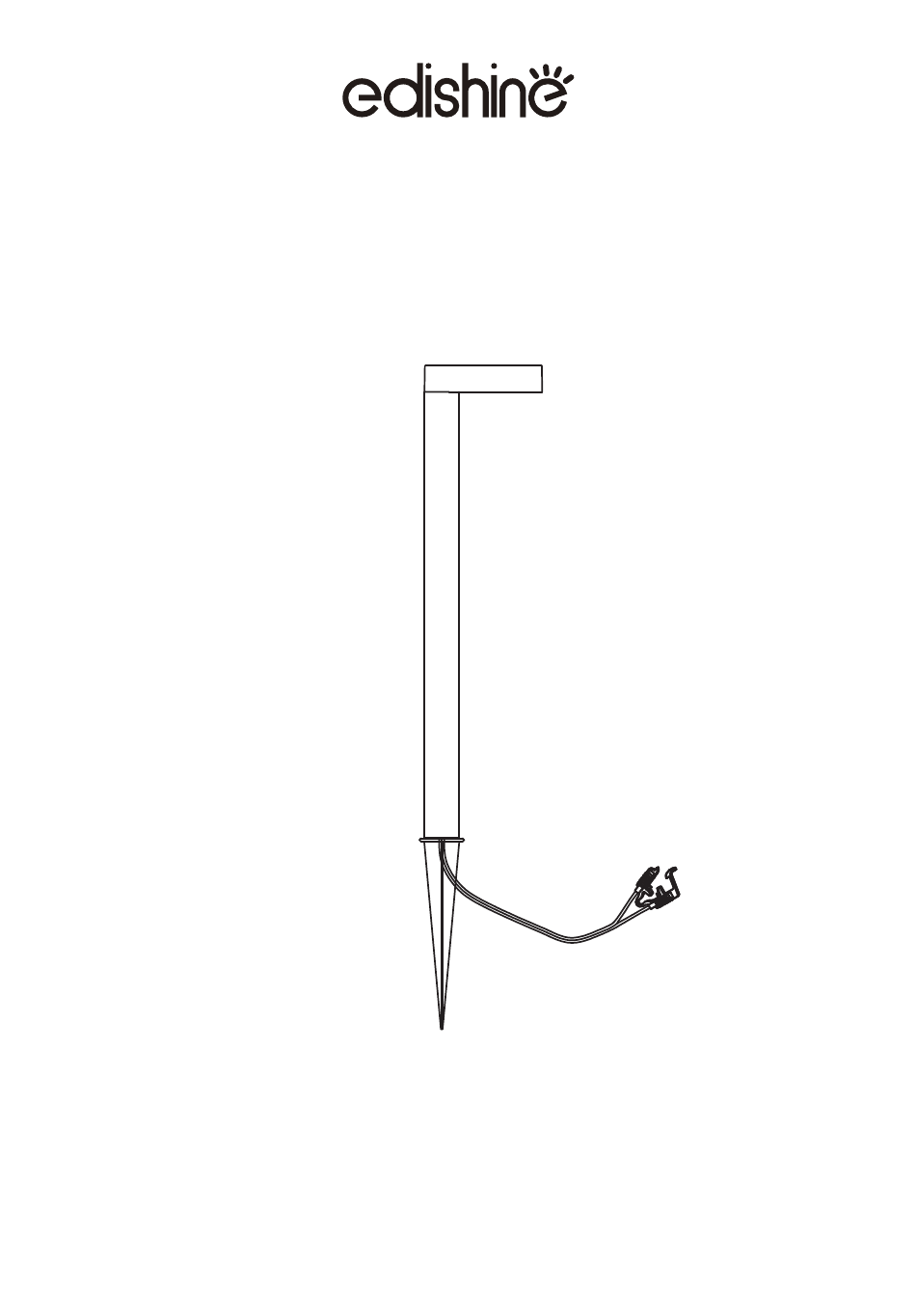

- Page 1 LED Low Voltage Pathway Light SKU: HGSL09A [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V20809...
- Page 2 FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 maximum depth of 6 in. (15.24 cm). Do not install the fixture within 10ft of a pool, spa, or fountain. Do not submerge the fixture in water. 5.Clean the fixture with a soft dry cloth. do not use any cleaners with chemicals, solvents or harsh abrasives.
- Page 4 WARNING: The wire connector (C) contacts have sharp edges for piercing the main low voltage cable. To avoid injury, do not touch the metal contacts. CAUTION: The wire from low voltage power unit should be 12-16 AWG type under- ground low Energy Circuit Cable. IMPORTANT: Protect the wiring by routing it in close proximity to the light fitting, or next to a building structure such as a house or a deck.
- Page 5 6.Place the wire connector(C) on opposite sides of the low voltage cable (not included) from the transformer (not included) where the fixture will be located. 7.Align and fit the main low voltage cable vertically to the slot of the wire connector (C).
- Page 6 Troubleshooting Problem Possible Cause Solution The fixture - There is no power. - Check the outlet and ensure will not light. - These is a disconnection that a breaker or GFCI circuit or break in the wire has not been tripped. - The transformer setting - Follow the wires from the is incorrect.
- Page 7 121 - 180 Watts 14 AWG 12 AWG Not Recommended 181 - 240 Watts 14 AWG 12 AWG Not Recommended 241- 300 Watts 12 AWG Not Recommended Not Recommended 600W Transformer 12 AWG Not Recommended Not Recommended =(2x300) WATTS 900W Transformer 12 AWG Not Recommended Not Recommended...
