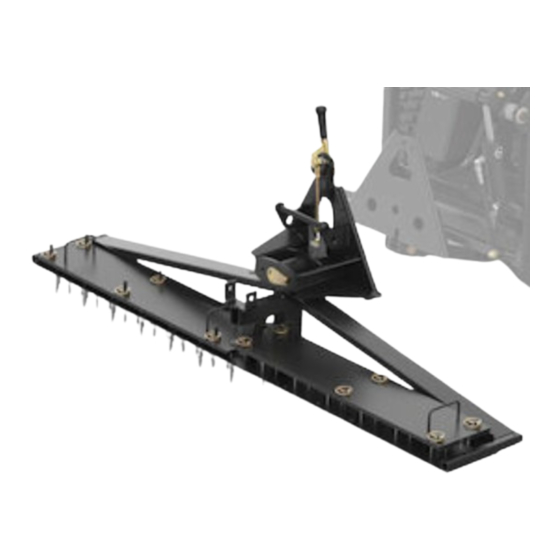

Auto-Mat Kit
Sand Pro
Model No. 08763—Serial No. 315000001 and Up
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
Introduction
You may contact Toro directly at www.Toro.com for product
safety and operation training materials, accessory information,
help finding a dealer, or to register your product.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your product ready.

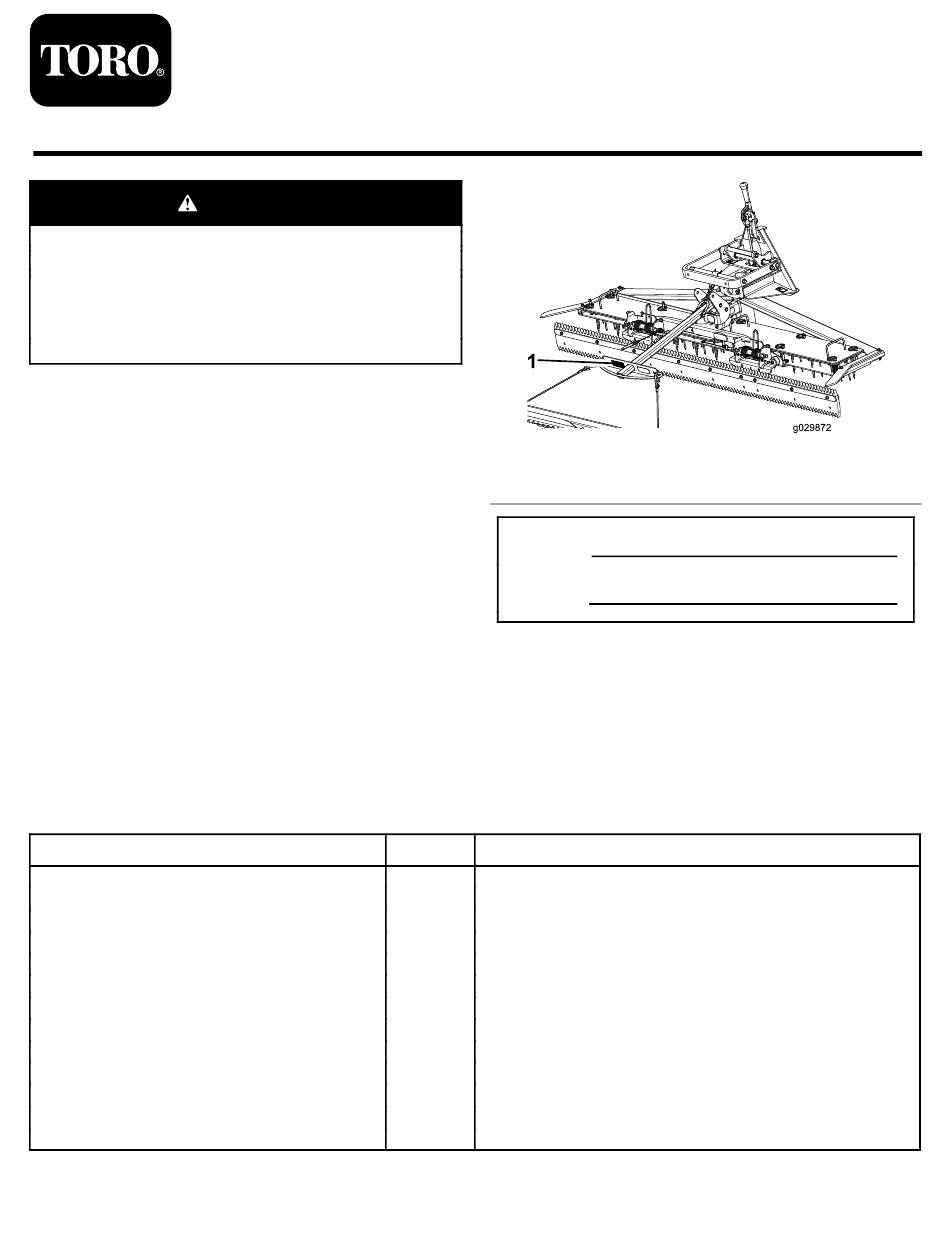

Figure 1
model and serial numbers on the product. Write the numbers
in the space provided.
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Wear pad
Lift arm
Hex-head-flange bolt (3/8 x 1-1/4 inches)
Flange nut (3/8 inch)
Connection lift
Lift beam
Chain
Carriage bolt (5/16 x 1 inch)
Flat washer (3/8 inch)
Flange nut (5/16 inch)
Cotter pin (5/32 x 1-1/4 inches)
Pivot bar
Flange bearing
© 2015—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
/Infield Pro
illustrates the location of the
Qty.
Register at www.Toro.com.
®
3040 and 5040 Traction Unit
1. Location of the model and serial numbers
Model No.
Serial No.
1
1
3
3
1
1
1
Install the lift-arm assembly.
1
1
1
5
1
2
Form No. 3393-140 Rev A
Installation Instructions
Figure 1
Use
Original Instructions (EN)
All Rights Reserved *3393-140* A
Printed in the USA
Advertisement
Related Manuals for Toro Sand Pro Infield Pro
Summary of Contents for Toro Sand Pro Infield Pro
- Page 1 Introduction Figure 1 You may contact Toro directly at www.Toro.com for product 1. Location of the model and serial numbers safety and operation training materials, accessory information, help finding a dealer, or to register your product.
- Page 2 Description Qty. Slide-lock bracket Clevis pin (1/2 x 4-1/2 inches) Flat washer (17/32 inch) Hairpin cotter Drag tongue Install the drag tongue. Cotter pin (1/8 x 1 inch) Shackle Hex-head bolt (1/4 x 2-1/2 inches) Spacer Locknut (1/4 inch) Hex-head-flange bolt (3/8 x 1-1/4 inches) Flange nut (3/8 inch) Drag mat Clevis pin (3/8 x 1-1/8 inches)
- Page 3 Assembling and Installing the of the quick-attach coupler to the left side of the lift arm (Figure Lift-Arm Assembly 1. Attach the wear pad to the lift-arm with 2 hex-head flange bolts (3/8 x 1-1/4 inches) and 2 flange nuts (3/8 inch) as shown in Figure Figure 3...
- Page 4 Figure 4 1. Slide-lock bracket 4. Flat washer (17/32 inch) Figure 5 2. Clevis pin—1/2 x 4-1/2 5. Drag tongue 1. Slide-lock bracket 4. Hairpin cotter inches (shown before insertion) 2. Clevis pin (1/2 x 4-1/2 5. Drag tongue inches) 3.
- Page 5 Assembling and Installing the Drag-Mat Assembly 1. Assemble the mat-bracket frame using 2 crossmember brackets and 2 drag-mat, side brackets together with 2 clevis pins (3/8 x 3/4 inch), 2 cotter pins (15/16 x 3/4 inch), 2 hex-head bolts (3/8 x 1 inch), and 2 flange nuts (3/8 inch) as shown in Figure Figure 9...
-
Page 6: Operation
Operation Using the Drag Mat Important: Do not drive the machine backward when the drag mat is connected and on the ground; otherwise, the wheels in reverse may catch the mat underneath them and damage the mat. Also, the nails from the nail drag may damage the mat. - Page 7 Notes:...
- Page 8 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
