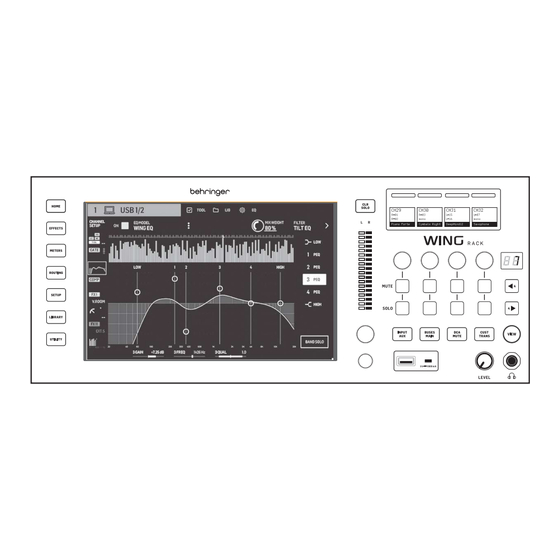

Rackmount 48 channel, 28 bus full stereo digital mixing engine with 24-midas pro preamps, 8 midas pro outputs and 10" touch screen
Hide thumbs Also See for WING RACK:

Advertisement

Quick Links

Download this manual
Quick Start Guide
WING RACK
Rackmount 48 Channel, 28 Bus Full Stereo Digital Mixing Engine with
24-Midas PRO Preamps, 8 Midas PRO Outputs and 10" Touch Screen
V 0.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the WING RACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Behringer WING RACK

Summary of Contents for Behringer WING RACK

  • Page 1 Quick Start Guide WING RACK Rackmount 48 Channel, 28 Bus Full Stereo Digital Mixing Engine with 24-Midas PRO Preamps, 8 Midas PRO Outputs and 10" Touch Screen V 0.0...
  • Page 2 4. Do not block ventilation openings. Do not install in a TC Helicon, Behringer, Bugera, Aston Microphones y 2. Mantenga el aparato alejado del agua (excepto para manuel d’utilisation. Les éventuelles réparations doivent Coolaudio son marcas comerciales o marcas registradas confined space.
  • Page 3 8 Matrix Buses It is recommended to check behringer.com for firmware updates, as new features and bug fixes will be released regularly. Please refer to Chapter 7 in this QSG for Matrix buses have full processing and can be sent to any Output destination. They are often used for sub- or zone mixes that need processing or time alignment. Matrix details about the update process.
  • Page 4 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview BUSES/MAINS Talkback Press the button to toggle between the following layers: The talkback mic level, Dim attenuation and other monitor settings can be adjusted on the SETUP>MONITORS page. By clicking on the TALKBACK>SETUP button, the talkback signals can be sent to different destinations.
  • Page 5 The console also can be connected to a computer via the USB type B connector for the following uses: HOME • • 48 input/48 output audio interface. The corresponding ASIO driver can be downloaded from behringer.com. • • Firmware updates.
  • Page 6 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview The screen defaults to an overview of the selected channel. This screen allows adjustment of basic parameters like pan and level, but mostly provides a starting point to access important processing blocks like EQ and dynamics.
  • Page 7 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview METERS The “CHANNEL INPUT” menu controls whether the channel’s main or alternate input will be configured. This follows the concept of an inline console, where a single channel can have two inputs permanently patched and switched according to the user’s needs.
  • Page 8 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview Sources Audio When clicking on the Sources button, specific customization options for the sources will show up. All the source groups are accessible via the dropdown menu at the The AUDIO CLOCK section controls the console’s sample rate (CLOCK RATE) and word clock source (SYNC SOURCE) settings.
  • Page 9 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview SHOW The SAVE button saves all the console’s settings. SAVE+SCOPE allows the user to select specific content to be saved for specific channels. The NONE and ALL buttons allow a quicker selection of the desired content.
  • Page 10 WING RACK Quick Start Guide Quick Start Guide WING RACK Overview 6. Standalone recorders/players WING-LIVE SD Recorder The USB and SD recorders and their corresponding players can be accessed via the icons at the top of the main display. USB Recorder Up to 64 channels can be recorded on two SD cards in the WING-LIVE expansion card.
  • Page 11 Quick Start Guide WING RACK Overview 7. Firmware updates 8. Shortcuts The WING console firmware can be easily updated via USB. Download the firmware file from the product page on behringer.com and follow these steps: PURPOSE ENTER MODE EFFECT EXIT 1.
  • Page 12 212 WING RACK Quick Start Guide Quick Start Guide 213 Other important information Outras Informações Important information Informations importantes Belangrijke informatie Ważna informacja 其他的重要信息 Importantes 1. Register online. Please register your new 1. Enregistrez-vous en ligne. Prenez le 1. Registre-se online. Por favor, registre seu 1.
  • Page 13 214 WING RACK Quick Start Guide Quick Start Guide 215 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Behringer WING RACK Responsible Party Name: Music Tribe Commercial NV Inc. 122 E. 42nd St.1, Address: 8th Floor NY, NY 10168, United States Email Address: legal@musictribe.com...
  • Page 14 We Hear You...
