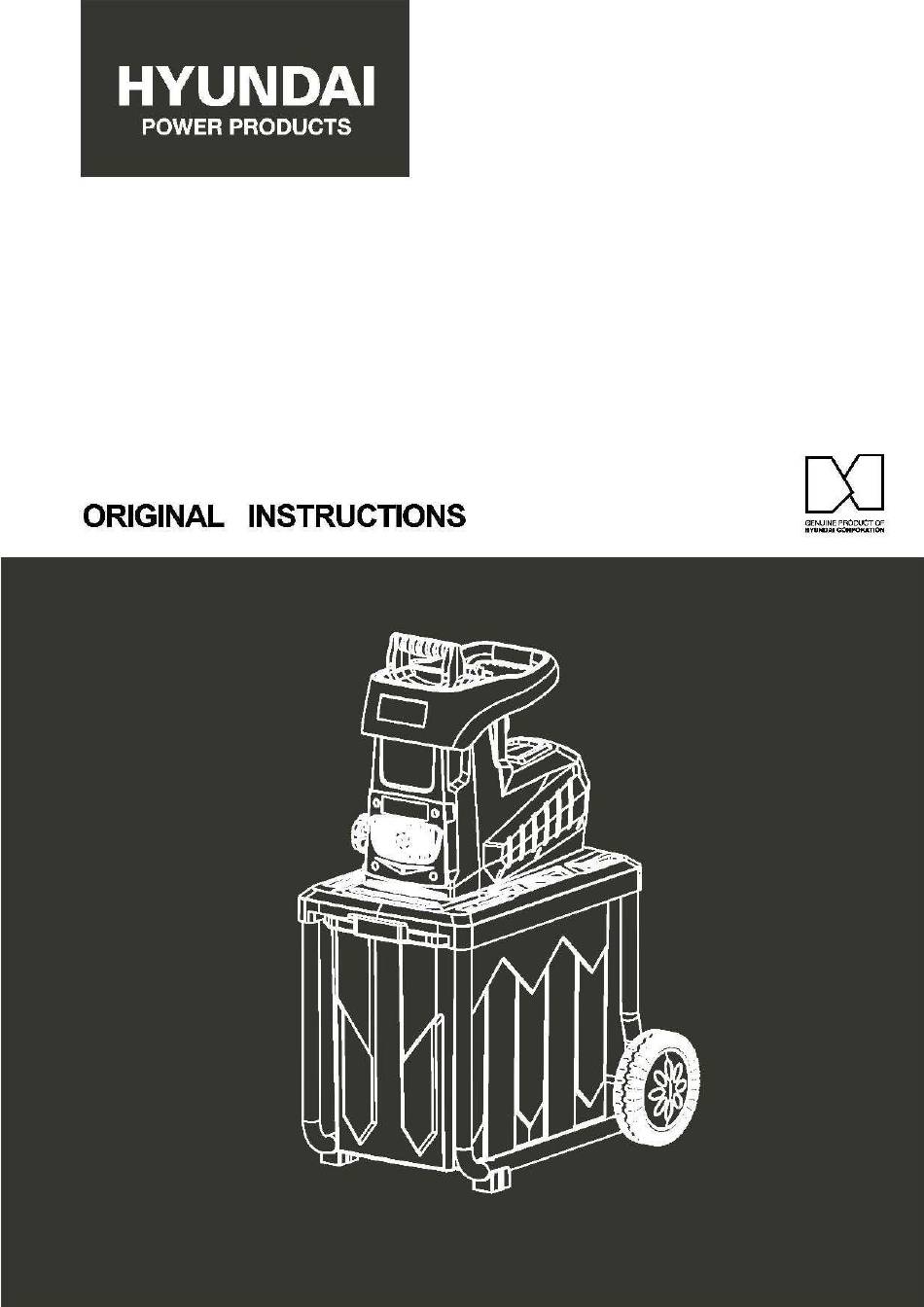

- Page 1 ELECTRIC PLANT SHREDDER HBVES2801 WARNING: READ THIS MANUAL BEFORE USING THIS MACHINE!
-
Page 2: Table Of Contents
CONTENTS 1. IMPORTANT SAFETY INFORMATION....................3 2. WARNING SYMBOLS..........................12 3. MACHINE OVERVIEW ......................13 4. TECHNICAL DATA ........................14 5. ASSEMBLING ........................... 14 6. OPERATING INSTRUCTION ....................17 7. MAINTENANCE AND STORAGE....................19 8. EC DECLARATION OF CONFORMITY ..................20 9. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE SAFE OPERATING PRACTICES TRAINING Become familiar with the owner’s manual before attempting to operate this equipment. PREPARATION 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders;... - Page 4 2) Keep your face and body away from the feed intake opening; 3) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part; 4) Keep proper balance and footing at all times. Do not overreach.
-
Page 5: Maintenance And Storage
machines will still cause the cutting means to move; 10) Keep all guards and deflectors in place and in good working condition; 11) Do not transport this machine while the power source is running; 12) Shut off the power source and disconnect from supply whenever you leave the work area;... -
Page 6: Safety Advice & Instructions
where a key is fitted remove the key. Allow the machine to cool before making any inspections, adjustments, etc. 2) Always allow the machine to cool before storing; 3) When servicing the cutting means be aware that, even though the power source will not start due to the interlock feature of the guard, the cutting means can still be moved by a manual starting mechanism. - Page 7 Follow the checklist below, before attempting to use the machine. 1.The sheathing of the flex in the plug or socket is securely gripped under the cord grip. 2.There is no damage to the sheath of the extension lead. 3.The cable is run out safely to avoid damage or accidental tripping.
-
Page 8: Dress Properly
Keep children and pets away from the work area Do not let visitors touch the tool or extension cord. All visitors should be kept away from the work area. Store idle tool When not in use, tools should be stored in a dry, high or locked up place, out of reach of children. -
Page 9: Check Damaged Parts
Never carry the tool by the cord or pull it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. Do not over reach Keep proper footing and balance at all times. Maintaining your tool Keep cutting blade sharp and clean for better performance. -
Page 10: Additional Safety Advice
adjusting wrenches are removed from the tool before turning it on. Avoid unintentional starting Do not move a plugged-in tool with a finger on the switch. Ensure the switch is off when plugging in. Stay alert Watch what you are doing. Use common sense. Do not operate tool when you are tired. - Page 11 5.Take care when the blades are in operation. 6.Do not abuse the cable. Never move the shredder by the cable or pull the cable to disconnect it from the socket. Keep the cable away from heat, oil, and sharp edges. Ensure that the cable is arranged so that it cannot be tripped over, stepped on or have heavy weights rested on it.
-
Page 12: Warning Symbols
2. WARNING SYMBOLS "Read operator's manual" “Danger - Rotating blades. Keep hands and feet out of openings while machine is running.” "Keep bystanders away” "Wear eye and hearing protection "Do not use as a step" Wait until all machine components had completely stopped before touching them Do not expose to rain Sound power level 92dB(A) according to directive 2000/14/EC... -
Page 13: Machine Overview
3. Machine overview... -
Page 14: Technical Data
1. Counter blade knob 7. Base frame 13. Direction switch 2. Carrying handle 8. Wheel 14. Overload warning light 3. Plug 9. Wheel cover 15. Power Off switch 4. Shredder unit/chassis 10. Support foot 16. Push plate 5. Collect container 11. - Page 15 Mount the support feet as below pictures shown.
- Page 16 5) Mount Shredder unit/chassis as below pictures shown. 6) Mount collect container as below pictures shown.
-
Page 17: Operating Instruction
7) Interlock switch pusher. 6. OPERATING INSTRUCTION 6.1 Intended use The product is intended for outdoor domestic use in private gardens. The product is designed to shred garden debris such as clippings and small twigs within the limits of its characteristics (smaller than 45mm in diameter). ... - Page 18 Keep proper balance and footing at all times. Do not over reach. Never stand at a higher level than the base of the machine, when feeding material into it. Always keep your fingers and hands away from the feeding chamber. Use the push stick to push in the material.
-
Page 19: Maintenance And Storage
Then, the materials to be shredded should be fully cut again. 6.9 Tips for shredding: Depending on the type, age and dryness of the wood, branches will be more or less easily shredded. The best results are obtained when fresh branches are shredded shortly after being cut. It is recommended to shred soft garden waste in small quantity, especially when the waste is wet. -
Page 20: Ec Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Silent shredder HBVES2801 Serial number: 20240205476-20240205675 Complies with the provisions of the Directive “machinery” 2006/42/EC and national laws transposing it: Also complies with the following European directives:... -
Page 21: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 22: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 23: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
