Related Manuals for Hyundai power products HBT196-1
Summary of Contents for Hyundai power products HBT196-1

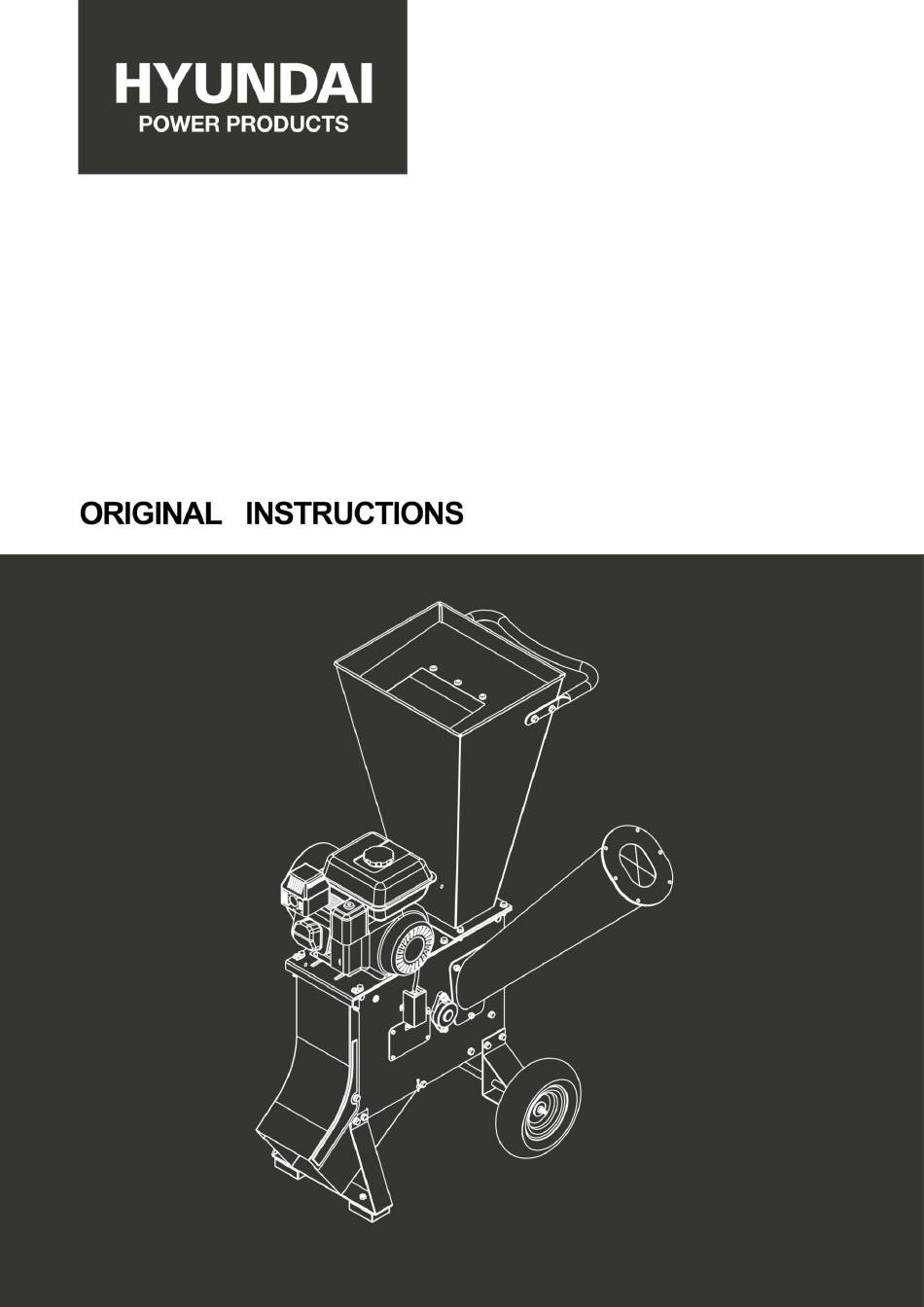

- Page 1 PETROL PLANT SHREDDER HBT196-1 WARNING: Read thoroughly the instruction manual before using this machine!
- Page 2 1. INTRODUCTION Thank you for choosing this machine. We are confident that you will appreciate the quality and performance of this machine. Warning! Read all safety warnings and all instructions. The failure to observe all warnings and instructions below can result in fire and / or serious injury. Before using this machine, carefully read the information in this manual on correct setup and safe techniques.
- Page 3 Only operate the machine in open space (e.g. not close to a wall or other fixed object) and on a firm, level surface; Do not operate the machine on a paved or gravel surface where ejected material could cause injury; ...
- Page 4 Check for and tighten any loose parts ; Have any damaged parts replaced or repaired with parts having equivalent specifications. 8) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the feed intake opening;...
-
Page 5: Warning Symbols
3. WARNING SYMBOLS Warning labels indicate required information for the use of the machine. Warning: Danger! Caution: Read carefully the manual before use. Danger - Rotating blades. Keep hands and feet out of openings while machine is running Keep bystanders away. Wear eye and ear protection Do not use as a step. -
Page 6: Machine Description
Open fuel key. Positions of the accelerator: Tortoise = Minimum. Hare = Maximum. ON (Machine is ready to function). OFF (Machine cannot function). HOT Warning: Hot surface! Risk of Burns. Oil Tank Don’t put your hand into the machine. 4. MACHINE DESCRIPTION 5.1.CONDITIONS OF USE The chipper is only designed to shred pieces of wood. -
Page 7: Technical Characteristics
10. Air filter 11. Fuel tank 12. Plastic cover Images and drawings in this manual are approximate and may not correspond with the actual product. 5.3. TECHNICAL CHARACTERISTICS Model HBT196-1 Engine OHV 4-stroke 4.3kW Displacement 212cc Fuel Type Unleaded Petrol Fuel Volume 3.6L... -
Page 8: Start-Up Instructions
6. START UP INSTRUCTIONS 6.1. UNPACKING AND LIST OF MATERIALS This machine includes the following items that you will find inside the box: 1 Machine 2 Back Support 3 Wheel (×2) 4 Axis wheel 5 Side Feed Hopper 6 Transport handle 7 Protector 8 Bag 9 Gloves (×2) - Page 9 6.2.ASSEMBLY Step 1. -Wheel axle and wheels. Step 2. - Support feet and outlet hopper cover.
-
Page 10: Fuel And Oil
Step 3. -Side feed hopper Step 4. -Attached transport handle. Step 5. - Optional choose (for just electrical starter engine) 6.3. FUEL AND OIL IMPORTANT: The fuel used for this machine is highly flammable. I the fuel or the machine ignites, put out the fire with a dry power extinguisher. Petrol and oil are extremely flammable and explosive under certain conditions. -
Page 11: Engine Oil
3. Tightly close the fuel tank’s cap and remove all the fuel that spilled with a dry cloth. WARNING: Stop the engine before refueling. Do not start the machine in an enclosed room or space. The exhaust gases and fumes from the fuel and oil contain carbon monoxide and harmful chemicals. In case of a concentration of gases produced by poor ventilation, remove area all that impedes the flow of clean air from the work area to improve ventilation. -
Page 12: Checkpoints Before Commissioning
- Insert the filled 0.6L of oil tube for 6.5HP engine, 1.1L of oil tube for 15HP engine. - Wait 1 minute for the oil to completely go down to the crankcase. - Clean the dipstick from the oil with a cloth. - Insert the rod and screw on the oil cap. -
Page 13: Starting The Engine
The machine must be used by only one person at a time. Never insert your hands in the entry chute until the machine has been stopped and the blades have stopped rotating. The pieces of wood that might have got stuck transversally must only be removed when the machine has been stopped and the blades have stopped rotating. -
Page 14: Stop The Engine
6. When the engine is running, the speed can be adjusted by moving the throttle control lever (Pic.16) (16.1) to the high ( indicated by a hare), medium or low position (indicated by a tortoise). 6.4.3. STOP THE ENGINE Note: If the machine should start to make an unusual noise, stop the machine immediately, allow the engine to cool and inspect thoroughly. - Page 15 4. When finished chipping, turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs.
-
Page 16: Maintenance
D. Turn OFF the machine, allow all moving parts to completely stop, and disconnected the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs. Shredding Tips: ... - Page 17 Before and after every use of the wood chipper, it is recommended that the following inspection process take place. This is quick and easy, and ensures your safety as well as the machine’s performance. 1. Check the Hopper, Chute, Funnel and guards for cracks, holes and loose bolts. 2.
-
Page 18: Engine Oil Replacement
8.1.3.2. ENGINE OIL REPLACEMENT The oil should be replaced after approximately 68 hours of use. It is recommended you maintain an estimate of this by tracking your usage of the machine. 1. As per normal start-up, ensure the machine is on a flat, dry surface and follow the previous instructions to start-up. -
Page 19: Replace The Blades
8.2. REPLACE THE BLADES Sharpen or replace the blades as soon as the chipping performance begins to deteriorate, or if you notice the blade with chips or cracks. To perform this procedure: 1. Turn off the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire! 2. -
Page 20: Periodic Maintenance
8.4. PERIODIC MAINTENANCE Perform regular inspections of the machine in order to ensure effective operation of the machine and prevent risk of injury to machine and user. Replacement parts should be purchased at the official service dealer. The use of non-official spare parts may cause risk of accident, injury to the user and scrapping of the machine. - Page 21 Chips and sawdust around the motor Clean off the motor Engine overheats Dirty air filter Clean out the air filter Check the blades, hammers, impeller, and all Loose or damaged parts connections. Tighten, repair, or replace any Machine vibrates or makes unusual loose or damaged parts noises Impeller or blades have woody residue...
-
Page 22: Recycling And Machine Disposal
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Declare that the following tool: Petrol Plant Shredder HBT196-1 Serial number: 20220508463-20220509182 Is in conformity with the requirements of the Directive Machine 2006/42/EC and to the followings Europeans Directives:... -
Page 23: Warranty
14. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 24: P R O D U C T Fa I L U R E
15. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 25: Warranty Exclusions
16. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
