Hyundai power products HBT75 Original Instructions Manual

Thermal plant shredder
Hide thumbs

Advertisement

Table of Contents

THERMAL PLANT SHREDDER
HBT75

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBT75 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HBT75

Summary of Contents for Hyundai power products HBT75

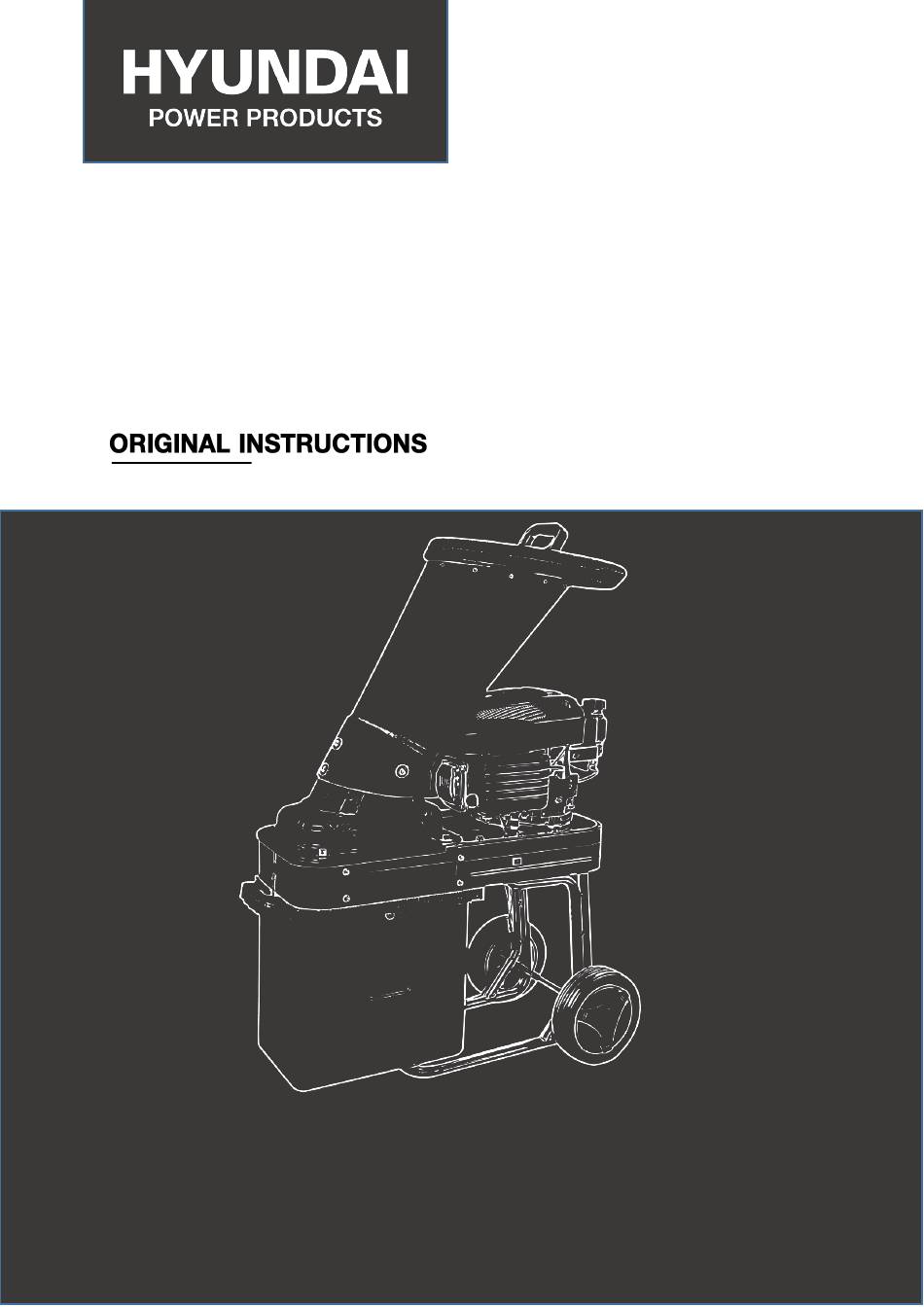

  • Page 1 THERMAL PLANT SHREDDER HBT75...
  • Page 2 GENERAL SAFETY RULES Warning symbol Caution: Read carefully the manual before use. Danger - Rotating blades. Keep hands and feet out of openings while machine is running Keep bystanders away Wear eye and ear protection Do not use as a step 2 / 16...
  • Page 3 Wear protective gloves Wear safety footwear Danger – risk of fire Caution – hot surface Warning – exhaust gas. Do not inhale them Guarantee sound power level 3 / 16...
  • Page 4 IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;...
  • Page 5 4) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it; 5) Always stand clear of the discharge zone when operating this machine; 6) When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included;...

  • Page 6: Intended Use

    INTENDED USE This shredder is intended for mulching garden and pruning waste such as green branches, twigs, brush, vines, and long grasses. DO NOT use this shredder for chipping construction debris, plastic, paper products, rope or twine, or any material that may contain metal. GENERAL IDENTIFICATION 6 / 16...

  • Page 7: Starting The Engine

    1. Hopper 2. Discharge chute 3. Hopper knob 4. Safe key 5. Dustbin 6. Wheel 7. Leg 8. Engine 9. Material push stick ASSEMBLY INSTRUCTIONS Hopper installation 1. Carefully insert the hopper into the hopper holder (Fig. A) 2. Locate the screws (total 4 screws) to correct position. 3.
  • Page 8 Turn engine switch to ON position.(Fig F) Press the primer button 3 times. (Fig G) Pull the recoil starter handle gently until it engages the give it a good strong pull to start the engine. (Fig H) Engine switch Fig F Fig G Fig H TURN THE ENGINE OFF...

  • Page 9: Maintenance

    Fig J 3. MATERIAL PUSH STICK User supplied push stick to push remaining material into hopper opening. DO NOT USE HANDS. (Fig K) Fig K MAINTENANCE WARNING! Priors to any maintenance, to stop engine and switch if off first. WARNING! Disconnect spark plug wire from the spark plug to prevent unintentional engine starting.

  • Page 10: Blade Maintenance

    Regular maintenance will improve the performance and extend the life of the engine. Please follow the instructions and schedules indicated below:  Drain engine oil and change it after first 5-8 hours of operation and every 50 hours or three months after that. It is also a highly recommendation to change oil every 25 hours.

  • Page 11: Change Oil

    1. Switch the machine off, and make sure the machine is completely stopped. 2. Wear gloves when attempting any maintenance to the cutting blades. 3. Loose four safety 4 screws as shown on (Fig L), carefully lift up the hopper. 4.

  • Page 12: Air Cleaner Maintenance

    AIR CLEANER MAINTENANCE A dirty air filter will increase air intake restriction. Periodical maintenance or air filter will help to improve engine performance and reduce emissions. WARNING! Never clean air filter with gasoline or an easy ignited solvent it may cause explosion. 1.

  • Page 13: Transporting And Storage

    1. Removing spark plug with a spark plug wrench. 2. Inspect the spark plug visually. If spark plug is worn, dirty or has cracks, replace with the recommended type and heat range. 3. The correct air gap is 0.70 to 0.80mm (Fig Q) 4.
  • Page 14 slowly several times to distribute the oil in the engine. 6. Slowly pull start handle (A) until the resistance is reached, then stop pulling. At that point, valves are closed, that will prevent dust and rust from entering cylinder. (Fig R) 7.
  • Page 15 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Declare that the following tool: Thermal Plant Shredder HBT75 Serial number: Is in conformity with the requirements of the Directive Machine 2006/42/EC and to the followings Europeans Directives: EMC Directive 2014/30/EU...
  • Page 16 16 / 16...
