Summary of Contents for Hyundai power products HBT420

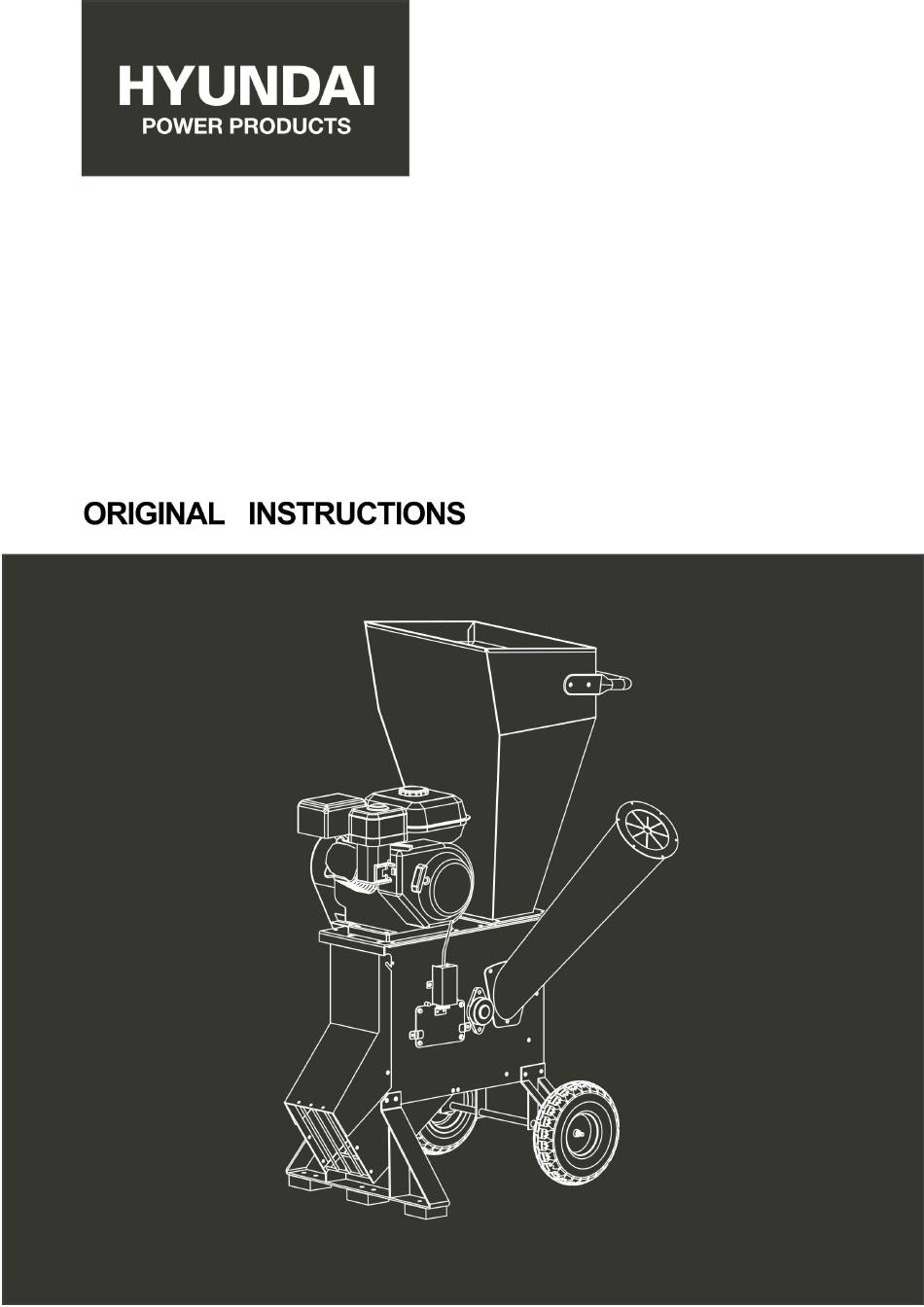

- Page 1 PETROL PLANT SHREDDER HBT420 WARNING: Read thoroughly the instruction manual before use...
- Page 2 Identification Machine Identification (Pic.1) Pic.1 A. Hopper B. Motor C. Chip Outlet D. Chipper Funnel E. Choke F. Fuel Cock G. ON/OFF Switch H. Throttle Fuel Tank Cap J. Air Cleaner K. Exhaust L. Pull Start Handle Pic.1 Chipper/Shredder Identification...
- Page 3 SECTION 1: SAFETY IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;...
- Page 4 2) Keep your face and body away from the feed intake opening; 3) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part; 4) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it;...
-
Page 5: Safety Instructions For Machinery
a) shut-off the power unit before attaching or removing the bag. The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. - Page 6 wet locations, or where any flammable or noxious fumes may exist. 11. KEEP WORK AREA CLEAN AND WELL LIT. Clutter and dark shadows may cause accidents. 12. TURN OFF THE MACHINE BEFORE REPAIRING THE TOOL. 13. MAINTAIN MACHINERY WITH CARE. Keep blades sharp and clean for best and safest performance.
- Page 7 28. FEEDING MATERIAL: Hold branches and brush loosely, and allow the chipper/shredder to draw the material in. The machine sometimes will draw material in very quickly and your hand may be drawn in if you are holding tightly. If the blades hit a hard object, or if the machine begins to make an unusual noise or vibration, immediately shut the chipper/shredder OFF.
-
Page 8: Set Up Safety
Keep bystanders away Danger - Rotating blades. Keep hands and feet out of openings while machine is running Wear eye and ear protection Do not use as a step SECTION 2: SET UP Set Up Safety This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine! Site Considerations... - Page 9 Make sure the unit is located close to the area where the chips are going to be used to reduce carrying. Stay clear of the discharge area. Make sure all bystanders, children, pets, or objects that you do not want damaged or covered in chips, are clear of the discharge area. Assembly The major components of this chipper/shredder have been assembled at the factory.
- Page 10 Place the funnel over the studs in the side of the chipper/shredder and secure it with flat washer (Ø8, 3pcs), spring washer (Ø8, 3pcs) and locknut (M8, 3pcs). (See Pic.4) Pic.4 Funnel installation Before operating, fill the motor with oil and gas according to the instructions. This chipper/shredder does not have oil in the motor when shipped.
-
Page 11: Section 3: Operations
SECTION 3: OPERATIONS Operation Safety Damage to your eyes, hands, and ears could result from using this machine without proper protective gear. Always wear safety glasses, hearing protection, and leather gloves when operating this machine. Loose hair and clothing could get caught in machinery and cause serious personal injury. - Page 12 may contain metal. Note: Remove any nails, rope, twine, or rocks that may be imbedded in roots, before inserting material into the chipper/shredder. To operate the chipper/shredder: Place the chipper/shredder on a flat, firm, dirt or grass surface and point the outlet in a safe direction.
- Page 13 lever to the ON position (Pic.12) (12.1). When the engine is running, the speed can be adjusted by moving the throttle control lever (Pic.13) (13.1) to the high (indicated by a hare), medium or low position (indicated by a tortoise). To stop the chipper/shredder: To stop the engine, turn the engine ON/OFF switch to the OFF position (Pic.14) (14.1).
- Page 14 Pic.16 Shredding leaves Note: Move the throttle to the idle position, or turn the chipper/shredder OFF, when not actively shredding or chipping. Turn OFF the machine, allow all moving parts to completely stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs.
-
Page 15: Section 4: Maintenance
When finished chipping, turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and repairs. -
Page 16: Maintenance Of Engine
Maintenance of engine Spark Plug After every 50 hours of running the spark plug should be removed. Check the color of the deposits on the end of the spark plug it should be a “Tan” color. Remove all deposits using a stiff brush a brass wire brush is ideal. -
Page 17: Replacing Blades
should be removed and cleaned. Remove the fuel tank filler cap and the filter, clean the filter thoroughly using environmentally friendly water based degreasing agent and re-fit. Replacing Blades Sharpen or replace the blades as soon as the chipping performance begins to deteriorate, or if you notice dings, chips, or cracks. -
Page 18: Section 5: Service
Roll the belt off of the pulleys and install the new belt. Replace the V-belt cover and re-attach the spark plug wire. Storage Follow these guidelines when storing your chipper/shredder. Remove the spark plug wire to prevent unauthorized starting. Empty the bag before storing to keep the mulch from rotting in the bag. -
Page 19: Section 6: Specification
Troubleshooting Symptom Possible Cause Possible Solution Engine will not start. 1. Control levers are not in correct 1. Make sure the ON/OFF switch is ON, the positions for starting. fuel shut-off valve is open, and the choke and throttle controls are in the start position. 2. -
Page 20: Section 7:Declaration Of Conformity
Declaration of conformity BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declare that this machine: PETROL PLANT SHREDDER Model: HBT420 Serial number: 20210726940-20210726995 Is in conformity with the directive « machine » 2006/42/CE and to regulations transposing it... -
Page 21: Warranty
SECTION8: WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 22: Section9:Product Failure
SECTION9:PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Section10:Warranty Exclusions
SECTION10:WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
