Peak PX12 Installation And Service Manual

Hide thumbs Also See for PX12:

Advertisement

Quick Links

Download this manual
Original

Advertisement

loading
Need help?

Need help?

Do you have a question about the PX12 and is the answer not in the manual?

Questions and answers

Related Manuals for Peak PX12

Summary of Contents for Peak PX12

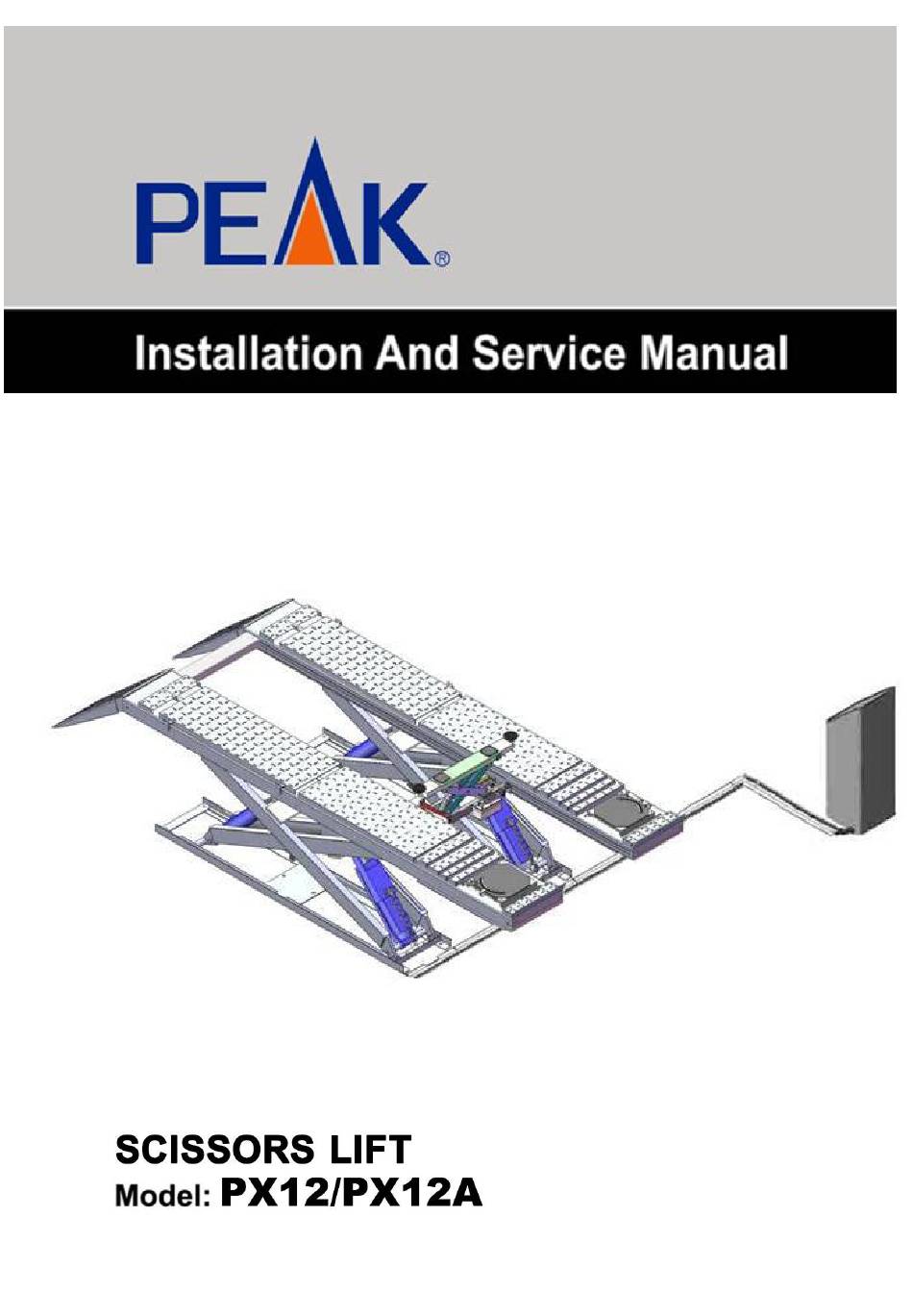

  • Page 1 Original...
  • Page 2 CONTENTS Product Features and Specifications ............1 Installation Requirement ...............3 Steps of Installation ................4 Exploded View ..................27 Test Run ....................38 Operation Instruction ................39 Maintenance ..................40 Trouble Shooting ................42 Lift Disposal ..................42...
  • Page 3 I. PRODUCT FEATRUES AND SPECIFICATIONS Professional Alignment Scissors Lift Model PX12A · Electric- air control system, safety self-lock mechanism · 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms · Non-skid diamond runway · Integrated rear slip-plates ·...
  • Page 4 · Non-skid diamond runway; supper wide platform · Heavy duty design, fit for a wide range of vehicle car to van and truck · Optional Jack (with hand pump/air-operated hydraulic pump) Fig. 2 MODEL PX12 SPECIFICATIONS Overall Distance Liftin Runwa...
  • Page 5 INSTALLATION REQUIREMENT A. TOOLS REQUIRED  Rotary Hammer Drill Carpenter’s Chalk (Φ19, Φ10, Φ4,)   Hammer Screw Sets   Level Bar Tape Measure (7.5m)   English Spanner (12") Pliers   Ratchet Spanner With Socket (28 Lock Wrench ...
  • Page 6 III. STEPS OF INSTALLATION A. Location of Installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. 1. For Standard Installation: On surface installation PX12/PX12A On surface installation foundation (See Fig. 4) Fig. 4...
  • Page 7 1.2 Illustration of scissors lift PX12 on surface installation (See Fig.5). Fig. 5 1.3 Illustration of scissors lift PX12A on surface installation (See Fig.6). Fig. 6...
  • Page 8 1 The thickness of concrete at the slot bottom must be over 100mm. The bearing pressure must be over 210kg/cm. 2 All pipe must be PVC with diameter 100MM. Fig. 7 2.2 Illustration of scissors lift PX12 with flush mount installation (Fig.8). Fig. 8...
  • Page 9 2.3 Illustration of scissors lift PX12A with flush mount installation (Fig.9). Fig. 9 B. Check the parts before assembly. 1. Received package (Packaged lift , control cabinet and Guide Ramp. Etc.) (See Fig. 10). Fig. 10...
  • Page 10 2. Move aside the lift with fork lift or hoist, and open the outer packing carefully. 2.1 Parts for on surface installation (See Fig.11, Fig.12) For Model PX12A Fig. 11 For Model PX12 Fig. 12...
  • Page 11 2.2 Parts for flush mount installation (See Fig.13, Fig.14) guide ramp Noted: Need for flush mount installation Guide ramp For Model PX12A （510018） Fig. 13 For Model PX12 Guide ramp （510019） Fig. 14...
  • Page 12 3. Open the parts box, check the parts according to the part list (See Fig.15, Fig.16 ). For PX12A For PX12 Fig. 15 Fig. 16 4. Check the parts of the parts bag according to the parts bag list 4.1 Parts bag for on surface installation (See Fig.17, Fig.18)
  • Page 13 4.2 Parts bag for flush mount installation (See Fig.19, Fig.20) For PX12A Fig. 19 For PX12 Fig. 20...
  • Page 14 1. Select a location and layout the equipment according to steps A (See Fig. 21,22). The control cabinet can be installed on the left or right according to the site. For Model PX12A Fig. 21 For Model PX12 Fig. 22...
  • Page 15 2. Connecting the oil hose and air line Control cabinet installed in the left of the car in direction (See Fig. 23). Connect to the A of Air solenoid valve ○ ○ 1 oil hose 1/4*4450mm 4 oil hose 1/4*5960 ○...
  • Page 16 2.2 Control cabinet installed in the right of the car in direction (See Fig. 24). Install the bellows according to the drawing Connect to the A of Air solenoid valve Fig. 24...
  • Page 17 3. Install the oil-water separator (See Fig. 25). 12-8 12-11 Connecting the air source by Fig. 25 the oil-water separator 4. Connect the air source (air pressure 5kg/cm -8kg/cm ), Adjust the air pressure to 0.8MPa (See Fig. 26). Connect air source Adjust the air pressure to 0.8MPa...
  • Page 18 D. Install electric system 1. Wire connection for hydraulic power unit (380V) 1.1 Connect the wire of power and limit switch as below wiring diagram (See Fig. 27). Earth Wire Power Wire Hydraulic Low Limit High Limit Motor Wire Solenoid Valve switch switch and alarm...
  • Page 19 380V Electric Component Item Name Code Specification Power switch 380v AC Breaker Breaker Breaker AC contactor AC 24V Time relay AC24V High limit switch Low limit switch Hydraulic solenoid valve Y1,Y2 AC24V Air solenoid valve AC24V Push button Duplex Push button Lock Duplex Push button...
  • Page 20 2.2 Circuit Diagram (See Fig. 30). Single phase Fig. 30 220V Electric Component Item Name Code Specification Power switch 220V AC Breaker Breaker Breaker AC contactor AC 24V Time relay AC24V High limit switch Low limit switch Hydraulic solenoid valve Y1,Y2 AC24V Air solenoid valve...
  • Page 21 E. Level two platforms and install anchor bolts. 1. Check by level bar, adjust the down leveling bolts(see Fig.31) and add the shim until two platforms are in the same level, lowering the lift to the lowest position and adjust the up leveling bolts (see Fig.32) until contacting the down leveling bolts, tighten the nut with wrench.
  • Page 22 2.2 Fix the anchor bolts. Drilling the hole for the anchor bolt with the rotary hammer drill, type the anchor bolt into the ground, and then fasten it with ratchet spanner (See Fig. 34). Note: The twisting force of anchor bolt is 150N.m, the length inside ground of anchor bolt must be over 90mm.
  • Page 23 G. Install oil hose cover for on surface installation. 1. Tidy up the oil hose and air line, cover the oil hose cover (See Fig. 36). Using the colloidal screw to fasten the oil hose cover Fig. 36 2. Install the oil hose cover (See Fig.
  • Page 24 H. Illustration of installing the PX12/PX12A optional air line kits(Fig.38) 90 fitting 12-30 Air source Fig. 38...
  • Page 25 1. Install air line kit 1.1 Connect the air line fittings with 8*6 black air line as following fig. The length of air line can be cut accordingly. (See Fig.39)   Fig.39...
  • Page 26 φ8*φ6 air line Air Source Oil-water separator View B View A 1.3 Through black air hose(8*6) to 1.2 Replace 90° air hose fitting to the hole of the base and fixing slot of three ways fitting from oil-water outer scissor separator, then through black air hose(8*6) to control cabinet and connect with screw fitting.
  • Page 27 Air source divide into two ways by passing three ways fitting and connect with rolling jack separately. Air line 103 104 Air line View b Ø8*Ø6Air line View a 1.5 Install quick female fitting, then 1.6 Install quick female fitting, then connect it with male air line ...
  • Page 28 2. Connect the air source, operate the jack. Part list for Optional Airline Kits: Item Part# Description 10420213 T2 screw fitting 10540007 Quick T fitting 1061K094 90°bend fitting 1061K092 Hex nut M14 10430010 φ14 Washer 1061K091 Air line fitting 1061K090 C shape Quick female fitting 10800025 φ8*φ6*12200mm Air line...
  • Page 29 EXPLODED VIEW MODEL PX12A Fig.40 Optional Turnplate Optional Turnplate: when assemble turnplate the No.1 adjust plate for turnplate which 35mm height should next to the turnplate.
  • Page 30 MODEL PX12 Fig. 41...
  • Page 31 PARTS LIST For Model PX12A, PX12 Item Part# Description Note PX12A PX12 11520003 Shelf 11530002A Inner Scissors 11530003A Outer Scissors 10520011 Air Cylinder Cup Head Bolt M6*20 10420153 10510034 Hex Bolt M20*75 10510040 Limit switch assy. 11520013A Connecting Pin Snap Ring φ25...
  • Page 32 Item Part# Description Note PX12A PX12 11530001B Runway Connecting Bar 10206023B Hex Nut M12 Lock Washer 12 10420026 10206006 Washer 12 10420136 Hex Bolt M12*45 11520005A Drive-in Ramp(On surface/Flush mount) 11510004A 10209010 Snap Ring Ø10 11620043 Pin for Drive-in Ramp roller...
  • Page 33 Item Part# Description Note PX12A PX12 Extended straight fitting 11217235 J0067:1/4NPT(M)*1/4NPT(F) L=65 M8*30 1061K050 Hex Bolt 8 10209033 Washer 10209005 Self locking Nut 10209062 T- Fitting 10680065 Tee Valve 90° Fitting 1/4NPT(M)*1/4NPT(F) 1052K027 10420018 Self locking Nut M6 10510039 Cup Head Bolt M3*16...
  • Page 34 1. CYLINDERS Add grease to lubricate regularly Add grease to lubricate regularly Fig. 42 Parts List For Main Cylinder Item Part# Description Note 11-1 11530032 Main Cylinder 11-2 10530025 O- Ring (φ98*5.3) Head Cap（Main） 11-3 11530033 11-4 10530028 Support Ring φ60*φ66*15 11-5 10530024 Y- Ring φ60*φ70*6...
  • Page 35 For Secondly Cylinder Parts List Note Item Part# Description Secondly Cylinder 27-1 11530036 27-2 10420062 O- Ring φ82.5*3.5 Head Cap (Secondly） 27-3 11530037 Bleeding Plug 27-4 10201034 O- Ring 27-5 10520058 φ45*3.55 Dust Ring 27-6 10217078 Piston Rod (Secondly) 27-7 11510011B 27-8 10520061...
  • Page 36 Parts of control cabinet Item Part# Description Note 12-1 10201094 Power indicator 12-2 10420071 Button UP 12-3 10420071 Button LOCK Button DOWN 12-4 10420072 12-5 11510724 Control Panel 12-6 41010217 Power Switch (QS) 12-7 11510701 Cabinet Body Air line 12-8 10420167C 6*8*200mm 12-9...
  • Page 37 3. POWER UNIT 220V/50HZ/1Phase 380V/50HZ/3 Phase Fig.44...
  • Page 38 220V/50HZ /1Phase Electric Power Unit Parts list Item Part# Description Qty. Note 81400180 Rubber Pad 81400250 Start capacitor 81400200 Run Capacitor 10420148 Cup head bolt with washer 81400066 Protective cover for capacitor 81400363 Motor Connecting Shaft 80101027 Manifold Block 81400333 Iron Plug 81400266 Relief Valve...
  • Page 39 380V/50HZ /3hase Electric Power Unit Parts list Item Part# Description Qty. Note 71150055 AMGO NAME PLATE 81400300 Cuphead Bolt 81400363 Motor Connecting Shaft 80101027 Manifold Block 81400333 Iron Plug 81400266 Relief Valve 81400566 Check Valve 81400420 Solenoid valve coil 81400423 Release Valve 10209149 Spring Washer φ6...
  • Page 40 TEST RUN 1. Preparation before Synchronous adjustment a. Fill the reservoir with hydraulic oil. In consideration of power unit’s durability and keep the equipment running in the perfect condition, please use Hydraulic Oil 46# . b. Turn the power on, push button UP to check if the rotated direction of motor is correct.
  • Page 41 3. Test run Check and adjust the limit switch, the hose and fitting connection, and do test run. The lift must be tested run and checked carefully before in use. VI. OPERATION INSTRUCTIONS To lift vehicle 1. Keep clean of site near the lift, and down the lift to the lowest position. 2.
  • Page 42 VII. MAINTENANCE SCHEDULE Monthly: 1. Re-torque the anchor bolts to 150 Nm. 2. Check all fittings, bolts and pins to insure proper mounting. Note: All anchor bolts should take full torque. If any of the bolts does not function for any reason, DO NOT use the lift until the bolt has been replaced. 3.
  • Page 43 For shaft of piston rod of For Secondly Cylinder Secondly cylinder Fig.52 Fig.53 Every six months: 1. Make a visual inspection of all moving parts for possible wear, interference or damage. 2. Check and adjust the platform as necessary to insure level lifting. 3.
  • Page 44 VIII.TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1.Start Button does not work 1. Replace Start button 2.Wiring connections are not in good 2. Repair all wiring connection condition Motor does not run 3. AC contactor burned out 3. Replace AC contactor 4. Motor burned out 4.
  • Page 45 PEAK CORPORATION No. 3 Luomu Road,Shishan Town,Nanhai District,Foshan(528225),Guangdong,China Tel:86-757-81102815 8112805 Fax: 86-757-81102809 Email:peak@peaklift.cn http://www.peaklift.cn Manual Part No.: 72215310 Revision Date: 2023/08...
