- Page 1 IOT-R32W User Manual Updated on January 01, 2024...

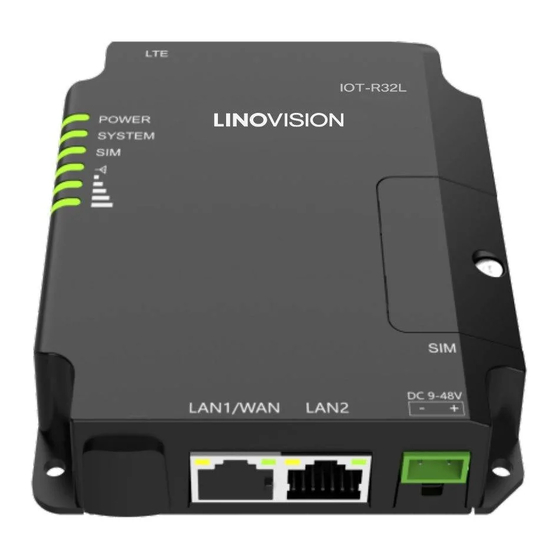

- Page 2 Introduction IOT-R32W is an Industrial Cellular Router that combines a 4G LTE and 4G DTU. Integrating an embedded cellular modem and dual SIM function, it provides a 3G/4G cellular network, It is also equipped with 2 fast Ethernet ports,1 RS232 interface (RS485 optional), and supports Wi-Fi access.
- Page 3 Indication LED Indicator Indication Status Description The power is switched off. POWER Power Status The power is switched on. Static: Start-up Green Light SYSTEM System Status Blinking slowly: The system is running properly. Red Light The system goes wrong. SIM1 or SIM2 is registering or fails to register (or there are no SIM cards inserted). Blinking slowly: SIM1 has been registered and is ready for dial-up.
- Page 4 Installation SIM Card/Micro SD Card Installation A. Unscrew the cover of the SIM card then B. Put SIM card/Micro SD into the slot and screw it up. take it off. Antenna Installation Rotate the antenna into the antenna connector accordingly. The external antenna should be installed vertically always on a site with a good signal.
- Page 5 Log in the Web GUI of Router PC Configuration Please connect PC to LAN port of IOT-R32. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
- Page 6 Log in the Router If this is the first time you configure the router, please use the default settings below: IP Address: 192.168.1.1 Username: admin Password: password A. Start a Web browser on your PC (Chrome is recommended), type in the IP address, and press Enter on your keyboard.
- Page 7 C. Connect WAN port to another router or modem. D. Log in IOT-R32 web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. E. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1. F.Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via IOT-R32 router.
- Page 8 D. Click to configure ICMP ping detection information. E. Click “Status > Cellular” to view the status of the cellular connection. If it shows “Connected”, it means SIM1 has dialed up successfully. On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully.
