- Page 1 IOT-R32W Quick Start Guide...
-
Page 2: Related Documents
This guide describes how to install the R32W and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Linovision R32W User Guide for instructions on how to perform configurations on the device. -
Page 3: Packing List
1 × Quick Start Guide 1 × Stubby Wi-Fi 1 × GPS Antenna 2 × Stubby Cellular Antenna (GPS Version Only) Antennas (Optional) (Wi-Fi Version Only) If any of the above items is missing or damaged, please contact your sales representative. www.linovision.com... -
Page 4: Hardware Introduction

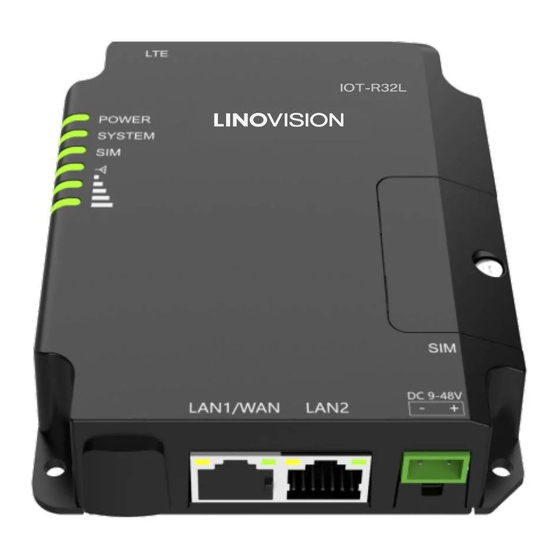

AUX Cellular Antenna LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator SIM : Status Indicator : Signal Strength Indicator Serial Port & I/O Ethernet LAN1/WAN Port Ethernet LAN2 Port Power Connector SIM and Reset Button Holder 2.2 Dimensions (mm) www.linovision.com... -
Page 5: Led Indicators
Static: SIM2 has been registered and dialed up successfully No signal Signal Static/Off/Off: weak signals with 1-10 ASU (please Signal 1/2/3 Strength Green Light check if the antenna is installed correctly, or move the antenna to a suitable location to get better signal) www.linovision.com... - Page 6 Press and hold the reset button for more than 5 seconds. Static Green → Reset Release the button and wait. Rapidly Blinking Off → Blinking The router is now reset to factory defaults. 2.6 Ethernet Port Indicator Indicator Status Description Connected Link Indicator (Orange) Blinking Transmitting data Disconnected www.linovision.com...
-
Page 7: Antenna Installation
The router can be placed on a desktop or mounted to a wall or a DIN rail. 3.4.1 Wall Mounting (Measured in mm) Use 4 pcs of M3 × 6 flat head Phillips screws to fix the router on the wall. Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m. www.linovision.com... - Page 8 Use 2 pcs of M3 × 6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket. Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m. www.linovision.com...
- Page 9 PC to WAN port of the router. But it will function properly if you enable it on Web GUI.) ② Click “Control Panel” to open it, and then click ① Click “Search Box” to search “Control Panel” on the Windows 10 taskbar. “View network status and tasks”. ③ Click “Ethernet” (May have different names). ④ Click “Properties”. www.linovision.com...
- Page 10 If this is the first time you configure the router, please use the default settings below: IP Address: 192.168.1.1 Username: admin Password: password A. Start a Web browser on your PC (Chrome is recommended), type in the IP address, and press Enter on your keyboard. B. Enter the username and password, click “Login”. www.linovision.com...
- Page 11 It’s suggested that you change the password for the sake of security. Click “Cancel” button if you want to modify it later. D. After you log in the Web GUI, you can view system information and perform configuration on the router. www.linovision.com...
-
Page 12: Network Configuration
Click “Save & Apply” button to make the changes take effect. C. Connect WAN port to another router or modem. D. Log in R32W web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. www.linovision.com... - Page 13 If you select “Auto”, the router will obtain ISP information from SIM card to set APN, Username, and Password automatically. This option will only be taken effect when the SIM card is issued from a well-known ISP. C. Go to “Network > Interface > Link Failover” to enable SIM1 and rise link priority of SIM1. www.linovision.com...
- Page 14 E. Click “Status > Cellular” to view the status of the cellular connection. If it shows “Connected”, it means SIM1 has dialed up successfully. On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM1 has dialed up successfully. www.linovision.com...
- Page 15 R32W Quick Start Guide F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via R32W router. [END] www.linovision.com...
