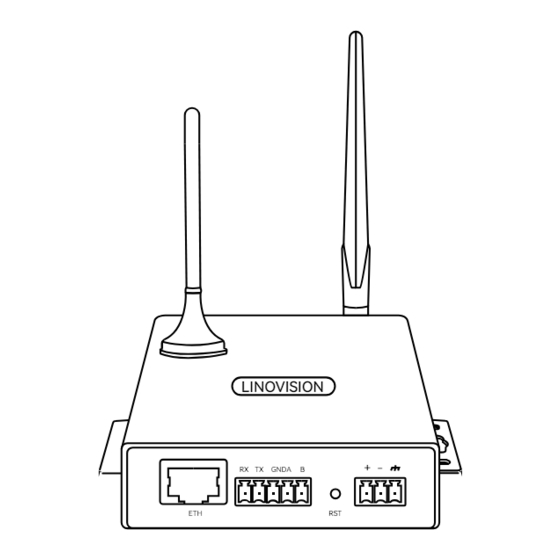

LINOVISION IOT-R51W Quick Manual

Hide thumbs Also See for IOT-R51W:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

IOT-R51W
Quick Guide
Updated on March 27, 2025
Datasheet
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOT-R51W and is the answer not in the manual?

Questions and answers

Related Manuals for LINOVISION IOT-R51W

Summary of Contents for LINOVISION IOT-R51W

  • Page 1 IOT-R51W Quick Guide Updated on March 27, 2025 Datasheet User Manual...

  • Page 2: Installation

    Scan QR code To learn more about the vSIM Data Plan, please scan the QR code on the router label or visit our website at: https://linovision.com/pages/vsim-data-plan. Rear Panel LED Indicator A green LED indicates system online. Flashes green when there is Ethernet traffic.
  • Page 3 Connect IOT-R51W router to PC Connect the Ethernet cable to the router’s Ethernet port and to the Ethernet port on the PC. Alternatively, use Wi-Fi to access the web platform by opening a web browser and entering the default IP address.
  • Page 4 The default SSID is “2.4_2xxxxxxxxxx” and the default password is “12345678”. To modify these settings, navigate to “Network > WLAN > Edit”. The IOT-R51W router offers two operational modes: Access Point (AP) mode and Client (STA) mode. In AP mode, the router provides wireless LAN hotspots for convenient network access, eliminating the need for additional wiring.

  • Page 5: Save Your Settings

    Save your settings Once you have completed naming and securing your wireless network, click the “OK” button. The changes will be applied to the router, which may take a few moments. After the router has completed its configuration process, your wireless network will be enabled. Use Case ( Set up remote access for IP camera) Plug-and-play installation ensures easy setup and instant connectivity.
  • Page 6 Click “Applications > DTU > Edit" Supports MQTT Protocol Convert Click Applications > DTU > Configuration > Select Protocol > OK. A lightweight publish-subscribe messaging protocol optimized for resource-constrained devices with minimal code requirements and low network bandwidth consumption. MQTT is widely adopted across industries including water management, mining, energy, oil and gas, and industrial automation.
  • Page 7 Click "+Topic” to create multiple public topics An MQTT topic is a string used within the MQTT protocol to identify and route messages. It serves as a key element in facilitating communication between MQTT publishers and subscribers. In the MQTT publish/subscribe model, publishers send messages to specific topics, while subscribers can subscribe to these topics to receive the corresponding messages.
  • Page 8 RemoteMonit Scan the QR code below to access visual instructions for pairing your device with RemoteMonit. LAN Configuration The configuration of the LAN port is primarily used to facilitate the connection between the router and the slave device, enabling the slave device to access the external network via the router.
  • Page 9 Devices on Different Network Segments (In situations where it is not possible to modify the camera's IP address, you can instead adjust the router's IP address to ensure compatibility.) Click “Network > LAN” First, change the netmask of the router to ensure it matches that of your camera. Verify that the IP addresses of both the camera and the router are on the same network segment, based on the subnet mask configuration.
