Summary of Contents for Bartscher 150529

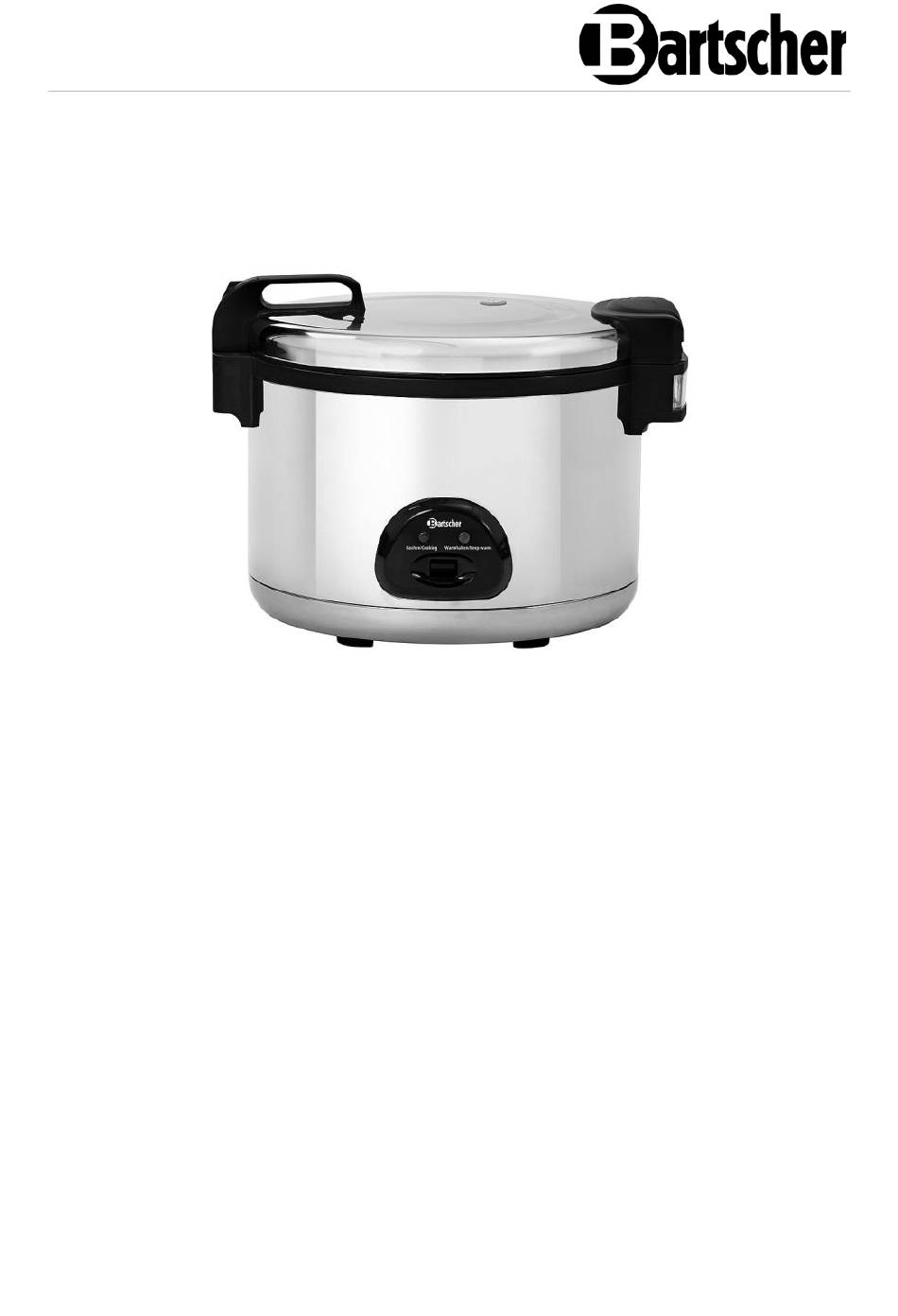

- Page 1 150529...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 2.0 Date of preparation: 2024-12-16...
- Page 3 List of Components of the Appliance ............. 10 Functions of the Appliance ..............11 Installation and operation ................12 Installation ....................12 Operation ....................13 Cleaning ...................... 18 Safety Instructions for Cleaning ............. 18 Cleaning ....................18 Disposal ....................... 20 150529 1 / 22...
- Page 4 You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 150529...
- Page 5 Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 150529 3 / 22...
- Page 6 Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. 4 / 22 150529...
- Page 7 This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. • Children should be supervised to ensure that they are not playing with or switching the appliance on. 150529 5 / 22...
- Page 8 The appliance may only be used to perform tasks described in this instruction manual. The following is an unintended use: – preparation of food products other than rice, – pouring and heating up flammable, harmful, and quickly evaporating liquids or materials, etc. 6 / 22 150529...
- Page 9 Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 150529 7 / 22...
- Page 10 – in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 150529...
- Page 11 Technical Data Technical Data Technical Specifications Name: Rice cooker 12L 150529 Art. No.: Material: stainless steel Inner pot version: non-stick coating, heat-resistant Volume, in l: Quantity of rice, in portions: 40 - 60 Connected load: 2,85 kW | 220-240 V | 50-60 Hz...
- Page 12 4. Steam relief valve 5. Condensate collecting tank 6. Marker / quantity indication 7. Silicone mat / protection against 8. Control panel burning 9. External pot 10. Inner pot 11. Measuring cup 12. Rice spoon 13. Rice fork 10 / 22 150529...
- Page 13 Functions of the Appliance In the rice cooker you can cook or keep rice warm – without the risk of it sticking or burning. Additionally, the removable inner pot and burn protection silicone mat guarantee quick and easy cleaning. 150529 11 / 22...
- Page 14 – Leave the supply and exhaust air vents, if any, free. – Comply with applicable technical and building regulations. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Leave at least 10 cm clearance from flammable walls and items. 12 / 22 150529...
- Page 15 If the above instruction is not observed, the appliance may be damaged! Never immerse the external container in water or other liquids. Do not pour water into the external container. The outer surface of the inner pot should always be dry and clean. 150529 13 / 22...
- Page 16 Depending on taste a pinch of salt may be added. Rinsing the rice before cooking makes it less sticky in the pot, but removes some nutrients. If rice is soaked for 5-10 minutes before cooking, it will be softer after cooking. 14 / 22 150529...
- Page 17 9. Press the function switch (press it down). The red “Cooking” indicator light is lit. When rice is cooked, the red “Cooking” indicator light goes off and the orange “Keep warm” indicator light is lit. The appliance switches automatically to the warm-keeping mode. 150529 15 / 22...
- Page 18 NOTE! Before starting subsequent cooking process, the appliance (including the inner pot) must cool down completely; otherwise, the processing time within the subsequent cooking process shortens considerably and rice will not be cooked properly. 16 / 22 150529...
- Page 19 2. Grab and hold the condensate collecting tank firmly on both sides and pull it out. 15. Empty the condensate collecting tank. 16. Reinstall the condensate collecting tank by inserting it into the notch and pressing down. Fig. 4 150529 17 / 22...
- Page 20 5. Wash the inner lid, inner pot and accessories (measuring beaker, rice spoon, rice fork and silicone mat) with warm water, a soft cloth or sponge and a mild cleaning agent. 6. To end with, rinse all parts thoroughly with fresh water. 18 / 22 150529...
- Page 21 4. Wait for the water to boil. 5. Then disconnect the appliance from the mains socket (pull the plug out). 6. Wait for the inner pot to cool down. 7. It greatly facilitates washing of the inner pot. 150529 19 / 22...
- Page 22 You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 20 / 22 150529...
