1

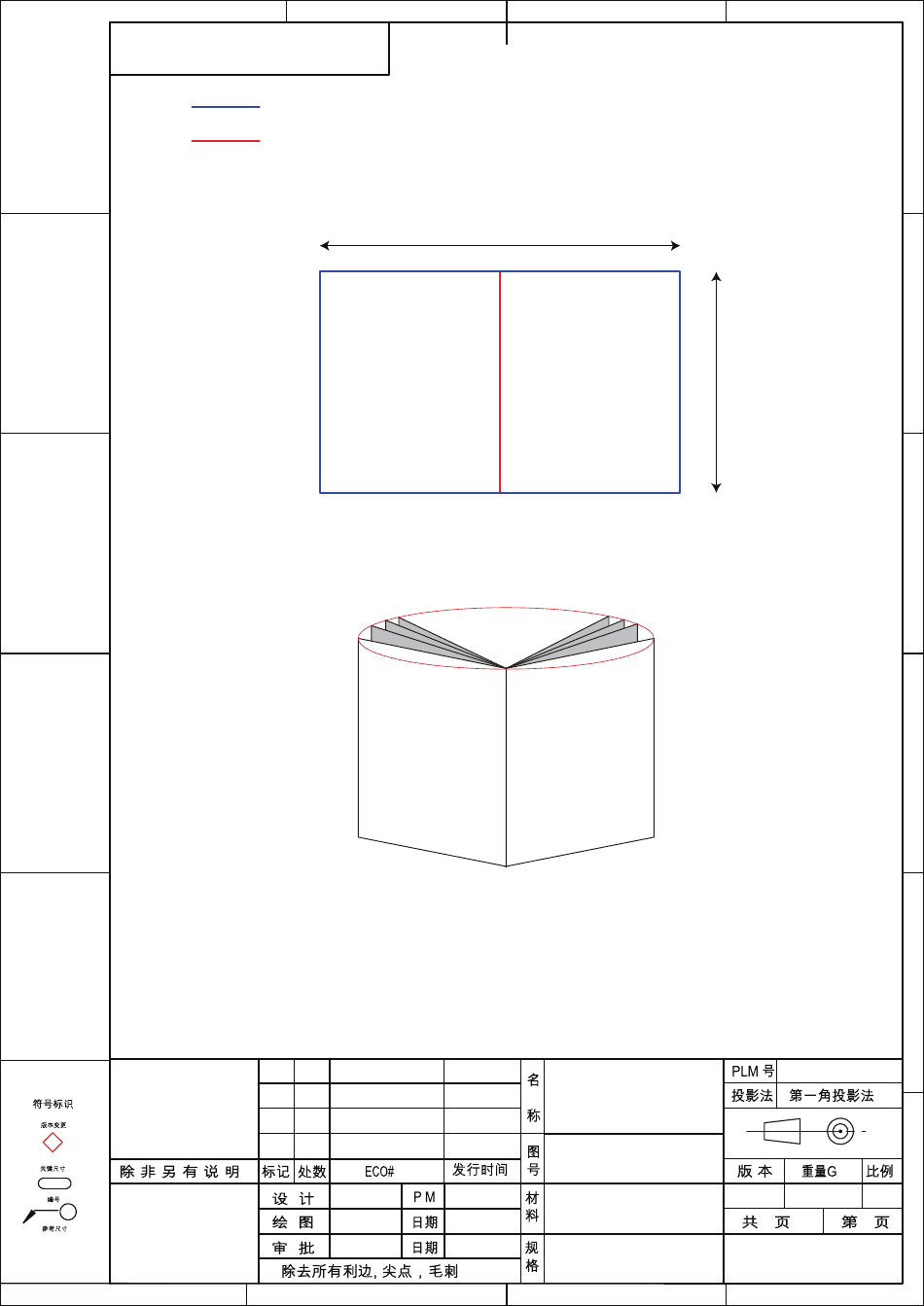

注：此页为技术说明，非印刷内容
A
刀模线：
内折线：
展开尺寸图：
B
C
装订效果图：
D
技术要求：
1、材质：封页105g 铜板纸；内页80g双胶纸
2、展开尺寸：A4，如图所示装订成型为A5，20页
E
3、颜色：单色
4、印刷：印刷图档见后续页，双面印刷
5、装订方式：骑马钉
##
.XXX
0-30
±1
30-150
±2
##
150-300
±3
(.XXX)
300-450
±4
>450
±5
1
2
297mm
封
底
Fanny
2024/06/11
Lily
2
3
封
面
ERTSM3-01B
-Manual(英法西)-JY
（深圳）股份有限公司
3
4
210mm
860-02851-00
03
1:1
1
1
思奇创新科技
4
A
B
C
D
E
F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ErgoAV ERTSM3
Summary of Contents for ErgoAV ERTSM3
- Page 1 注：此页为技术说明，非印刷内容 刀模线： 内折线： 展开尺寸图： 297mm 210mm 装订效果图： 封 封 底 面 技术要求： 1、材质：封页105g 铜板纸；内页80g双胶纸 2、展开尺寸：A4，如图所示装订成型为A5，20页 3、颜色：单色 4、印刷：印刷图档见后续页，双面印刷 5、装订方式：骑马钉 860-02851-00 ERTSM3-01B -Manual(英法西)-JY .XXX 0-30 ±1 30-150 ±2 Fanny 2024/06/11 150-300 ±3 Lily 思奇创新科技 (.XXX) 300-450 ±4 （深圳）股份有限公司 >450 ±5...
- Page 2 ERTSM3 Thank You for Choosing ErgoAV! At ErgoAV, our goal is to add value to your AV experience by providing the highest quality products and services in the industry. We offer a 5-year warranty. If you have any questions or concerns, please contact us.
- Page 3 BEFORE GETTING STARTED, LET'S MAKE SURE THIS STAND IS COMPATIBLE Compatible VESA Patterns: Max: 100 x 100mm 200 x 200mm 300 x 300mm 15.7″ 400mm 100 x 200mm 200 x 300mm 400 x 200mm Max: Check VESA 200 x 100mm 300 x 200mm 400 x 300mm 15.7″...
- Page 4 TV Bracket Tempered Glass Base Support Pillar Extension Pillar Plastic Cover TV Plate Safety Strap Bolt Steel Washer Reinforcement Plate Foot Pad Bolt Safety Lock Cable Clip Allen Key Wrench...
- Page 5 INSTALLATION Supplied Parts and Hardware for Step 1 Not all hardware included in this package will be used. TV Bracket M4/M5 M6/M8 L2.5mm L10mm L22mm Washer Washer Spacer Spacer Spacer M4 x 12mm M4 x 30mm M8 x 25mm TV Bolt TV Bolt TV Bolt M6 x 15mm...
- Page 6 STEP 1 Attach the TV Brackets to Your TV 1-1 Select TV Bolts The correct bolt diameter will thread smoothly into your TV. The depth of the top and bottom holes may differ. 1-2 Position the TV Brackets Arrow Up...
- Page 7 1-3 Secure the TV Brackets For Flat-Back TV, go to Option A on this page. For Bump, Curved TV, Recessed Holes and Cables, go to Option B on next page. WARNING: • DO NOT turn the bolt past the bottom of the hole. •...
- Page 8 Washer B1 | B2 to them to choose the right spacer combination. Spacer F1 | F2 | F3 Note: There are many possible spacer combinations that can be used. (877) 419-7832 Mon-Fri 8am - 8pm (CST) support@ergoav.com...
- Page 9 Supplied Parts and Hardware for Step 2 M6 x 25mm Tempered Glass Base Support Pillar Extension Pillar Plastic Cover Bolt Reinforcement M6 x 15mm 5/23 (4mm) ″ Plate Foot Pad Bolt Allen Key STEP 2 Connect the Support Pillar to the Base Note: EVA pad of reinforcement plate contacts the glass.
- Page 10 D e s Tip: Leave a small gap between the edge of the glass and the foot pads.
- Page 11 Supplied Parts and Hardware for Step 3 M6 x 15mm 5/23 (4mm) ″ TV Plate Steel Washer Bolt Allen Key STEP 3 Secure the TV Plate to the Extension Pillar 3 Height Options Note: Fully tighten the bolts...
- Page 12 Important: If using the safety strap, it is recommended to attach it to the extension pillar (see Step 8 on Page 15) before hanging the TV. Supplied Parts and Hardware for Step 4 Safety Lock STEP 4 Hang the TV on the TV Plate 3 Height Options HEAVY! You may need assistance with this step.
- Page 13 Note: Tighten the safety locks until they are secure against the TV plate. Supplied Parts and Hardware for Step 5 Cable Clip...
- Page 14 STEP 5 Cable Management STEP 6 Tilt Adjustment Slightly loosen the bolts . Tilt the TV to the desired angle. Retighten the bolts to hold the TV in position. Tilt Note: Please DO NOT overtighten or overloosen the bolts...
- Page 15 Supplied Parts and Hardware for Step 7 5/23 (4mm) 7/16″ (11mm) ″ Allen Key Wrench STEP 7 Swivel Adjustment Swivel Note: Please DO NOT overloosen or overtighten the bolts Tip: If the TV is difficult to swivel, remove the TV, slightly loosen the preassembled bolts swivel the TV plate to the desired angle, then retighten the bolts to hold it in position.
- Page 16 Supplied Parts and Hardware for Step 8 M6 x 15mm 5/23 (4mm) ″ Bolt Allen Key Safety Strap M5 x 60mm M5 x 25mm Screw Screw Washer (BK) Wall Anchor STEP 8 Use the Safety Strap (Optional) 8-1 Attach the Safety Strap to the Extension Pillar 8-2 Attach the Other End of Safety Strap to the Furniture or Wall For wooden table furniture installation, follow Option A on page 16.
- Page 17 Option A: For Wooden Table Furniture Installation • DO NOT USE ANCHOR FOR THIS STEP! Note: It is necessary to predrill a pilot hole to avoid splitting the wood. Be careful not to damage your furniture. CAUTION: The mounting surface must be thicker than 1″ (25mm). If your mounting surface is less than 1″...
- Page 18 Option B: For Wood Stud Installation • DO NOT USE ANCHOR FOR THIS STEP! • Any material covering the wall must not exceed 5/8″ (16mm). • Nominal wood stud size: common 2 x 4″ (51 x 102mm) minimum 1½ x 3½″ (38 x 89mm) •...
- Page 19 Option C: For Concrete and Concrete Block Wall Installation • Must use wall anchor for this step. • Any material covering the wall must not exceed 5/8″ (16mm). • Minimum solid concrete thickness: 8″ (203mm) • Minimum concrete block size: 8 x 8 x 16″ (203 x 203 x 406mm) 2 9/16″...
- Page 21 At ErgoAV, our goal is to provide the high-quality audio video solutions and product support that you need. If you have any questions, concerns, or feedback, please let us know! Speaker Stands TV Mounts Computer Monitor Mounts ErgoAV 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445 (877) 419-7832 Mon-Fri 8am - 8pm (CST) support@ergoav.com...
