1
注：此页为技术说明，非印刷内容
A
刀模线：
内折线：

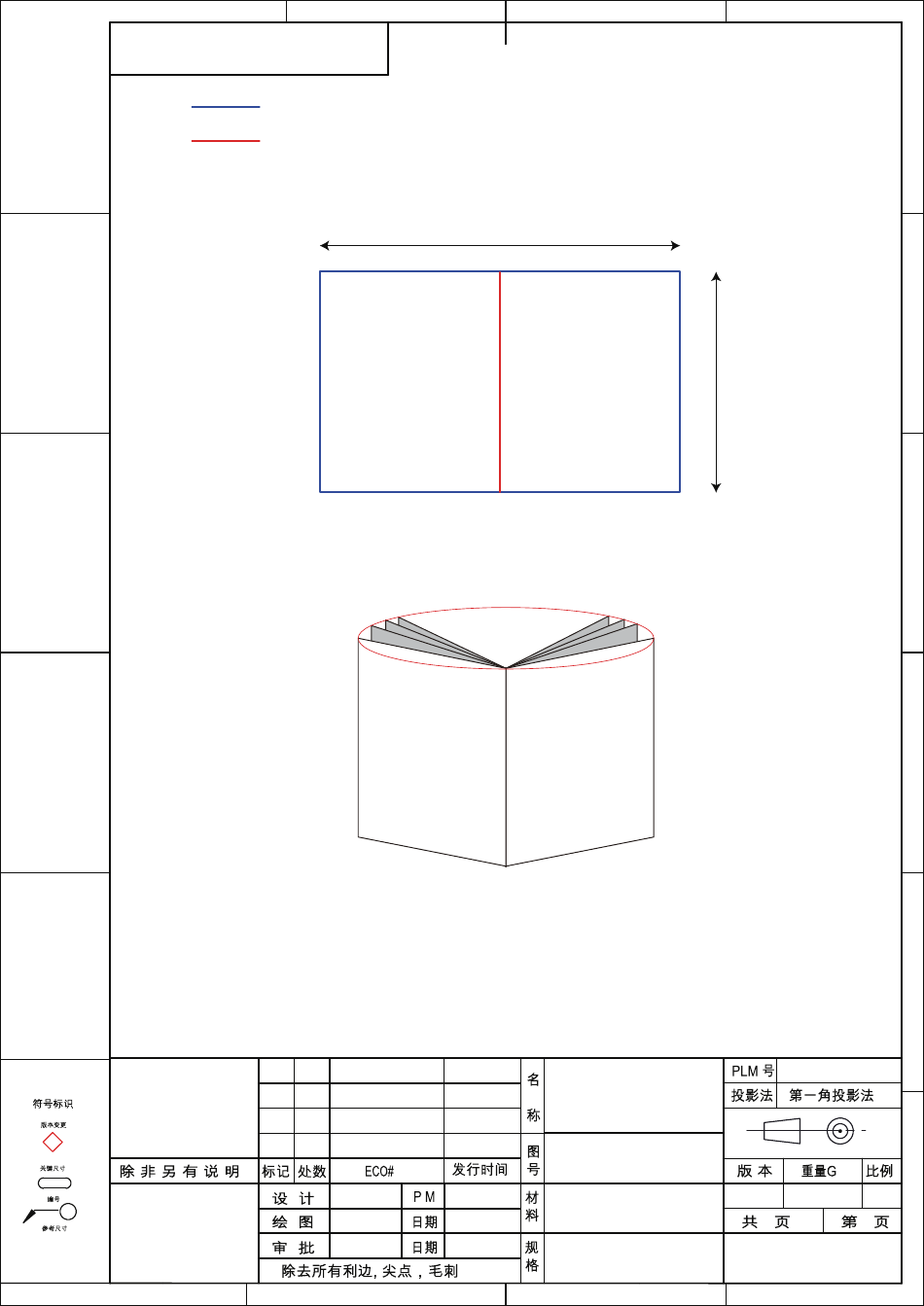

展开尺寸图：
B
C
装订效果图：
D
技术要求：
1、材质：封页105g 铜板纸；内页80g双胶纸
2、展开尺寸：A4，如图所示装订成型为A5，16页
E
3、颜色：单色
4、印刷：印刷图档见后续页，双面印刷
5、装订方式：骑马钉
##
.XXX
0-30
±1
30-150
±2
##
150-300
±3
(.XXX)
300-450
±4
>450
±5
1
2
297mm
封
底
Max
2024/05/23
Lily
2
3
210mm
封
面
ERMMM8-01B
-Manual(单英UL同册)
-SAE
（深圳）股份有限公司
3
4
A
B
C
D
E
860-02802-00
00
1:1
F
1
1
倍思奇创新科技
4
Advertisement
Related Manuals for ErgoAV ERMMM8
Summary of Contents for ErgoAV ERMMM8
- Page 1 注：此页为技术说明，非印刷内容 刀模线： 内折线： 展开尺寸图： 297mm 210mm 装订效果图： 封 封 底 面 技术要求： 1、材质：封页105g 铜板纸；内页80g双胶纸 2、展开尺寸：A4，如图所示装订成型为A5，16页 3、颜色：单色 4、印刷：印刷图档见后续页，双面印刷 5、装订方式：骑马钉 860-02802-00 ERMMM8-01B -Manual(单英UL同册) -SAE .XXX 0-30 ±1 30-150 ±2 2024/05/23 150-300 ±3 Lily 倍思奇创新科技 (.XXX) 300-450 ±4 （深圳）股份有限公司 >450 ±5...
- Page 2 ERMMM8 Thank you for choosing ErgoAV! At ErgoAV, our goal is to add value to your AV experience by providing the highest quality products and services in the industry. We offer a 5-year warranty. If you have any questions or concerns, please contact us.
- Page 3 BEFORE GETTING STARTED, LET'S MAKE SURE THIS MOUNT IS COMPATIBLE Compatible VESA Patterns: Max : 100 x 100mm 200 x 200mm 300 x 200mm 15.7″ 400mm 100 x 200mm 200 x 300mm 300 x 300mm Max : 200 x 100mm 300 x 150mm 300 x 400mm 15.7″...
- Page 4 TV Bracket Upper Wall Plate Cover Arm Assembly / Wall Plate Lower Wall Plate Cover Wall Plate Template...
- Page 5 INSTALLATION Supplied Parts and Hardware for Step 1 Not all hardware included in this package will be used. TV Bracket M4/M5 M6/M8 Washer Washer L2.5mm L10mm L22mm Spacer Spacer Spacer M4 x 12mm M4 x 30mm TV Bolt TV Bolt M8 x 25mm TV Bolt M6 x 15mm...
- Page 6 STEP 1 Attach the TV Brackets to Your TV 1-1 Select TV Bolts The correct bolt diameter will thread smoothly into your TV. The depth of the top and bottom holes may differ. 1-2 Position the TV Brackets Round Holes Up...
- Page 7 1-3 Secure the TV Brackets For Flat-Back TV, go to Option A on this page. For Bump, Curved TV, Recessed Holes and Cables, go to Option B on next page. WARNING: • DO NOT turn the bolt past the bottom of the hole. •...
- Page 8 Washer B1 | B2 to them to choose the right spacer combination. Spacer F1 | F2 | F3 Note: There are many possible spacer combinations that can be used. (877) 419-7832 Mon-Fri 8am - 8pm (CST) support@ergoav.com...
- Page 9 Supplied Parts and Hardware for Step 2 ST 5/16 x 2 3/4″ Arm Assembly / Wall Plate Wall Plate Template Lag Screw CAUTION! This anchor is for concrete and concrete block walls Wall Anchor ONLY. DO NOT use them in drywall or wood studs. STEP 2 Mount the Arm Assembly / Wall Plate on the Wall For mounting on wood stud walls, go to Option A on page 08 to 09.
- Page 10 Find Studs and Mark Holes 10 0% M a r k C e n t e r Mark 3 Hole Positions Drill 3 Holes Note: Be sure to use the specified drill bit. 2 3/4″ 2 3/4″ (70mm) (70mm) ø7/32″ ø7/32″...
- Page 11 Option B For Concrete and Concrete Block Wall Installation ≥8″ (203mm) 35mm 2 3/8″ 1 3/8″ 60mm 35mm 60mm 1 3/8″ 1 3/8″ 35mm 35mm Tools Needed (Not Included) 3/8″ (10mm) 1/2″ (13mm) Electric Drill Pencil Tape Measure Hammer Concrete Drill Bit Level Socket Wrench WARNING:...
- Page 12 Drill 3 Holes Note: • Be sure to use the specified drill bit. • Never drill into the mortar between blocks. 3″ (75mm) 3″ (75mm) ø3/8″ ø3/8″ (10mm) (10mm) Tap Wall Anchors In Secure the Wall Plate HEAVY! You may need assistance with this step.
- Page 13 STEP 3 Verify Wall Plate is Firmly Mounted Pull Down Pull Down Supplied Parts and Hardware for Step 4 Upper Wall Plate Cover Lower Wall Plate Cover STEP 4 Attach the Wall Plate Covers...
- Page 14 STEP 5 Hang TV on the Front Support HEAVY! You may need assistance with this step. STEP 6 Level Adjustment Note: Please DO NOT overtighten or overloosen the bolt Level Level your TV using a level. If it is difficult to level your TV, slightly loosen the leveling bolt then level your TV.
- Page 15 STEP 7 Tilt Adjustment Note: Please DO NOT overtighten or overloosen the lever Tilt Slightly loosen the lever . Tilt the TV to the desired angle. Retighten the lever to hold the TV in position. STEP 8 Cable Management...
- Page 17 At ErgoAV, our goal is to provide the high-quality audio video solutions and product support that you need. If you have any questions, concerns, or feedback, please let us know! Speaker Stands TV Mounts Computer Monitor Mounts ErgoAV 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445 (877) 419-7832 Mon-Fri 8am - 8pm (CST) support@ergoav.com...
