DAUDIN iO-Grid NEMO GFNF-1A1A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GFNF-1A1A、GFNF-2A2A
GFNF-3A3A、GFNF-4A4A
GFNF-1A3A、GFNF-2A4A
Module User Manual
2409TW
V1.0.5
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iO-Grid NEMO GFNF-1A1A and is the answer not in the manual?

Questions and answers

Related Manuals for DAUDIN iO-Grid NEMO GFNF-1A1A

Summary of Contents for DAUDIN iO-Grid NEMO GFNF-1A1A

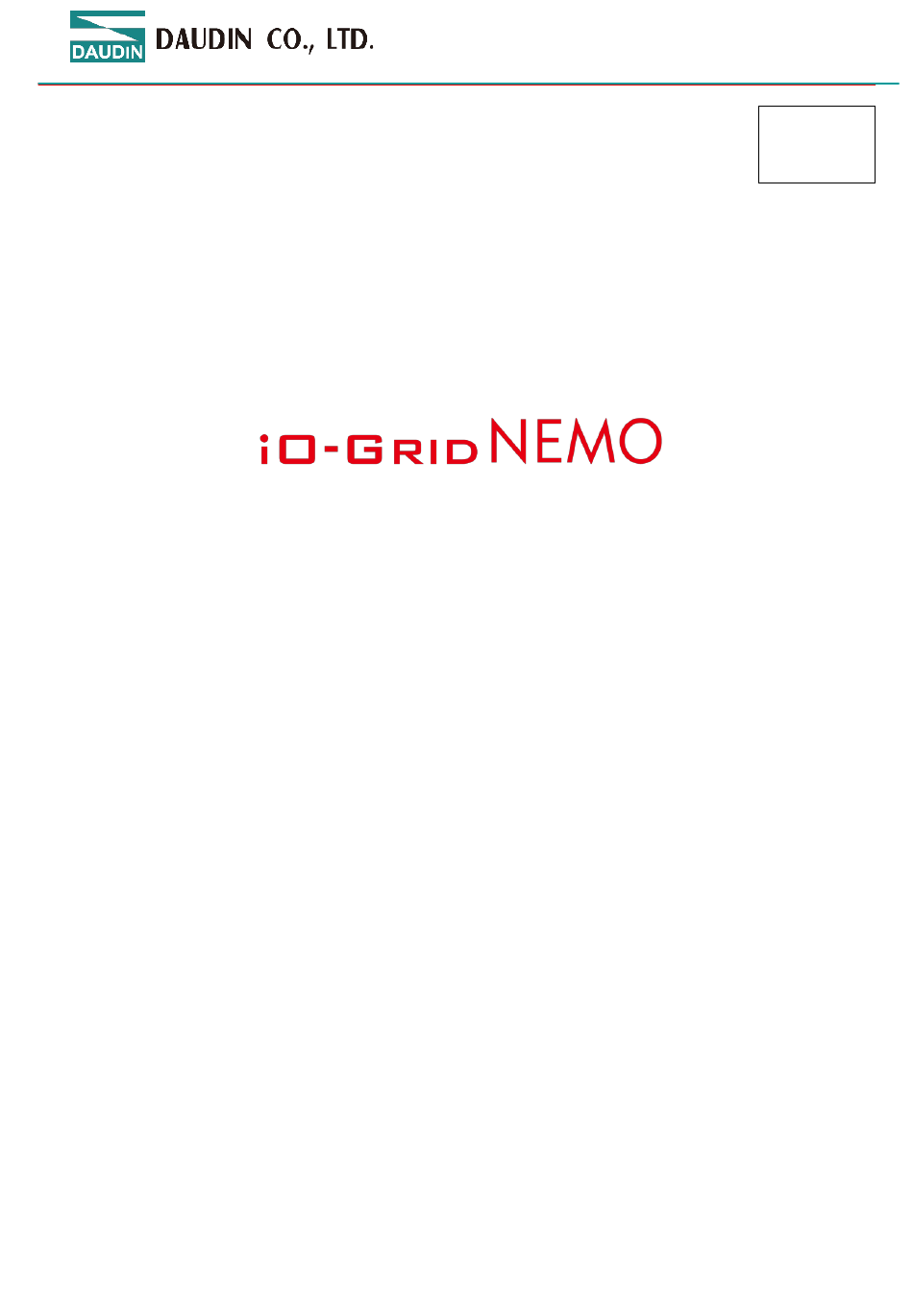

  • Page 1 2409TW V1.0.5 Series GFNF-1A1A、GFNF-2A2A GFNF-3A3A、GFNF-4A4A GFNF-1A3A、GFNF-2A4A Module User Manual...

  • Page 2: Table Of Contents

    目錄 Module Specifications ..................... 6 Communication Port Specifications ................ 6 Electrical Specifications ..................6 General Specifications ..................7 Module IO Board Specifications ................8 Module Panel Introduction ....................9 Integrated Module Panel ..................9 Module Installation and Removal Instructions ..............11 Installation ......................
  • Page 3 1. Introduction The Nemo series is an integrated IO module composed of a communication board and an IO board. Its design integrates network protocols with digital input and output capabilities into a standalone module. The communication board is responsible for fieldbus communication, enabling connections with the master controller or host computer.
  • Page 4 Caution (ATTENTION) THIS DEVICE IS FOR INDOOR USE ONLY, DON’T PUT OR USE IT IN HIGH TEMPERATURE AND HIGH MOISTURE ENVIRONMENT. CET EQUIPEMENT EST DESTINE A UN USAGE INTERIEUR UNIQUEMENT NE PAS STOCKER OU UTILISER DANS UN ENVIRONNEMENT A HAUTE TEMPERATURE ET HAUTE HUMIDITE. AVOID FALLING AND BUMPING OTHERWISE THE ELECTRICAL COMPONENTS WILL BE DAMAGED.
  • Page 5 RÉPARATIONS. PROPER VENTILATION IS REQUIRED TO REDUCE THE RISK OF HAZARDOUS OR EXPLOSIVE GAS BUILDUP DURING INDOOR CHARGING. SEE OWNERS MANUAL. VENTILATION ADÉQUATE NÉCESSAIRE AFIN RÉDUIRE RISQUES D’ACCUMULATION DE GAZ DANGEREUX OU EXPLOSIFS DURANT LA RECHARGE À L’INTÉRIEUR. VOIR LE MANUEL D’ENTRETIEN. 10.

  • Page 6: Module Specifications

    2. Module Specifications 2.1 Communication Port Specifications Communication Port Specifications Protocol EtherNet/IP Interface 2 x RJ-45 Transmission speed 10/100 Mbps 2.2 Electrical Specifications Electrical Specifications Part Number Working Voltage Working Current GFNF-1A1A MAX,130mA,24VDC GFNF-2A2A MAX,130mA,24VDC GFNF-3A3A MAX,170mA,24VDC 24 VDC (-15%~+20%) GFNF-4A4A MAX,160mA,24VDC GFNF-1A3A...

  • Page 7: General Specifications

    2.3 General Specifications General Specifications Size (W x D x H) 25 x 116 x 85mm Weight 140g Operating Temperature -10 … +60 °C Storage Temperature -25˚C…+85˚C Relative Humidity RH 95%，non-condensing Altitude Limit < 2000 m IP Protection Level IP 20 Pollution Degree Safety Certifications Wire Gauge Range (IEC / UL)

  • Page 8: Module Io Board Specifications

    2.4 Module IO Board Specifications Digital Input Specifications Signal Type SINK(NPN) SOURCE(PNP) Signal 0 Voltage Range 15VDC…30 VDC 0 VDC…10 VDC Signal 1 Voltage Range 0 VDC…10 VDC 15 VDC…30 VDC Number of Channels 32 , 16 Maximum Input Data Length 4 Bytes Rated Voltage 24VDC...

  • Page 9: Module Panel Introduction

    3. Module Panel Introduction 3.1 Integrated Module Panel 3.1.1 Product Interface and Function Description Fig 3. 1 . Front and Side Views Name Description Module Status System and Communication Status Indicators Indicators Configuration USB Type C, System Configuration Interface Network RJ45 x 2, System Network Protocol Communication Communication Interface...
  • Page 10 3.1.2Indicator Description Integrated Module Indicators Name Label Color Status Description Normal Power Supply Power Green Indicator Module Not Powered System Running System System Stopped Green Indicators System Waiting for Network Connection (Slow Flashing Note 1 Flash at 4Hz) Duplicate IP address Flashing Connection timeout Connection Normal connection...

  • Page 11: Module Installation And Removal Instructions

    4. Module Installation and Removal Instructions 4.1 Installation Align the module according to the arrow direction on the side and snap it onto the top of the DIN rail. Once positioned, the latch automatically secures it to the rail. Fig 4. 1 Module Installation Diagram ※...

  • Page 12: Removal

    4.2 Removal Pull downward on the plastic hook beneath the module using a screwdriver. To remove the module from the DIN rail, reverse the steps used for installation. Fig 4. 2 Module Removal Diagram...

  • Page 13: Module Dimensions

    4.3 Module Dimensions 4.3.1 Module Dimensions Fig 4. 3 Module Dimensions Diagram...

  • Page 14: Module Wiring Instructions

    5. Module Wiring Instructions 5.1 Module Wiring Diagram Fig 5. 1 Module Wiring Diagram...

  • Page 15: Io Board Wiring Diagram

    5.2 IO Board Wiring Diagram 5.2.1 GFNF-1A1A Fig 5. 2 GFNF-1A1A Wiring Diagram...
  • Page 16 5.2.2 GFNF-2A2A Fig 5. 3 GFNF-2A2A Wiring Diagram...
  • Page 17 5.2.3 GFNF-3A3A Fig 5. 4 GFNF-3A3A Wiring Diagram...
  • Page 18 5.2.4 GFNF-4A4A Fig 5. 5 GFNF-4A4A Wiring Diagram...
  • Page 19 5.2.5 GFNF-1A3A Fig 5. 6 GFNF-1A3A Wiring Diagram...
  • Page 20 5.2.6 GFNF-2A4A Fig 5. 7 GFNF-2A4A Wiring Diagram...

  • Page 21: Parameter Setting And Configuration Instructions

    6. Parameter Setting and Configuration Instructions 6.1 Module Configuration As shown below, the module is configured primarily utilizing an integrated approach Fig 6. 1 Note: USB data cable configuration is for a single integrated module.

  • Page 22: Module Parameter Explanation

    6.2 Module Parameter Explanation Fig 6. 2 Integrated Module Parameters...
  • Page 23 Physical Address: Not configurable; MAC address is factory-set for network identification of different device modules. 6.2.3 Module Information  Firmware Version: Current module firmware version  Hardware Version: Module hardware design version  Product Serial Number: Unique identifier for Daudin products...
  • Page 24 As shown in Figure 6.2, all parameters (except MAC) can be configured as needed. After completing the settings, proceed to upload the parameters as shown in Figure 6.3. Fig 6. 3 Upload Parameters Before proceeding with relevant settings, the system operation must be paused。...

  • Page 25: Factory Defaults

    6.3 Factory Defaults Apart from setting parameters through i-Designer, users can also reset system parameters using the reset button located inside the side casing. Press Time/Mode Application Mode Light Press (<6 Module restart (RESET) seconds) Restore default parameters Long Press (>6 seconds) Note (Application Mode)

  • Page 26: Appendix I: I-Designer Instructions

    7. Appendix I: i-Designer Instructions 7.1 Installation Download the i-Designer program from the official website, then click on the program (as shown in the figure) to install it Fig 7. 1 Program Icon After reading the user agreement, please check the box and click Start Installation. Fig 7.
  • Page 27 During installation, the progress will be displayed. Fig 7. 3 Installation Progress Once the software installation is complete, you can choose to run it immediately by clicking the Finish button. Fig 7. 4 Installation Complete...

  • Page 28: Ui Screen Description

    7.2 UI Screen Description After installation, locate the program icon on the desktop and click it to open the settings screen (see the figure below). Fig 7. 5 Program Icon The screen is organized as follows, from top to bottom: Tab Area: Select different product series or switch languages.
  • Page 29 7.2.1 Tab Area： (1) Homepage Tab: Provides information about i-Designer and options for switching the language. Refer to sections 7.2 and 7.3 for more details. (2) Product Settings Tab: Used for setting parameters for various IO-GRID product series. Fig 7. 7 Tab...
  • Page 30 7.2.2 Function Key Area： The function keys displayed here vary based on the selected tab and product. The following functions are available: Fig 7. 8 Function Key Area...
  • Page 31 圖示 名稱 說明 About i- Shows software version information. Designer Switch Switches between Traditional Chinese, Languages Simplified Chinese, and English. Connection Offers automatic or manual module connection Mode modes. Connect Connects to the module. Disconnect Disconnects from the module. System Stop Temporarily stops the module system.
  • Page 32 7.2.3 Display and Configuration Area： 1. Module List: Displays the models of the connected modules; double-click to access the settings page for the module. 2. Module Layout: Shows the actual configuration diagram of the connected modules. 3. Module Parameter Settings: Parameters can be modified and uploaded only when the system is stopped.

  • Page 33: I-Designer Information Verification

    7.3 i-Designer Information Verification Click on the homepage  About i-Designer Fig 7. 10 Software Information...

  • Page 34: Language Settings

    7.4 Language Settings Click on the homepage  Switch Language. i-Designer currently supports three languages: Traditional Chinese, Simplified Chinese, and English. Use this feature to change the language. Fig 7. 11 Language Selection...

  • Page 35: Com Port Connection Settings

    7.5 COM Port Connection Settings i-Designer communicates with iO-GRID modules primarily through the COM Port interface. The connection mode can be either automatic module search or manual COM Port connection. In automatic search mode, i-Designer will automatically search for devices on the COM Port to connect.
  • Page 36 Find the device number in Device Manager  Ports (COM & LPT). Fig 7. 33 Searching Device Manager Fig 7. 44 Confirming Device Manager COM Port Number...
  • Page 37 After selecting custom mode, click on connection information to set the connection parameters. Fig 7. 55 Custom Mode Connection Settings Enter the COM Port connection number from Device Manager and save it. You can then proceed with the connection. Fig 7. 66 Setting Connection COM Port...

  • Page 38: Connection Setting Instructions

    7.6 Connection Setting Instructions Fig 7. 77 Setting Connection After a successful connection, the connect button in the function key area will be hidden, and the disconnect and system stop buttons will be displayed, as shown in Figure 7.18. Fig 7.18 Connection Status Diagram...
  • Page 39 he system must be stopped to set module parameters, as shown in Figure 7.19. Fig 7.19 System Stop Screen...

  • Page 40: Parameter Update Instructions

    7.7 Parameter Update Instructions Fig 7.20 Screen After Uploading Parameters Fig 7.21 Online Adjustment Screen...

  • Page 41: Firmware Update Instructions

    7.8 Firmware Update Instructions Click on Firmware Update, select the firmware file, and click Open to start the update. Wait for the firmware update progress bar to complete, and the system will restart automatically. Fig 7.22 Firmware Update Screen...

This manual is also suitable for:

Io-grid nemo gfnf-2a2aIo-grid nemo gfnf-3a3aIo-grid nemo gfnf-4a4aIo-grid nemo gfnf-1a3aIo-grid nemo gfnf-2a4a
