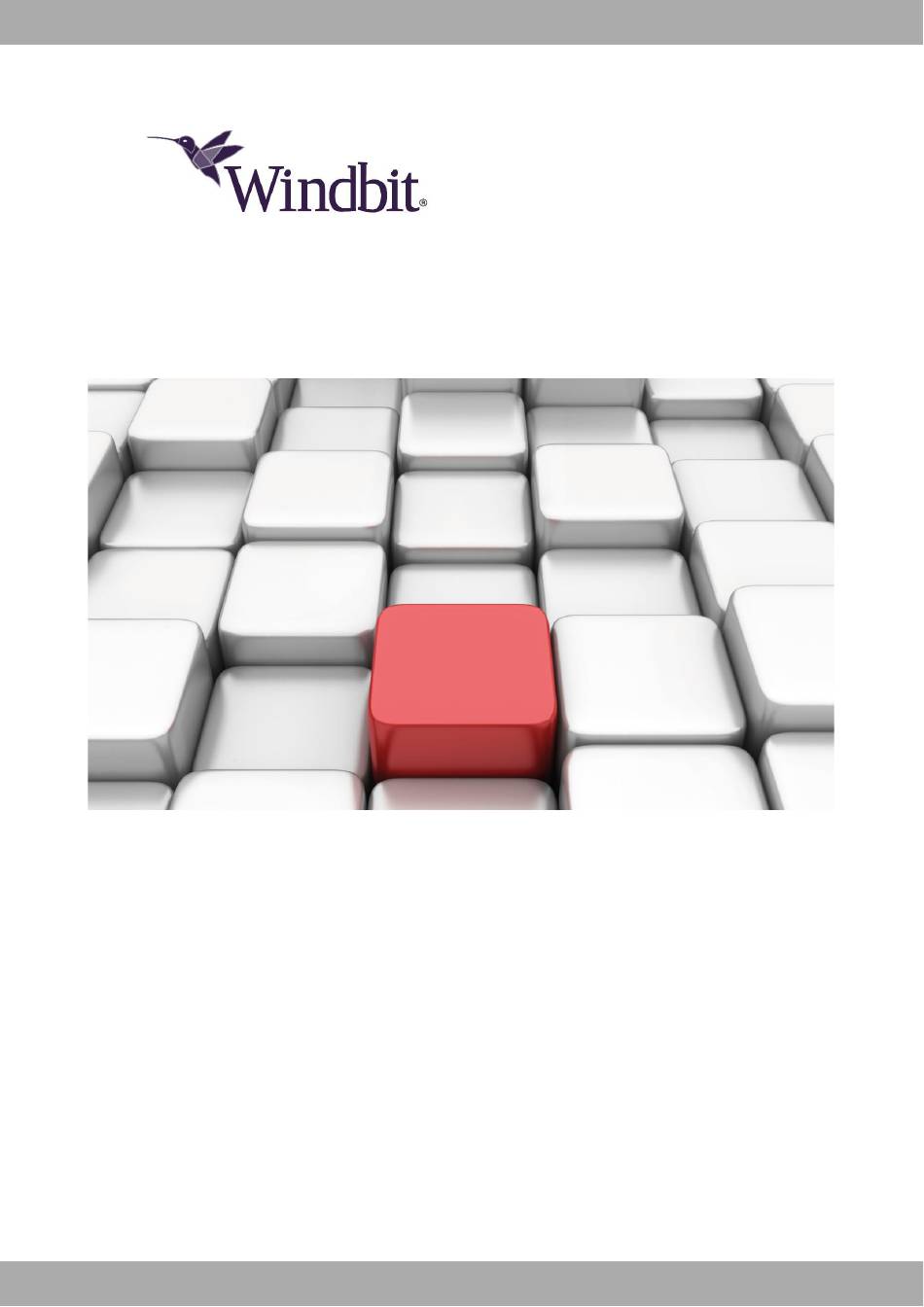

- Page 1 Windbit Hardware Installation and Reference Guide ESW0L3 Series Switches Hardware installation and reference guide Copyright © Windbit Dm3076-I Version 1.0 2024 ESW0L3 Series Switches...
-
Page 2: Legal Notice
Teldat S.A. disclaims all warranties regarding the information in this manual. Teldat S.A. shall not be held liable for any direct, indirect, collateral, consequential, or other damages related to the delivery, supply, or use of this manual. ESW0L3 Series Switches... -
Page 3: Product Overview
⚫ Console port: The console port is an RS-232 port that uses an RJ45 connector. The console port is used to connect a PC directly to the management system for debugging, configuration, maintenance, management and program loading. ESW0L3 Series Switches... - Page 4 SFP Modules and SFP BIDI Modules SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module Type The module types may update without prior notification. Please contact Windbit for details. AC Input Rated Voltage Range: 100 V AC to 240 V AC...
- Page 5 The front panel of the ESW0L3-12GE4XS-P switch provides 12 10/100/1000Base-T Ethernet ports (PoE+ Capable), four 10GE SFP+ ports, one Console port and one USB port. The back panel has an AC power plug. Figure 1-1 ESW0L3-12GE4XS-P Switch Appearance Front Panel Figure 1-1 Front Panel of ESW0L3-12GE4XS-P ESW0L3 Series Switches...
- Page 6 The ESW0L3-12GE4XS-P switch has a built-in power supply module. The back panel has an an AC power plug. Cooling The ESW0L3-12GE4XS-P switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for air circulation. Figure 1-3 Airflow Direction ESW0L3 Series Switches...
- Page 7 Mode button again, the indicator switches to indicating the switching status. If you want to switch the LED mode, press the button for over two seconds. 1.2 ESW0L3-24GE4XS-E Specifications Model ESW0L3-24GE4XS-E Dual-core CPU with the clock speed of 1.0GHz BOOTROM 16MB Flash Memory 512MB ESW0L3 Series Switches...
- Page 8 SFP+ Port: SFP Modules and SFP BIDI Modules SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. The module types may update without prior notification. Please contact Windbit for details. SFP Module Type When up to two SFP+ optical modules are configured with a maximum distance of 80 km (49.71 miles), the operating temperature range is 0ºC to 45 ºC (32ºF to 113ºF).
- Page 9 Console port and one USB port. The back panel has an AC power plug. Figure 1-5 ESW0L3-24GE4XS-E Switch Appearance Front Panel Figure 1-6 Front Panel of ESW0L3-24GE4XS-E 4 ． 10/100/1000Base-T Ethernet Note 1．System Status LED Port 2．USB Port 3．Console Port 5．10GE SFP+ Port Back Panel ESW0L3 Series Switches...
- Page 10 No link is detected for this port. The port has made a successful 10/100/1000 10/100/1000Base-T Ethernet Solid Green 1F to 24F Mbps link. Port LED Blinking The port is sending and receiving traffic at Green 10/100/1000 Mbps. 1.3 ESW0L3-24GE4XS-P Specifications ESW0L3 Series Switches...
- Page 11 SFP Modules and SFP BIDI Modules ⚫ SFP Module Type SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. The module types may update without prior notification. Please contact Windbit for details. AC Input Rated Voltage Range: 100 V AC to 240 V AC...
- Page 12 The front panel of the ESW0L3-24GE4XS-P Ethernet switch provides 24 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports, one Console port and one USB port. The back panel has an AC power plug. Figure 1-8 ESW0L3-24GE4XS-P Switch Appearance Front Panel ESW0L3 Series Switches...
- Page 13 The ESW0L3-24GE4XS-P switch has a built-in power supply module. The back panel has an an AC power plug. Cooling The ESW0L3-24GE4XS-P switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for air circulation. Figure 1-11 Airflow Direction ESW0L3 Series Switches...
- Page 14 Mode button again, the indicator switches to indicating the switching status. If you want to switch the LED mode, press the button for over two seconds. 1.4 ESW0L3-48GE4XS-E Specifications Model ESW0L3-48GE4XS-E Dual-core CPU with the clock speed of 1.0 GHz ESW0L3 Series Switches...
- Page 15 SFP Modules and SFP BIDI Modules SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module The module types may update without prior notification. Please contact Windbit for details. AC Input Rated Voltage Range: 100 V AC to 240 V AC...
- Page 16 SFP+ ports, one Console port and one USB port. The back panel has an AC power plug. Figure 1-22 ESW0L3-48GE4XS-E Switch Appearance Front Panel Figure 1-13 Front Panel of ESW0L3-48GE4XS-E 4 ． 10/100/1000Base-T Ethernet Note 1．System Status LED Port 2．USB Port 3．Console Port 5．10GE SFP+ Port Back Panel ESW0L3 Series Switches...
- Page 17 The temperature at the air intake and exhaust Solid Yellow vents exceeds the threshold. 1. The temperature at the air intake and exhaust Solid Red vents well exceeds the threshold. 2. The system is not functioning properly. ESW0L3 Series Switches...
- Page 18 SFP Modules and SFP BIDI Modules SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module Type The module types may update without prior notification. Please contact Windbit for details. AC Input Rated Voltage Range: 100 V AC to 240 V AC...
- Page 19 Appearance The front panel of the ESW0L3-48GE4XS-P switch provides 48 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports, one Console port and one USB port. The back panel has an AC power plug. Figure 1-36 ESW0L3-48GE4XS-P Switch Appearance ESW0L3 Series Switches...
- Page 20 4．USB Port 7．10GE SFP+ Port Back Panel Figure 1-18 Back Panel of ESW0L3-48GE4XS-P Note 1．AC Power Plug 2．Grounding Stud Power Supply The ESW0L3-48GE4XS-P switch has a built-in power supply module. The back panel has an AC power plug. ESW0L3 Series Switches...
- Page 21 The port is sending and receiving traffic at Green 10/100/1000 Mbps. PoE is not enabled. Solid Green PoE is enabled. The port is operational. RJ45 port PoE status LED 1F to 48F Blinking The port has a PoE fault of overload. Green(3 Hz) ESW0L3 Series Switches...
-
Page 22: Preparing For Installation
Do not attempt to maintain the device by yourself when it’s powered on. ⚫ Make sure the device is powered off when you disconnect the power supply. ⚫ Avoid placing the switch in damp locations and keep it away from liquids. ESW0L3 Series Switches... -
Page 23: Electrostatic Discharge Safety
Within the switch’s supported modules, certain transceiver modules are classified as Class I laser products. ⚫ During fiber transceiver operation, make sure the port is connected with a fiber or covered by a dust cap to avoid dust infiltration and potential eye hazards. ⚫ Avoid prolonged staring at any fiber port. ESW0L3 Series Switches... -
Page 24: Installation Environment Requirements
The following table describes the requirements for the dust content and granularity in the equipment room. Maximum Diameter (μm) Maximum concentration 1.4 x 10 7 x 10 2.4 x 10 1.3 x 10 (Particles/m³) ESW0L3 Series Switches... - Page 25 For electromagnetic compatibility, grounding needs encompass shielded grounding, filter grounding, noise and interference suppression, and level reference, all contributing to comprehensive grounding requirements. Ensuring a grounding resistance smaller than 1 ohm is crucial, facilitated by a dedicated Grounding Stud on the back panel. Figure 2-1 Grounding ESW0L3 Series Switches...
-
Page 26: Lightning Protection Requirements
Maintain a substantial distance between the switch and the lightening protection and grounding system of the power device. ⚫ Keep the switch at a distance from high-frequency current devices like high-power radio transmitting stations and radar launchers. ⚫ Employ electromagnetic shielding measures when deemed necessary. ESW0L3 Series Switches... - Page 27 ESD gloves, wire stripper, crimping plier, RJ45 crimping plier, and wire cutter Cleaning Tools Dust-free paper, fiber end-face microscope Meters Multimeter, bit error rate tester (BERT), optical power meter The ESW0L3 series switches do not come with a toolkit. ESW0L3 Series Switches...
-
Page 28: Installing The Switch
The installation site aligns with the temperature and humidity specifications for the switch. ⚫ Ensure the power supply and required current are available at the installation site. ⚫ Confirm that Ethernet cables have been appropriately deployed in the installation area. 3.3 Mounting the Switch Notes ESW0L3 Series Switches... -
Page 29: Mounting The Switch In A Rack
3.3.1 Mounting the Switch in a Rack All ESW0L3 series switches are compatible with a standard 19-inch four-post EIA rack. Mount the switch in the rack with the front panel face forward. Use a Phillips-head screwdriver to secure a bracket to each side of the switch with two screws. -
Page 30: Installing The Switch On A Workbench
Place the switch on the workbench to allow for adequate airflow. 3.3.3 Mounting the Switch on the Wall All ESW0L3 series switches are wall mountable. Rotate the brackets by 90 degrees and secure them to the switch using the screws. -
Page 31: Grounding The Switch
⚫ Maintain a grounding resistance below 1 ohm. To ensure both personal and device safety, proper grounding of the switch is imperative. The grounding resistance between the chassis and the ground must be maintained below 1 ohm. ESW0L3 Series Switches... -
Page 32: Connecting Cables
As for power cords, bundle them closely along the bottom of the chassis, ideally in a straight line for neat organization. 3.7 Verifying Installation For safety, power off to prevent personal injury and component damage from incorrect connections. ⚫ Confirm the ground wire is connected. ESW0L3 Series Switches... - Page 33 Confirm that the cables and power input cables are correctly and securely connected. ⚫ Ensure interface cables are routed indoors. If outdoors, assess lightning protection for power supply and interfaces. ⚫ Maintain a minimum 100 mm (3.94 in.) clearance around the device for adequate air circulation. ESW0L3 Series Switches...
-
Page 34: Establishing Configuration Environment
4.2 Powering on Switch Checklist before Power-on ⚫ The switch is fully grounded. ⚫ The power cord is properly connected. ⚫ The power cord retention clip secures the input power cord to the power supply. ESW0L3 Series Switches... - Page 35 The Ethernet cable is properly connected. The terminal (it can be a PC) used for configuration is already started. The parameters are already configured. Checklist after Power-on (Recommended) After power-on, check the following: ⚫ Check the information on the terminal interface. ⚫ Check the LED status. ⚫ Monitoring and Maintenance ESW0L3 Series Switches...
-
Page 36: Monitoring And Maintenance
Port configuration and status ⚫ Fan and power supply status ⚫ System temperature Refer to the ESW0L3 Series Switches Configuration Guide for specific monitoring commands. 5.2 Maintenance Cooling System Maintenance ⚫ In case of a fan module failure, an alarm will be triggered. - Page 37 Do not dispose of the battery in fire, oven, or through mechanical crushing or cutting. Replacing Fuses To replace fuses, seek assistance from technical support personnel who will provide fuses of the same specifications for replacement. ESW0L3 Series Switches...
-
Page 38: Troubleshooting Flowchart
Windbit Hardware Installation and Reference Guide 6 Troubleshooting 6.1 Troubleshooting Flowchart 6.2 Troubleshooting examples Fault 1: The login password is forgotten. Symptom Failed to log into the system. ESW0L3 Series Switches... - Page 39 Ensure the connected serial port matches the configuration in HyperTerminal. Verify the HyperTerminal serial port configuration aligns with the settings in the Configuration Guide. If there is still no output on the serial port, contact Windbit technical support. Fault 4: The serial port console output is garbled.
- Page 40 When line card ports are connected to a PoE device, some ports cannot supply power. Suggested Action Check whether the non-powered ports are manually disabled through software. Check whether the PoE power is sufficient. If not, only the high-priority port can supply power. ESW0L3 Series Switches...
- Page 41 Input Receive Data+ Output Transmit Data- Input Receive Data- 4, 5, 7, 8 Not Used Not Used Figure 7- shows the wiring configurations for both straight-through and crossover cables used in 100BASE-TX/10BASE-T connections. Figure 7-2 100BASE-TX/10BASE-T Connection ESW0L3 Series Switches...
- Page 42 Windbit Hardware Installation and Reference Guide Fiber Connection Select single mode or multimode fibers based on the module types. Figure 7- illustrates the connection setup for fiber-optic cables. Figure 7-3 Fiber-Optic Cable Connection ESW0L3 Series Switches...
-
Page 43: Lightning Protection
A persistent red indicator signals an ungrounded PE terminal. Installing the Ethernet Port Arrester To safeguard against lightning damage, connect an Ethernet port arrester to the switch before attaching an outdoor Ethernet cable. Tools needed: Phillips or flat-head screwdriver, multimeter, and diagonal pliers. Installation Steps: ESW0L3 Series Switches... - Page 44 Proper grounding. Keep the arrester’s ground cable short for effective contact with the switch’s ground terminal. Verify contact quality with a multimeter after grounding. ⚫ Complete installation. If multiple ports connect to the peer device on the switch, install arresters on all connection ports for comprehensive lightning protection. ESW0L3 Series Switches...
- Page 45 If close, consider crossover cabling; for parallel cabling, maintain a minimum 30 mm (1.18 in.) distance between power cords and signal cables. ⚫ Ensure smooth cable management brackets and cabling troughs inside and outside racks, avoiding sharp corners. ESW0L3 Series Switches...
- Page 46 After installation, ensure the remaining cable parts don’t touch heat sources, sharp corners, or edges. If heat sources are unavoidable, use high-temperature cables. ⚫ When using screw threads to fasten cable terminals, securely tighten the bolt or screw, implementing anti-loosening measures. Figure 7-9 Cable Fastening ESW0L3 Series Switches...
-
Page 47: Site Selection
Position the equipment room no closer than 3.7 km from the sea or salt lake. Otherwise, seal the room and install air conditioning for temperature control. Avoid using saline soil for construction and opt for devices with advanced protection in harsh environments. ESW0L3 Series Switches... - Page 48 Opt for a steel door for effective soundproofing. ⚫ Prohibit the use of sulfur-containing materials. ⚫ Ensure the air conditioner avoids directing wind straight toward the device or blowing water drops from the window or air vent toward the equipment. ESW0L3 Series Switches...
