Windbit ESW1L3 Series Hardware Installation And Reference Manual

Hide thumbs Also See for ESW1L3 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

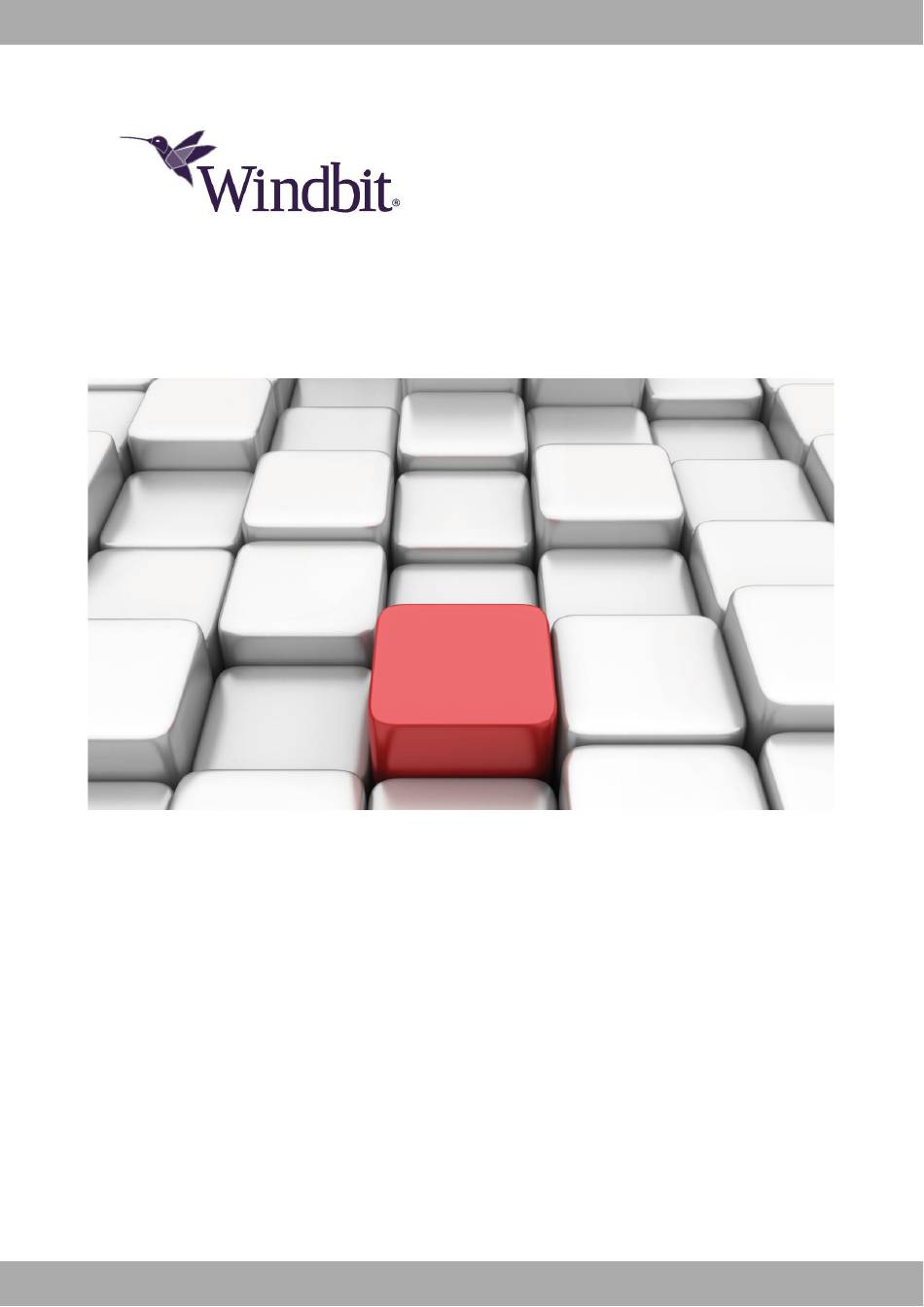

Windbit
Hardware Installation and Reference Guide
ESW1L3 & ESW2L3 Series Switches
Hardware installation and reference guide
Copyright © Windbit Dm3022-I Version 1.1 2023
ESW1L3 & ESW2L3 Series Switches
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESW1L3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Windbit ESW1L3 Series

Summary of Contents for Windbit ESW1L3 Series

  • Page 1 Windbit Hardware Installation and Reference Guide ESW1L3 & ESW2L3 Series Switches Hardware installation and reference guide Copyright © Windbit Dm3022-I Version 1.1 2023 ESW1L3 & ESW2L3 Series Switches...

  • Page 2: Legal Notice

    Windbit Hardware Installation and Reference Guide Legal Notice Warranty This publication is subject to updates and modifications. Teldat S.A. disclaims all warranties regarding the information in this manual. Teldat S.A. shall not be held liable for any direct, indirect, collateral, consequential, or other damages related to the delivery, supply, or use of this manual.

  • Page 3: Product Overview

    Windbit Hardware Installation and Reference Guide 1 Product Overview Introducing the ESW1L3 and ESW2L3 series switches – cutting-edge layer 3 switches delivering exceptional performance, robust security, and versatile services. These switches are primarily designed for the access layer, offering seamless line- rate switching and comprehensive QoS policies.
  • Page 4 • SFP Modules and SFP BIDI Modules • SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module Type Module types are subject to updates without prior notification. Contact Windbit for details. • AC Input • Rated Voltage Range: 100 V AC to 240 V AC •...
  • Page 5 Windbit Hardware Installation and Reference Guide Weight 2.7 kg (5.95 lbs.) Product Appearance The front panel of the ESW1L3-24GE4XS-E switch features 24 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports, one management port, one Console port, and one USB port. On the back panel, there is an AC power plug.
  • Page 6 Windbit Hardware Installation and Reference Guide Cooling To ensure normal operation, the ESW1L3-24GE4XS-E switch adopts a left-to-right and front-to-right airflow. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for proper air circulation. Figure 1-4 Airflow Direction...
  • Page 7 ⚫ SFP Modules and SFP BIDI Modules ⚫ SFP Module Type SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. Module types are subject to updates without prior notification. Contact Windbit for details. ⚫ AC Input ⚫ Rated Voltage Range: 100 V AC to 240 V AC ⚫...
  • Page 8 Windbit Hardware Installation and Reference Guide (W x D x H) Weight 3 kg (6.61 lbs.) Product Appearance The front panel of the ESW1L3-48GE4XS-E switch features 48 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports, one management port, one Console port, and one USB port. On the back panel, there is an AC power plug.
  • Page 9 Windbit Hardware Installation and Reference Guide 1. Grounding Stud 2. AC Power Plug Power Supply The ESW1L3-48GE4XS-E switch features a built-in power supply module with an AC power plug located on the back panel. Cooling To ensure normal operation, the ESW1L3-48GE4XS-E switch adopts a left-to-right and front-to-right airflow. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for proper air circulation.
  • Page 10 ⚫ SFP Modules and SFP BIDI Modules ⚫ SFP Module Type SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. Module types are subject to updates without prior notification. Contact Windbit for details. • AC Input • Rated Voltage Range: 100 V AC to 240 V AC •...
  • Page 11 SFP+ Port: • SFP Modules and SFP BIDI Modules • SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module Type Module types are subject to updates without prior notification. Contact Windbit for details. Power Supply Module Slots  ESWPSUA/0IB-F...
  • Page 12 Windbit Hardware Installation and Reference Guide 1000Base-X Capable Supported Not Supported Power Consumption < 40 W 0ºC to 45ºC (32ºF to 113 ºF) at an altitude of 0-1800 m (1.12 miles) above sea level. Operating Between altitudes of 1800 m and 5000 m (1.12 miles to 3.11 miles) above sea level, the Temperature maximum operating temperature decreases by 1°C (1.8°F) every time the altitude increases...
  • Page 13 Windbit Hardware Installation and Reference Guide 1. System Status LED 7. Management Port 2. MGMT Port LED 8. 10/100/1000Base-T Ethernet Port 3. PWR1 Status LED 9. 10GE SFP+ Port 4. PWR2 Status LED 10. Port Status LED 5. USB Port 6.
  • Page 14 Windbit Hardware Installation and Reference Guide Function Panel ID Color Status System not powered on. Blinking System initializing; continuous blinking indicates a Green (3 Hz) fault. Blinking System being located. Green (10 Hz) System Status LED Status Solid Green System operating normally.
  • Page 15 SFP+ Port: ⚫ SFP Modules and SFP BIDI Modules ⚫ SFP Module Type SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. Module types are subject to updates without prior notification. Contact Windbit for details. Power Supply Module Slots  ESWPSUA/0IB-F...
  • Page 16 Windbit Hardware Installation and Reference Guide Operating Humidity 10% to 90% RH (non-condensing) Operating Height 0 to 5000 m (3.11 miles) above sea level Storage Humidity 5% to 95% RH (non-condensing) Fan Speed Control Fan Fault Alarming Temperature Supported Alarming...
  • Page 17 Windbit Hardware Installation and Reference Guide Back Panel Figure 1-15 Back Panel of ESW2L3-48GE4XS-E 1. Grounding Stud 2. Power Supply Module Slot 1 (A filler panel is required if the slot is vacant.) 3. Power Supply Module Slot 2 (A filler panel is required if the slot is vacant.)
  • Page 18 ⚫ SFP Modules and SFP BIDI Modules ⚫ SFP Module Type SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. Module types are subject to updates without prior notification. Contact Windbit for details. Power Supply Module Slots  Power Supply Module ESWPSUA600I-P-F ESW1L3 &...
  • Page 19 Windbit Hardware Installation and Reference Guide AC Input Rated Voltage Range: 200 V AC to 240 V AC Maximum Voltage Range: 176 V AC to 264 V AC Frequency: 50 Hz/60 Hz Rated Current Per Circuit: 8 A  ESWPSUA1000I-P-F...
  • Page 20 Windbit Hardware Installation and Reference Guide Weight 4.3 kg (9.48 lbs.) Appearance The front panel of the ESW2L3-24GE4XS-P switch features 24 10/100/1000Base-T Ethernet ports (PoE+ capable), four 10GE SFP+ ports, one management port, one Console port, and one USB port. On the back panel, there are two power supply module slots.
  • Page 21 Windbit Hardware Installation and Reference Guide 1. Grounding Stud 2. Power Supply Module Slot 1 (A filler panel is required if the slot is vacant.) 3. Power Supply Module Slot 2 (A filler panel is required if the slot is vacant.) Power Supply The ESW2L3-24GE4XS-P switch supports dual power supply modules, and further details can be found in Chapter 1.8.
  • Page 22 Windbit Hardware Installation and Reference Guide Power supply module model not supported or cannot Solid Yellow be identified. Redundant power supply module not functioning Solid Red properly or not connected to the AC power cord. No link detected. Solid Green Successful 1000 Mbps link.
  • Page 23 Windbit Hardware Installation and Reference Guide Module types are subject to updates without prior notification. Contact Windbit for details. Power Supply Module Slots  ESWPSUA600I-P-F AC Input Rated Voltage Range: 200 V AC to 240 V AC Maximum Voltage Range: 176 V AC to 264 V AC...
  • Page 24 Windbit Hardware Installation and Reference Guide Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) Weight 4.6 kg (10.14 lbs.) Product Appearance The front panel of the ESW1L3-24GE4XS-P switch features 24 10/100/1000Base-T Ethernet ports (PoE+ capable), four 10GE SFP+ ports, one management port, one Console port, and one USB port.
  • Page 25 Windbit Hardware Installation and Reference Guide 1. Grounding Stud 2. AC Power Plug Power Supply The ESW1L3-24GE4XS-P switch features a built-in power supply module with an AC power plug located on the back panel. Cooling For efficient cooling, the ESW1L3-24GE4XS-P switch adopts a left-to-right and front-to-right airflow pattern. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for proper air circulation.

  • Page 26: Power Supply Module

    Windbit Hardware Installation and Reference Guide Solid Yellow Successful 10/100 Mbps link. Blinking Yellow Sending and receiving traffic at 10/100 Mbps. Solid Green Switching status LED Mode Indicator LED Mode Solid Yellow PoE status No link detected. 10GE SFP+ Port LED...
  • Page 27 Windbit Hardware Installation and Reference Guide Output Voltage 12 V Maximum Output 5.83 A Current Maximum Output Power 70 W Ground Leakage ≤ 3.5 mA Current Dimensions (W x D x H) 196 mm x 50.5 mm x 40 mm (7.72 in. x 1.99 in. x 1.57 in.) Weight 0.4 kg (0.88 lbs.)
  • Page 28 Windbit Hardware Installation and Reference Guide Item Specification Power Supply Model ESWPSUA150IB-F Switch Model ESW2L3-24GE4XS-E, ESW2L3-48GE4XS-E Rated Input Voltage AC Input: 100 V AC to 240 V AC, 50 Hz/60 Hz Range HVDC Input: 240 V DC Maximum Input AC Input: 90 V AC to 264 V AC, 47 Hz/63 Hz...
  • Page 29 Windbit Hardware Installation and Reference Guide 1.8.3 ESWPSUA600I-P-F Module Both the ESW2L3-24GE4XS-P and ESW2L3-48GE4XS-P switches are compatible with the ESWPSUA600I-P-F power module. This AC module, featuring AC/HVDC input and DC output, provides a 56 V output voltage and supports an output power of up to 600 W (PoE power: 370 W).
  • Page 30 Windbit Hardware Installation and Reference Guide I2C Communication Enables communication between the switch and the power supply module through I2C. System supports 1+1 power redundancy when the power consumption remains below 370 Power Redundancy W. Dual power supply modules are connected in parallel for current sharing.
  • Page 31 Windbit Hardware Installation and Reference Guide Power 740 W (Dual power supply modules: 1480 W) Consumption Ground Leakage ≤ 3.5 mA Current Dimensions (W x D x H) 196 mm x 90 mm x 40 mm (7.72 in. x 3.54 in. x 1.57 in.) Weight 1 kg (2.20 lbs.)

  • Page 32: Preparing For Installation

    Windbit Hardware Installation and Reference Guide 2 Preparing for Installation 2.1 Safety Precautions To prevent personal injury and device damage, thoroughly review the safety precautions outlined below before installing the switch. Please note that these safety precautions may not encompass all potential hazards.

  • Page 33: Installation Environment Requirements

    Windbit Hardware Installation and Reference Guide individual leakage currents at or below 1.75 mA, resulting in a total leakage of 28 mA, a 30-mA rated action current protector can support fewer than nine power supplies. In practical terms (Action current of the leakage protector/2/Maximum leakage current of each power supply = 30/2/1.75 ≈...

  • Page 34: Temperature/Humidity Requirements

    Windbit Hardware Installation and Reference Guide 2.2.2 Temperature/Humidity Requirements Maintain suitable temperature and humidity levels in the equipment room to ensure normal switch operation and extend its service life. Prolonged exposure to excessively high or low temperatures and humidity may damage the switch.
  • Page 35 Windbit Hardware Installation and Reference Guide ⚫ Implement EMI shielding, such as shielded interface cables, to reduce interference as needed. ⚫ Route interface cables indoors to prevent damage to signal ports from overvoltage or overcurrent induced by lightning strikes. 2.2.5 Grounding Requirements A robust grounding system forms the foundation for stable and reliable operations, playing a vital role in preventing lightning strikes and interference.

  • Page 36: Emi Requirements

    Windbit Hardware Installation and Reference Guide Refer to the associated user guide detailing surge arrestors. 2.2.7 EMI Requirements Interference sources, whether external or internal to the device or application system, impact the device through capacitive coupling, inductive coupling, or electromagnetic waves.

  • Page 37: Installing The Switch

    Windbit Hardware Installation and Reference Guide 3 Installing the Switch Verify that all stipulated requirements in Chapter 2 have been satisfied. ESW1L3 & ESW2L3 Series Switches...

  • Page 38: Installation Procedure

    Windbit Hardware Installation and Reference Guide 3.1 Installation Procedure Prepare for installation Prepare for installation Install the rack Mount the switch into the rack Ground the switch Install the modules Turn on the power Connect the cables Bundle the cables Verify the installation ESW1L3 &...

  • Page 39: Before You Begin

    3.3.1 Mounting the Switch in a Rack All ESW1L3 series switches are compatible with a standard 19-inch four-post EIA rack. All ESW2L3 series switches can also be installed in a standard 19-inch four-post EIA rack. Mount the switch in the rack with the front panel facing forward.
  • Page 40 Windbit Hardware Installation and Reference Guide Figure 3-2 Installing Cage Nuts and Screws Secure the switch on the rack rails by tightening the screws. Figure 3-3 Tightening Screws Insert screws into the other two cage nuts and tighten them. Figure 3-4 Tightening Other Screws...

  • Page 41: Mounting The Switch On The Wall

    Hardware Installation and Reference Guide 3.3.2 Mounting the Switch on the Wall All ESW1L3 series switches are wall mountable. ESW2L3 series switches, however, are not designed for wall installation. Rotate the brackets by 90 degrees and secure them to the switch using the screws.

  • Page 42: Grounding The Switch

    Windbit Hardware Installation and Reference Guide Installing the AC Power Supply Module Unpack the module and verify that its input specifications align with the requirements. Remove the blank filler panel from the empty slot, ensuring the module nameplate faces upward. Grasp the handle with one hand, and with the other hand underneath the module for support, slide it into the slot along the guide rail until you feel the connector securely snap into place.

  • Page 43: Connecting Cables

    Windbit Hardware Installation and Reference Guide ⚫ Maintain a grounding resistance below 1 ohm. To ensure both personal and device safety, proper grounding of the switch is imperative. The grounding resistance between the chassis and the ground must be maintained below 1 ohm.

  • Page 44: Verifying Installation

    Windbit Hardware Installation and Reference Guide 3.8 Verifying Installation For safety, power off to prevent personal injury and component damage from incorrect connections. ⚫ Confirm the ground wire is connected. ⚫ Confirm that the cables and power input cables are correctly and securely connected.

  • Page 45: Establishing Configuration Environment

    Windbit Hardware Installation and Reference Guide 4 Verifying Operating Status 4.1 Establishing Configuration Environment Establishing Configuration Environment Connect the PC to the switch’s management port using an Ethernet cable. Figure 4-1 Configuring Environment Connecting an Ethernet Cable ⚫ Connect the Ethernet cable’s crystal head to the PC’s network port.
  • Page 46 Windbit Hardware Installation and Reference Guide ⚫ Confirm the power supply voltage complies with the switch requirements. ⚫ Ensure the Ethernet cable is properly connected. ⚫ Confirm the terminal (e.g., PC) designated for configuration is already started, and its parameters are configured.

  • Page 47: Monitoring And Maintenance

    Windbit Hardware Installation and Reference Guide 5 Monitoring and Maintenance 5.1 Monitoring During switch operation, monitor module status through the LED indicators. ⚫ A red SYS indicator signals a system fault. Troubleshoot the issue using the web-based management system. ⚫...
  • Page 48 Windbit Hardware Installation and Reference Guide The device features an internal lithium battery to sustain the real-time clock during power loss. Contact technical support for lithium battery replacement. Ensure replacement is with the correct battery type to avoid potential hazards, as the wrong type may cause explosion or danger.

  • Page 49: Troubleshooting Flowchart

    Windbit Hardware Installation and Reference Guide 6 Troubleshooting 6.1 Troubleshooting Flowchart The device is not working properly Check the rack installation Check the device installation Check the power connection Check the installation of the power supply module Check the connector of each module...
  • Page 50 Ensure the connected serial port matches the configuration in HyperTerminal. Verify the HyperTerminal serial port configuration aligns with the settings in the Configuration Guide. If there is still no output on the serial port, contact Windbit technical support. Fault 4: The serial port console output is garbled.
  • Page 51 Windbit Hardware Installation and Reference Guide Verify the consistency of SFP module wavelengths on both sides. For example, an SFP module with a wavelength of 1310 nm cannot be connected to an SFP module of 1550 nm. Check whether the distance between the two sides exceeds the maximum length specified on the SFP module.
  • Page 52 Windbit Hardware Installation and Reference Guide 7 Appendix 7.1 Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port supporting auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
  • Page 53 Windbit Hardware Installation and Reference Guide Fiber Connection Select single mode or multimode fibers based on the module types. Figure 7- illustrates the connection setup for fiber-optic cables. Figure 7-3 Fiber-Optic Cable Connection ESW1L3 & ESW2L3 Series Switches...

  • Page 54: Lightning Protection

    Windbit Hardware Installation and Reference Guide 7.2 Lightning Protection Installing AC Power Arrester (Lightning Protection Power Strip) To safeguard against lightning strikes, connect the AC power port to an external lightning protection power strip. This precaution is essential when introducing the AC power cord from outdoors directly to the switch’s power port. Secure the lightning protection power strip on the rack, workbench, or wall within the equipment room using cable ties and screws.
  • Page 55 Windbit Hardware Installation and Reference Guide Apply double-sided adhesive tape to one side of the Ethernet port arrester’s housing, then affix it to the switch housing. Place the arrester as close to the switch’s ground terminal as possible. Adjust the length of the ground cable for the Ethernet port arrester based on the distance to the switch ground terminal.
  • Page 56 Windbit Hardware Installation and Reference Guide 7.3 Cabling When installing the switch in a standard 19-inch rack, secure cables around cable management brackets. Choose between top cabling or bottom cabling based on the equipment room’s layout. Arrange all transferred cable connectors orderly at the bottom of the rack instead of exposing them outside, preventing inadvertent contact.
  • Page 57 Windbit Hardware Installation and Reference Guide ⚫ For metal holes traversed by cables, maintain a smooth, fully rounded surface, or use an insulated lining. ⚫ Properly bundle cables with cable ties, avoiding the connection of two or more cable ties.

  • Page 58: Site Selection

    Windbit Hardware Installation and Reference Guide ① Flat washer ② Nut ③ Spring washer ④ Flat washer ⚫ Secure hard power cords in the terminal connection area to prevent stress on the terminal connection and cable. ⚫ Avoid using self-tapping screws for terminal fastening.
  • Page 59 Windbit Hardware Installation and Reference Guide ⚫ Steer clear of livestock farms when constructing the equipment room. If in proximity, place the machine room persistently on the windward side of the pollution source, avoiding the use of previous livestock houses or fertilizer warehouses.
