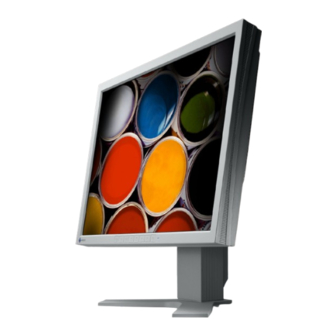

Eizo FLEXSCAN L887 Brochure

W
ith its large 20.1" screen and
sophisticated color control
features, the FlexScan L887 is fully
equipped to handle the demands of
CAD/CAM, DTP, and other graphics
work. Additional considerations such
as the SlimEdge thin bezel design
and height, pivot, tilt, and swivel
adjustment make this an excellent
replacement for large screen CRT
or smaller screen LCD monitors.
• 1600 × 1200 native resolution
• 250 cd/m brightness and
2
500:1 contrast ratio
• Digital and analog signal
support
• 5-year warranty
F E A T U R E S
Fine Contrast Mode Selection
The Fine Contrast function offers five different
imaging modes — Text, Picture, Movie, Custom and
sRGB — for the one that best suits the type of ap-
plication you are using. Toggling between modes is
simple with a button on the front panel.
Image Mode Assignment
Part of the bundled ScreenManager Pro for LCD utility
software, this function lets you assign a Fine Contrast
mode to a specific application. Whenever the applica-
tion is selected, the screen automatically changes to the
assigned mode. Also included is a WindowMovie mode,
which darkens the surrounding background so the
video window appears clearer and brighter.
Gamma Correction
The FlexScan L887 comes equipped with EIZO's
newly developed ASIC (Application Specific Inte-
2 0 . 1 " C o l o r L C D M o n i t o r
grated Circuit) which takes 8-bit data (256 tones for
each primary color) from the PC and converts it to
14-bits (16,384 tones) and then back to 8-bits for an
ideal gamma curve. This 14-bit processing capabil-
ity ensures extremely smooth grayscale rendering
even in typically problematic dark areas of an image.
Gamma values are also user-adjustable from 1.4 to
3.0 in 0.2 increments.
Independent 6-Color Control
Extensive color control allows the precise adjustment
of even a single color in an image. You can indepen-
dently adjust hue and saturation for each primary
(red, green, blue) and secondary (cyan, magenta,
yellow) color.
