Crenova XPE496 Manual

Box Contents

Note: Adjust the focus ring and the keystone ring before using the projector. Turn off this product when not in use to prolong the life of the projector.

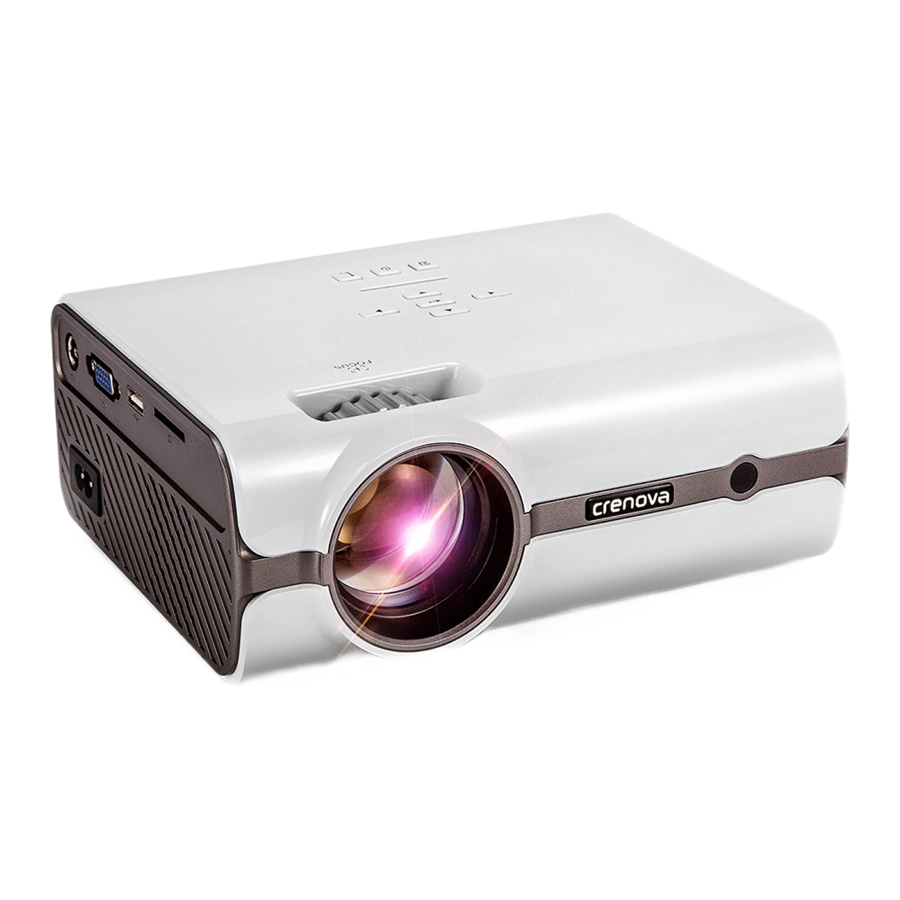

Product Parts

1. TV port
2. VGA port
3. USB port
4. SD card slot
5. HDMI port
6. AV input port
7. Audio jack

Remote Control

1. Power button (turns the projector on or off)
2. Mute button (turns off sound)
3. Volume up button (adjusts speaker volume)
4. Fast backward button (fast backwards)
5. Fast forward button (fast forwards)
6. Volume down button (adjusts speaker volume)
7. Play/Pause button (plays/pauses the playing content)
8. Stop button (stops the playing content)
9. SOURCE button (selects the input source)
10. INFO button (operates the information function)
11. ENTER button (selects and confirms options)
12. Up (selects upward movement on the function interface of the menu)
13. Down (selects downward movement on the function interface of the menu)
14. Left (selects leftward movement on the function interface of the menu)
15. Right (selects rightward movement on the function interface of the menu)
16. MENU button (accesses projector menu system)
17. EXIT button (exits from the DTV channel)
18. CH down button (channel down)
19. CH up button (channel up)
20. Numeric buttons (enter numbers)

Projector Operations

1. Connect the power cord to the projector's power inlet, press the Power Button to turn on the projector.

2. Rotate the Focus Ring and the Keystone Correction simultaneously until to get the clear image.

3. Press the Menu Button. Press Left/Right to select Option. Choose OSD Language under Option.

4. Press Ok to access the submenu of OSD Language and press UP/Down/Left/Right to select the language.

5. To connect a device, press the Input Button or the Source Button.

6. Select the correct input source and prepare the cable for device connections if necessary.

7. Connect the projector to your device with the compatible cable and port.

Note: Do not hot plug the device, power off the device before making any connections.

Flexible Connectivity

1. Connect to a HDMI device

2. Connect to a VGA device

3. Connect to an AV equipment

4. Connect to a USB storage device up to 64G

5. Connect to an audio device

6. Charge a mobile device


Product Specifications

Projection Distance and Screen Size

Important Safety Instructions

• Don't use chemical detergents to clean

• Don't look directly into the light

• Don't disassemble the projector

• Unplug the projector after shutdown

• Use a soft and dry cloth for cleaning

• Don't use the projector near water or moisture

• Don't block any ventilation openings

• Place the projector on a flat surface

• Use in a wellventilated area


Helpful Tips

• Please operate the projector in a dark room.
• The cooling system makes slight noise to avoid overheating.
• Connecting to an external audio device is recommended.
• Business data presentation is not recommended.
• Maximum supported resolution of the projector is 1920x1080 pixels.
• Native resolution of the projector is 800x480 pixels.
• The projector does not support Dolby Vision.
• Mirror a smartphone to the projector with a HDMI/WiFi dongle.
