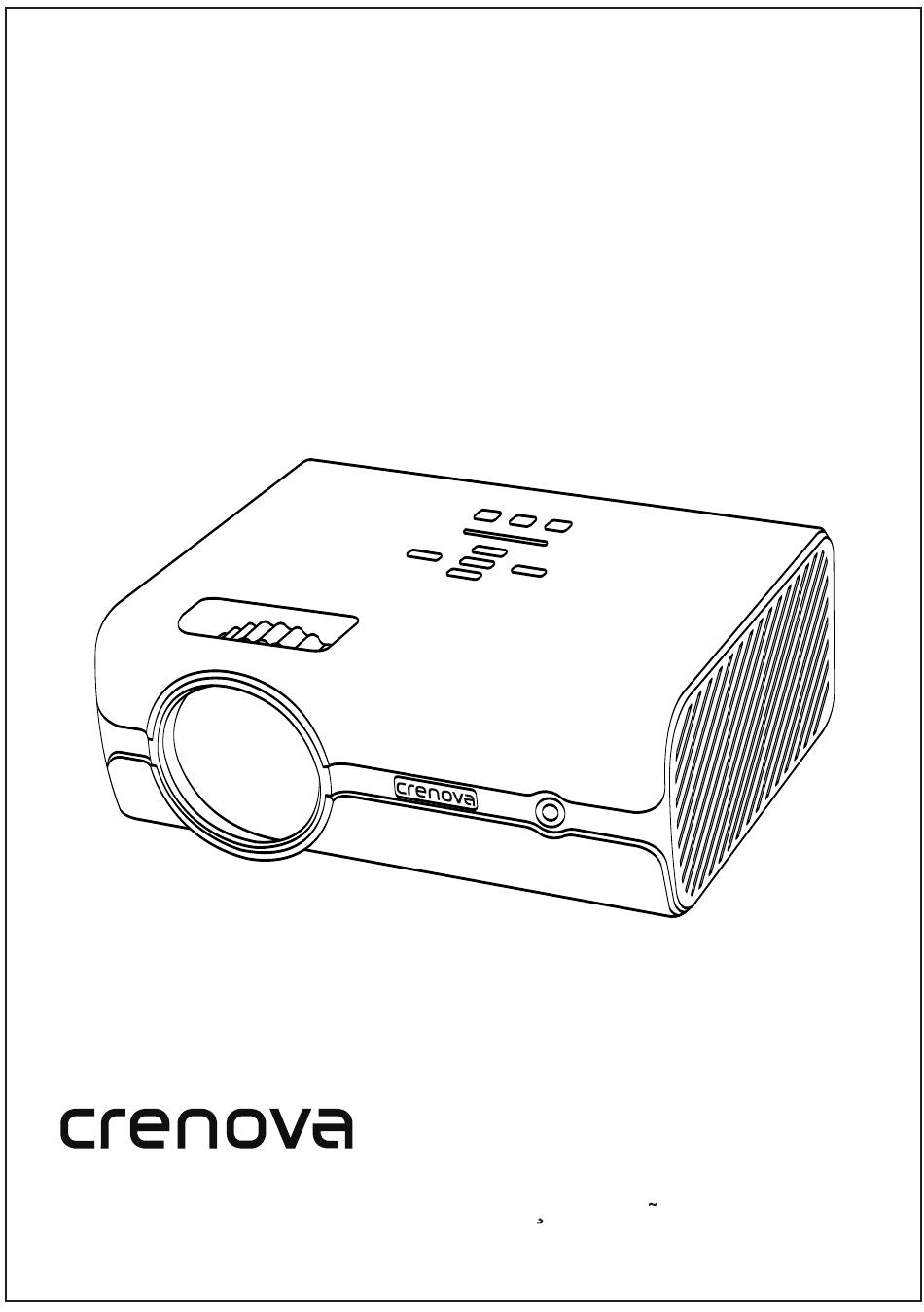

- Page 1 Multimedia Home Entertainment Video Projector Quick User Guide-XPE496 日本語 English Deutsch Francais Espanol Italiano To ensure safe and proper use, please read this instruction before operating the product.
- Page 2 Contents English XXXXXX Deutsch XXXXXX Francais XXXXXX Espanol XXXXXX Italiano XXXXXX 日本語 XXXXXX...
-
Page 3: Important Safety Instructions
English Important Safety Instructions •Don't use chemical •Don't look directly •Don't disassemble detergents to clean into the light the projector •Unplug the projector •Use a soft and dry •Don't use the projector after shutdown cloth for cleaning near water or moisture •Don't block any •Place the projector •Use in a well-... -
Page 4: Box Contents
English Box Contents crenova XPE496 Projector crenova XPE496 projector Instruction manual HDMI cable Power cord Remote control 3-in-1 AV cable Note: Adjust the focus ring and the keystone ring before using the projector. Turn off this product when not in use to prolong the life of the projector. -
Page 5: Product Parts
English Product Parts Focus/Zoom ring Keystone ring Lens Air exhaust port Air intake port Built-in speaker OK Button Right Left Play/Pause Esc Botton Menu Button Source Button Power Button HDMI Keystone 1.TV port 2.VGA port 3.USB port 4.SD card slot 5.HDMI port 6.AV input port 7.Audio jack... -
Page 6: Remote Control
English Remote Control 1. Power button (turns the projector on or off) 2. Mute button (turns off sound) 3. Volume up button (adjusts speaker volume) 4. Fast backward button (fast backwards) 5. Fast forward button (fast forwards) 6. Volume down button (adjusts speaker volume) 7. -
Page 7: Projector Operations
English Projector Operations 1. Connect the power cord to the projector's power inlet, press the Power Button to turn on the projector. 2. Rotate the Focus Ring and the Keystone Correction simultaneously until to get the clear image. HDMI Keystone... - Page 8 English 3. Press the Menu Button. Press Left/Right to select Option. Choose OSD Language under Option. OPTION Software Update(USB) Restore Factory Default OSD Language English Color Range 0~255 OsdDuration Off 4. Press Ok to access the submenu of OSD Language and press UP/Down/Left/Right to select the language.
- Page 9 English 5. To connect a device, press the Input Button or the Source Button. 6. Select the correct input source and prepare the cable for device connections if necessary. Input Source HDMI SD CARD...
-
Page 10: Flexible Connectivity
English Flexible Connectivity 7. Connect the projector to your device with the compatible cable and port. Note: Do not hot plug the device, power off the device before making any connections. Connect to a USB storage device up to 64G Connect to a HDMI device Connect to an audio device Connect to a VGA device... -
Page 11: Product Specifications
English Product Specifications Keystone High Lumens 23 Languages 800x480 Full HD Multichip pixels Video Coated Lens Imaging Technology TFT LCD Native Resolution 800x480 pixels Maximum Supported Resolution 1920x1080 pixels Light Lens Multichip Coated Lens(F=125) ± 15 ° Correction Keystone 50-130 inches Screen Size Projection Distance 1.5-4.0m... -
Page 12: Projection Distance And Screen Size
English Projection Distance and Screen Size " " " " " 380 (CM) Warranty Your projector comes with a free replacement or a full refund within 1 year that lets your product with confidence. -
Page 13: Helpful Tips
Whether you need further assistance,are looking for answers, or just want to share your reviews with us,you will find many ways to contact us right here. Email: service@crenova.net Contact No.: 1-562-999-4260 Official Homepage: www.crenova.net Or you may scan the code and visit our Facebook below:...
