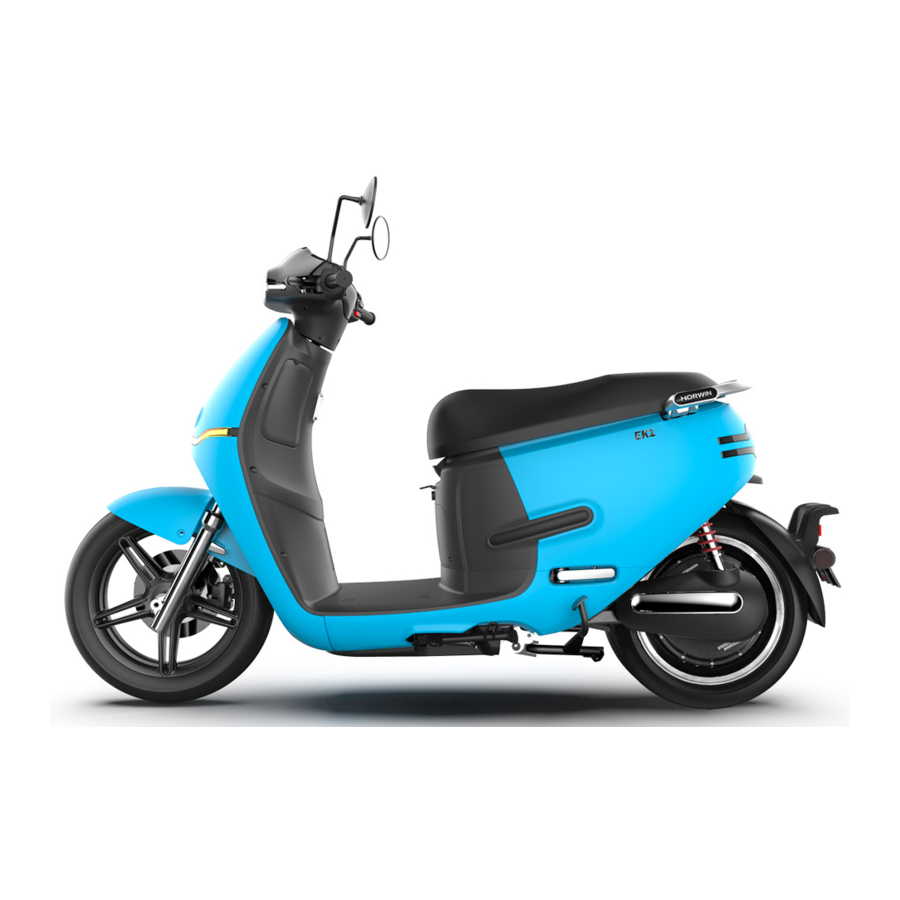

Product overview

Description of the parts

1. Headlight
2. Rear-view mirror
3. Left combination switch
4. Seat
5. Tail light
6. Rear fender
7. Centre stand
8. Side stand
9. Front fender
10. Front shock absorber
11. Storage compartment (socket, max. consumption 1 A, voltage 5 V DC) built-in USB charging

1. Throttle
2. Right combination switch
3. Ignition lock
4. LED light element
5. Footboard
6. Rear shock absorber
7. Rear armrest
8. Reflector
9. Cover of the rear swing arm
10. Hub motor

Instrument cluster / display

1. Indicator, left
   This indicator light flashes when you press the left indicator.
2. Indicator, right
   This indicator light flashes when you press the right indicator.
3. Current power display
   Displays the current consumption of the motor.
4. Speed per hour
   Displays the current speed (in km/h or mph).
5. Operating status
   Indicates the current operating status of the vehicle.
6. Park or riding mode
   Displays the currently selected parking or riding mode
   EK1 Riding mode speeds:
   • The maximum speed in the 1st riding mode is up to 25 km/h
   • The maximum speed in the 2nd riding mode is up to 35 km/h
   • The maximum speed in the 3rd riding mode is up to 45 km/h

EK1 Light riding mode speeds:

• The maximum speed in the 1st riding mode is up to 15 km/h
• The maximum speed in the 2nd riding mode is up to 20 km/h
• The maximum speed in the 3rd riding mode is up to 25 km/h

7. Low battery indicator
   If the battery charge level is below 20%, the indicator lights up.
8. Motor warning light
   If an error occurs in the motor control, this symbol lights up.
9. Trip odometer
   Display of the current distance travelled (automatic reset after restart).
10. Total mileage
    Display of the total mileage reading.
11. Battery charge level indicator
    Displays the current battery charge level as a percentage.
12. High beam indicator lamp
    This indicator lights up when the high beam is switched on.
13. Hazard warning lights
    If you press the button on the right-hand combination switch of the hazard warning lights, the left and right indicators and this symbol flash.
14. Cruise control system
    • Pressing the cruise control button causes the vehicle to continue travelling at the current speed.
    • The cruise control can be deactivated by applying the left or right brake or by pressing the cruise control button again.
15. Reverse mode indicator
    • If you press and hold the reverse button on the right-hand combination switch, the vehicle is in reverse riding mode.
    • Releasing the button returns the vehicle to forward mode.

Combination switch

1. Left-hand combination switch with high beam and dipped beam
   • Press the switch upwards to switch on the high beam.
   • Press the switch down to switch on the dipped beam.
2. Indicator
   • Press the switch to the left to switch on the left indicator.
   • Press the switch to the right to switch on the right indicator.
   • Move the switch to the centre position to switch off the indicator.
3. Horn
   • Press the horn button to sound the horn signal.
   • The horn signal ends when the horn button is released.
4. Cruise control
   • Press the button to run the scooter at the current speed.
   • To deactivate the cruise control, press this button again or apply the brake.

5. Right-hand combination switch with main lighting
   • Press the switch down to switch off the main lighting.
   • Press the switch upwards to switch on the main lighting.
6. Riding mode selector switch
   • Left position: 1. riding mode
   • Centre position: 2. riding mode
   • Right position: 3. riding mode
7. Hazard warning lights
   • Press the button to activate the hazard warning lights. Press the button again to deactivate the hazard warning lights.
8. Start\Reverse switch
   • Press the button to switch to standby/READY mode.
   • Press and hold the button to activate reverse mode and release it to return to forward mode.

Vehicle lock

Starting the scooter
Insert the mechanical key and turn it to the "Start" position to switch on the vehicle. Turn the key back to the "Off" position to switch off the vehicle.

Opening the seat
Insert the mechanical key and turn it to the "Open seat" position to unlock the seat.

Handlebar lock
Turn the handlebars to the furthest left position. The handlebars are locked by pressing and turning the key anti-clockwise to the "handlebar lock" position.

Battery and charger

Instructions for using batteries

The battery has multiple charging methods

External charging mode

First connect the charger to the battery interface, and then to the socket. If the charging process does not start automatically, press the charging indicator button.

In-vehicle charging mode

Place the battery in the battery compartment and connect the vehicle plug to the battery.
Then plug the charging plug of the charger into the charging interface above the footboard to charge the scooter.
If the charging process does not start automatically, press the charging indicator button directly on the battery.

Description of the battery charge level indicator on the battery

While charging, the charge level indicator shows the current battery charge level. Once the battery is fully charged, all LEDs light up continuously and no longer flash.
The current charge level is displayed by pressing the button next to the charge indicator - one LED corresponds to 20% charge level.

Battery manual

Before using the battery, make sure that it is the original battery; do not use batteries from other manufacturers or of other types.
Check the battery for obvious external damage, leakage of liquid, overheating, expansion or other damage.
Due to self-consumption factors such as transport routes and storage times, the battery does not initially have maximum capacity. Charge the battery according to the charging instructions.
Batteries must not be disassembled and must be disposed of properly.

Operating environment

Please use the battery between -10 ℃ and 45 ℃.

Please prevent the battery from coming into contact with liquids, such as water, cleaning agents, etc.

Please avoid storing the battery near heat sources, open flames, flammable and explosive gases or liquids.

Please prevent metallic foreign objects from entering the battery compartment.

• At low temperatures, the available battery capacity decreases to varying degrees. For example: The available capacity is approx. 70% at -10 ℃, 85% at 0 ℃ and up to 100% at 25 ℃.
• If you notice any abnormalities, such as a strange odour, overheating or deformation, please stop using the battery immediately. Keep away from the battery and contact your specialist dealer immediately.

If the battery is dismantled or taken apart without authorisation, the manufacturer's warranty is automatically invalidated. Incorrect handling could cause the battery to overheat, start to smoke, catch fire or explode.

Charging environment

Please use the original charger to charge the battery. Do not use chargers from other manufacturers, brands or types to charge the battery.

Please charge the battery at an ambient temperature of 0 ℃ - 35 ℃.

Please do not charge the battery for longer than 8 hours, since otherwise the battery life will be impaired.

• In the early phase (0-80%), the charging speed is faster; in the later phase (80-100%), the charging speed is slower, because this process is configured for charging safety and is normal.
• In winter, when the outside ambient temperature drops below 0 ℃, the charging process may stop, which is a normal condition. Please charge the battery at a suitable ambient temperature.
• At higher outside temperatures or shortly after the end of the ride, charging may not start immediately due to high temperatures inside the battery. It is recommended that the battery is left to rest for some time to lower the temperature.
• During charging, chargers have a thermal effect and the temperature of the housing may increase. Please avoid touching the charger during the charging process (possible risk of burns).

Precautions for using the charger

• The charger should only be used indoors, under cover, or in environments protected from the weather.
• It is strictly forbidden to use the charger in an environment with high temperatures, and the charger must not be placed in the seat shell during the charging process.
• When the green indicator light on the charger lights up, end the charging process and disconnect the charger from the battery or the mains.
• If the indicator light on the charger is abnormal during the charging process, or if the charger smells strange or the housing of the charger is overheated, please stop charging immediately and contact your specialist dealer.
• Please do not dismantle the charger yourself, and do not replace the charger components yourself.
• If the charger is replaced, the new charger should match the battery model.

Storage environment

• As soon as the battery is inserted into the vehicle and connected, energy is drawn from the battery for the alarm system or other consumers.
• Please store the battery in an environment between 0 ℃ - 25 ℃ and not in an environment with a temperature higher than 40 ℃; otherwise, the battery capacity will be irreversibly weakened.
• If the vehicle is not used for a longer period of time, the battery must be disconnected, stored separately, maintained and charged regularly, as otherwise the battery may be completely discharged and irreversibly damaged, e.g., deep discharge of the battery. In such a case, it is excluded from the warranty.
• If the battery is stored for a longer period of time, the most suitable battery charge level is 50-70%. If the battery charge level is less than 10% or more than 90%, the battery capacity will be irreversibly weakened.
• The following technical standards apply with regard to the self-consumption protection mode when the lithium battery is stored safely:
  1. If the battery is not used for a longer period of time, it can be stored in the vehicle (the battery plug is not disconnected), and the maximum safe storage period is 15 days; otherwise, the battery may become deeply discharged and the battery cannot be restored.
  2. If the battery is not used for a longer period of time, the charge level is not less than 50%, and the battery is stored separately or kept in the vehicle (the battery plug is disconnected), the maximum safe storage period is 2 months; otherwise, the battery may become deeply discharged and the battery cannot be restored.
• Please store the battery in a safe place; otherwise, the battery may be damaged in an uncontrolled manner: leakage, heating up, smoking, burning or explosion.
• Undervoltage and deep discharge of the battery caused by improper use are not covered by the warranty.

Precautionary measures when putting the battery into operation

• When using the battery for the first time, please discharge it as much as possible, and then fully charge it before the next use.
• Please keep the battery charge level at a minimum of 10%, and charge the battery in good time in order to maximise the service life of the battery.

The battery must not be stored outdoors in rain or bad weather, and must not be rinsed with water or other liquids. If the vehicle is driven or pushed through high puddles of water, the water level must not exceed the height of the lower edge of the battery compartment; otherwise, water will penetrate the battery and the battery may be short-circuited, resulting in permanent battery failure.

In this case, it is forbidden to switch the vehicle on again or to recharge the battery, as otherwise the battery may catch fire and explode. Please return the battery to your specialist dealer immediately for servicing.

Driving instructions

Precautionary measures before beginning your ride

If you are impaired due to the consumption of alcohol or drugs, driving is absolutely not recommended. Read the user manual. Ensure that you have fully understood all safety instructions, as well as all functions of the operating elements.

Please make sure of the following before you begin your ride:

• You are in good physical and mental health.
• Your are wearing a helmet and other protective clothing.
• You should not operate the vehicle after consuming alcohol or taking medication.

Protective clothing

For safety reasons, we strongly recommend that you always wear a certified helmet and appropriate protective clothing when riding.

Checking before setting off

General precautions

If you discover any damage, other abnormalities or technical faults when checking your vehicle, please rectify them immediately or have them rectified by an authorised specialist dealer. Before using the scooter, check the following points to ensure your safety on the road:

• Function test of all switches of the left and right combination units
• Handle for speed control
• Recommended tyre pressure: Front wheel 2.5 - 2.8 bar, rear wheel 2.5 - 3 bar
• Tyre surface for cracks, damage, wear or foreign objects adhering to the tyre
• Observe the legal tread depth (seasonal and country-specific deviations)
• Battery charge status
• Function test of headlight, tail light, brake light, indicators and horn
• Rear-view mirror (adjustment and cleanliness)
• Brake fluid level
• Brake system function test

Loading precautions

Overloading or improper loading can lead to irregular scooter operation. The exact dimensions and weight specifications can be found below in the technical data and dimensions.

Starting the vehicle

1. Insert the key to turn the ignition lock to the start position and use it to start the vehicle.
2. Please put up the side/centre stand and press the "Start switch" in the right-hand combination unit; the "READY" symbol will appear on the display.
3. Lightly turn the throttle and enjoy your ride!

Braking instructions

• Excessive, sudden braking can cause the wheels to lock and skid, limiting control of the vehicle. In this case, release the brake lever and drive forwards continuously until control is restored, and then brake more gently.
• Slow down as much as possible, or come to a complete stop before turning. Avoid braking when cornering, as this can cause one or two wheels to slip, thereby reducing control of the scooter.
• When riding in wet, rainy conditions or on soft surfaces, the manoeuvrability and braking ability of the scooter are impaired. In this case, all your riding manoeuvres must be adjusted; sudden acceleration, braking or turning can lead to loss of control of the scooter.
• On long, steep, downhill stretches of road, excessive use of the braking system can lead to overheating and reduce the effectiveness of the braking power. Consequential damage can therefore not be ruled out.

Switching off

1. Fold down the side stand; the "READY" symbol will go out on the display, the electrical system of the entire vehicle is still in "Park" mode, and the vehicle will not move off when the throttle is opened.
2. Turn the key of the handlebar lock to position 2, and the electrical system of the entire vehicle will switch off.


Service and maintenance intervals

The exact maintenance and service instructions, as well as the warranty guidelines, can be found in the separate service and maintenance manual supplied with your vehicle.

General service tips

Please switch off the vehicle and remove the battery before cleaning the vehicle. Do not clean your vehicle directly with a strong jet of water (e.g., high-pressure cleaner, etc.), which can cause faults or damage to mechanical and electrical components due to moisture.

Troubleshooting

Troubleshooting on the vehicle

Error codes / control unit

Cleaning the product

Please mix tap water and neutral detergent to clean the vehicle. After cleaning the vehicle, wipe the surface with a soft cloth.
Do not clean your vehicle directly with a strong jet of water (e.g., high-pressure cleaner, etc.), which can cause faults or damage to mechanical and electrical components due to moisture.
Please refer to the more detailed information and instructions in the separate service and maintenance manual.

Secure storage of the product

Please park the vehicle in a flat, solid, well-ventilated and dry place. Please avoid exposing the vehicle to weather conditions such as sunlight, rain/snow, etc. for long periods of time. If you park the vehicle for a longer period of time, please note the additional information in the service/maintenance booklet.

Technical data and dimensions

Safety instructions

Please read this product manual carefully, and only use this vehicle if you are mentally and physically fit to do so.
Please follow the traffic rules, do not deliberately drive in reverse for long distances, do not run red lights, and do not use mobile phones while driving.
Please do not use any third-party accessories, and do not disassemble or modify the e-scooter without authorisation; otherwise, any resulting damage will be at your expense, and you will lose the right to make use of our warranty service.
Due to the continuous improvement of the product, the vehicle you purchase may differ slightly from the vehicle described in this manual. If you are unsure about the use, repair and commissioning of this vehicle, please contact our authorised specialist dealers.

Please read the following instructions carefully for your own safety and that of others:

• Before riding the e-scooter, check that all safety-relevant functions (e.g., lighting system, horn, braking system, etc.) are in working order in order to ensure road safety. If you should notice any problems, please contact your specialist dealer immediately.
• To ensure your safety, wear a safety helmet, gloves and appropriate protective equipment when driving.
• Please make sure that you are in good health and not tired. Please do not ride your scooter if you have consumed drugs, medication, alcohol or impairing substances.
• Please observe the traffic regulations and adjust your speed according to the weather and road conditions.
• Do not park the vehicle in unauthorised locations (restricted areas, etc.)e.g., in escape routes, fire brigade access roads,
• We do not recommend charging or parking the electric scooter in the immediate vicinity of flammable materials. Charging should always be done under supervision.

Please contact the HORWIN Customer Service Centre at this e-mail address: service@horwinglobal.com
If you should have a problem with this scooter, we will be happy to help you.

HORWIN Europa-Zentrale
A-2033 Kammersdorf 173
Central warehouse: A-2034 Großharras 77
www.horwin.eu

HORWIN Global Headquarters
Building 1 | No. 5 Chuangzhi Road
Tianning District | Changzhou | Jiangsu | China
www.horwinglobal.com
