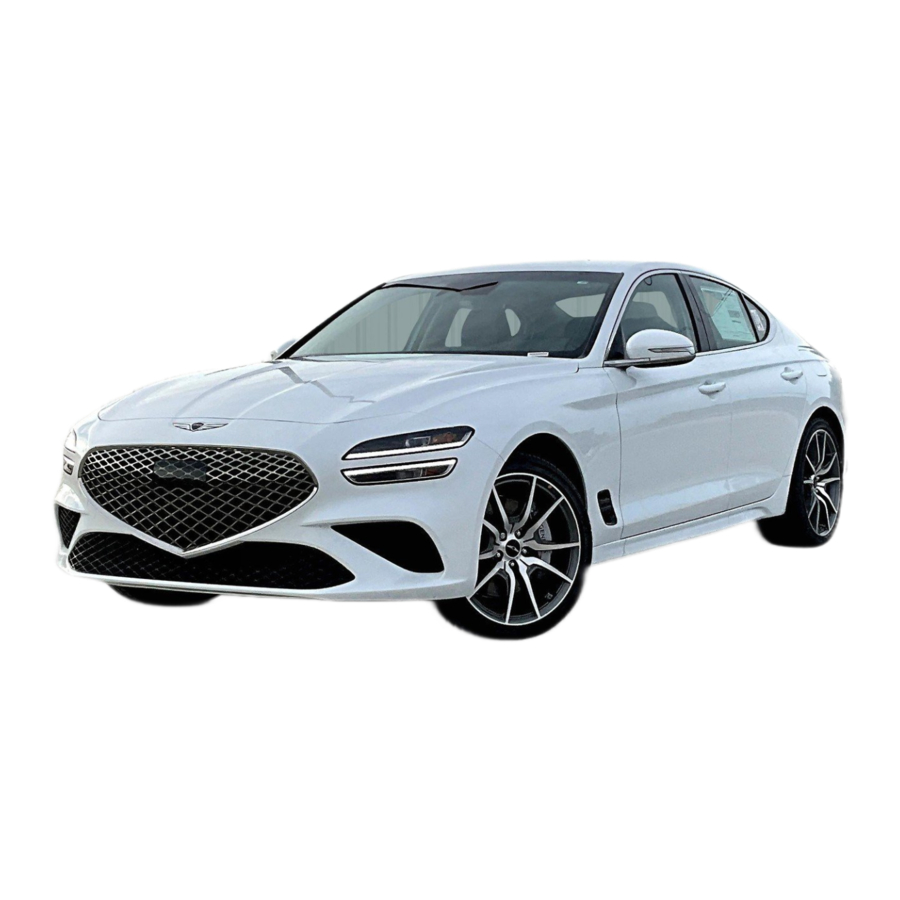

GENESIS G70 2024 Manual

QUICK REFERENCE HOW-TO LINKS

SCAN TO LEARN
Scan to learn more about new and existing features on your Genesis with "How-To" guides:

GENESIS G70 HOW-TO VIDEOS

GENESIS G70 HEAD-UP DISPLAY

GENESIS CONNECTED SERVICES

GENESIS NAVIGATION OVERVIEW

ANDROID AUTO / APPLE CARPLAY ™

GENESIS G70 CLIMATE CONTROL

GENESIS G70 STEERING WHEEL CONTROLS

GENESIS G70 SHIFT BY WIRE

NOTE: Use this Quick Reference Guide to learn about the features that will enhance your enjoyment of your GENESIS. More detailed information about these features are available in your Owner's Manual.

FEATURES AND CONTROLS

SMART KEY

Door lock
Door unlock
Trunk open
Panic Remote start

Driver's door Lock / Unlock
Smart key must be within 20-40 in. from outside door handle.

UNLOCK
Place palm of hand behind door handle to initiate UNLOCK command and pull door open.

UNLOCK WITH 2-TURN-UNLOCK ENABLED
Dip palm of hand twice behind driver's door handle before opening door.

NOTE: Do NOT touch Lock sensor on front of handle at same time when placing palm of hand behind door handle, this will prevent initiation of unlock command.

LOCK
Touch lock sensor button, located on o/s door handle using an index finger or thumb to initiate lock command. All doors must be closed.

NOTE: After Unlocking door using touch sensor, there is a 3 seconds delay before Lock sensor function can initiate.

TWO PRESS UNLOCK

The 2 Press Unlock feature, when enabled, will require the user to press the door unlock button once for driver door only and twice for unlocking all the doors.

To enable 2 Press Unlock feature:
Setup > Vehicle > Door > 2 Press Unlock

The 2 Press Unlock feature can also be enabled or disabled by pressing the door lock and unlock buttons simultaneously on the Key FOB:

Press and hold both the Door Lock button and the Door Unlock button simultaneously until the hazard warning lights blink.

This will enable or disable the 2 Press Unlock feature. Repeat this procedure to enable/disable the mode again.

If you touch the door unlock sensor inside of the front door handle to unlock the doors within 4 seconds of unlocking the driver's door, all of the doors unlock. When the doors unlock, the hazard warning lights will blink two times and the chime will sound.

KEYHOLE ACCESS (Driver's door)

If the smart key does not operate, you can lock or unlock the driver's door by using the mechanical key.

1. Press the Genesis text section of the Mechanical key to remove the case.
2. Remove the mechanical key from the case.
3. Pull out the door handle.
4. Press the lock located at the bottom of the cover with a mechanical key or flat-head screwdriver.
5. Push out the cover while pressing the lock.
6. Turn the key counterclockwise to lock or turn the key clockwise to unlock

DIGITAL KEY 2 PAIRING (if equipped)

Genesis Digital Key allows drivers to start the engine of their car using a smartphone app and Near-Field Communication (NFC). Genesis Digital Key provides many of the same functions as your physical key. To pair your smartphone, complete the following steps.

Registering your digital key on your smartphone

1. Turn on the vehicle with a smart key and make sure to keep the smart key inside the vehicle during digital key registration.
2. Open Genesis Intelligent Assistant App in the vehicle owner's smart phone, select the vehicle to register and activate the digital key registration screen.
3. Put the gear in P (Park), from the Settings menu in the infotainment system select Setup > Vehicle > Digital Key > Smartphone Key > My Smartphone Key.
4. Place your smartphone on the vehicle authentication pad (wireless charging pad) with the screen facing up.

5. Press the Save button on vehicle infotainment system. The saving process will begin automatically. When the digital key (smartphone) is saved, a message appears on the infotainment system.
6. Remove the smart phone from the pad and complete the saving process under the guidance of the smart phone screen.

How to register your Card Key (NFC key)

1. Have both of your smart keys with you in the vehicle.
2. Select Setup > Vehicle > Digital Key > NFC Card Key from the Setup menu, and check whether "Use" is selected in the infotainment system.
3. Place your card key on the vehicle authentication pad (wireless charging pad) while the engine is on.
4. Register your card key by selecting Setup > Vehicle > Digital Keys > NFC Card Key > Save from the Settings menu in the infotainment system.

Note: This application is only available to certain iPhone and Samsung devices. If the NFC card is lost or stolen, please contact your local Genesis dealer for replacement.

NEAR FIELD COMMUNICATION (NFC)

Lock / Unlock
To lock / unlock your vehicle using the NFC key card , hold the key card up to the center of the door handle

If you try to lock your vehicle with the NFC key card under the following conditions, it will not work:

• The Smart Key is in the vehicle.
• The POWER button is in ACC or ON position.
• Any of the doors, hood and trunk are open.

Starting the vehicle
After placing your registered digital key (card key) on the vehicle authentication pad (wireless charging pad), depress the brake pedal and press the Engine Start/Stop button.

NOTE: If you overlap and use the key card with other NFC-enabled cards such as a transportation card or credit card, it will not work.

For security reasons, the vehicle can only have one NFC key card paired to it at one time. Any time that a new NFC key card is paired to the car it will disable the previously paired NFC key card.

FRONT SEAT ADJUSTMENT

DRIVER POSITION MEMORY SYSTEM

To Store Settings

1. Adjust the driver's seat position, outside rear view mirrors, steering wheel, instrument panel illumination and head-up display.
2. Press the SET button. The system will beep once.
3. Press one of the memory buttons (1 or 2) within 5 seconds. The system will beep twice.

NOTE: Transmission must be in P (Park).

To Recall: Press the desired memory button (1 or 2). The system will beep once.

NOTE: To reset the system, please refer to the Owner's Manual.

HEADREST ADJUSTMENT

1. To Raise Headrest: Pull headrest up.
2. To lower Headrest: Press lock button while pressing down on headrest.
3. To adjust headrest forward (front seats only): Pull forward to 1 of 3 positions.
4. To adjust headrest rearward (front seats only): Pull it fully forward to the farthest position and release it.

EASY ACCESS FUNCTION (Driver's Seat)

Entering the vehicle
The driver's seat and steering wheel will move back to its original position when the Engine Start/Stop button is in the OFF position and the driver's door is closed with the smart key in possession.

Exiting the vehicle
The driver's seat will move rearward and the steering wheel will move upward when the driver's door is opened and the Engine Start/Stop button is in the OFF position with the gear in P (Park).

NOTE: The driver's seat may not move rearward if there is not enough space between the driver's seat and the rear seat.

You can activate/deactivate this function from the User Settings mode in the cluster LCD display:

Seat Easy Access:
Convenience > Seat Easy Access > OFF/Normal/Extended

Steering Easy Access:
Convenience > Steering Easy Access > ON/OFF

DRIVER'S DOOR MAIN CONTROLS

WIPER BLADES

NOTE: To prevent damage to the hood and wiper arms, the wiper arms should only be lifted when in the top wiping position.

This vehicle has a "hidden" wiper design which means they cannot be lifted in their bottom resting position.

Wiper Blade Removal

1. Within 20 seconds of turning off the engine, lift and hold the wiper lever up to the MIST position for about 2 seconds until the wipers move to the top wipe position.
2. At this position, you are able to lift the wipers off the windshield.
3. Gently put wipers back down onto windshield.
4. Turn the wipers to any ON position to return to resting position.

POWER TRUNK (if equipped)

NOTE: If all doors are unlocked, you can open the trunk without smart key.

To open: Press and hold for 1sec. Trunk opens with a warning sound. Press button again to stop opening process.

To close: Press and continue to hold until trunk fully closes. If button is released at anytime during closing process trunk will stop with a warning sound for 5sec.

NOTE: If smart key is not within range of sensor (approx. 3ft) operation will stop with a warning sound for 5sec.

Interior Trunk Button

NOTE: If not equipped with "Power Trunk", then interior trunk button only opens trunk, it does not close it.

To open: Press & hold for 1sec. Trunk opens with a warning sound. Press button again to stop opening process.

To close: Press and continue to hold button until trunk fully closes. If button is released at anytime during closing process trunk will stop with a warning sound for 5sec.

Power trunk close button
Press to close.

Power trunk lock button
Press to lock the trunk and doors will lock as well. Smart key needs to be within range.

NOTE: Trunk opening height adjustment is available in the Vehicle setup options. Please refer to your Owner's Manual for further information.

HANDS FREE SMART TRUNK

Smart Trunk
When approaching rear of vehicle with Smart Key in pocket, the trunk will automatically open with no-touch activation (must be within sensor range for more than 3 sec).

To Activate Smart Trunk feature within AVN select Setup > Vehicle > Door/Trunk > check Smart Trunk

NOTE: Function is active after 15 seconds when all doors are closed and locked. The vehicle will also provide an audible and visual alarm while activating.

NOTE: Feature is default OFF from factory to reduce accidental activation.

FUEL FILLER DOOR

Opening the fuel filler door

1. Turn the engine off.
2. Push the fuel filler door open button .
3. Pull the fuel filler door outward to access the fuel tank cap.
4. To remove the fuel tank cap , turn it counterclockwise. Y ou may hear a hissing noise as the pressure inside the tank equalizes.
5. Place the cap on the fuel filler door.

Emergency fuel filler door release
If the fuel filler door does not open using the remote fuel filler door release button, you can open it manually. Pull the handle of 4 the release located on the left side of the luggage compartment outward slightly.

POWER OUTLET

The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 180 watts with the engine running.

WIRELESS PHONE CHARGING (if equipped)

The system operates when all doors are closed, and the Engine Start/Stop button is in the ACC/IGN ON position. When the charging process is completed, the indicator light changes from orange to green. If there is a malfunction, the indicator light turns orange and blinks for 10 seconds. In this case, remove the phone from the charging pad and then placing it back onto the pad. The wireless charging function can be turned ON or OFF.

NOTE: The wireless phone charging system supports only the Qi-enabled phones . Wireless Charger deactivates charging when any door is opened / ajar. If charger indicator light does not turn on and phone is not charging at first, try again after removing phone case.

USB PORTS

USB port type A

This port acts as dual data and charging. For vehicles equipped with navigation, use the USB port to access features on your smartphone using Apple CarPlay^® or Android Auto^® phone projection. Or use USB port to charge an external small device such as a cell phone.

USB port type C (if equipped)

Type C port is designed for charging small electrical devices only such as a cell phone or tablet.

WIDE SUNROOF

Power Sunshade

To open the sunshade, pull the sunroof control lever lightly backward to the first detent position. Push the sunroof control lever forward to close.

Sliding the sunroof

Pull the sunroof control lever backward past the first detent to slide open the sunroof control lever forward to the second detent position to close sunroof glass with the sunshade.

Tilting the sunroof

Push the sunroof control lever upward to tilt open the sunroof. Push again the sunroof control lever upward to tilt the sunroof glass closed.

INTERIOR LIGHTS

Push the switch to turn the room lamp OFF.

HEAD UP DISPLAY (HUD)

The HUD is a transparent display which projects an image of selected information from the instrument cluster and navigation on the windshield glass.

To activate & adjust HUD, press Setup > Vehicle > Head Up Display > select Enable Head Up Display. Use touchscreen to adjust Height, Rotation, & Brightness for best viewing.

NOTE: See Owner's Manual for more details on selecting content to display on the HUD. Wearing polarized sunglasses will make it difficult to see the images displayed in HUD.

INSTRUMENT CLUSTER 8" LCD Display

1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights
5. LCD display

LCD DISPLAY CONTROL

1. MODE button for changing modes
2. MOVE switch for changing items
3. OK SELECT/RESET button for (Press) setting or resetting the selected item

LCD DISPLAY MODES

Mode	Symbol	Explanation
Trip Computer		This mode displays driving information like the tripmeter, fuel economy, and so on.
Turn By Turn (TBT) (if equipped)		This mode displays the navigation turn by turn guidance.
Driving Assist (if equipped)		This mode displays the state of the Driver Attention Warning and Tire Pressure Monitoring System (TPMS).
Warning		Display service internal warning messages and tire pressures.

WARNINGS AND INDICATORS

CLIMATE CONTROL SYSTEM

Front

Defogging

1. Press the front defrost button
2. Select the desired temperature
3. Fresh mode will be selected automatically

Defrosting

1. Press the front defrost button
2. Set temperature to warmest setting (HI)
3. Press the defroster button
4. Fresh mode will be selected automatically

NOTE: To reduce window fogging and improve visibility, keep the interior surface of the windshield clean by wiping it with a clean cloth and glass cleaner. In addition, position the air intake control to circulate fresh air whenever possible while operating the vehicle.

Mode Selection

Change the direction of the air flow by touching the arrows on touch screen.

System Off
Pressing the OFF button will place the system in the OFF mode.

• Front blower will turn off.
• Outside (fresh) air position will be selected.
• Vented air will be at last set temperature.

Air Intake Control

Recirculated air position

Auto Defogging System (ADS)
Auto defogging helps reduce the possibility of fogging up the inside windshield automatically. This system operates when the heater or A/C is on.

Automatic Heating /air Conditioning
Automatically controls the mode, fan speed, air intake, and air-conditioning to maintain the selected temperature.

With each press increasing the intensity and fourth press turning AUTO OFF:

1. Press the AUTO button.

2. Set the temperature control to the desired setting.


Smart Vent
If the cabin humidity increases while Climate Control is off, fresh air will automatically be circulated into the cabin. This feature control is located in the climate control information screen.

Please refer to the Owner's Manual for more information.

BLUETOOTH PHONE PAIRING

Pairing a new device
NOTE: Vehicle must be in (P) Park to complete pairing process.

1. Press the PHONE button in the steering wheel remote control.

2. Search for the device name as displayed on your mobile phone and pair.

3. Confirm the 6-digit passkey displayed on the audio screen and the Bluetooth device identical.


4. Press Pair in your Bluetooth device.

5. Pairing is complete.

BLUETOOTH AUDIO QUALITY TIPS

Ensure Bluetooth device volume is set to 100% for optimal audio quality. To adjust volume to your preference, utilize the head unit knob or steering wheel control.

When placing a call, reduce the volume of the head unit if distortion or echoing is present.

VOICE RECOGNITION TIPS

Your vehicle may be equipped with a Voice Recognition technology which allows drivers to operate their phones without having to take their eyes off of the road to minimize distractions.

Voice recognition performance may be affected if driving with windows and sunroof open; when the heating-cooling system is on; when passing in a tunnel or when driving on rugged and uneven roads.

Quick reference on using voice commands:
To start a voice command, press the button, the following commands are available:

NOTE: For best performance, an active GENESIS CONNECTED SERVICES account is recommended.

NAVIGATION

Map position

1. Displays the Home Screen.
2. Used to change the map display mode.
3. Adjust the navigation sound volume.
4. Zooms in the map.
5. Set the map scale change mode to automatic or manual.
6. Zooms out the map.
7. Displays the point to change the driving direction.
8. Displays the next point to change the driving direction.
9. Displays the rest areas on the route.
10. Displays the lanes in different colors.

• Brown: Recommended lane
• White: Available lane
• Gray: Unavailable lane

11. Displays quick menu items.
12. Stop the navigation guidance. See "Canceling the route guidance."
13. Displays the remaining distance to the destination and the estimated time of arrival. For more details, press the information item.
14. Displays or hides detailed guidance.

GENESIS CONNECTED SERVICES

Genesis Connected Services subscription is required. To enroll, please visit your dealership or MyGenesisUSA.com.

Press the button for access to the voice-response menu of services.

You can say:
"Roadside Assistance"
"Service Link"
"Account Assistance"

Press the SOS button for SOS Emergency Assistance.

For more detailed information on system operation, refer to your GENESIS Connected Services User's Manual, or visit: owners.genesis.com.

For immediate assistance with subscription services, please call: 1-844-340-9741.

Genesis Intelligent Assistant App
Genesis Connected Services is a dynamic, connected car technology that allows Genesis vehicles to send and receive important and useful information.

You can download the Genesis Intelligent Assistant App to your compatible smartphone from the following sites:

• iPhone® — Apple App Store®
• Android™ — Google Play™

Genesis Intelligent Assistant App

Vehicle Status

Vehicle Locator

Remote Start
Remote Start enables you to remotely start your vehicle virtually from anywhere. For vehicles equipped with full automatic temperature control, you can also enable climate control remotely and turn on the front window defroster, ensuring a warm or cool car is ready to go when you are.

To use this feature, you must have a Genesis Connected Services Personal Identification Number (PIN). To create or change your PIN, log on to owners.genesis.com

Your vehicle must meet the below PRECONDITIONS in order to successfully remote start:

• Ignition is OFF
• Alarm is armed ( i.e., vehicle locked by key fob or Remote Door Lock)
• Gearshift level is in the "P" (park) position
• Brake pedal is not depressed
• Hood is securely closed
• All the doors are closed and locked
• The tailgate or trunk lid is closed
• The security/panic system is not activated
• The proximity key is not inside the vehicle
• The battery power is not low
• Vehicle is located in an open area
• Less than 4 days since last vehicle ignition off
• Vehicle located in area with good cell reception

Remote Start with Climate Control will terminate:

• After 10 minutes or after selected engine timer runs out
• Brake is pressed without proximity key inside vehicle
• Alarm is triggered without proximity key inside vehicle
• Door/trunk is opened from inside the vehicle

Remember:
remote Start with Climate Control will automatically shut off after 10 minutes or after selected engine timer runs out.

To continue operation of the vehicle:
the Proximity key or Digital Key must be inside the vehicle with the driver prior to pressing the brake and being able to move the gearshift from the "P" (park) position.

For more information refer to owner's manual.

Do not remote start vehicle in an enclosed environment (i.e., closed garage). Prolonged operation of a motor vehicle in an enclosed environment can cause a harmful build-up of carbon monoxide. Carbon monoxide is harmful to your health. Exposure to high levels of carbon monoxide can cause headaches, dizziness or in extreme cases unconsciousness and / or death. Do not leave children or animals unattended in a vehicle while using the remote start function.

If the vehicle's windshield wipers are left on when the vehicle was last driven, then the wipers will turn on if the remote start function is activated. To avoid damage to the wiper blades (e.g., due to heavy ice or snow accumulated on the windshield), please always turn the vehicle's windshield wipers off when parking the vehicle.

Notice: Laws in some communities may restrict the use of the features that remotely start the engine. For example, some laws may require a person using the remote start feature to have the vehicle in view when doing so, or limit the length of time a vehicle engine may idle. Please check local and state regulations for any requirements

and restrictions on remote starting of vehicles and engine idling time.

HOMELINK WIRELESS GARAGE CONTROL SYSTEM

Press and release button or .

• If the indicator illuminates and is orange, go to Step 3 (programming mode).
• If the indicator illuminates and shows a solid or flashing green light, go to Step 2 (erasing mode).

Erasing Mode
Press and hold the button you wish to program for approximately 15-25 seconds, until the LED flashes orange several times. This indicates any prior programming has been erased.

Programming Mode
Hold the original garage door opener/transmitter near the HomeLink Mirror.

Press and hold the original transmitter button until the HomeLink indicator shows a solid green light, or flashes green for approximately 10 seconds. This indicates that the programming has been completed.

NOTE: If the indicator flashes green continuously but the garage door opener does not operate, please follow the Rolling Code Programming steps shown below.

Two-Way Communication
Some new garage door openers come equipped with a two-way communication feature. If your garage door opener has this feature, follow the Rolling Code Programming steps shown below.

Indicator & :

• Flashes in orange → "Closing" or "Opening"
• Solid Green → "Closed" or "Opened"

For more information and programming tips on two-way communication, visit: www.homelink.com/compatible/two-waycommunication or call: 800-355-3515.

NOTE: If your garage door opener has two-way communication functionality, it is possible for HomeLink to stop operating correctly shortly after programming, if the initial programming was not completed properly. If you experience this, completing the steps described in "Programming a New HomeLink Button" and "Two-way Communication Programming" will restore the garage door function.

Rolling Code Programming

• You may need help from a second person.
• You may need a ladder to access your garage door opener.
• Be prepared: some of the steps are time sensitive.

1. Firmly press and release the "Learn", Smart", or "Program" button of garage door opener on the ceiling, while the indicator flashes in Green. Once the button is pressed, you have approximately 30 seconds to initiate the next step.

   For more detailed information, please refer to your Owner's manual or visit www.homelink.com or call (800) 355-3515.
2. Return to the vehicle and firmly press the HomeLink button, hold for two seconds and release the button up to three times. Do not press the HomeLink button rapidly. At this point programming is complete and your device should operate.


APPLE CARPLAY & ANDROID AUTO SETUP

How To Start Android Auto

1. Press the SETUP button on the head unit
2. Press the PHONE PROJECTION or DEVICE CONNECTION buttons, select Android Auto then select ENABLE ANDROID AUTO. (Accept all terms, Conditions and requests on the head unit and phone to use Android Auto).
3. Connect the Android device with the vehicle's USB port using the manufacturer's cable provided with your phone.
4. From the vehicle's home screen, select the Android Auto button, where you'll see all the Android Auto supported apps

NOTE: Android Auto compatibility requirements:

OEM cable that came with your phone, OS Android^TM 5.0 or higher, compatible Android smartphone, data, and wireless plan for applicable feature(s). It is recommended to always update your phone to the latest operating system release.

Setting Up Apple CarPlay^TM

1. On the head unit, press the SETUP button.
2. Press the PHONE PROJECTION or DEVICE CONNECTIONS buttons, select Apple CarPlay then select ENABLE APPLE CARPLAY. (Accept all terms, Conditions and requests on the head unit and phone to use Apple CarPlay).
3. Connect the Apple CarPlay compatible iPhone with the vehicle's USB port using the manufacturer's cable provided with your iPhone
4. From the vehicle's home screen, select the Apple CarPlay button, where you'll see all the Apple CarPlay supported apps.

NOTE: Apple CarPlay compatibility requirements:
OEM cable, latest IOS software, iPhone 5 or later, data, and wireless plan for applicable feature(s). It is recommended to always update your phone to the latest operating system release.

RADIO MODE

1. Returns to the previous step.
2. Radio broadcast information.
3. Can change the frequency. When you release the "or" button, the previous or next channel with good reception is automatically selected (if equipped).
4. Can change the radio mode.
5. Presets list.
6. You can save the current frequency to the presets list
7. Can see the list of available radio stations.
8. Shows information on the radio station that is airing the broadcast you are listening to, and shows the album art for the broadcast.
9. Can turn on or off the split screen mode.
10. Activate the HD Radio mode.
11. Use SoundHound to display the detailed information of the music that is now playing on the radio.
12. Can select or directly enter the desired radio frequency.
13. You can change radio channels by using voice commands.
14. The list of menu Items appears.

AUDIO CONTROL

1. Users can set the volume level of each source (FM, AM, SXM, USB, BT and so on) individually by adjusting volume knob.
2. Then AVN (Headunit) will save the last volume levels of each source in the system sound settings.
3. If users change the source, the volume will revert to the previously set volume for that source.

DRIVING

SHIFT BY WIRE (Electronic type shifter)

P (Park)

Always stop completely before pressing P (Park) button. To shift the gear from R (Reverse), N (Neutral), D (Drive) or Manual mode to P (Park), press the button while depressing the brake pedal.

R (Reverse) / N (Neutral) / D (Drive)

To select gear, press the button located on side of shift lever while depressing brake pedal and then move shift lever forward for Reverse or backward for Neutral or Drive.

Paddle Shifter (Manual Shift Mode)

The Paddle shifter is available when the shift lever is in the D (Drive) position.

Press the + or - paddle shifter once to shift up or down one gear.

NOTE: To exit manual shift mode, pull and hold + paddle shifter for more than 3 sec.

ELECTRONIC STABILITY CONTROL (ESC)

The ESC system is an electronic system designed to help the driver maintain vehicle control under advers conditions.

Press to turn ESC ON or OFF.

AUTO HOLD

Auto Hold helps maintain the vehicle in a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal.

1. Press AUTO HOLD switch in center console, next to cup holders. White AUTO HOLD indicator will illuminate in cluster when system is turned on.

   NOTE: At ignition start, this system defaults to last used.
2. Stop the vehicle by pressing the brake pedal. The brakes will remain engaged even if the brake pedal is released.

3. The brakes will release when the accelerator pedal is pressed with transmission in D, R or manual mode.


To cancel the AUTO HOLD operation, press the AUTO HOLD switch again.

NOTE: Turn off AUTO HOLD when driving through a car wash.

LANE KEEPING ASSIST (LKA)

Lane Keeping Assist helps detect lane markers on the road, and helps prevent the vehicle from departing the lane while driving.

• To turn LKA ON, press and hold the Lane Driving Assist button located on the steering wheel.
• To turn LKA OFF, press and hold the button again.

LKA operates only when vehicle speed is above 40 mph and when the in the instrument cluster is green.

LKA will not operate properly if the following conditions are present:

• the lane line is not clear
• on sharp bend in a road
• heavy fog

Refer to the Owner's Manual for more detailed information.

NOTE: During operation, you may feel the sensation of steering wheel movement. Depending on the road condition (lane markings, tar strips, cracks, etc.), small steering inputs may occur.

LANE FOLLOWING ASSIST (LFA)

Lane Following Assist is designed to help detect lane markings and/or vehicles on the road, and assists the driver's steering to help center the vehicle in the lane. The front view camera is used as a detecting sensor to help detect lane markings and vehicles in front.

With the Engine Start/Stop button in the ON position, shortly press the Lane Driving Assist button located on the steering wheel to turn on Lane Following Assist. The white or green indicator light will illuminate on the cluster.

Press the button again to turn off the Lane Following Assist.

HIGHWAY DRIVING ASSIST (HDA)

Highway Driving Assist helps maintain a set distance and speed from the vehicle ahead when driving on a highway and helps center the vehicle in the lane while driving, even through a curve.

To activate or deactivate this setting, with the Engine Start/Stop button in the ON position, from the setting menu select or deselect: Setup > Vehicle > Driver Assistance > Driving Convenience > Highway Driving Assist.

Operation:

• Driving on the highway main road.
  • Vehicle speed is under 120 mph (200 km/h).
• Press the Driving Assist button on the steering wheel.
  • If entering the main road of highways while SCC and LFA is operating, HDA will be automatically activated.
    If HDA is operating, the indicator on the cluster will illuminate green.


NOTE: If the engine is turned OFF then ON again, HDA maintains the last setting.

SMART CRUISE CONTROL (SCC)

Smart Cruise Control helps maintain distance from the vehicle ahead and drive at a speed, set by the driver.

1. To turn on SCC

   Press the Driving Assist button to turn on SCC. The speed will be set to the current speed on the cluster.
   If there is no vehicle in front of you, the set speed will be maintained, but if there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead. If the vehicle ahead accelerates, your vehicle will accelerate.
2. To set vehicle distance

   Each time the distance button is pressed, the vehicle to vehicle distance changes as follows:


Adjusting The Vehicle Speed

3. Push the switch UP to increase cruising speed.
4. Push the switch DOWN to decrease cruising speed.

To temporarily cancel SCC

Press the switch or depress the brake pedal to temporarily cancel SCC.

To turn off SCC

Press the Driving Assist button to turn SCC off.

BLIND-SPOT COLLISION-AVOIDANCE ASSIST (BCA)

Blind-Spot Collision-Avoidance Assist is designed to help detect and monitor approaching vehicles in the driver's blind spot area and warn the driver of a possible collision with a warning message and audible warning.

In addition, if there is a risk of collision when changing lanes or driving forward out of a parking space, Blind-Spot Collision Avoidance Assist can help avoid a collision by applying the brake.

The BCA (Blind-Spot Collision-Avoidance Assist) system uses rear corner radar to alert the driver while driving. It senses the rear side territory of the vehicle and provides information to the driver.

1. Blind-Spot Collision Warning: vehicle is in the blind spot.
2. Collision-Avoidance Assist: a vehicle is approaching at high speed.
3. Rear Cross-Traffic Collision Warning (RCCW): driving forward out of a parking space.

To set BCA, from the Settings menu select, Setup > Vehicle > Driver Assistance > Blind-Spot Safety to set each function:

• If 'Active Assist' is selected, BCA will warn the driver and braking assist will be applied depending on the collision risk level.
• If 'Warning Only' is selected, BCA will warn the driver depending on the collision risk level. Braking will not be assisted.
• If 'OFF' is selected, BCA will turn off.

BCA will activate once vehicle speed exceeds 20 mph BCA.

REAR VIEW MONITOR (RVM)

Rear View Monitor will activate when the engine is running and the shift lever is in the R (Reverse) position.

NOTE: RVM View is selectable, see Owner's Manual for further details.

The image displayed on the screen may become difficult to see under the following conditions:

• In the dark or at night.
• When it is raining, or when water droplets are on the camera.
• When the sun or the beam of headlights are shining into the camera lens.

Use care to keep the camera lens clean and avoid applying any type of solvents, car wax, or window cleaners to the camera lens. If the lens becomes dirty, wipe the lens with a clean, soft cloth.

FORWARD/REVERSE PARKING DISTANCE WARNING (PDW)

Forward / Reverse Parking Distance Warning will warn the driver if an obstacle is detected when the vehicle is moving forward or backward at low speeds.

PDW ON/OFF
Press the Parking Safety button to turn:
ON - indicator light ON
OFF - indicator light OFF.

If PDW is OFF, the function will turn ON automatically when in R (reverse).

PDW will automatically turn OFF when vehicle is driven forward at speed above 6 mph.

FORWARD COLLISION-AVOIDANCE ASSIST (FCA)

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message an audible warning and apply emergency braking.

In order to turn ON/OFF Forward Safety, it can be found in the vehicle settings menu as follows: Driver Assistance > Driving Convenience > Driving Safety > select or deselect Forward Safety (default ON) > (choices) Active Assist / Warning Only / Off

In order to And to change Warning Timing can be found as follows: Driver Assistance > Driving Convenience > Driving Safety > Forward Safety Warning Timing > select Standard (default) or Late

Driver Assistance > Warning Volume > (choices) High / Medium / Low / Off

Please refer to your Owner's Manual for further information.

TIRE PRESSURE MONITORING SYSTEM (TPMS)

NOTE: Vehicle must be driven for accurate tire pressure reading.

Low Tire Pressure Indicator
Illuminates if one or more of your tires are significantly under-inflated.

TPMS Malfunction Indicator
Blinks for approximately one minute, then remains illuminated when there is a malfunction with the TPMS. Inspect all tires and adjust tire pressure to specification. If the lamp remains illuminated, have the system checked by an authorized retailer of Genesis Brand Products as soon as possible.

To access the TPMS menu within the LCD display, press the MODE button on the steering wheel to display tire pressure.

Tire pressures will display after driving a short distance. If a tire pressure drops lower than predetermined specification, the Low Tire Pressure Indicator will illuminate and the LCD display will indicate tire(s) requiring air.

Program Coverage Summary

See below for program terms and conditions.

SERVICE VALET

Service Valet is available while your vehicle is receiving complimentary maintenance, wear items, or warranty repairs by an authorized Genesis retailer. Simply contact your authorized Genesis retailer's Service Advisor or contact the Customer Care Center at 844-340-9741 to make your appointment. The retailer will work with you to arrange your pickup and delivery time and location.

• Valet appointments must be made at least 2 business days in advance.
• Valet area of coverage is valid only within an estimated 1 hour drive time distance (based on traffic, weather, and road conditions) from the participating retailer location to the pickup/delivery location.
• Valet pickup and delivery must occur during normal business hours. After-hours pickup and delivery are at the discretion of your participating retailer.
• You must notify your Genesis Service Experience Manager 1 business day in advance if location or time of valet services changes. If a change or cancellation is not made at least 1 business day in advance, you may be charged a fee, or Service Valet may be cancelled.
• You will be charged a fee if you elect to extend the use of the courtesy replacement vehicle or delay the delivery of your vehicle.
• Prior to or at the time of your vehicle pickup, you will need to provide your valet with the following information if a courtesy replacement vehicle is needed:
• Insurance company name, policy number, and expiration date
• Driver's license number, state, expiration, and date of birth
• Credit card number and expiration date (standard requirement for rental car use)
• The above information for any additional drivers

The Genesis brand vehicle owner must provide the valet with the Genesis brand vehicle that is currently registered in compliance with local and state laws. Road tolls incurred during the Service Valet may be charged to the vehicle owner.

COMPLIMENTARY LOANER VEHICLE

We come to you and provide you with alternative transportation. While your vehicle is being serviced under this program, qualified drivers will be provided a courtesy replacement Genesis brand vehicle at no additional cost. You must be at least 25 years of age (in most states) with a valid driver's license to drive a loaner vehicle. Please provide your Service Advocate with the following information:

• Insurance company name, policy number, and expiration date
• Driver's license number, state, expiration and birth date
• Credit card number and expiration date (standard requirement for rental car use)
• The above information for any additional drivers

COMPLIMENTARY MAINTENANCE COVERAGE

Vehicle Eligibility
For original retail owners of the Genesis vehicle, all normal factory-recommended scheduled maintenance is covered for the first 3 years or 36,000 miles, whichever comes first. The Service Valet Program is applicable to all Genesis specified model vehicles purchased in the United States from authorized Genesis retailers for the first 3 years or 36,000 miles. The program is not in effect outside of the United States.

• Vehicle coverage begins on the date of first retail sale. Fleet vehicles are excluded from this program.
• If the vehicle becomes damaged (such as by accident, fire, act of nature, etc.) and is subsequently titled salvaged, flooded, or reconstructed, it is no longer eligible for the benefits of the Genesis G70 complimentary maintenance Program.

Guidelines for Scheduling Maintenance
The Service Valet Program covers factory-recommended scheduled maintenance for the first 3 years or 36,000 miles, whichever comes first. Covered maintenance costs include all labor and parts necessary to complete the factory recommended service. Having your vehicle serviced at the specified time/mile intervals is critical in maintaining long-term durability. Failure to have your vehicle serviced at the specified interval may invalidate the warranty under certain circumstances.

If for any reason a service is missed, the authorized Genesis retailer will perform the next or missed major service.

Some owners may wish to have their oil changed more frequently and follow severe factory recommended service intervals. The customer must pay for any additional services performed on the vehicle. Service procedures not specifically referenced in the Genesis Customer Care Quick Reference Guide must be preauthorized by a Genesis Aftersales Market Manager or a Market Manager.

Exclusions from Coverage
The following items, without limitations, are not covered:

• State inspections
• Wear and tear of soft trim, including seats, carpets, door casings, wood veneer, headliner, and all chrome trim
• Severe maintenance performed at recommended service intervals
• Wear and tear or damage to exterior body panels, trim, and glass
• Damage due to poor fuel quality, misuse, abuse, neglect, fire, accident, flood, or installation of unapproved parts and accessories
• Vehicles used in competitive events
• Vehicles with an unreadable/tampered VIN, or where true mileage cannot be determined
• Repairs and maintenance not performed at an Authorized retailer of Genesis.
• Repairs covered under the New Vehicle Limited Warranty
• Required maintenance and covered wear parts replacement on United States specification vehicles operating outside the United States

Transfer of Coverage
The described coverage only applies to the original retail purchaser or original lessee of a Genesis Brand vehicle. The coverage is not transferable to subsequent owners, with the exception of immediate family members. Immediate family members include the following:

• Spouses or registered domestic partners
• Parents
• Children or stepchildren

Dealerships will verify that the owner/customer is the original owner/lessee. Certain limitations and exclusions apply to this program. Please refer to your New Vehicle Limited Warranty guide for warranty details.

* Check the engine oil regularly between recommended oil change. Genesis Branded Vehicle recommend Quaker State oil.
*See Owner's Manual for details.

Looking for more detailed information? This Quick Reference Guide does not replace your vehicle's Owner's Manual. If you require additional information or are unsure of a specific issue, we recommend that you always refer to the vehicle's Owner's Manual or contact your authorized retailer of Genesis Branded Products. The information contained in this Quick Reference Guide is correct at the time of printing; however, specifications and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide, and Genesis reserves the right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with optional equipment.
