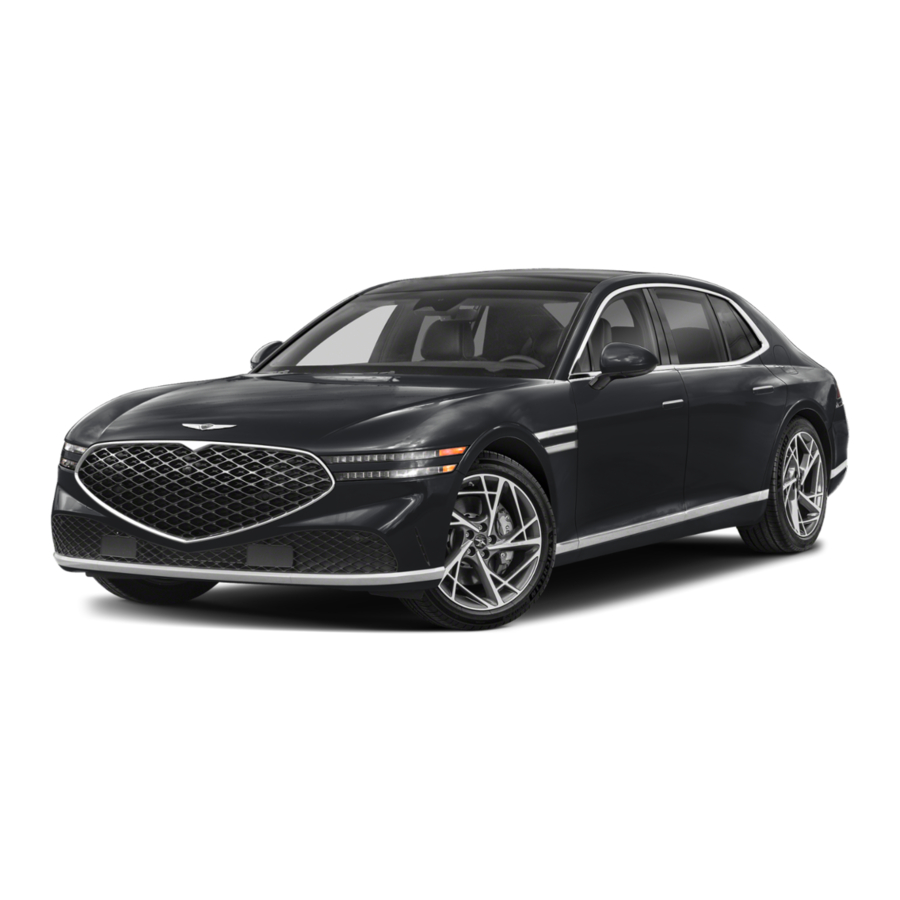

GENESIS G90 2024 Manual

FEATURES AND CONTROLS

To reduce the risk of serious injury to yourself and others, read and understand the important SAFETY INFORMATION in your Owner's Manual.

Use this Quick Reference Guide to learn about the features that will enhance your enjoyment of your Genesis Branded Vehicle. More detailed information about these features are available in your Owner's Manual.

WATCH & LEARN
Scan the QR code to view more Genesis feature videos:

EASY CLOSE DOOR (if equipped)

1. Door handle
2. Front center console
3. Front door
4. Rear armrest console
5. Door Unlock
6. Door Lock

Easy Close allows the doors to be closed by the press of a button.

Door handles pop up and retract by a simple touch of the sensor

The doors can be closed from the outside by pressing the lock/unlock sensor on the door handle.

If Approach Unlock is active all power door handles will pop up when you are within range holding smart key. If Approach Unlock is not active, the door handle will pop up when the door handle sensor (engraved part) is pressed.

The doors can be closed from the inside by pressing the open switch on the door or the door close button on the console.

When the lock button on your smart key is held for more than 3 second with engine turned off, the doors will automatically close and lock.

OPERATION OF DOOR LOCK

Unlocking your vehicle

Touch the door lock/unlock sensor (engraved part) on the front outside door handle while carrying the smart key with you.

• Outside door handles of all doors will pop out.
• The hazard warning lights will blink two times and all doors will unlock.

Locking your vehicle

To lock your vehicle using the door handle touch sensor or the Smart Key:

1. Make sure all doors, the hood and the trunk are closed.
2. Make sure you have the smart key in your possession.
3. Touch the touch sensor on the door handle (the engraved part) or press the Door Lock button on the smart key. The hazard warning lights will blink.
   • Make sure the doors are locked. When doors lock, the handle become flush to the body.

MANUALLY OPENING DOOR

If the door does not open with the door open button due to battery discharge or vehicle breakdown, pull the emergency open lever under the door pocket twice to open the door. You may use the emergency open lever even if there is no problem with the door open button.

KEY HOLE ACCESS (driver door)

Press the front part of the door handle and pull out the door handle from the right side. While holding the door handle, remove the cover that covers the keyhole by pressing on the tab. Insert the mechanical key to the lock.

To lock the door, turn the key toward the front (left side) of the vehicle. To unlock, turn the key toward the rear (right side) of the vehicle.
( lock / unlock)

FINGERPRINT AUTHENTICATION (if equipped)

Fingerprint authentication system allows the driver to have access to personal information, unlock profile and exit valet mode with an enrolled fingerprint.
The Fingerprint reader is found in the center console.

: Fingerprint sensor

Fingerprint Setup

1. Turn on the vehicle.
2. Select 'Setup > User Profile Settings > Driver 1 > Fingerprint Identification > Set/Delete Fingerprint > Set' in the infotainment system screen.
3. Place your finger that you wish to enroll on the fingerprint sensor according to the instruction.
4. Following the instructions, place several parts of your fingerprint until the scanning process is complete.
5. Once the scanning process is completed, the message 'Saving fingerprint....' appears and the fingerprint enrollment process is proceeded.
6. When the fingerprint enrollment process is completed in the vehicle, the status is displayed on the infotainment system.

POWER DRIVER'S SEAT ADJUSTMENT

Forward and backward

Seat height

Seatback angle

Lumbar support

Seat cushion extension

Seat bolster adjustment

DRIVER SEAT MASSAGE FEATURE (if equipped)

Use the massage function to relax after a long drive, or when resting inside the vehicle.

1. While the Engine is 'ON', press the massage button on the driver's seat door to start the function. The light indicating massage intensity level will illuminate.
2. Press the button again to set the intensity level.
   • Each time you press the button, the intensity setting of the Massage it is changed as follows:
     High > Medium > Low > OFF
   • To stop the function, press the button multiple times until the indicator light turns off.

SMART POSTURE ASSIST

After driving for an hour, Posture Assist automatically adjusts the pelvis and back portion of the seat to assist the posture.

To turn off the Posture Assist when it is running, press the massage but on the drivers door.

You can activate or deactivate Posture Assist function from the Settings menu in the infotainment system screen.

Select:

Setup > Vehicle > Seat > Ergo-Motion Seat > Smart Posture Assist

ADJUSTING PASSENGER'S SEAT FROM DRIVER'S SIDE

Seating position, seatback angle and cushion angle/height of the front passenger seat can be adjusted by operating the switches from the driver's seat.

1. While the Engine is 'ON', press the passenger seat control button on the door of the driver's seat and the indicator light will turn on.
2. Operate the switch on the driver's seat to adjust the front passenger seat.
   • If you do not adjust the front passenger seat within 15 seconds of pressing button it will automatically turn off.

ARMREST TOUCHSCREEN

Rear seat control

Rear seat control (Armrest touchscreen)

1. Fan speed control
2. Temperature control
3. OFF (system off)
4. AUTO (automatic control)
5. Mode selection
6. SYNC

NOTE: The seatbacks can be folded with the seatback recline lever

Front seat control from rear

Front seat control from the rear (Armrest touchscreen)

1. Driver's temperature control
2. Passenger's temperature control
3. Fan speed control
4. Driver's mode selection
5. Passenger's mode selection
6. AUTO (automatic control)
7. OFF (system off)
8. Air intake control
9. A/C (air conditioning)
10. Built in diffuser (if equipped)
11. Front control

FRAGRANCE DIFFUSER

Front Seat

Diffuser setting

Fragrance type can be selected as follows:

• Infotainment system 'Setup → Vehicle → Climate → Fragrance → Select fragrance type' There are 3 types of fragrances provided. Only 2 can be installed at a time. The fragrance type is automatically recognized when the cartridge is installed.

Rear Seat

Press from the climate control information screen or armrest touchscreen to select the desired fragrance intensity.

• Intensity can be set by pressing the button, each time will change it in the order Strong, Medium, Light and Off.

Glovebox

How to replace cartridges

1. Turn the engine off, and open the glove box.
2. Press the upper part of the diffuser tray.
3. Replace the cartridge.

NOTE: Only two diffusers can be loaded at a time.

NOTE: The fragrance cannot be selected from the HVAC panel. Fragrance can only be selected from the settings menu.

DRIVER POSITION MEMORY SYSTEM

Storing Memory Positions

1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver's seat position, outside rear-view mirror position, and head-up display height to the desired position.
3. Press and hold the button (1, 2 or 3). The system will beep once and notify you 'Driver 1 (or 2) settings saved' will appear on the infotainment screen.

NOTE: The gear position must be in P (Park).

Recalling

Press the desired memory button (1, 2 or 3). The system will beep once.

DRIVER'S MAIN CONTROLS

Adjusting the side mirrors

Turn the outer ring to either the L (Left side) or R (Right side) button to select the side mirror you would like to adjust. Use the mirror adjustment control switch to position the selected mirror up, down, left or right.

Folding button
The side mirrors can be folded or unfolded by pressing the center button .

POWER TRUNK

Opening Power Trunk

With the smart key in your possession, press either the trunk open button on the vehicle or press and hold the Trunk Open/Close button on the smart key. The hazard warning lights will blink twice, and the trunk will open.

Closing Power Trunk

With the smart key in your possession, when the trunk is open, press either the trunk close button on the vehicle or press and hold the Trunk Open/Close button on the smart key. The trunk will close.

Power Trunk from Instrument Panel

When the trunk is closed, press the power trunk open/close button, power trunk will open with a warning sound. While the trunk is opening, press the button to stop power trunk operation. When the trunk is opened, press and hold the trunk open/close button to close the power trunk. If you release the button while the trunk is closing, power trunk operation will stop with a warning sound for 5 seconds.

SMART TRUNK

How to Use Smart Trunk
The hands-free smart trunk system can be opened automatically when the following conditions are met:
The smart trunk option is enabled in the Settings menu in the infotainment system screen.

The smart trunk is activated and ready 15 seconds after all the doors are closed and locked. The smart trunk will open when the smart key is detected in the area behind the vehicle for 3 seconds.

Setup > Vehicle > Door > Scroll down and Select 'Smart trunk'

UV-C STERILIZER SYSTEM

The rear seat console is equipped with an antibacterial sterilization system for personal belongings.

1. UV-C sterilizer system button
2. UV-C LED
3. UV-C Indicator light (upper part of armrest touchscreen)

Using UV-C sterilizer system

Place the item in the UV-C storage box and turn it on. Within 10 minutes, up to 99.9% of germs on the surface may be eliminated.

1. Open the UV-C storage box while the engine is running.
2. Press the button inside the storage box.
   UV-C sterilizer system indicator light illuminates.
   Antibacterial tray is ready to operate.
3. Place the item in the center inside the storage box and close the cover.
   UV-C indicator light illuminates.
   UV-C LED is turned on and sterilization begins.
   After 10 minutes, the UV-C indicator light turns off as sterilization is complete.
   Press the UV-C sterilizer system button to turn off the function, after you are finished using the system.

HOMELINK WIRELESS GARAGE CONTROL SYSTEM

Press and release button , , or .

• If the indicator illuminates and is orange, go to Step 3 (programming mode).
• If the indicator illuminates and shows a solid or flashing green light, go to Step 2 (erasing mode).

Erasing Mode

Press and hold the button you wish to program for approximately 15-25 seconds, until the LED flashes orange several times. This indicates any prior programming has been erased.

Programming Mode

Hold the original garage door opener/transmitter near the HomeLink Mirror.

Press and hold the original transmitter button until the HomeLink indicator shows a solid green light, or flashes green for approximately 10 seconds. This indicates that the programming has been completed.

NOTE: If the indicator flashes green continuously but the garage door opener does not operate, please follow the Rolling Code Programming steps shown below.

Two-Way Communication

Some new garage door openers come equipped with a two-way communication feature. If your garage door opener has this feature, follow the Rolling Code Programming steps shown below.

For more information and programming tips on two-way communication, visit: www.homelink.com/compatible/two-waycommunication or call: 800-355-3515

Indicator

• Flashing orange → Closing
• Solid Green → Closed

Indicator

• Flashing orange → Opening
• Solid Green → Opened

NOTE: If your garage door opener has two-way communication functionality, it is possible for HomeLink to stop operating correctly shortly after programming, if the initial programming was not completed properly. If you experience this, completing the steps described in "Programming a New HomeLink Button" and "Two-way Communication Programming" will restore the garage door function.

Rolling Code Programming

• You may need help from a second person.
• You may need a ladder to access your garage door opener.
• Be prepared: some of the steps are time-sensitive.


1. Firmly press and release the 'Learn", "Smart", or "Program" button on the garage door opener located on the ceiling , while the HomeLink indicator flashes green. Once the button is pressed, you have approximately 30 seconds to initiate the next step.
2. Return to the vehicle, press the HomeLink button firmly, hold it for two seconds, then release. This can be repeated up to three times. Do not press the HomeLink button rapidly. At this point, the programming is complete, and the feature should operate properly.

For more detailed information, please refer to your owner's manual,
or visit: www.homelink.com/compatible/two-waycommunication
or call: 800-355-3515

INSTRUMENT CLUSTER

1. Speedometer
2. Tachometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. LCD display
7. Widget

WARNINGS AND INDICATORS

LCD DISPLAY CONTROL

1. : Press - Analogue / Digital gauge mode change
2. : Press - UP, DOWN switch for changing view mode
3. : Press - Select switch for pop up Widget navigation mode on/off
   Press and hold - Select/reset switch for pop up Hide/show widget
   Triple press x3 - Reset for trip computer

LCD DISPLAY MODES

View modes	Explanation
Driving Assist	Driving Assist View displays the status of the vehicle's Driver Assistance systems.
Map View	Shows Map and Navigation-related information
Normal View	Shows the Trip Computer or widget in the center without background information.

INSTRUMENT PANEL ILLUMINATION

Press the illumination control button to adjust the instrument cluster and heads-up display brightness.

REMOTELY STARTING VEHICLE (if equipped)

You can start the vehicle using the Remote Start button on the smart key.

To start the vehicle remotely:

1. Press the door lock button on the smart key within 32 feet (10 m) from the vehicle.
2. Press the Remote Start button for more than 2 seconds within 4 seconds after pressing the door lock button. The hazard warning lights will blink, and the engine will start.
3. To turn off the remote start function, press the Remote Start button once.

WIRELESS CELLULAR PHONE CHARGING SYSTEM

There is a wireless cellular phone charging system between the seat heater/ventilation controls and the center console. The system operates when all doors are closed, and the starter button/ ignition is in ACC/IGN ON.

The wireless charging system can be disabled in the instrument cluster Settings menu.

There is a wireless cellular phone charging system between the seat heater/ventilation controls and the center console . The system operates when all doors are closed, and the starter button/ignition is in ACC/ON/ START.The charging area may be warm while using wireless charging.

NOTE: The wireless cellular phone charging system supports only Qi-enabled cell phones ().

NOTE: Do not place any metallic items such as coins or keys on the charger. Avoid placing credit cards on the charger as they may be damaged by the magnetic field.
The charging area may be warm while using wireless charging.

USB-C PORT

Use the USB-C port to connect an external audio device (ex: flash drive) and listen to it through the audio system in your vehicle.

USB-C CHARGER

The USB charger is designed to recharge electrical devices using a USB (C-Type)cable.
The electrical devices can be recharged when the vehicle is on.

REMOTE SMART PARKING ASSIST 2 (RSPA 2)

Remote Smart Parking Assist uses vehicle sensors to help the driver park and exit parking spaces remotely from outside the vehicle by controlling the steering wheel, vehicle speed and gearshifts.

• Remote Smart Parking and Remote Operation function may be operated from outside the vehicle using the smart key.
• Smart Parking and Remote Smart Parking function may be operated from inside the vehicle using the Parking/View button.
• Smart Parking and Remote Smart Parking function helps the driver with perpendicular reverse parking and parallel reverse parking.
• Smart Exit function helps the driver with parallel forward exit.

Remote Operation

Remote Operation functions in the following order:

1. Getting ready to remotely move forward and backward
2. There are two ways to operate Remote Operation function.

Method 1, Using the function with engine off.

1. Within a range from the vehicle press the door lock button on the smart key and lock all doors.
2. Press and hold the Remote Start button for 4 seconds until the engine starts.

Method 2, Using the function with engine on.

1. Park the vehicle in front of the space where you want to use Remote Operation function and shift the gear to P (Park)(1).
2. Press and hold the Parking/View (2) button to turn on Smart Parking Assist. A message 'Remote Parking Instructions' will appear on the infotainment system screen.

3. Get out of the vehicle with the smart key and close all doors.

2. Remotely moving forward and backward
   1. Press and hold one of the Forward or Backward button on the smart key. Remote Smart Parking Assist will automatically control the steering wheel, vehicle speed and gearshift. The vehicle will move in the direction of the button pressed.
   2. While Remote Operation function is operating, if you do not hold down the Forward or Backward button, the vehicle will stop, and function control will pause. The function will start operating again when the button is pressed and held again.

   3. When the vehicle reaches the target location, release the smart key Forward or Backward button.
   4. When the driver gets in the vehicle with the smart key, a message will appear informing the driver Remote Operation function is complete on the infotainment system screen and the engine will remain on.

In addition, when the Remote Start button is pressed on the smart key from outside the vehicle, a message will appear informing the driver Remote Operation function is complete and the engine will turn off.

AUTOMATIC CLIMATE CONTROL SYSTEM

1. Driver's temperature control
2. Passenger's temperature control
3. Fan speed control
4. Driver's mode selection
5. Passenger's mode selection
6. Auto (automatic control)
7. OFF (System off)
8. Front windshield defroster
9. Air intake control
10. Rear Window defroster
11. SYNC
12. A/C (air conditioning)
13. Rear control
14. Built in diffuser (if equipped)

To view the 'Climate' setting:

Press Home button –> swipe pages –> select Climate

DEFOGGING

1. Select the desired fan speed.

2. Select the desired temperature.

3. Press the defroster button ().

4. Fresh mode will be selected automatically.


DEFROSTING

1. Set the fan speed to the highest (extreme right) position.

2. Set the temperature to the extreme hot (HI) position.

3. Press the defroster button ().

4. Fresh mode will be selected automatically.


NOTE: To reduce the tendency of the glass fogging and also to improve visibility, keep the interior surface of the windshield clean by wiping it with a clean cloth and glass cleaner. In addition, select air intake control to the outside (fresh) air position whenever possible while operating the vehicle.

AUTOMATIC HEATING / AIR CONDITIONING

1. Press the AUTO button

2. Set the temperature control to the desired setting.

   Automatically controls the mode, fan speed, air intake, and air conditioning to maintain the selected temperature. With each press increasing the intensity and fourth press turning Auto off.

SYSTEM OFF

Pressing the OFF button will place the system in the OFF mode.

• Blower will turn off.
• Outside (fresh) air position will be selected.
• Vented air will be at last set temperature.

MODE SELECTION

Change the direction of air flow by pressing button or by touching the arrows on the touch screen.

AIR INTAKE CONTROL

Recirculated air position

Air from the passenger compartment will be recirculated through the system and heated or cooled according to the function selected.

Outside (fresh) air position

Air enters the vehicle from outside and is heated or cooled according to the function selected. This is the default setting whenever the HVAC system is first turned on.

REAR WINDOW DEFROSTER

Press to activate/ deactivate the rear window defroster.

INFOTAINMENT

MOOD CURATOR

Combines systems to provide 4 moods that stimulate the senses and helps improve emotions.

With mood curator feature, you can set your vehicle mood with 4 different modes, Vitality, Delight, Care and Comfort. Each mode changes the fragrance kind and display image along with playing a specific sound when selected and massage features. Press "Mood Curator" on the home screen."

OPERATING MOOD CURATOR

Press [Mood Curator] on the home screen.

1. Moves to the home screen.
   It moves to the home screen or a previous screen.
   It displays mood curator menu.
   Displays background image only.
2. Mode Information
   Displays current mode information.
3. Start/Stop
   Press to start or stop the mood curator.
4. Playback progress bar
   Displays the playback progressing information
5. Mode List
   You can select a desired mode and displays currently playing mode.
6. Select whether to play music in the current mode.
   Select whether to play interior mood light in the current mode.
   Set whether to play scent diffusion in the current mode.
   Depending on the mood, the seat massage feature is available to select/deselect.
   Select whether to have the sunshade up or down.

STEERING WHEEL AUDIO CONTROL

Press the MODE button to change between the Radio/Media modes set by the user.

1. VOLUME
   Press the VOLUME scroll up to increase volume. Press the VOLUME scroll down to decrease volume.
2. SEEK / PRESET
   If swipe left or right and hold on optical mouse edge.
3. MODE
4. Press the MODE button to change between the Radio/Media modes set by the user.
5. MUTE
   Press the MUTE button to mute the sound Press the MUTE button again to activate the sound.
6. VOICE RECOGNITION
   Press to access various functions of the infotainment system without manipulating the screen or buttons.

Your vehicle may be equipped with a Voice Recognition technology which allows drivers to operate their phones without having to take their eyes off of the road to minimize distractions.

NOTE: For best performance, an active GENESIS CONNECTED SERVICES account is recommended.

AUDIO CONTROL

1. Users can set the volume level of each source (FM, AM, SXM, USB, BT and so on) individually by adjusting volume knob.
2. Then AVN (Head unit) will save the last volume levels of each source in thes ystem sound settings.
3. If users change the source, the volume will revert to the previously set volume for that source.

Genesis Intelligent Assistant App

You can download the Genesis Intelligent Assistant App to your compatible smartphone from the following sites:

• iPhone^® — Apple^® App Store

• Android^™ — Google Play^™


Remote Start enables you to remotely start your vehicle virtually from anywhere. For vehicles equipped with full-automatic temperature control, you can also enable climate control remotely and turn on the front window defroster, ensuring a warm or cool car is ready to go when you are.

• To use this feature, you must have a GENESIS Connected Services Personal Identification Number (PIN).
  To create or change your PIN, log in to owners.genesis.com

Notice: Laws in some communities may restrict the use of the features that remotely start the engine. For example, some laws may require a person using the remote start feature to have the vehicle in view when doing so, or limit the length of time a vehicle engine may idle. Please check local and state regulations for any requirements and restrictions on remote starting of vehicles and engine idling time.

Do not remote start vehicle in an enclosed environment (i.e., closed garage). Prolonged operation of a motor vehicle in an enclosed environment can cause a harmful build-up of carbon monoxide. Carbon monoxide is harmful to your health. Exposure to high levels of carbon monoxide can cause headaches, dizziness or in extreme cases unconsciousness and / or death. Do not leave children or animals unattended in a vehicle while using the remote start function.

If the vehicle's windshield wipers are left on when the vehicle was last driven, then the wipers will turn on if the remote start function is activated. To avoid damage to the wiper blades (e.g., due to heavy ice or snow accumulated on the windshield), please always turn the vehicle's windshield wipers off when parking the vehicle.

NAVIGATION

Basic features on the map screen

1. Displays the Home screen.
2. Use to go to previous screen.
3. List of menu items appears
4. Takes you to navigation search screen.
5. Cancels current route.
6. Displays the remaining distance to the destination and the estimated time of arrival.
   For more details, touch the information item.
7. Change the map display mode.
8. Change the scale of the map automatically changes.
9. Change navigation voice volume.
10. Change navigation alerts volume.
11. Set volume priority.
12. Displays the address of the destination and current location of the vehicle.
13. Displays the current guidance maneuver.
14. Displays the following guidance maneuver.
15. Displays the lanes in different colors.

NOTE: The tune dial can be used to zoom the map in/out accordingly when the map screen is the current display.

Home screen shortcuts

1. Clock settings menu
2. Radio menu
3. Weather info
4. Navigation map

Destination search screen

Press [NAV] button in the navigation head unit, and and find a destination by selection an option from the [Destination] menu.

1. Takes you to the home screen.
2. Use to go to previous screen.
3. The list of menu items appears.
4. Takes you to the Navigation map screen.
5. Voice recognition.
6. Takes you to destination search.
7. Select any of previous destinations to set as a destination.
8. Search for POIs by category to set destination.
9. Register the location or use saved destinations to set destination.
10. Select Genesis Dealer to set destination.

DRIVING

SHIFT BY ROTARY GEAR SHIFTER

To change the gear, depress the brake pedal and rotate the rotary gear shift dial.

P button

Rotary shifter (Rotary gear shift dial)

To shift the gear to P (Park), press the P button while depressing the brake pedal.
If you turn the vehicle off in R (Reverse), N (Neutral) or D (Drive), the gear will automatically shift to P (Park).

IDLE STOP AND GO (ISG)

Idle Stop and Go helps reduce fuel consumption by automatically shutting down the engine, when the vehicle is at a standstill (for example, red stop light, stop sign, and traffic jam) subject to certain prerequisite conditions.

The engine is automatically started upon satisfying the starting conditions.
ISG system is always active, when the engine is running.
Press the ISG OFF button to turn off ISG system. The ISG OFF button indicator will illuminate. To use the system, press the ISG OFF button again. ISG will default to on at every ignition on. Even if it was turned off at the last engine off.

AIR SUSPENSION (if equipped)

Air suspension uses the air spring containing compressed air to adjust and maintain the vertical height of the vehicle both manually or automatically. Each driving mode provides different ride comforts.

Air suspension recognizes the driving condition to automatically adjust vehicle height, spring stiffness, and shock absorber damping force for driving comfort and vehicle protection.

SMART CRUISE CONTROL (SCC)

SCC is designed to help detect the vehicle ahead and help maintain the desired speed and minimum distance between the vehicle ahead.

Turning on SCC

Press the Driving Assist () button to turn on SCC.

The speed will be set to the current speed and the speed will be displayed the cluster. The vehicle will slow down as needed to maintain the selected headway and will accelerate and return to the speed you set when that distance can be maintained.

Setting vehicle distance

Each time the button is pressed, the headway changes as follows:

Increasing set speed

Push the + switch up and release it immediately. The set speed will increase by 1mph (1 km/h) each time the switch is operated in this manner.

Decreasing set speed

Push the - switch down and release it immediately. The set speed will decrease by 1mph (1 km/h) each time the switch is operated in this manner.

Note: Quick push up/down will change speed by 1 mph. Holding switch up/down will change the set speed by 10 mph.

Temporarily canceling SCC

Press the switch or depress the brake pedal to temporarily cancel SCC.

1. Operating
2. Temporarily canceled

ELECTRONIC PARKING BRAKE (EPB)

Apply Brake
Stop the vehicle, then pull up the EPB switch. The Parking Brake warning light comes on in the cluster.

Release Brake
Press the EPB switch while depressing the brake pedal.

Automatic Brake Release

• When in Park (P): Depress the brake pedal and shift out of P to Reverse (R) or Drive (D).
• When in Neutral (N): Depress the brake pedal and shift out of N to Reverse (R) or Drive (D).

HIGHWAY DRIVING ASSIST (HDA) (if equipped)

Highway Driving Assist helps keep the vehicle between lanes, maintain a distance with the vehicle ahead, and automatically adjusts the vehicle speed to the speed limit while driving on the highway.

NOTE: If the vehicle is turned off then on again, HDA maintains the last setting.

With the vehicle on, select or deselect 'Driver Assistance → Driving Convenience' from the Settings menu to set whether to use each function.

• If Highway Driving Assist is selected, it helps maintain the selected distance to the vehicle ahead, maintains the set speed, and helps center the vehicle in the lane.

Operation:

• Driving on the highway main road.
  • Vehicle speed is under 120 mph (200 km/h).
• Press the Driving Assist button on the steering wheel.
  • If entering the main road of highways while SCC and LFA is operating, HDA will be automatically activated.
    If HDA is operating, the indicator on the cluster will illuminate green

LANE KEEPING ASSIST (LKA)

Lane Keeping Assist detects lane markers on the road with a camera and assists the driver's steering to help keep the vehicle between lanes. LKA operates when the vehicle speed is between 40 mph and 110 mph.

• To turn on the LKA, Press and hold the Lane Driving Assist button.
• To turn off the LKA, Press and hold again.

NOTE: In some circumstances, LKA may not activate as intended.
Ex: blurred lane conditions, backlight, heavy fog, reflection of light due to water on the road, sharp Bends in the road, etc.

LANE FOLLOWING ASSIST (LFA)

Lane Following Assist is designed to help detect lane markings and/or vehicles on the road, and assists the driver's steering to help keep the vehicle between lanes.

To activate LFA:
With the engine on, shortly press the Lane Driving Assist button located on the steering wheel to turn on Lane Following Assist. The grey or green indicator light will illuminate on the cluster. Press the button again to turn off the function.

ADAS WARNING ALERT ADJUSTMENT

From the Settings menu to change the Warning Volume to 'High', 'Medium', 'Low' or 'Off'

Driver Assistance > Warning Volume or Sound > Driver Assist Warning > Warning Volume

FORWARD COLLISION-AVOIDANCE ASSIST (FCA)

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and warning and apply emergency braking.

Setting Forward Safety function

With the vehicle on, select or deselect 'Driver Assistance → Forward Safety' from the Settings menu to set whether to use each function. If 'Active Assist' is selected, Forward Collision-Avoidance Assist will warn the driver with a warning message, an audible warning and steering wheel vibration depending on the collision risk levels. Braking assist or steering assist (if equipped) will be applied depending on the collision risk levels. If 'Warning Only' is selected, Forward Collision Avoidance Assist will warn the driver with a warning message, an audible warning and steering wheel vibration depending on the collision risk levels.

BLIND-SPOT COLLISION-AVOIDANCE ASSIT (BCA)

1 Blind-Spot Collision-Avoidance Assist is designed to help detect and monitor approaching vehicles in the driver's blind spot area and warn the driver of a possible collision with a warning message and audible warning.

To turn on/off select or deselect
'Driver Assistance → Blind-Spot Safety' from the Settings menu to set whether to use each function.

REAR CROSS-TRAFFIC COLLISIONAVOIDANCE ASSIST (RCCA)

Rear Cross-Traffic Collision-Avoidance Assist is designed to help detect vehicles approaching from the left and right side while your vehicle is reversing.

SURROUND VIEW MONITOR (SVM)

: Wide-front view camera

: Wide-side view camera (Below the side view mirror)

: Wide-rear view camera

Surround View Monitor will assist in parking by allowing the driver to see around the vehicle.

Parking/View Monitor Button

View Button

Infotainment System Button

Home Button

When Shift the gear to R (Reverse), Surround View Monitor is turned on.

Press the Parking/View button to turn on Surround View Monitor. Press the button again to turn off the function when the gear is in D or N.

Using the view button you may select top view, front view, side view and 3D view.

The front view function will turn off under the following conditions:

• The gear is shifted to P (Park) or R (Reverse).
• The Parking/View button or the infotainment system button is pressed.
• Vehicle speed is above 6 mph (10 km/h).
• The Home button is pressed.

DRIVE MODE

You can set the proper drive mode according to the road conditions or your driving habits.

Press the DRIVE MODE button on the center console.

• Pressing the button repeatedly changes the drive mode, and the changed mode is displayed on the instrument cluster.
  To change to CUSTOM mode, press and hold the DRIVE MODE button

Level	Description
ECO	Drive mode for fuel efficiency. This mode results in driving at a constant speed without rapid acceleration or deceleration.
COMFORT	Drive mode provides smooth driving and comfortable riding.
SPORT	Drive mode for sporty and dynamic driving. This mode reacts sensitively when you press down on the pedal or rotate the steering wheel. The fuel efficiency may decrease.

To select a CUSTOM mode, go to 'Setup > Vehicle > Drive Mode > CUSTOM' in the infotainment system and select one of the following, SMART, CHAUFFEUR, and MY DRIVE.

GENESIS SERVICE VALET PROGRAM TERMS AND CONDITIONS

Program Coverage Summary

Genesis Service Valet is included for the first 3 years of ownership, or 36,000 miles, whichever comes first.
Complimentary Services	Service Valet	Complimentary Loaner Vehicle	Maintenance
Original Owner or Lessee	Yes	Yes	Yes
Subsequent Owner or Lessee	Warranty Only	Warranty Only	No

See below for program terms and conditions.

SERVICE VALET

Service Valet is available while your vehicle is receiving complimentary maintenance, wear items, or warranty repairs by an authorized Genesis retailer. Simply contact your authorized Genesis retailer's Service Advisor or contact the Customer Care Center at 844-340-9741 to make your appointment. The retailer will work with you to arrange your pickup and delivery time and location.

• Valet appointments must be made at least 2 business days in advance.
• Valet area of coverage is valid only within an estimated 1 hour drive time distance (based on traffic, weather, and road conditions) from the participating retailer location to the pickup/delivery location.
• Valet pickup and delivery must occur during normal business hours. After-hours pickup and delivery are at the discretion of your participating retailer.
• You must notify your Genesis Service Experience Manager 1 business day in advance if location or time of valet services changes. If a change or cancellation is not made at least 1 business day in advance, you may be charged a fee, or Service Valet may be cancelled.
• You will be charged a fee if you elect to extend the use of the courtesy replacement vehicle or delay the delivery of your vehicle.
• Prior to or at the time of your vehicle pickup, you will need to provide your valet with the following information if a courtesy replacement vehicle is needed:
  • Insurance company name, policy number, and expiration date
  • Driver's license number, state, expiration, and date of birth
  • Credit card number and expiration date (standard requirement for rental car use)
  • The above information for any additional drivers

The Genesis brand vehicle owner must provide the valet with the Genesis brand vehicle that is currently registered in compliance with local and state laws. Road tolls incurred during the Service Valet may be charged to the vehicle owner.

COMPLIMENTARY LOANER VEHICLE

We come to you and provide you with alternative transportation. While your vehicle is being serviced under this program, qualified drivers will be provided a courtesy replacement Genesis brand vehicle at no additional cost. You must be at least 25 years of age (in most states) with a valid driver's license to drive a loaner vehicle. Please provide your Service Advocate with the following information:

• Insurance company name, policy number, and expiration date
• Driver's license number, state, expiration and birth date
• Credit card number and expiration date (standard requirement for rental car use)
• The above information for any additional drivers

COMPLIMENTARY MAINTENANCE COVERAGE

Vehicle Eligibility

For original retail owners of the Genesis vehicle, all normal factory-recommended scheduled maintenance is covered for the first 3 years or 36,000 miles, whichever comes first. The Service Valet Program is applicable to all Genesis specified model vehicles purchased in the United States from authorized Genesis retailers for the first 3 years or 36,000 miles. The program is not in effect outside of the United States.

• Vehicle coverage begins on the date of first retail sale. Fleet vehicles are excluded from this program.
• If the vehicle becomes damaged (such as by accident, fire, act of nature, etc.) and is subsequently titled salvaged, flooded, or reconstructed, it is no longer eligible for the benefits of the Genesis G90 complimentary maintenance Program.

Guidelines for Scheduling Maintenance

The Service Valet Program covers factory-recommended scheduled maintenance for the first 3 years or 36,000 miles, whichever comes first. Covered maintenance costs include all labor and parts necessary to complete the factory recommended service. Having your vehicle serviced at the specified time/mile intervals is critical in maintaining long-term durability. Failure to have your vehicle serviced at the specified interval may invalidate the warranty under certain circumstances.

If for any reason a service is missed, the authorized Genesis retailer will perform the next or missed major service.

Some owners may wish to have their oil changed more frequently. The customer must pay for any additional services performed on the vehicle. Service procedures not specifically referenced in the Genesis Customer Care Quick Reference Guide must be preauthorized by a Genesis Aftersales Market Manager or a Market Manager.

Exclusions from Coverage

The following items, without limitations, are not covered:

• Gasoline and gasoline additives
• State inspections
• Severe Maintenance performed at recommended service intervals.
• Wear and tear of soft trim, including seats, carpets, door casings, wood veneer, headliner, and all chrome trim
• Wear and tear or damage to exterior body panels, trim, and glass
• Damage due to poor fuel quality, misuse, abuse, neglect, fire, accident, flood, or installation of unapproved parts and accessories
• Vehicles used in competitive events
• Vehicles with an unreadable/tampered VIN, or where true mileage cannot be determined
• Repairs and maintenance not performed at at an Authorized retailer of Genesis.
• Repairs covered under the New Vehicle Limited Warranty
• Required maintenance and covered wear parts replacement on United States specification vehicles operating outside the United States

Transfer of Coverage

The described coverage only applies to the original retail purchaser or original lessee of a Genesis Brand vehicle. The coverage is not transferable to subsequent owners, with the exception of immediate family members. Immediate family members include the following:

• Spouses or registered domestic partners
• Parents
• Children or stepchildren

Dealerships will verify that the owner/customer is the original owner/lessee. Certain limitations and exclusions apply to this program. Please refer to your New Vehicle Limited Warranty guide for warranty details.

MAINTENANCE

* Fuel filter is considered to be maintenance free but the quality of fuel used may impact the frequency of maintenance needed. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem, etc. replace the fuel filter immediately regardless of maintenance schedule and consult an authorized retailer of Genesis Branded products for details.

Looking for more detailed information?
This Quick Reference Guide does not replace your vehicle's Owner's Manual. If you require additional information or are unsure of a specific issue, we recommend that you always refer to the vehicle's Owner's Manual or contact your authorized retailer of Genesis Branded Products. The information contained in this Quick Reference Guide is correct at the time of printing; however, specifications and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide, and Genesis reserves the right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with optional equipment.

Roadside Assistance: 1-844-340-9742

SiriusXM^® Radio: 1-800-967-2346

Genesis Customer Care & Connected Services: 1-844-340-9741

www.MyGenesis.com

Documents / Resources

References

• App Store - Apple
• Google Play
• Genesis Owners Homepage | MyGenesis
• Genesis Owners Homepage | MyGenesis

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download GENESIS G90 2024 Manual
