FLAMMA Noise Gate FC10 Manual

Features

1. 2Working Modes: Hard/Soft
2. Full metal shell
3. Tiny and compact design
4. True bypass switch
5. DC 9V adapter power supply

Effects Explanation

Hard: Provide hard effect of noise reduction.
Soft: Provide soft effect of noise reduction.

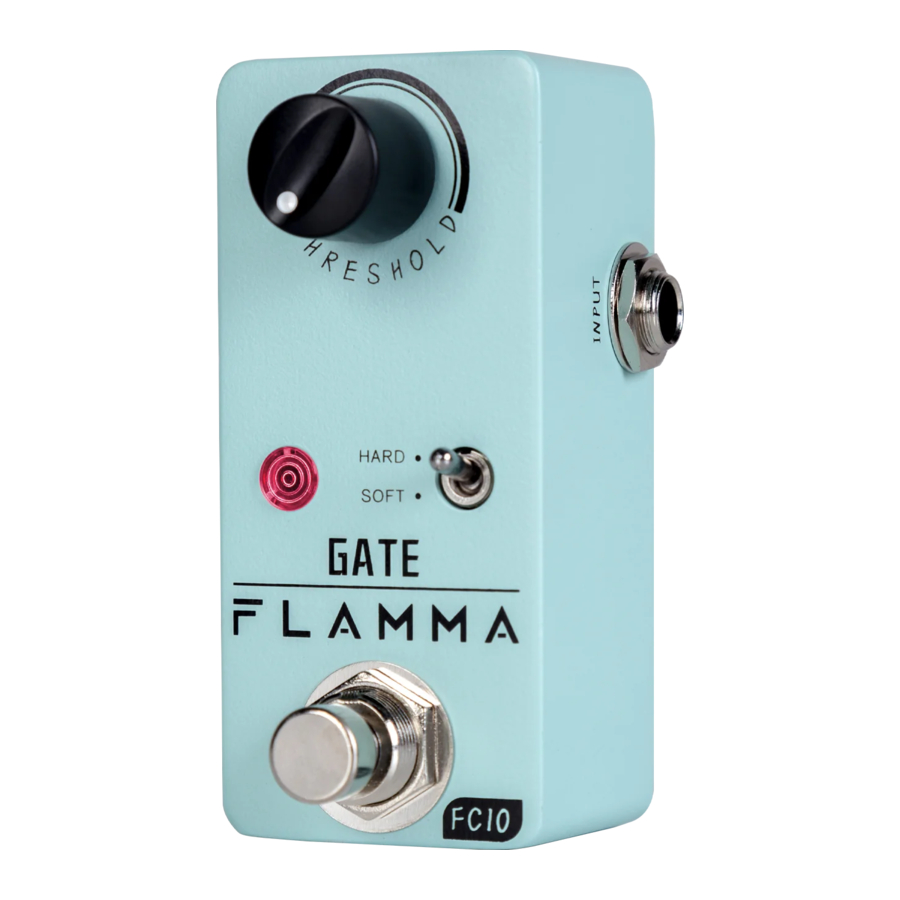

Layout

Panel Instruction

1. TRUE BYPASS Footswitch: Press the footswitch to toggle between on and bypass status.
2. ON/OFF LED: Shows the on/off status of Noise Killer. When the LED is lit the effect is engaged.
3. DC IN Power Jack: Use a 9-volt DC regular AC adapter for power supply (plug polarity is positive on the barrel and negative in the center).
4. INPUT Jack: 1/4" mono audio jack, for connecting guitar.
5. OUTPUT: 1/4" mono audio jack, for outputting signal.
6. Mode Switch: Switch between Hard and Soft mode.
7. THRESHOLD Knob: Adjusts the threshold of the noise reduction.

Specifications

Input: 1/4" monoaural input jack (Impedance value: 470k ohms)
Output: 1/4" monoaural output jack (Impedance value: 100 ohms)
Power supply: 9VDC (center negative)
Current Draw: 26mA
Dimension: 47mm(D) x 83mm(W) x 52mm(H)
Weight: 153g
Accessories: Safety Instruction & Warranty Card, Sticker, quick guide
Notice: Recommend to use isolated/individual power supply. Sharing power supply with other pedals may cause unexpected noise.

Precautions

Please read carefully before proceeding

Power Supply

Please connect the designated adapter to an AC outlet of the correct voltage. Please be sure the adapter supplies DC 9v 130mA, center negative. Unplug the adapter when not in use or during electrical storms.

Important Safety Instructions

1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with a dry cloth
7. Do not install near any ventilation openings. Install in accordance with the manufacturer's instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparati (including amplifiers)that produce heat
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade of the third prong are provided for your safety. If the provided plug does not fit into your outlet consult an electrician for replacement of the obsolete outlet
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
