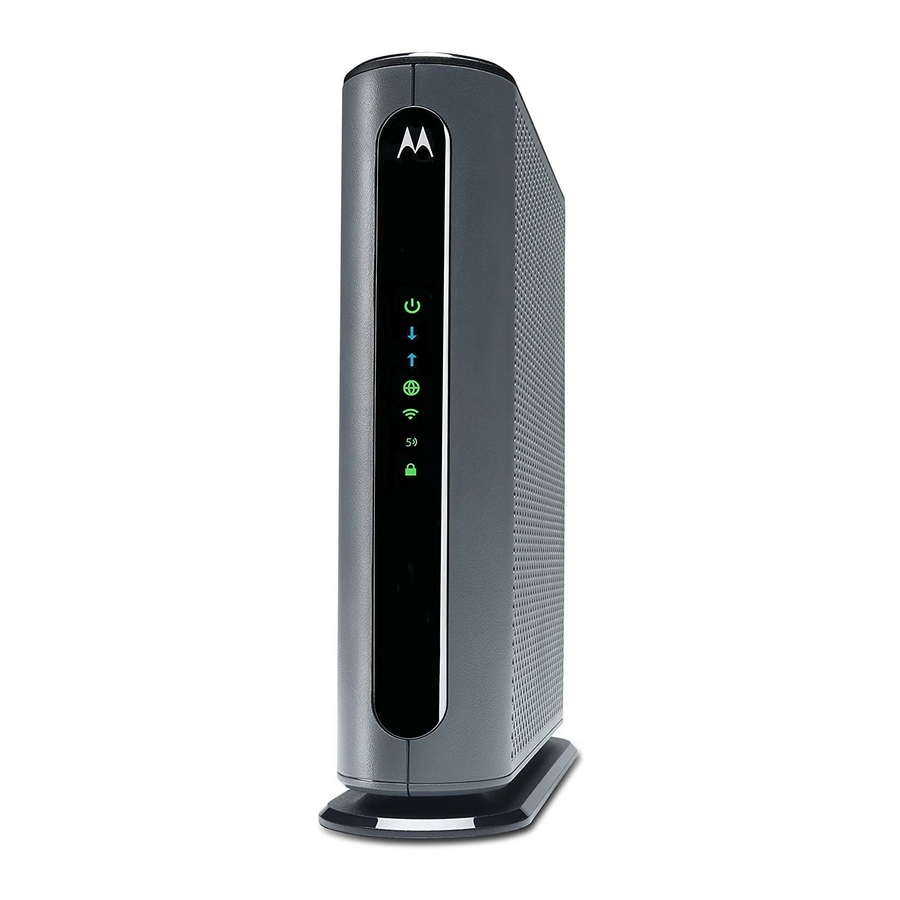

Motorola MG7700 Manual

Packaged with your MG7700 modem/router

Let's get started

If you don't have cable Internet service, please order that from your cable service provider. Now connect your MG7700 as shown on the next panel.

Connecting to a Coax Cable

Please see the connection photo on the next panel. You connect your MG7700 to a "live" coax cable. Sometimes a cable will already be available. Sometimes there's a coax wall jack available, and you connect to the jack with a coax cable. Your MG7700 can also share a coax cable attached to a TV by using a coax splitter. Please note that a badly chosen splitter reduces a cable modem's speed; so if you need to use a splitter, use a 2-way splitter whose top frequency is 1,000 MHz or higher.

Connecting to a Coax Cable

ON/OFF button
POWER

Connect the supplied power cube between the power jack and an electrical outlet.

ETHERNET (LAN 1-4)
You can connect a computer, HDTV, game station, or other Ethernet-capable device to any of these 4 LAN ports.

RESET
WPS button

COAX
Connect a "live" coax cable to the modem's COAX connector as discussed above.
(Tighten the nut so it's finger tight. You may want to use the supplied wrench. Make the connection snug but not overtight.)

Prepare to activate

By now you should have:

  • Subscribed to cable Internet service.
  • Connected your MG7700.
  • Powered up your cable modem/router. To do this, the On/Off button needs to be On (Push the button in until it clicks). Wait for the green online connection light to stop flashing and remain solidly lit. This may take up to 15 minutes.

You should have a recent cable bill handy because it has your account number and you'll probably need that.

If you're asked for information about the MG7700, you can find this on the label on the bottom of the modem/router.

Activate

For some service providers, you activate by calling them. Many service providers including Comcast and Cox prefer that you activate by opening the Web browser of a computer that's plugged into one of the MG7700's Ethernet ports. Once you've opened the browser, try to go to www.motorola.com
This should bring you to the service provider's activation page.

If you don't have a computer, you can use the Web browser of a WiFi device such as a smartphone or tablet for activation. In that case you'll need the unique Wireless Network Name and Password printed on the bottom of your MG7700. You'll use these in setting up your wireless device to connect to the MG7700. Once you've connected, you can open the browser of that wireless device.

For Comcast XFINITY Users Only:
If the activation page does not appear, please go to www.xfinity.com/internetsetup for more information and to activate your modem.

Here is a list of phone numbers for some major cable service providers.
(warning Note that this list is subject to change.)

Comcast 1 (855) 652-3446
Cox 1 (800) 234-3993
Bright House 1 (855) 222-0102
Cable One 1 (877) 692-2253
Charter Spectrum 1 (855) 757-7328
RCN 1 (866) 832-4726
Suddenlink 1 (877) 794-2724
Time Warner 1 (800) 892-4357

Once your MG7700 is activated either online or by phone, your service provider will provision your MG7700 service. Typically this takes less than 5 minutes, but in some cases this may take 30 minutes or longer to complete.

Once you have activated, try to browse the Web using a device connected via Ethernet or WiFi to the MG7700. (See the section Wireless Router, below for information on connecting via WiFi). If browsing works, Congratulations! Your MG7700 is working.
If your MG7700 is NOT working, see Troubleshooting Tips below.

Configuration Manager

You may not need to use the MG7700's Configuration Manager. Here are some reasons for using it:

  • You want to change the wireless network name and password, For instance, maybe you want a more easily remembered name, or you're replacing a router and want to use your existing WiFi Network Name (SSID) and/or WiFi Password/Key instead of the unique ones that come with the MG7700.
  • You want to set up special Internet gaming settings.
  • You want to get performance information about the MG7700 modem and/or built-in router. This can be helpful in diagnosing DOCSIS performance issues and/or optimizing wireless performance.

If you need to access the MG7700 Configuration Manager, open your Web browser. Type http://192.168.0.1 in the address bar and press the Enter key.
In the login dialog box, type the following User Name and Password in lower case, then click OK.
User Name: admin
Password: motorola

The Basic Status and Settings page will appear. If this page doesn't appear, please see the Troubleshooting Tips below.

Wireless Router

As noted before, the MG7700 has a unique Wireless Network Name/SSlD and Wireless Security Key/Password printed on the MG7700's bottom label. Set up your wireless devices to work with this SSID and security key, or the SSID and security key you specified, if you changed them.

warning Note that wireless performance depends on a number of factors. Please keep these things in mind:

  • Where possible, put the MG7700 in a central place so that it's not too far away from your other wireless devices.
  • Try to avoid interference from other wireless devices such as Bluetooth headsets and stereos, microwave ovens, WiFi capable printers, and 2.4 GHz cordless phones and base stations. Don't put the MG7700 close to these interfering devices.
  • Sometimes it helps to change the MG7700 wireless channel frequency to reduce interference with neighbors' wireless networks. This is discussed in the Troubleshooting section of this Quick Start.
  • Wireless range can be limited by a variety of issues, including weak wireless clients and challenging building configurations. Some devices that connect to the MG7700 do not have as powerful a wireless signal, and often those devices can slow down your network's WiFi. If you need greater wireless range far away from your MG7700, you could add a Range Extender.
    For more information, please see www.motorolanetwork.com/extenders
  • If you have coaxial cable running near your router and a distant wireless access point, HDTV, or other device, MoCA is often a good way to connect the router to the device. MoCA can share the same cable used for cable TV or cable Internet. With the Motorola MM1000 MoCA Adapter, speeds are up to 1,000 Mbps.
    Please see www.motorolanetwork.com/MocaWifi

Front Panel Lights

During Power up, the lights will blink for about a minute.
Front Panel Lights
If a blue light blinks continuously, this indicates partial service (at least one designated channel has not completed bonding). You should still get high Internet speeds, but your service provider may want to know so they can adjust their network.

Troubleshooting Tips

What if I can't make an Internet connection right after installation?

  • First turn your MG7700 off for at least 8 seconds, then on, to see if that fixes the problem.
  • Check the connections you've made to your MG7700. Power and coax connections are required, and up to 4 Ethernet connections are optional. Are those connections good? Be sure that the coax cable connection is tight enough, possibly using the coax wrench.
  • Check that the MG7700's power cube is plugged into a live outlet, and that the Ethernet cable is connected securely.
  • Make sure that your coax cable is live. You can check that by using it with a TV.
  • Check that you provided the correct setup information to your cable service provider.
  • Contact your cable service provider to make sure they've turned on your Internet service.

What if my MG7700 has been working, then stops working?

  • First turn your MG7700 off for at least 8 seconds, then on, to see if that fixes the problem.
  • If the MG7700's lights don't come on, check that the modem is getting power from its power cube and that the MG7700's power button is on.
  • Check your MG7700 cables.
  • Check with your service provider. Sometimes there's a service outage or some other service issue. Sometimes a service outage also affects your TV service, so check that.

What if I'm getting Internet service but my speed is disappointing?

  • Be sure you know what speed you're paying for.
  • Check the speed with a computer plugged into one of the modem's Ethernet ports. Use one of the tools found when you search the phrase: broadband speed test. Make sure your computer's LAN port supports gigabit rates (1000BT or GE). You will need this to achieve service speeds of 100 Mbps or greater.
  • If you get good speed when a computer's plugged into the modem, you may have a wireless problem. In that case, please re-read the wireless router section.
  • Some video streaming services get bottle-necked, especially at busy times like after dinner. See whether you have the speed problem at less busy times,
  • Try connecting your MG7700 nearer to where the coaxial cable comes into your home. This lets you see whether your home's cabling is a problem.
  • If you're using a splitter with your MG7700, try the MG7700 without the splitter to see if that helps. If it does, you may need to get a better splitter, one with a top frequency of at least 1,000 MHz.

What if I'm told that my MG7700 isn't approved by my cable service provider?
That's probably not true. Leading cable service providers have a list of certified cable modems for each of their Internet speeds. You can check the list for your service provider. You can also find information about certifications at www.motorolanetwork.com/services

What if I am connected wirelessly but my connection seems slow or keeps dropping?
Please re-read the Wireless Router section above.

What if I don't know my MG7700's Wireless Network Name/SSID or Security Key/Password?
The default values are printed on the bottom label of the MG7700. Use these unless you changed them. If you changed them, try to remember where you put the new values. If you have a device that connects wirelessly to the MG7700, it may show the Wireless Network Name/ SSID and Password. You can also find this information in the MG7700 Configuration Manager. Information about using this is in the Configuration Manager section above.

If all else fails, reset the device to factory defaults by holding the Reset button for 10 seconds. (A paperclip helps.) You can then use the default values.

What if I think that wireless devices are interfering with my MG7700 wireless router?

  1. Where possible, put the MG7700 as far away as possible from interfering devices such as Bluetooth transmitters and neighbors' WiFi routers.
  2. To try to pick a less used wireless channel for your MG7700, first go in to your MG7700's Configuration Manager.
  3. Click the Advanced button at the top of the page, then click the Wireless and Scan/Bridge menu items at the top of the page.
  4. Click the ScanWirelessAPs button. A list will appear of competing wireless networks, including the channels they are using. Write down one or more of the less used channel numbers, since a less used channel should be better for your MG7700.
  5. On the top of the page, click the Wireless Basic menu item.
  6. On the Basic page, select the channel you want in the Channel pull down, then click Save.

Do you have any other questions? We have lots more information at www.motorolanetwork.com/mentor

We like to help

Please visit our support Website or call our support specialists. Our Website has our Motorola Mentor information, and also provides returns and warranty information.

www.motorolanetwork.com/support

Email: support@motorolanetwork.com

Phone: 800-753-0797 or 617-753-0562

Safety Precautions

These precautions help protect you and your MG7700.

  • Do not put the MG7700 or its power cube in water, since this is a shock hazard.
  • The MG7700 should normally be installed indoors. If you use it outdoors, protect it from moisture and be careful about temperature.
  • Your MG7700 should be operated in an environment that's between 32 and 104º Fahrenheit (0 to 40º Centigrade).
  • Your MG7700 should not be in a confined space. There should be room for air flow around the top, front, and sides of the MG7700.
  • Make sure to use your MG7700's power cube and a compatible electrical outlet.
  • The coaxial cable's ground shield is intended to be connected to the building's Earth ground. Attachment to Earth ground is typically provided through your cable service provider's installation.
