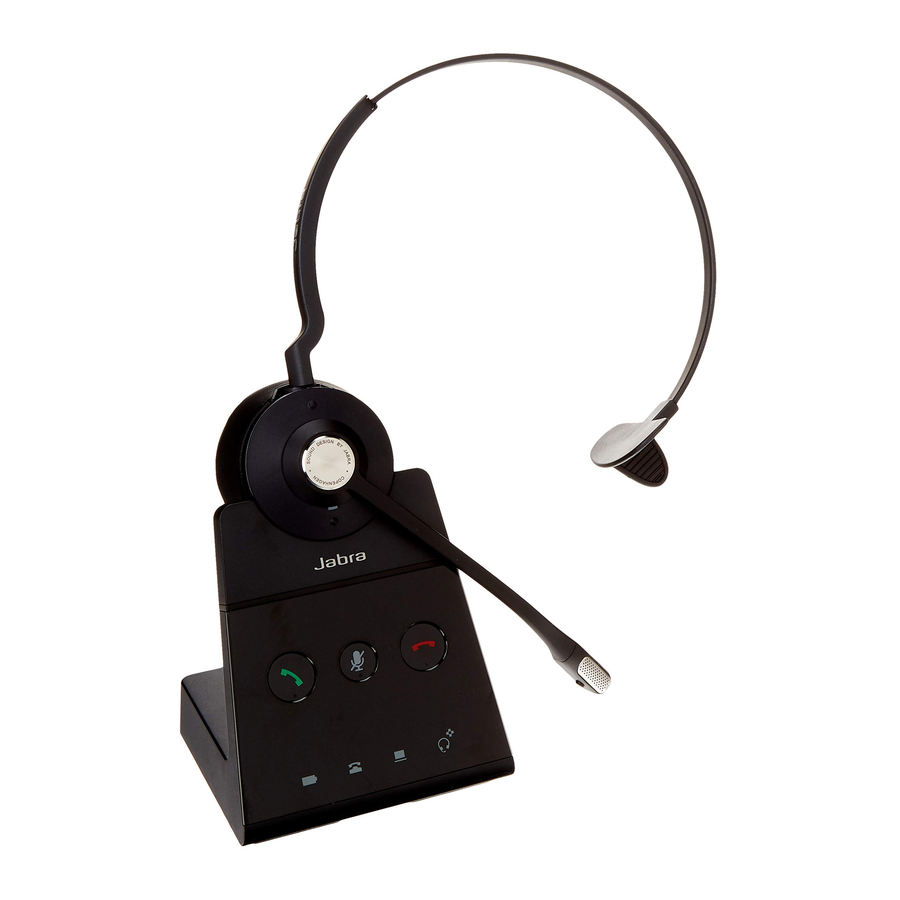

Jabra Engage 65 Mono Manual

How do I connect my Jabra Engage to a Polycom IP 320, IP 321, IP 330, IP 331, IP 335, IP 430, IP 450, IP 550, IP 560, IP 650, IP 670 or VVX series desk phone so I have remote call control using my headset?

Prerequisites

Jabra Link 14201-17 (EHS – Electronic Hook Switch cable)
Jabra 8800-00-75 (for Polycom IP 320, IP 321, IP 330, or IP 331)
One of the following Polycom desk phones:
- SoundPoint IP phones running: SIP software v 3.0 or later, and BootROM 4.1.0 or later
- Polycom IP 321, IP 331 running: SIP software v 3.1.2 rev. C or later
- Polycom IP335 running: SIP software v 3.1.2 rev. B or later
- VVX series running: SIP software v 3.1.2 rev. B or later, and BootROM 4.1.2 or later

Connecting your device to your desk phone

Plug one end of the EHS adapter into the serial port on the back of your phone.
Plug the other end into the Jabra base socket labeled AUX.
Connect one end of the phone cable supplied with the headset to the Jabra base marked with a phone icon. Connect the other end to the back of the phone marked with a headset icon (use cord Jabra 8800-00-75 for SoundPoint IP phone models 320, 321, 330 or 331).

To configure your headset when connecting to a desk phone for the first time:

For Jabra Engage 75/75 SE, follow the onscreen setup wizard on the Jabra Engage 75/ 75 SE base.
For Jabra Engage 45 SE/65/65 SE, the initial setup is complete after connecting the cables.

Note
All Polycom desk phones that support EHS functionality using the Jabra Link 14201-17, require a change in the setup of the phone. Ensure you make this change when the phone is not being used for an active call.

In the setup menu, navigate toSettings > Basic > Preferences > Headset > Analog Headset (or Hook Switch Mode).
Change the default setting Regular Mode to the correct Jabra mode by selecting Jabra DHSG or Jabra EHS, depending on the firmware version of the desk phone.
Press the Select soft key.

After this change, the setup for Polycom SoundPoint desk phones is complete and ready for use. The Polycom VVX series desk phones will restart, which takes approximately 2 minutes.
