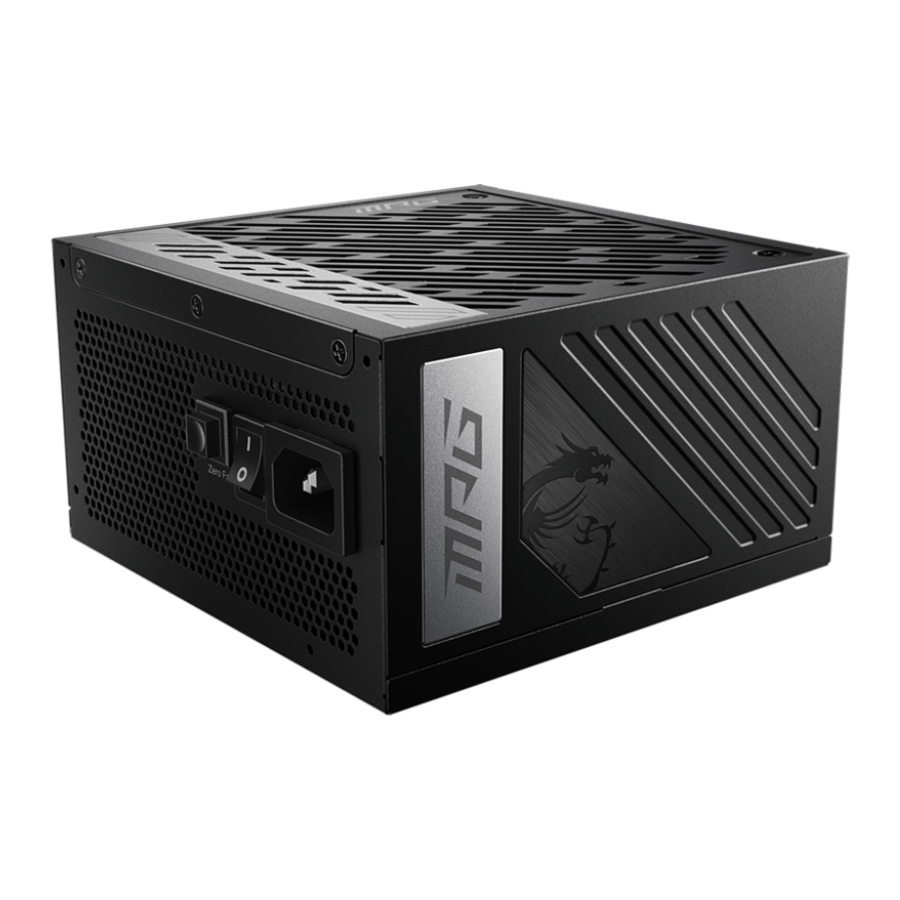

MSI MPG A1000G PCIE5, MPG A850G PCIE5, MPG A750G PCIE5 Manual
Also See for MPG A1000G PCIE5:
- User manual (77 pages) ,
- User manual (9 pages)
Advertisement
Table of Contents
Contents
MSI MPG A1000G PCIE5, MPG A850G PCIE5, MPG A750G PCIE5 Manual
12VHPWR (PCIe 5.0 16 Pin) Cable Installation
Please fully insert the cable before use.
Specifications
| 1000W | |||||
| Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 83.5A | 0.3A | 3.0A |
| Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 1000W | 3.6W | 15.0W | |
| Total Power | 1000W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |
| 850W | |||||
| Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 70.8A | 0.3A | 3.0A |
| Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 850W | 3.6W | 15.0W | |
| Total Power | 850W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |
| 750W | |||||
| Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 62.5A | 0.3A | 3.0A |
| Min load | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Combined power (+5V&+3.3V) | 120W | 750W | 3.6W | 15.0W | |
| Total Power | 750W | ||||
| Regulation | ± 5% | ± 5% | ± 5% | ± 5% | ± 5% |
| Ripple & Noise | 30mVp-p | 30mVp-p | 50mVp-p | 40mVp-p | 40mVp-p |
Dimensions
Detachable Connectors
Number of Power Connectors
| Power Connectors | A1000G PCIE5 | A850G PCIE5 | A750G PCIE5 |
| ATX12V (Motherboard) 20+4 pin | 1 | 1 | 1 |
| 12VHPWR 16pin | 1 | 1 | 1 |
| EPS12V (CPU) 4+4 pin | 2 | 2 | 2 |
| PCIe (VGA) 6+2 pin | 6 | 6 | 6 |
| SATA 15 pin | 12 | 8 | 8 |
| Peripheral (PATA) 4 pin | 4 | 4 | 4 |
| FDD 4 pin | 1 | 1 | 1 |
Connectivity and Cable Lengths
