- Page 1 MPG A1000G PCIE5 MPG A850G PCIE5 MPG A750G PCIE5 Power Supply Unit User Guide 전원 공급 장치 사용 설명서 電源供應器使用手冊 PC電源使用手册 Блок питания Руководство пользователя...
- Page 2 12VHPWR (PCIe 5.0 16 Pin) Cable Installation 12VHPWR (PCIe 5.0 16 Pin) 線材安裝 Please fully insert the cable before use. 使用前請確實插好插頭 。 未完全插入 Not Fully Inserted 完全插入 Fully Inserted...
- Page 3 Specifications/ 사양/ 規格/ 规格/ Спецификация 1000W Voltage +3.3V +12V -12V +5Vsb Max load 22.0A 22.0A 83.5A 0.3A 3.0A Min load 0.0A 0.0A 0.0A 0.0A 0.0A Combined power 120W 1000W 3.6W 15.0W (+5V&+3.3V) Total Power 1000W Regulation ± 5% ± 5% ±...
- Page 4 Dimensions/ 치수/ 外型尺寸/ Размеры 150mm...

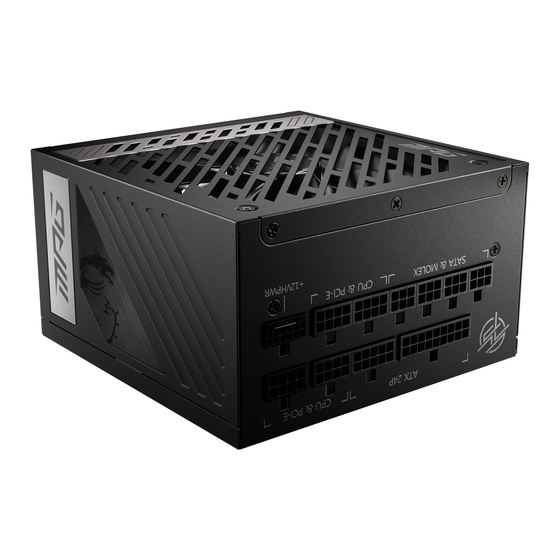

- Page 5 Detachable Connectors/ 분리 가능한 커넥터/ 可拆卸接頭/ 可拆卸接头/ Кабельные интерфейсы CPU & PCI-E ATX 24P SATA & MOLEX +12VHPWR...
- Page 6 Number of Power Connectors/ 전원 커넥터 수량/ 電源接頭數量/ 电源接头数量/ Кол-во силовых соединителей Power Connectors A1000G PCIE5 A850G PCIE5 A750G PCIE5 ATX12V (Motherboard) 20+4 pin 12VHPWR 16pin EPS12V (CPU) 4+4 pin PCIe (VGA) 6+2 pin SATA 15 pin Peripheral (PATA) 4 pin FDD 4 pin...
-
Page 7: Connectivity And Cable Lengths
Connectivity and Cable Lengths/ 연결 및 케이블 길이/ 連接頭和電纜長度/ 连接性和电缆长度/ Подключение и длина кабелей 600mm ATX12V 20+4 pin 600mm 12VHPWR 16 pin 600mm PCIe 6+2 pin 12VHPWR 16 pin +12VHPWR 16 pin to PCIe 6+2 pin 600mm PCIe 6+2 pin 150mm... - Page 8 700mm EPS12V 4+4 pin 500mm 150mm (A850G PCIE5) (A750G PCIE5) SATA 15 pin 150mm 150mm 500mm (A850G PCIE5) (A750G PCIE5) SATA 15 pin 150mm 150mm 150mm 500mm (A1000G PCIE5) SATA 15 pin 150mm 150mm 150mm 150mm 500mm 4 pin PATA 4 pin...
- Page 9 KC인증서 MPG A1000G PCIE5 제품명: 컴퓨터용 전원공급장치 모델: MPG A1000G PCIE5 A/S TEL: 1644-4038 XU100111-22090B 제조자: Channel Well Technology (Guangzhou) Co., Ltd. R-R-MSI-MPGA1000G 제조국가: 중국 MPG A850G PCIE5 제품명: 컴퓨터용 전원공급장치 모델: MPG A850G PCIE5 A/S TEL: 1644-4038 XU100111-22089B 제조자: Channel Well Technology (Guangzhou) Co., Ltd.
