Euri ESWP-120W1033cws Installation Manual

Questions?

For customer service please call us at 1-310-787-1100
Office Hours: 8:00 a.m. – 5:00 p.m. PST Monday-Friday
E-mail: info@eurilighting.com
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS LISTED BELOW PRIOR TO PROPER INSTALLATION
WARNINGS
When using electrical equipment, basic safety precautions should always be followed
including the following:
1. To reduce the risk of electrical shock, turn off the power supply before installation or
servicing.
2. This luminaire must be installed in accordance with the NEC or your requirements,
consult a qualified electrician.
3. lf NEMA photo control is installed refer to NEMA receptacle section For instructions.
4. Verify the availability of necessary tools and incidental material.
5. The fixture is not allowed to disassemble the structure or components.
INSTALLATION
1
2
3
THIS PRODUCT MAY NOT BE COMPATIBLE WITH ALL DIMMERS, FOR MORE INFORMATION ABOUT DIMMER COMPATIBILITY PLEASE VISIT: WWW.EURILIGHTING.COM

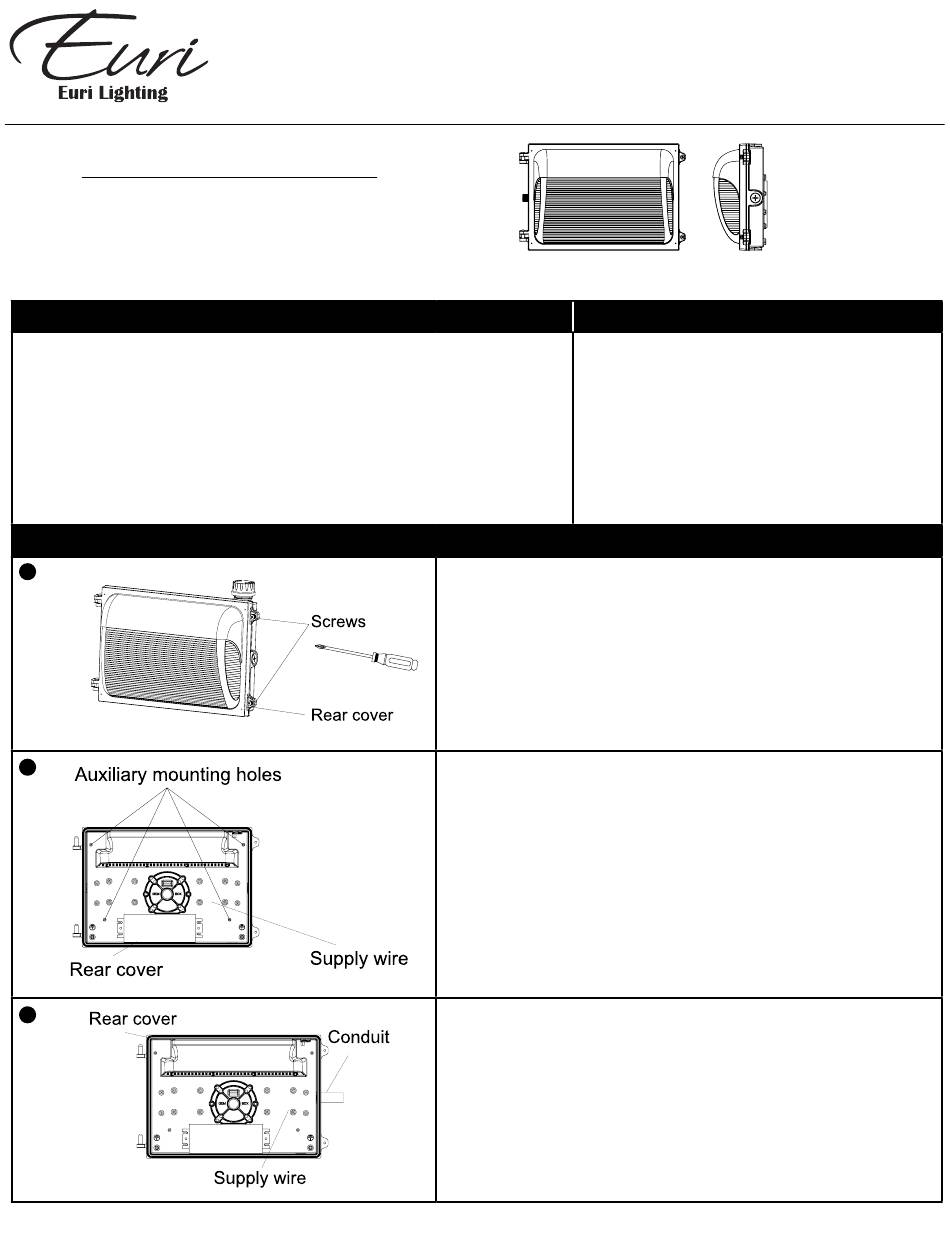

INSTALLATION GUIDE
MODEL #: ESWP-120W1033cws
STEP 1
Remove two screws, remove the rear cover of the luminaire and pull the
connector.
STEP 2-1 (Onto a recessed 4" rectangu lar/octagonal J-Box)
1 .Verify that supply power is off and that the J-Box is securely mounted within
the structural surface.
2. Remove both J-Box fasteners from j-box (set aside for re-installation as
needed)
3. Drill holes as J-Box required on the rear cover.
4. Position rear cover over J-Box feeding supply wires through the center of
the Rear cover and slit in gasket. Replace fasteners from step 2 (do not fully
tighten).
5. Using a contractor level, ensure Rear cover is level and fully tighten fasteners
(Use washers as required to ensure a secure fit).
STEP 2-2(Conduit-stub up)
1. Drill holes on the rear cover as auxiliary mounting holes.
2. Verify that supply power is off. Using a contractor level, ensure rear cover is
level and mark mounting surface thru selected auxiliary mounting holes.
3. Drill holes as marked in step 1 and install appropriate mounting inserts
capable of handing fixture load requirements.
4. Feed supply wires through the center of the rear cover and slit in gasket.
5. Ensure rear cover is level. Fully tighten fasteners (use washers as required to
ensure a secure fit).
©2024. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
TROUBLE SHOOTING
If this fixture fails to operate properly,check to make
sure: The fixture is wired correctly. The fixture is
grounded correctly. The line voltage at the fixture is
correct.If all these variables have been checked and the
fixture still does not operate as specified,contact your
local distributor.
LED Commercial Fixture
Slim Wall Pack
LED Slim
Wall Pack
