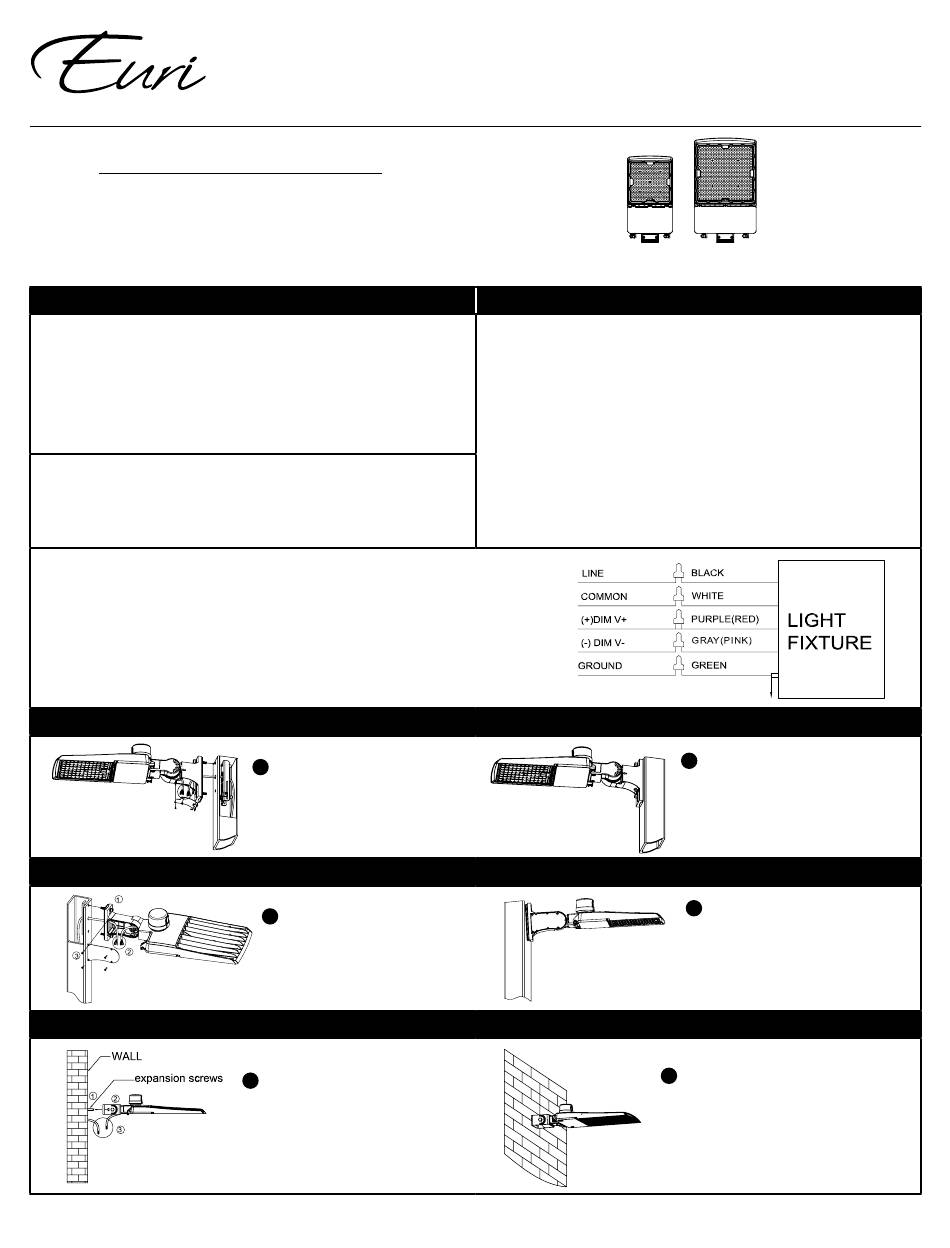

Euri EAL-150W1033cws Installation Manual

Euri Lighting
Questions?

For customer service please call us at 1-310-787-1100
Office Hours: 8:00 a.m. – 5:00 p.m. PST Monday-Friday
E-mail: info@eurilighting.com
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS LISTED BELOW PRIOR TO PROPER INSTALLATION
WARNINGS
• This fixture must be wired in accordance with the international electrical
cede and applicable local codes and ordinances.
• Proper grounding is required to insure personal safety. Carefully observe
the correct grounding procedure under installation section.
• Make sure power off before installing or maintaining fixture.
• Check that voltage is compatible with fixture driver, use approved
connectors for all electrical connections. IMPORTANT: READ CAREFULLY
BEFORE INSTALLING FIXTURE.
CLEANING
1. Before touching fixture, make sure the fixture Is coollng.
2. Do not clean or maintain while fixture is energized.
3. Clean lens& fixture with non-abrasive glass cleaning solution.
4. Do not open fixture to clean and touch LED chips.
WARNING: TURN OFF POWER BEFORE CONNECTING WIRES.
Black wire connect to L, White wire connect to N, Green wire connect to GROUND.
For 0-10V dimming, the wiring direction as below:
1. Turn off the power.
2. Connect the BLACK wire with the LINE.
3. Connect the WHITE wire with the COMMON.
4. Connect the GREEN wire with the GROUND.
Caution: DO NOT connect the GRAY or PINK (-)DIM V-wire with GROL JND.
5. Connect the PURPLE(RED) wire with the (V+) DIM
DIRECT MOUNTING INSTRUCTION
SQUARE POLE MOUNTING INSTRUCTION
TRUNNION MOUNTING INSTRUCTION
THIS PRODUCT MAY NOT BE COMPATIBLE WITH ALL DIMMERS, FOR MORE INFORMATION ABOUT DIMMER COMPATIBILITY PLEASE VISIT: WWW.EURILIGHTING.COM
INSTALLATION GUIDE
MODEL #: EAL-150W1033cws / EAL-300W1033cws
/ EALH-150W1033cws / EALH-300W1033cws
Drill two holes on the wall
1
corresponding to the holes on
the yoke, and knock expansion
screws into the holes.
Drill two holes on the wall
1
corresponding to the holes on
the yoke, and knock expansion
screws into the holes.
Drill two holes on the wall
1
corresponding to the holes on the
yoke mount, and knock expansion
screws into the holes.
©2024. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
MAINTENANCE CAUTION
• Review the diagrams before beginning, and make sure the fixture is
grounded properly.
• Turn the power off and wait for fixture cooling to operate.
• This fixture has to be Installed or maintenance In accordance with
the application code by a professional peraon who familiar with the
construction and operation of the product and the hazards involved.
5-YEAR WARRANTY
If this product fail to preform satisfactorily due to defect or poor
workmanship within five years from the date of purchase, return it to the
place of purchase and it will be replaced, free of charge. Incidental or
consequential damages are excluded from the warranty.
2
LED Commercial Fixture
LED Area Light
Area Light
Use the nuts to fix the fixture to
2
the wall aiming at the expansion
screws, and adjust angle of the
bracket and tighten the smell
screw on the side, then connect
the AC wires.
Use the nuts to fix the fixture to
2
the wall aiming at the expansion
screws, and adjust angle of the
bracket and thighen the small
screw on the side, then connect
the AC wires.
Use the nuts to fix the fixture to the
wall aiming at the expansion screws,
and adjust angle of the bracket and
thighen the small screw on the side,
then connect the AC wires.
