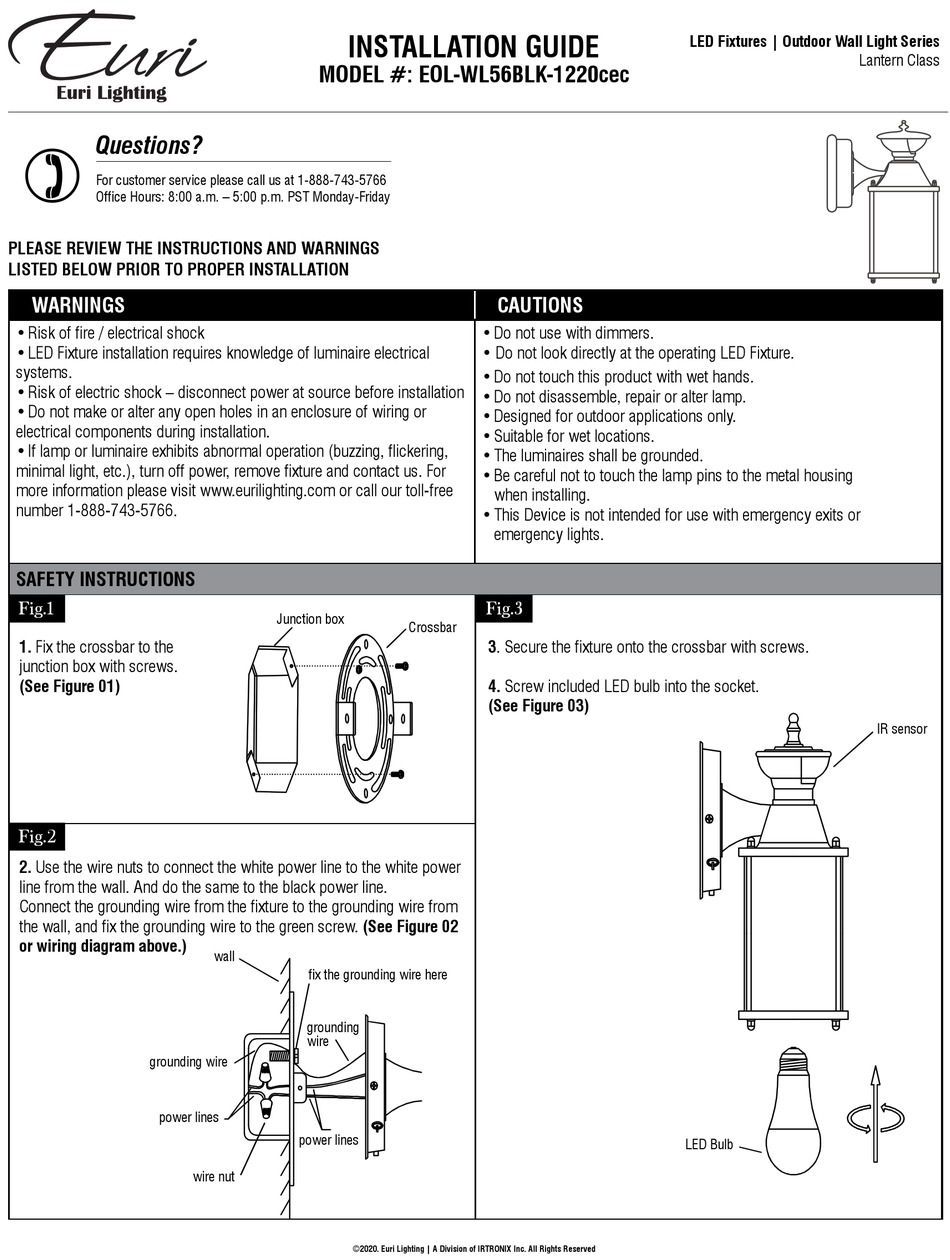

Euri EOL-WL56BLK-1220cec Installation Manual

Questions?

For customer service please call us at 1-888-743-5766
Office Hours: 8:00 a.m. – 5:00 p.m. PST Monday-Friday
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS
LISTED BELOW PRIOR TO PROPER INSTALLATION
WARNINGS
• Risk of fire / electrical shock
• LED Fixture installation requires knowledge of luminaire electrical
systems.
• Risk of electric shock – disconnect power at source before installation
• Do not make or alter any open holes in an enclosure of wiring or
electrical components during installation.
• If lamp or luminaire exhibits abnormal operation (buzzing, flickering,
minimal light, etc.), turn off power, remove fixture and contact us. For
more information please visit www.eurilighting.com or call our toll-free
number 1-888-743-5766.
SAFETY INSTRUCTIONS
Fig.1
1. Fix the crossbar to the
junction box with screws.
(See Figure 01)
Fig.2
2. Use the wire nuts to connect the white power line to the white power
line from the wall. And do the same to the black power line.
Connect the grounding wire from the fixture to the grounding wire from
the wall, and fix the grounding wire to the green screw. (See Figure 02
or wiring diagram above.)
grounding wire
power lines
INSTALLATION GUIDE
MODEL #: EOL-WL56BLK-1220cec
Junction box
wall
fix the grounding wire here
grounding
wire
power lines
wire nut
©2020. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
CAUTIONS
• Do not use with dimmers.
• Do not look directly at the operating LED Fixture.
• Do not touch this product with wet hands.
• Do not disassemble, repair or alter lamp.
• Designed for outdoor applications only.
• Suitable for wet locations.
• The luminaires shall be grounded.
• Be careful not to touch the lamp pins to the metal housing
when installing.
• This Device is not intended for use with emergency exits or
emergency lights.
Fig.3
Crossbar
3. Secure the fixture onto the crossbar with screws.
4. Screw included LED bulb into the socket.
(See Figure 03)
LED Fixtures | Outdoor Wall Light Series
Lantern Class
LED Bulb
IR sensor
