Resi -MBUS2-ETH Quick Start Manual

RESI-MBUS2-
ETH
RESI Informatik & Automation GmbH, Altenmarkt 29, A-8551 Wies, Austria, Tel: +43-316-262062-0, Fax: +43-316-262062-66, Email: help@RESI.cc URL: www.RESI.cc
IMPORTANT: Before you start with the installation of the product, read the attached IMPORTANT SECURITY NOTES very carefully and follow all the herein given information very accurate!
Description:
Consisting of a MeterBus converter with Ethernet interface for 2 smart meter with MBUS interface, maximum 2 meter (=unit loads) and 40 MODBUS registers, host communication via Ethernet with MODBUS/TCP
server or ASCII text protocol, MBUS communication speed from 300bps to 57600bps, Mbus and Ethernet are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based
configurator software or with our free PC software MODBUSConfigurator, Size (LxBxH):35.8x90x58mm, Weight:90g, Power supply:12-48V=, Power consumption:8.4W, Housing:2MU, Mounting:mountable on 35mm
EN50022 DIN rail, Terminals:Cable cross section: max. 2.5 mm², max. 14AWG, Screw: M3, Tightening torque: max. 0.5Nm, max. 4.5 Lb-in, Certification:CE, TARIC number:8538 90 91
Manual:
Read the actual manual for our product very carefully! You will find both things on our homepage

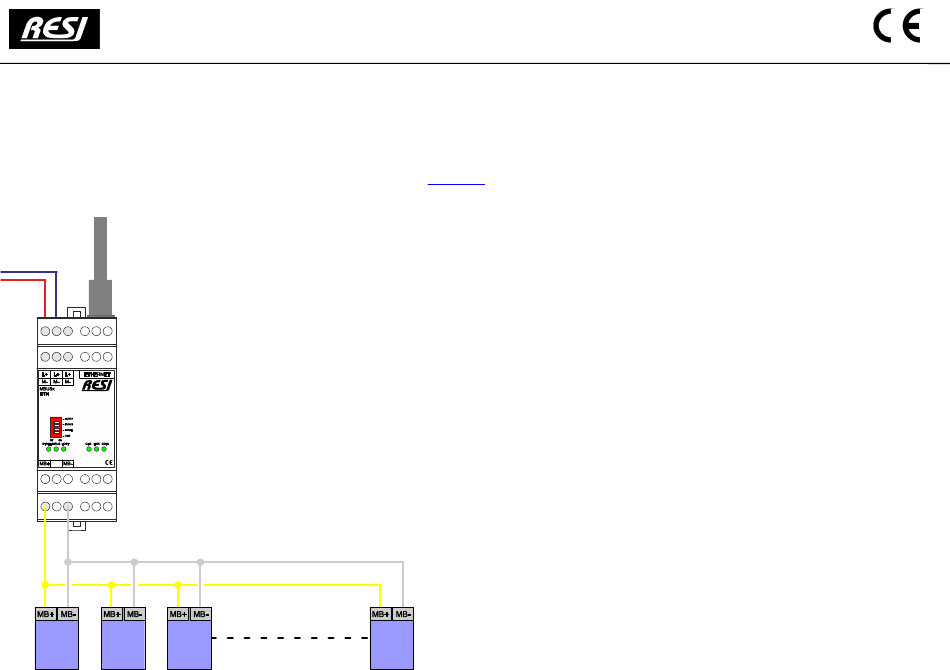

Ethernet
12-48Vdc
MBUS MBUS MBUS
meter meter meter
load load load
1.5mA 1.5mA 1.5mA
www.RESI.cc
MBUS
meter
load
1.5mA
