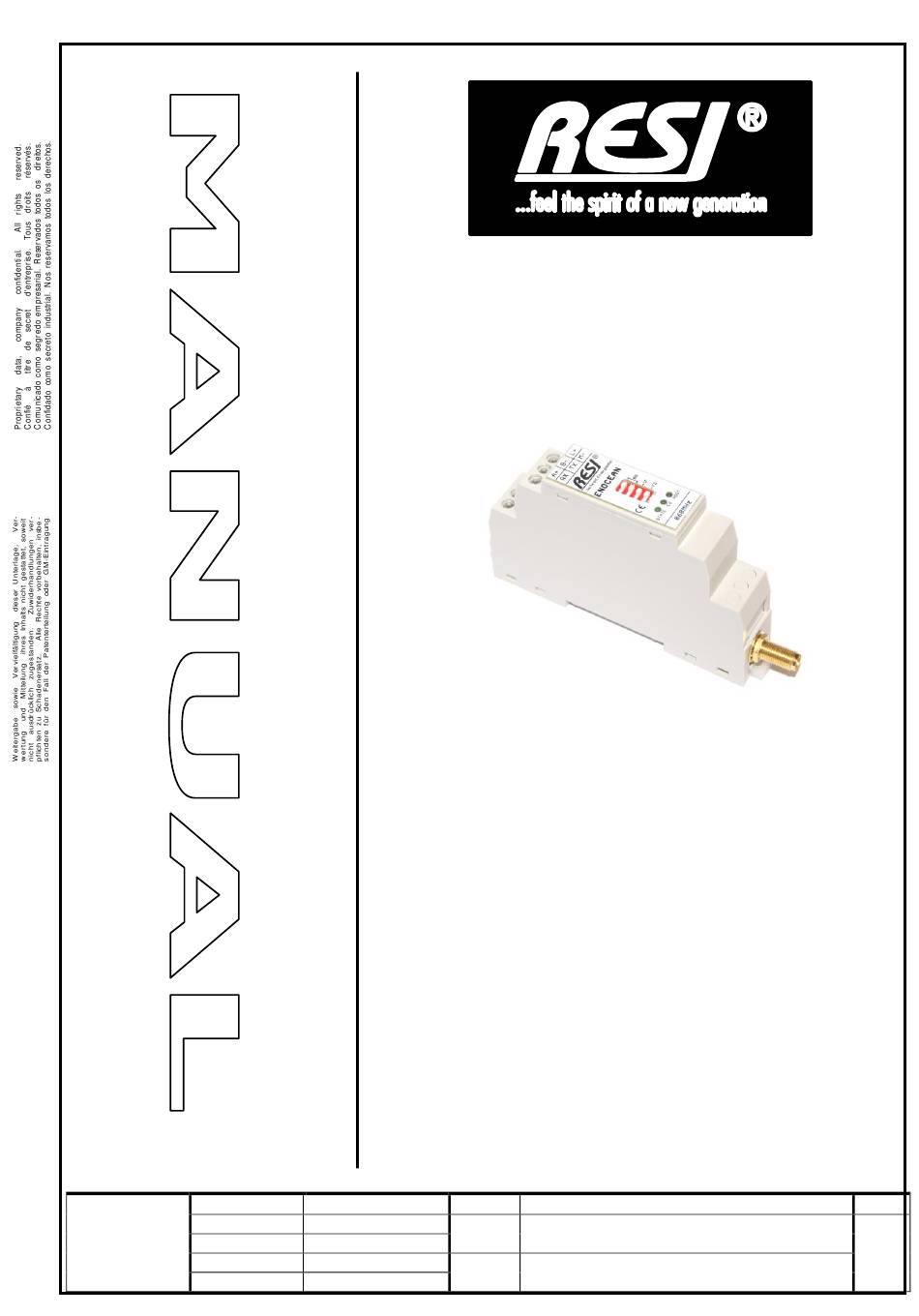

RESI-ENOCEAN-GW Manual
Pages
15
Advertisement
Table of Contents
Related Manuals for Resi RESI-ENOCEAN-GW
Summary of Contents for Resi RESI-ENOCEAN-GW
-
Page 1: Resi-Enocean-Gw
This manual is subject to copyright law. All rights are reserved. This manual may not be copied in part or whole in any form including electronic media without the written consent of RESI. Neither may it be transferred in any other language suitable for machines or data processing facilities. -
Page 2: History
RESI® 1 History Date Editor Description 26.05.15 DI HC Sigl Initial release Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... -
Page 3: Table Of Contents
RESI® 2 Content RESI-ENOCEAN-GW ................................1 1 HISTORY ................................... 2 2 CONTENT ..................................3 3 IMPORTANT SECURITY NOTES ..........................4 4 GENERAL INFORMATION ............................6 5 MOUNTING AND CONNECTIONS ..........................8 ................................8 SSEMBLING ..............................9 LAMPS AND ............................. 10 SWITCH SETTINGS .............................. -
Page 4: Important Security Notes
Operating our device close to equipment, which do not comply with EMC directives, can influence the functionality of our device, leading to malfunction or in worst case to a breakdown of our device! Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... - Page 5 Dimensions of the enclosures or enclosures accessories may show slight tolerances on the specifications provided in these instructions! Modifications of this documentation is not allowed! In case of a complaint, only complete devices returned in original packing will be accepted! Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015...
-
Page 6: General Information
RESI® 4 General Information With the RESI-ENOCEAN-GW gateway, a ENOCEAN wireless system can be integrated in almost every system with a RS232 or RS485 interface. The gateway is a wireless coupler between ENOCEAN® and RS232 or RS485 serial interface with the ENCOEAN Serial Protocol Version 3 (ESP3) to the host. The time critical communication on the ENCOEAN side is done by the gateway itself. - Page 7 Antenna connection LED indicator Clamps Clamp wire cross section Max. 1,5 mm² Tightening torque Max. 0.5Nm CE conformity IT Accessories Use the free terminal software hterm from the internet to communicate with our hterm gateway Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015...
-
Page 8: Mounting And Connections
5 Mounting and Connections Assembling Our RESI-ENOCEAN-GW gateway is designed for mounting on a 35mm DIN-EN50022 rail. Please note, that there are symbol photos used in the mounting pictures below. At first, put the gateway with the top side on the DIN rail (1). -
Page 9: Clamps And Leds
State-LED, flashes slowly, when gateway is ok ENOCEAN activity LED, this LED is on while the gateway send or receives ENOCEAN telegrams HOST HOST-LED, flashes, when host sends/receive ASCII telegrams Table: Description of connectors and LEDs of the RESI-ENOCEAN-GW gateway Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... -
Page 10: Dip Switch Settings
Use DIP Switches 1+2 to select baud rate: OFF OFF: 9600Bd OFF: 19200Bd OFF ON: 38400Bd 57600Bd Interface Select serial interface for ASCII host OFF=RS232 ON=RS485 Function Selects the parity: Definition OFF=No parity ON=Even parity Table: Description of DIP switch functions Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... -
Page 11: Wiring Diagram
RESI® Wiring diagram +24V= RS232, GND RS232, RX RS232, TX Illustration: wiring diagram of the RESI-ENOCEAN-GW gateway Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... -
Page 12: Functional Description
Serial Protocol Version 3 (ESP3). We offer an actual version as a download on our homepage. Please refer to the article RESI-ENOCEAN-GW in our web shop. There you will find this document. Or you search in the internet for the document EnOceanSerialProtocol3.pdf. - Page 13 RESI® You can also use the ENOCEAN® software DolphinView to communicate over our gateway with your ENOCEAN system. You can get the software directly by ENOCEAN. Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015...
-
Page 14: Specifications
Enclosure dimensions L x W x H (mm) 17,5 x 90 x 58 Weight 55 g Colour Grey RAL7035 Material PA - UL 94 V0 Protection class IP20 based on DIN 40050/EN 60529 Table: Data of enclosure Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015... -
Page 15: Drawing
RESI® 3D Drawing Illustration: Dimension illustration in 3D Date Page RESI-ENOCEAN-GW Manual Title: 26.05.2015...
