USE AND CARE GUIDE

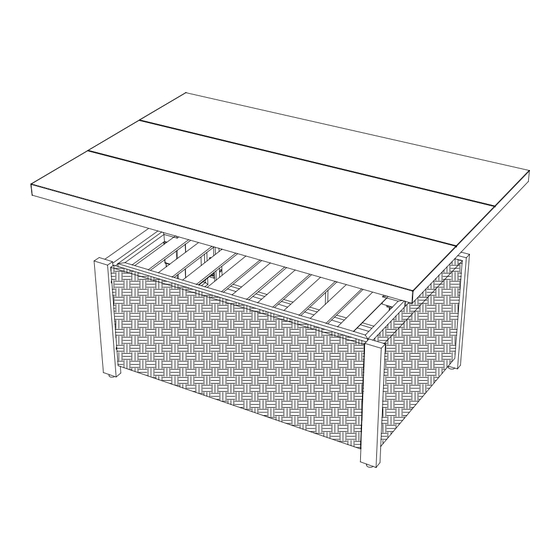

MABREY ADJUSTABLE HEIGHT COCKTAIL TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-841-1350
WWW.HOMDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Table. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY MABREY A209090000
Summary of Contents for HAMPTON BAY MABREY A209090000

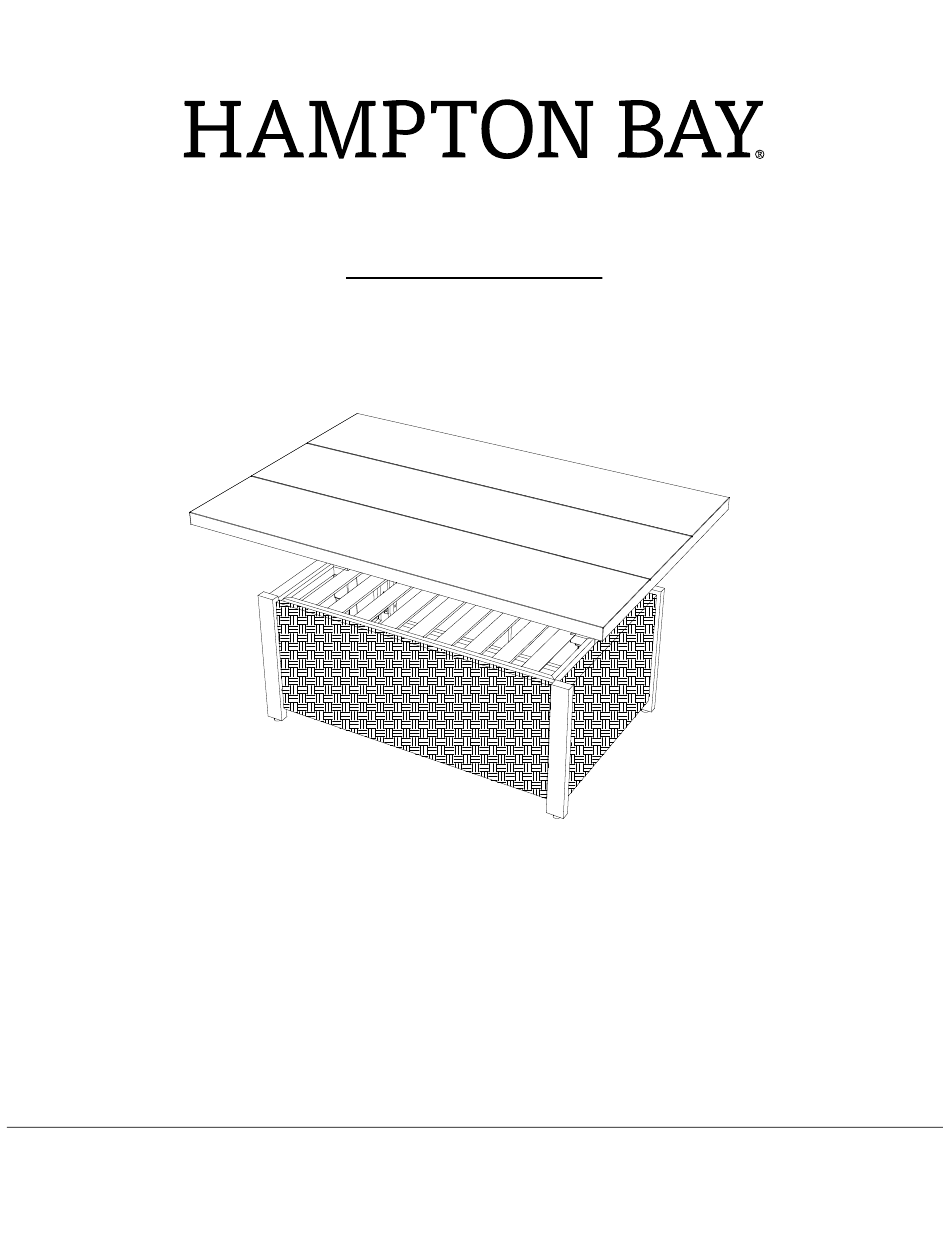

- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Hardware Included ............3 Important Safety Instructions ........2 Package Contents ............4 Warranty ................. 2 Assembly ............... 5 Pre-Assembly ..............3 Care and Cleaning ............10 Planning Assembly ............3 Important Safety Instructions SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE To reduce the risk of injury to persons:... -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Part Number Description Quantity P00210063101 Table Top P00220055101 Wire fastener P00380078401 Long side panel P00380078501 Short side panel P00540082601 Leg 1 P00540082701 Leg 2 P00220053701 Leg bracket 1 P00220055301 Leg bracket 2 P00230013201 Shelf P00220055201 Shelf bracket P00500100801 I-shaped frame... -
Page 5: Assembly
Assembly Attaching the shelf (E1) and pneumatic device (J1) □ Connect shelf (E1) and pneumatic device(J1) with (H1), and use (HW) to fasten the screws. NOTE: When installing the pneumatic device (J), the wiring harness should be directed inward (as shown in the image). - Page 6 Assembly Attaching wire fastener (W) and table top(V) □ Use (H4) & (H5) to attach wire fastener (W) & table top (V). NOTE: Fasten all the screws after assemble finished. Attaching the side panels (X &Y) and legs (A1&B1) □ Use (H2) to attach side panels (X&Y) with legs (A1 &B1), use (HW) to fasten the screws.
- Page 7 Assembly Attaching legs (A1&B1) and I-shaped frame(G1) □ Use (H1) to connect I shaped frame (G1) and legs (A1 &B1), use (HW) to fasten the screws. NOTE: During the installation of I-shaped frame(G1), divide into upper and lower sections (as shown in the diagram) Do not tighten bolts more than 3-5 turns or 30% since this will prevent all holes from lining up.
- Page 8 Assembly Attaching shelf (E1)and shelf bracket(F1), attaching legs(A1&B1) and leg bracket (C1&D1) □ Use (H1) to connect leg bracket(C1&D1) and legs(A1&B1) □ Use (H1) to connect shelf bracket (F1) and shelf(E1), use (HW) to fasten the screws. NOTE: Fasten all the bolts after assemble finished. Description for lifting table top up □...
- Page 9 Assembly Description for lifting table top down □ Hold Pneumatic device (J1) switch by hand，Put another hand on the center of the table top and press it down and table top will lower. NOTE: During the lifting and lowering process, please do not place anything on the table top. Lifting table maintenance □...
-
Page 10: Care And Cleaning
Care and Cleaning □ Before using, clean the table completely with a soft dry towel. □ Do not use harsh abrasives or cleaners. □ When not in use, store in a cool, dry area. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-841-1350 WWW.HOMEDEPOT.CA Retain this manual for future use.
