Item# 214892
Model# A201015701
USE AND CARE GUIDE

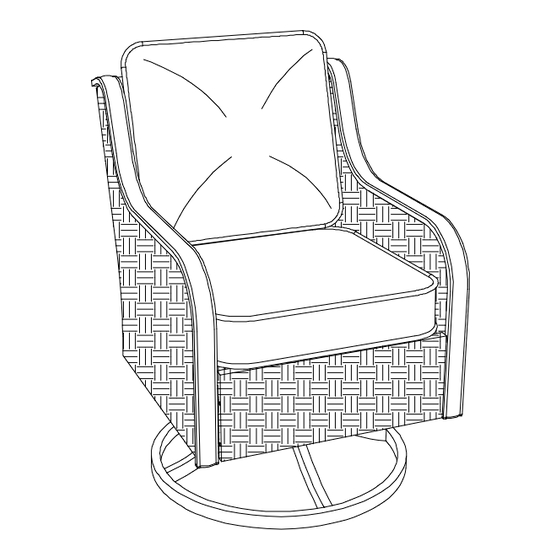

WINDSOR SWIVEL DINING CHAIR - BARE
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Chair. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton
Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A201015701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY A201015701

Summary of Contents for HAMPTON BAY A201015701

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Hardware Included ..............3 Important Safety Instructions ........2 Package Contents ..............4 Warranty ................. 2 Assembly ............... 6 Pre-Assembly ..............3 Care and Cleaning ............10 Planning assembly ..............3 Important Safety Instructions SAVE THESE INSTRUCTIONS Examine occasionally to ensure that there are no loose parts.

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware Included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.

  • Page 4: Package Contents

    Pre-Assembly PACKAGE CONTENTS Quantity Part Part Number Description P001500068 Back Armrest (Left) P001400251 P001400252 Armrest (Right) P001600202 Seat P000501273 T-Shaped Support P005400437 Base P001800130 Cushion P001700107 Back Cushion P005300061 Leveling Feet (Pre-assembled on E) HOMEDEPOT.COM.MX Please contact 800 004 6633 for further assistance.
  • Page 5 Pre-Assembly (continued) OPTIONAL TOOLS TO AID ASSEMBLY (NOT INCLUDED) IMPORTANT This assembly requires one to two person. Approximate assembly time: 0.5~1 hours. HOMEDEPOT.COM.MX Please contact 800 004 6633 for further assistance.

  • Page 6: Assembly

    Assembly Attaching the Back and Seat □ Connect the back (A) with seat (C) using bolt (AA). Use wrench (FF) or rachet wrench (JJ) to loosely tighten the bolts. NOTE: Do not fully tighten the bolts. Attaching the Armrest (Left) □...
  • Page 7 Assembly (continued) Attaching the Armrest (Left) □ Align the back (A) with the mounting holes in the armrest (B1), connect them using bolts (AA). Use wrench (FF) or rachet wrench (JJ) to loosely tighten the bolts. □ Connect the seat (C) with the armrest (B1) using bolts (AA). Use wrench (FF) to loosely tighten the bolts. NOTE: Do not fully tighten the bolts.
  • Page 8 Assembly (continued) Attaching the Armrest (Right) □ Align the back (A) with the mounting holes in the armrest (B2), connect them using bolts (AA). Use wrench (FF) or rachet wrench (JJ) to loosely tighten the bolts. Connect the seat (C) with the armrest (B2) using bolts (AA). Fully tighten the all bolts. NOTE: Lightly rotate the armrest during installation.
  • Page 9 Assembly (continued) Inserting the T- Shaped Support □ Insert the T-shaped support (D) to the base (E). NOTE: To preserve the finish, place parts on a soft surface. Placing the Cushions □ Place the cushion (F) and back cushion (G) on the chair to complete the assembly. HOMEDEPOT.COM.MX Please contact 800 004 6633 for further assistance.

  • Page 10: Care And Cleaning

    Care and Cleaning □ Before using, clean the chair completely with a soft dry towel. □ Do not use harsh abrasives or cleaners. □ When not in use, store in a cool, dry area. HOMEDEPOT.COM.MX Please contact 800 004 6633 for further assistance.
  • Page 11 Importer: Servicios Home Depot, S. de R.L de C.V. Ricardo Margain 605, Santa EngraciaI, San Pedro Garza Garcia, N.L. México C.P. 66267 Phone: 800 004 6633 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m.
