Item# 1001886661
Model# A210062301
USE AND CARE GUIDE

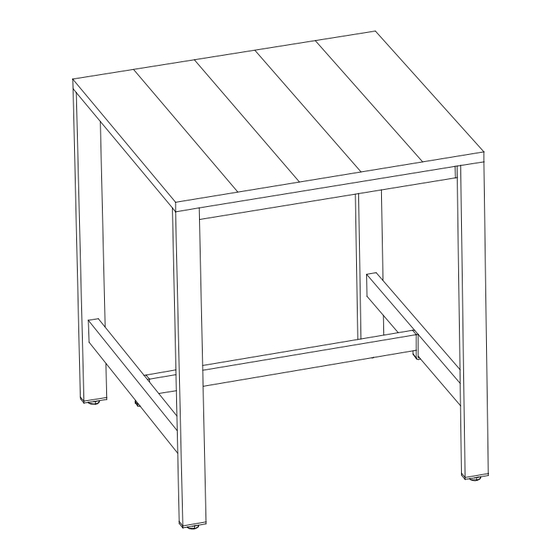

ARCADIAN END TABLE V.2-1PK
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-841-1350
WWW.HOMDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Chair. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton
Bay!
Advertisement
Related Manuals for HAMPTON BAY ARCADIAN A210062301
Summary of Contents for HAMPTON BAY ARCADIAN A210062301
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this Chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton...
- Page 2 Table of Contents Table of Contents ............2 Hardware Included ............3 Important Safety Instructions ........2 Package Contents ............4 Warranty ................. 2 Assembly ............... 5 Pre-Assembly ..............3 Care and Cleaning ............7 Planning Assembly ............3 Important Safety Instructions SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Examine occasionally to ensure that there are no loose parts.
- Page 3 Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware Included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Part Number Description Quantity P00210063001 Table top P00540082401 Table leg P00050240801 Top connector P00050240901 Bottom connector H990030028 Foot Pad (Pre-assembled on B) WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
- Page 5 Assembly Assemble table legs and top connector □ Use H1 to connect legs B and connector C with HW. Do not tighten fully. NOTE: Do not tighten bolts more than 3-5 turns or 30% since this will prevent all holes from lining up. Assemble table legs and bottom connector Turn assembled frame upside down, use H1 to connect legs B and connector D with HW □...
- Page 6 Assembly Assemble table top and legs □ Use H2 to connect table top A and legs B with wrench HW, fasten all the bolts. Assemble finished. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
- Page 7 Care and Cleaning □ Before using, clean the end table completely with a soft dry towel. □ Do not use harsh abrasives or cleaners. □ When not in use, store in a cool, dry area. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-841-1350 WWW.HOMEDEPOT.CA Retain this manual for future use.
