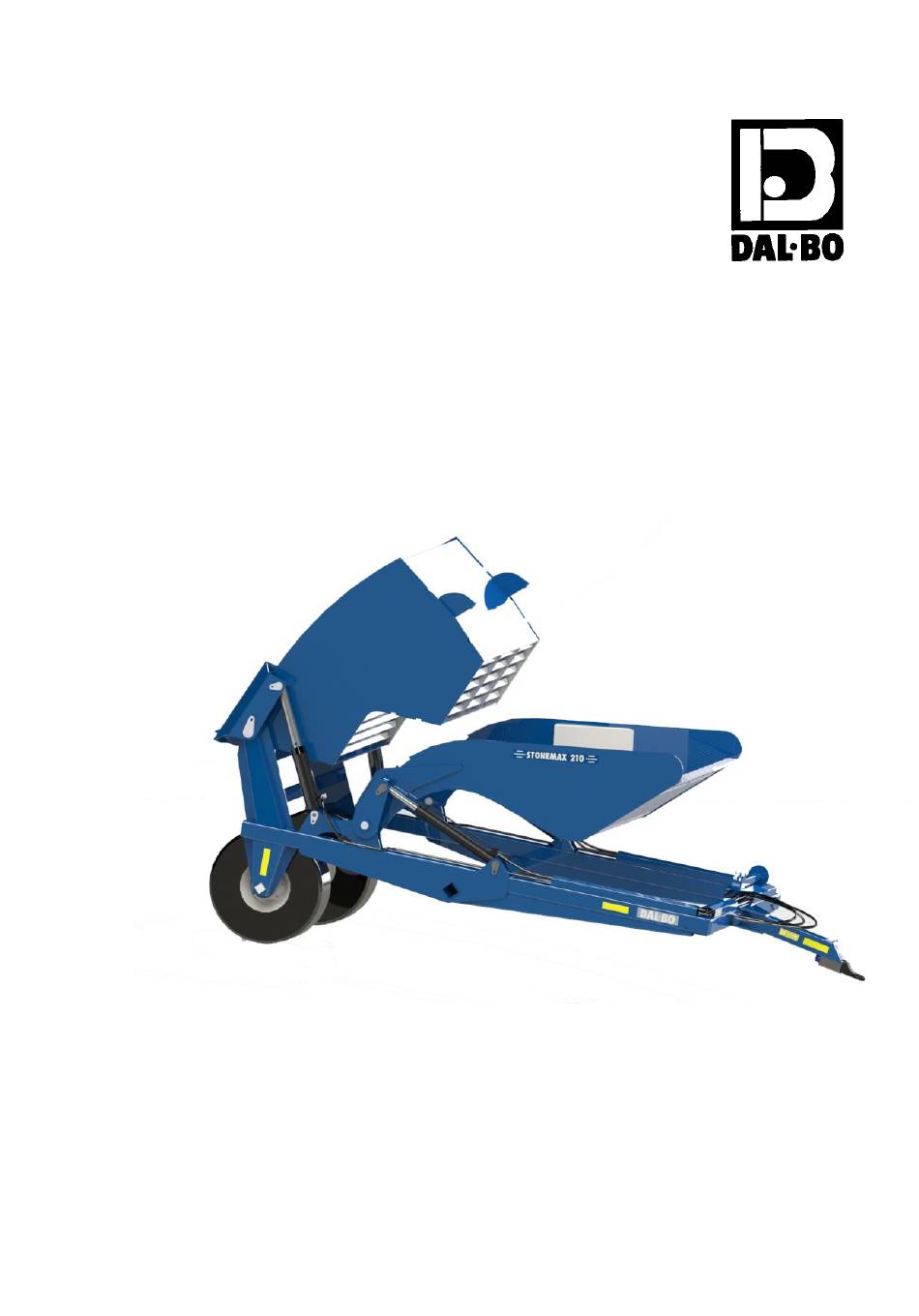

  • Page 1 StoneMax 160/210 Serial no.: 100-XXX...
  • Page 3 Congratulations on the purchase of your new StoneMax. For safety reasons and to achieve optimum service from the product, please read the User Guide before use. © Copyright 2009. All rights reserved DAL-BO A/S This product has: Type no.: Serial no.:...
  • Page 5: Table Of Contents

    Table of Contents SAFETY .......................... 6 ........................6 ENERAL ......................... 7 YDRAULICS ........................7 SSEMBLY ..................7 AINTENANCE AND REPAIR ......................7 OAD TRANSPORT ........................ 8 ORRECT USE HOW TO USE THIS MANUAL .................. 9 ........................9 ELIVERY DESCRIPTION OF THE MACHINE ............... 10 COUPLING THE MACHINE TO THE TRACTOR ..........
  • Page 6: Safety

    StoneMax Safety This symbol appears in the instruction manual each time there is a safety warning concerning your safety, the safety of others or functionality of the machine. All safety instructions must be observed and made available to all users of the machine. General ...
  • Page 7: Hydraulics

    StoneMax Hydraulics  Lower machine fully for any repair work on the hydraulic system. Relieve hydraulic pressure, switch engine off and remove ignition key.  Clean hydraulic connections thoroughly before reconnecting. When con- necting hydraulic hoses to tractor hydraulics, ensure they are not under pressure.
  • Page 8: Correct Use

    StoneMax  When transporting, ensure permitted total weight for tractor is not exceed- ed and that loading on tractor front axle is not less than 20% of tractor net weight. If this is the case, use weights on tractor front Correct use ...
  • Page 9: How To Use This Manual

    StoneMax How to use this manual The sequence of subject matter in this manual can seem illogical. Please refer to the table of contents for page numbers for individual items. The manual is divided into 5 main sections:  Safety ...
  • Page 10: Description Of The Machine

    StoneMax Description of the machine The machine described in this manual consists of three fundamental parts: 1. CHASSIS 2. EXCAVATING SHOVEL 3. HOPPER 1. CHASSIS: The other elements are mounted on the chassis, which is made of structural tubing. There two wheels located at the rear end and an attachment for coupling the machine to the tractor.
  • Page 11 StoneMax 2. EXCAVATING SHOVEL: This is provided with teeth in the form of a comb which collect surface stones which enter the bucket through the action of two double effect cylinders. The working depth varies between 5 and 15 cm, and is remotely controlled from the tractor.
  • Page 12 StoneMax 4. HOPPER: Carrying capacity is a function of the model, and is mounted to the chassis by two rotating bolts. It is unloaded by means of two simple effect hy- draulic cylinders controlled from the tractor. Side 12...
  • Page 13: Coupling The Machine To The Tractor

    StoneMax Coupling the machine to the tractor Bear in mind the following: 1. The height of the tractor coupling attachment should be between 450 and 500 mm. 2. Hydraulic coupling with two possible situations: When there are sufficient oil outlets on the tractor connect the two double effect plugs to one attachment on the tractor distributor, and the simple effect plug to the other, as in the diagram on the right.
  • Page 14: Fitting The Distributor

    StoneMax Fitting the distributor If the tractor does not dispose of three oil outlets attach a distributor as shown in the diagram on the right. Side 14...
  • Page 15 StoneMax Detailed description of the rear lights, which follow the norms required for use on the road. Side 15...
  • Page 16: Maintenance

    StoneMax Maintenance Due to its extremely simple mechanism this machine merely requires the periodical greasing of all moving parts. This should be carried out with the bucket at rest and the tractor engine stopped. Side 16...
  • Page 17: Before Beginning Work

    StoneMax Before beginning work Follow the instructions below in order for the machine to work to its specifications: 1. Examine the terrain to ascertain dangerous areas and method of working. 2. Verify that there are no oil leaks from any of the pistons, oil tubes or the remote control.
  • Page 18: The Terrain And Work Capacity Of The Machine

    StoneMax The terrain and work capacity of the machine The following recommendations will help you to work correctly: 1. The ground should be dry. 2. The stone(s) should be loose on top of the earth. It is useful to bring them to the surface with a cultivator or rotavator.
  • Page 19: While Working

    StoneMax While working 1. No one should be allowed near or on the machine. 2. When working always use the tractor’s lowest gears. 3. Avoid starting or turning quickly. 4. Always unload the machine when at a standstill. 5. Avoid unloading on transversal slopes of more than 15%. Side 19...
  • Page 20: Maintenance Precautions

    StoneMax Maintenance precautions Only specialized personnel should carry out the maintenance of this machine. 1. Follow the correct safety measures for each task. 2. Diesel and oil are hazardous substances. Do not use in the presence of fire or flames. 3.
  • Page 21: Technical Sheet

    StoneMax Technical sheet A (mm) 4150 4890 1660 1740 B (mm) C (mm) 1930 2330 1580 2400 Peso/Weight/Poids (Kg) Volumen tolva/hopper volume/ volume de 1.58 2.87 la trémie (m Side 21...
  • Page 22: Guarantee

    Dal-Bo A/S cannot be held liable for consequential damage, loss of earnings or production as a result of defects. Dal-Bo A/S cannot be held liable for the cost of labour apart from that reasonably incurred for repair or replacement covered by the guarantee.
  • Page 23: Spare Parts

    StoneMax Spare parts Side 23...
