Alcovisor JUPITER X Instruction Manual

Hide thumbs Also See for JUPITER X:

Advertisement

Quick Links

Download this manual
MODEL: JUPITER X
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the JUPITER X and is the answer not in the manual?

Questions and answers

Related Manuals for Alcovisor JUPITER X

Summary of Contents for Alcovisor JUPITER X

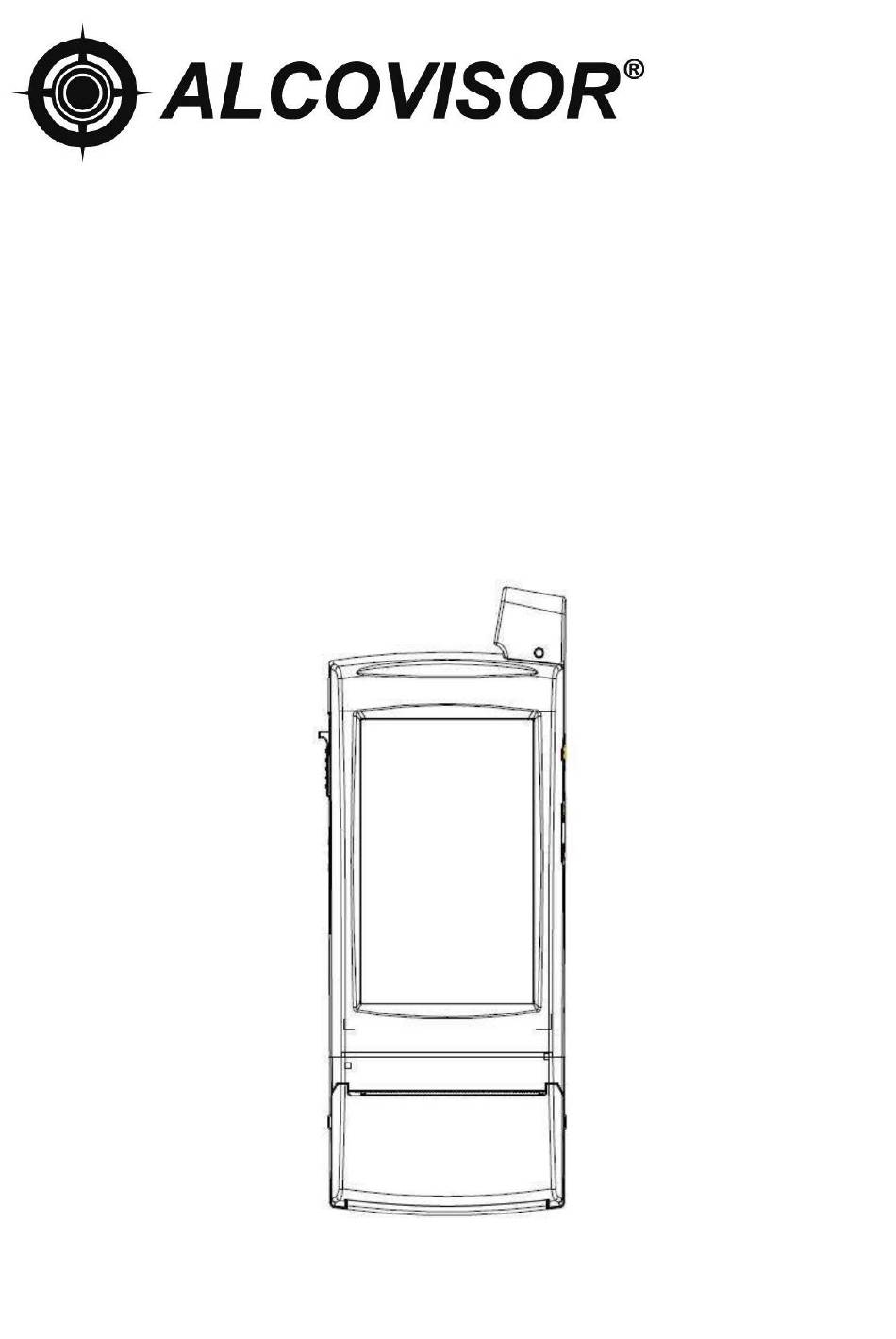

  • Page 1 MODEL: JUPITER X Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS STRUCTURES……………………………………………………………………… 1 INSTRUMENT FEATURES……………………………………………………….. 2 ICON DESCRIPTION……………………………………………………………… 3 INTRODUCTION ………………………………………………………………….. 4 OPERATING INSTRUCTIONS…………………………………………………… 5 PRINTER…………………………………………………………………………… 9...

  • Page 3: Structures

    P. 1 STRUCTURES Operator needs to read operation manual and familiar with the operation before using. Retain the manual for future reference.

  • Page 4: Instrument Features

    P. 2 INSTRUMENT FEATURES PLEASE REFER TO DIAGRAME ON PAGE 1 1. DISPOSABLE MOUTHPIECE For sanitary reason, each mouthpiece is individually packed and sealed. New mouthpiece should be attached to sample port for each test to prevent any contamination from the previous sample. 2.

  • Page 5: Icon Description

    P. 3 ICON DESCRIPTION GPS Indicator Setting Wifi Indicator 4G Indicator 4G Setting (Optional) Battery Indicator Wifi Setting Date & Time Indicator Bluetooth Setting (Optional) Standard Test Last Calibration Date Passive Test Next Calibration Date Test Records Test Record Counter Calibration Confirm/Enter Cancel...

  • Page 6: Introduction

    P. 4 INTRODUCTION It is a state of the art instrument used to detect Ethyl Alcohol from a valid breath sample. It uses an electrochemical fuel cell to measure the concentration of alcohol from the sample of the expired breath from a human subject. If alcohol is present, a corresponding voltage is generated from the fuel cell, which is proportional to the alcohol content of the sample provided by a human subject.

  • Page 7: Operating Instructions

    P. 5 OPERATING INSTRUCTIONS Pre-test Conditions 1. Operating temperature range is -10°C to 50°C. Use within this temperature range will limit condensation from a subject breath to insure an accurate reading from a breath sample. 2. It is recommended that the operator to observe a subject for about 20 minutes before administering the breath test to insure that nothing is consumed or expelled from the mouth of the subject.

  • Page 8: Passive Test

    P. 6 9. Select to print the test result. 10. Push the button underneath the mouthpiece to remove the mouthpiece. Passive Test 1. Attach a sampling cup onto the sample port. 2. When displays “Please Blow”, take a deep breath and blow to the sampling cup.
  • Page 9 P. 7 Calibration 1. When the screen displays “Calibration Needed”, send the device for calibration. 2. A password is needed for calibration to ensure calibration is performed by eligible persons. 3. Please refer to Calibration Instruction. 1. Longitude and Latitude of location of the device will be shown. 2.
  • Page 10 P. 8 Bluetooth 1. Applicable for the units with Bluetooth module only. 2. The default Bluetooth name is “AOSP on Drone”. Setting 1. Basic Setting Brightness level and Sleep time can be set 2. Time Setting Set the date and time of the device 3.

  • Page 11: Printer

    P. 9 PRINTER An attachable built-in thermal printer is used for the device. INSERT PAPER Pull the handles on the side to open the printer cassette and inset thermal paper. When inserting a new roll of paper, ensure glossy side of the paper is kept close to dentation.
