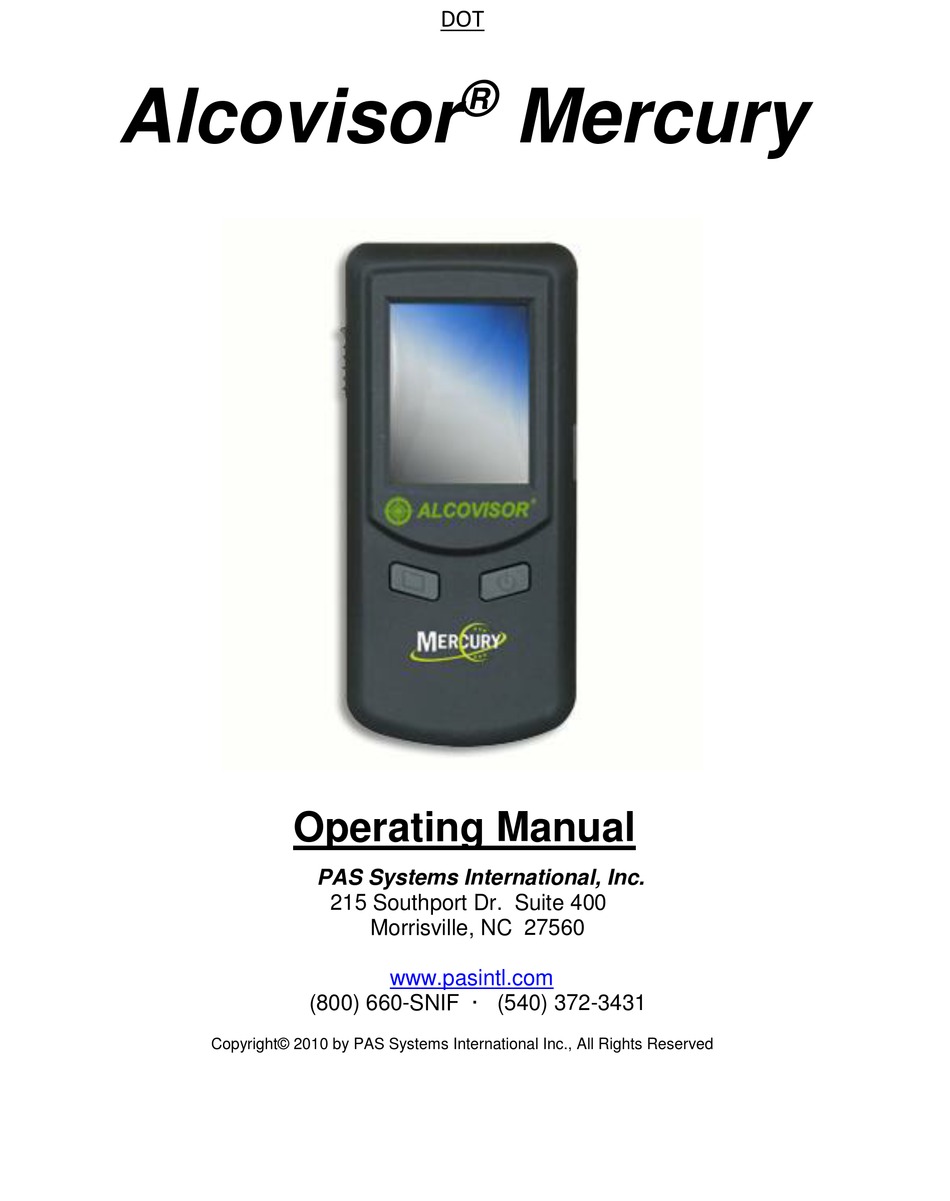

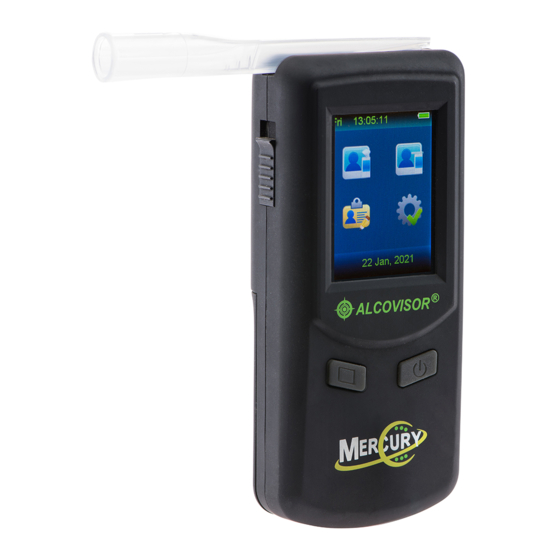

- Page 1 ® Alcovisor Mercury Operating Manual PAS Systems International, Inc. 215 Southport Dr. Suite 400 Morrisville, NC 27560 www.pasintl.com (800) 660-SNIF · (540) 372-3431 Copyright© 2010 by PAS Systems International Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Table of Contents Introduction ............................. 1 Principles of Operation ........................... 2 Instrument Features..........................2 Preparing the Mercury ..........................3 Installing the Batteries ......................... 3 Turning On & Off ..........................3 Touch-Screen Calibration ........................3 Icon Descriptions ............................ 4 Performing a Breath Test ........................5 Conditions for Test Site ........................ -
Page 4: Introduction
The Mercury is accurate and reliable, allowing a complete breath test procedure to be conducted in about 30 seconds or less. This manual describes the operation, maintenance, calibration check, and calibration adjustment of the Mercury. -
Page 5: Principles Of Operation
Remove and clean with a mild disinfectant (alcohol-free) for the next use. 3. LEVER TO REMOVE MOUTHPIECE: For sanitary reasons, the mouthpiece can be ejected by pushing up on the lever on the left side of the Mercury. 4. TOUCH SCREEN DISPLAY: A user-friendly touch-screen displays instructions and test results. -
Page 6: Preparing The Mercury
1. If you inserted Rechargeable AA batteries into the Mercury, they can be recharged while inside the unit using the auto power adaptor. 2. Plug the USB end of the adapter into the right side of the Mercury and the other end into the car. -
Page 7: Icon Descriptions
ICON DESCRIPTIONS Weekday Indicator Standard Test Time Indicator Test Records Date Indicator Settings Battery Indicator Number of Tests Indicator Passive Test Last Calibration Date Previous Screen/Cancel Next Screen/Confirm Main Screen Print Repeat Test... -
Page 8: Performing A Breath Test
• Snap the disposable mouthpiece onto the top of the Mercury to ensure a secure fit. • After use, the mouthpiece can be removed from the Mercury by using the lever on the left of the instrument. Slide this lever up to disengage the mouthpiece without... -
Page 9: Performing An Air Blank Test
Performing an Air Blank Test The Mercury performs an Air Blank test to determine if ethanol is present in the ambient air or if any residual alcohol is remaining from prior testing. An Air Blank test should be performed if there is suspicion that the ambient air contains alcohol vapor, or prior test carryover is suspected, or before a confirmatory test. -
Page 10: Standard Test
If subject failed to give a valid breath sample, operator can select “Discontinue” to confirm, or select “Test Again” to allow subject to test again. The Mercury will also detect if the subject attempts to suck air back through the mouthpiece. In this case, the Mercury will display “Discontinue” or “Test Again”... -
Page 11: Manual Override Test
Automatic Sampling system. 1. In either the Standard or Passive Test mode, when the Mercury displays “Please Blow”, instruct the person being tested to breathe in deeply and blow evenly into the mouthpiece for a minimum of 4 seconds. -
Page 12: Settings
Adjusts the brightness level of the screen. 7. Bluetooth: Your Mercury unit and its’ printer are matched at the factory prior to shipping. Bluetooth connection will automatically be made between the unit and printer when they are both powered on. -
Page 13: Printer
PRINTER Paper Handle Paper Power Button Printer Operation Battery Installation: 1. Remove the battery cover from the back of the printer by pressing the tab and pulling it away. 2. Insert the rechargeable battery pack. 3. Replace the battery cover. Recharging the Battery: 1. - Page 14 1. Be sure the printer is on. (Printer will shut off after several minutes of inactivity) 2. Turn on the Mercury and take an automatic or manual sample (see above). Once the Mercury is wirelessly connected to Printer, you will see the Bluetooth Symbol displayed near the battery indicator on screen.
-
Page 15: Accuracy Checking And Calibration
Due to the sensitive nature of BAC testing, it is extremely important to keep detailed records of both accuracy tests and recalibrations for each Mercury unit. Procedures for recording this information are covered in BAT training and documentation when provided. -
Page 16: Dry Gas Accuracy Checking
7. Attach instrument to the mouthpiece. (The opaque moisture trap can be used should condensation appear in the mouthpiece). 8. Switch on the Mercury. Choose the icon to perform a Standard Test and wait for instrument to perform the Air Blank test. -
Page 17: Dry Gas At High Altitude
5. After a few seconds, the measured value will be displayed. If the measured value is within +/-0.005 BrAC of the altitude-adjusted concentration value, the Mercury is working accurately. Note: Suitable Dry Gas Standards and Regulators are available from PAS Systems International, Inc. -
Page 18: Quality Assurance Plan
5. Events which require instrument be taken out of service: Self-diagnostics failure or indication by error code. The power supply is not providing necessary power to the Mercury. The Mercury does not display “Please Blow” after selecting a Standard or Screening test icon. -
Page 19: Troubleshooting
Power supply to the unit is Change batteries. respond. completely exhausted. CAUSE SOLUTION PROBLEM Instrument malfunction. Contact PAS Systems Mercury does not display “Please International, Inc. at 800-660- Blow” when a standard or 7643. screening test is chosen. PROBLEM CAUSE SOLUTION Mercury activates a different... -
Page 20: Technical Specifications
TECHNICAL SPECIFICATIONS Product Name: Alcovisor - Mercury Sensor: Platinum Electrochemical Fuel Cell Accuracy: Meets DOT specifications +/- 0.005% up to 0.100 % BrAC and +/- 5% above 0.100% BrAC Sample Accuracy: 0.001 % Detection Range: 0.00 to 0.400 BrAC Response Time:... -
Page 21: Safety, Maintenance & Warranty
SAFETY, MAINTENANCE, & WARRANTY Safety For correct and effective use of the Mercury, it is essential to read and strictly follow the instructions contained in this document. The Mercury is to be used only for the purposes specified herein. Maintenance Repairs of the Mercury may only be performed by PAS Systems International, Inc. - Page 22 Alcovisor® Mercury PAS Systems International, Inc. 215 Southport Dr. Suite 400 Morrisville, NC 27560 http://www.pasintl.com Tel: (540) 372-3431 800-660-SNIF Printed 3/18 $5.00...
