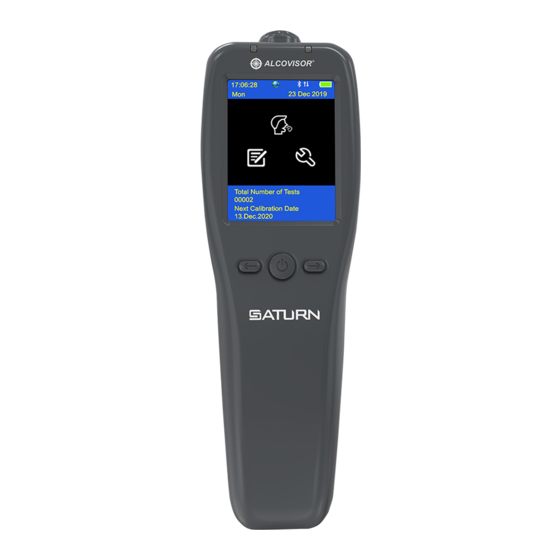

Alcovisor Saturn Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL: Saturn
Instruction Manual
(Use with Smartphone App)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Saturn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcovisor Saturn

Summary of Contents for Alcovisor Saturn

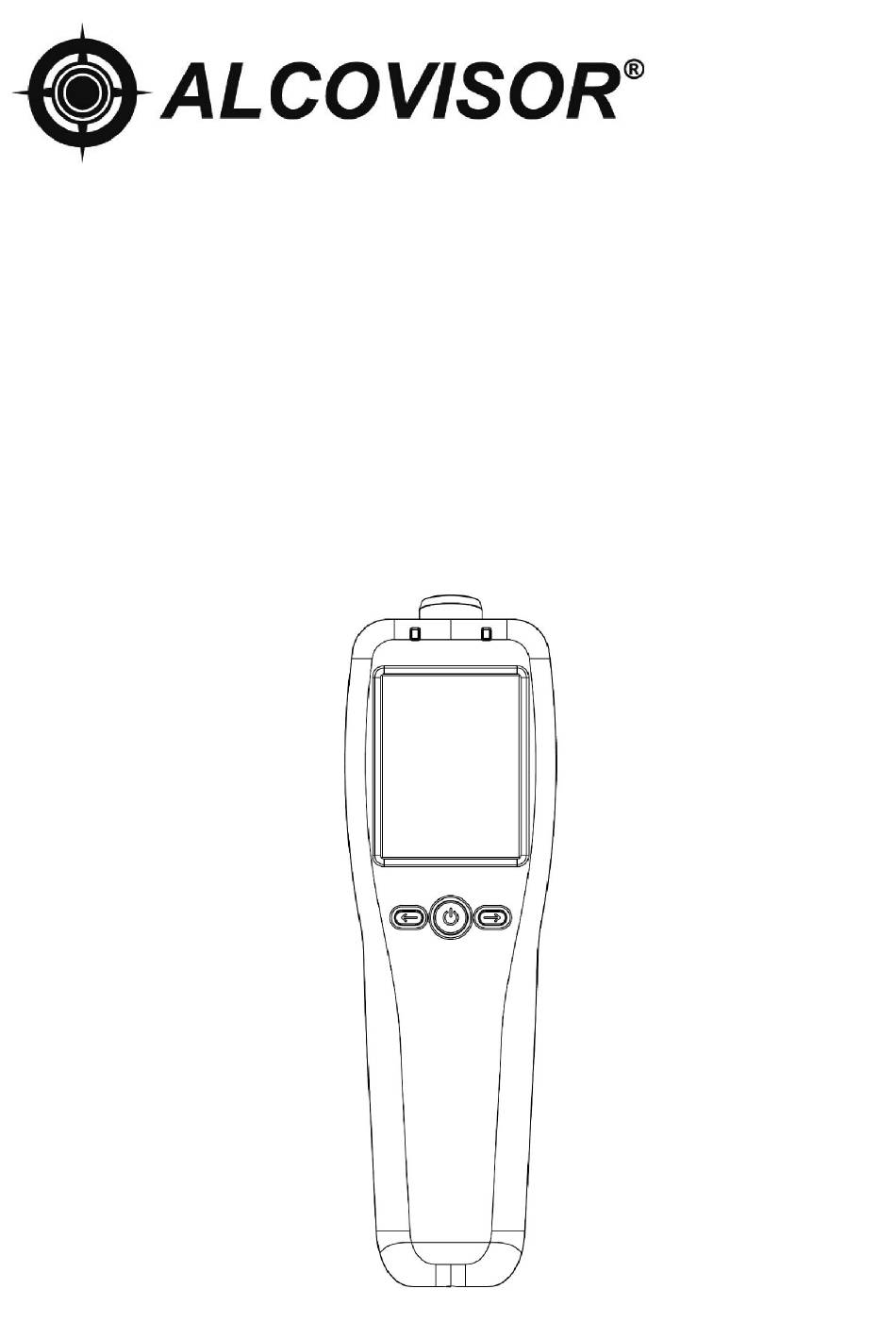

  • Page 1 MODEL: Saturn Instruction Manual (Use with Smartphone App)

  • Page 3: Table Of Contents

    TABLE OF CONTENTS STRUCTURES ..................4 INSTRUMENT FEATURES ..............5 ICON DESCRIPTION ................6 TOUCH SCREEN CALIBRATION ............6 INTRODUCTION ................7 OPERATING INSTRUCTIONS .............. 8...

  • Page 4: Structures

    P. 4 STRUCTURES Operator needs to read operation manual and familiar with the operation before using. Retain the manual for future reference.

  • Page 5: Instrument Features

    P. 5 INSTRUMENT FEATURES PLEASE REFER TO DIAGRAME ON PAGE 1 1. DISPOSABLE MOUTHPIECE For sanitary reason, each mouthpiece is individually packed and sealed. New mouthpiece should be attached to sample port for each test to prevent any contamination from the previous sample. 2.

  • Page 6: Icon Description

    P. 6 ICON DESCRIPTION Time Indicator Test GPS Indicator Test Records Bluetooth Connection Indicator Settings Battery Indicator Total Number of Tests Weekday Indicator Next Calibration Date Date Indicator TOUCH SCREEN CALIBRATION If the touch screen is not sensitive enough, please calibrate the screen. Switch off the device, press and hold the On/Off button (middle button) and then press the left button immediately.

  • Page 7: Introduction

    P. 7 INTRODUCTION It is a state of the art instrument used to detect Ethyl Alcohol from a valid breath sample. It uses an electrochemical fuel cell to measure the concentration of alcohol from the sample of the expired breath from a human subject. If alcohol is present, a corresponding voltage is generated from the fuel cell, which is proportional to the alcohol content of the sample provided by a human subject.

  • Page 8: Operating Instructions

    P. 8 OPERATING INSTRUCTIONS Pre-test Conditions 1. Operating temperature range is -10°C to 50°C. Use within this temperature range will limit condensation from a subject breath to insure an accurate reading from a breath sample. 2. It is recommended that the operator to observe a subject for about 20 minutes before administering the breath test to insure that nothing is consumed or expelled from the mouth of the subject.
  • Page 9 NOTE: This mode is disabled when connecting to the mobile phone App. Test with Smartphone App 1. The Android and IOS mobile APP “Alcovisor Elite” can be used with the device, compatible with Android version 4.3+ and IOS 9.0+, and the internal bluetooth module of the mobile is 4.0+...
  • Page 10 P. 10 Icon Function Android: Listing Menu iPhone: The menu is at the bottom Disconnected Connecting Connected Android Tap the middle of the icon to start a test. Reminder: Manual test is not available when test with the App. There must be an interval of at least 15 minutes after alcohol has been taken into the mouth.
  • Page 11 Test result with time of test will be shown. A photo will be taken during the test with test results printed on it. Android: Photo is saved in /Alcovisor. iPhone: Photo is saved inside the app and can Android be exported to Photos.
  • Page 12 P. 12 Records Icon Function Show all the test results. Select the specific record to show the details. Add remarks of the specific test records. Android Tap this button to review the test photos. Date of the test, maximum days can be search is 1000 days.
  • Page 13 P. 13 Test Photo Icon Function Test Result Details Android Tap this button to share your test photo. iPhone Settings Icon Features Auto save test records (On/Off) Display the yellow line for the alcohol alert limit (On/Off). Set measurement unit and the BAC : BrAC ratio (only apply to mg/L and µg/100mL) according to the local regulation.
  • Page 14 P. 14 Test Record 1. 16,000 test records can be stored, depending on the length of the records. 2. Individual test record can be printed by selecting “Print”. 3. Use “” or “” to move to the previous or next record. Setting 1.
  • Page 15 P. 15 6. Date & Time Input date and time in the format of yyyymmddhhmmss and select “Enter” to confirm If the device is connected with the App by Bluetooth, date and time will be adjusted automatically according to the time of the phone. 7.
