Summary of Contents for Silver Star SHOW PRO FD3

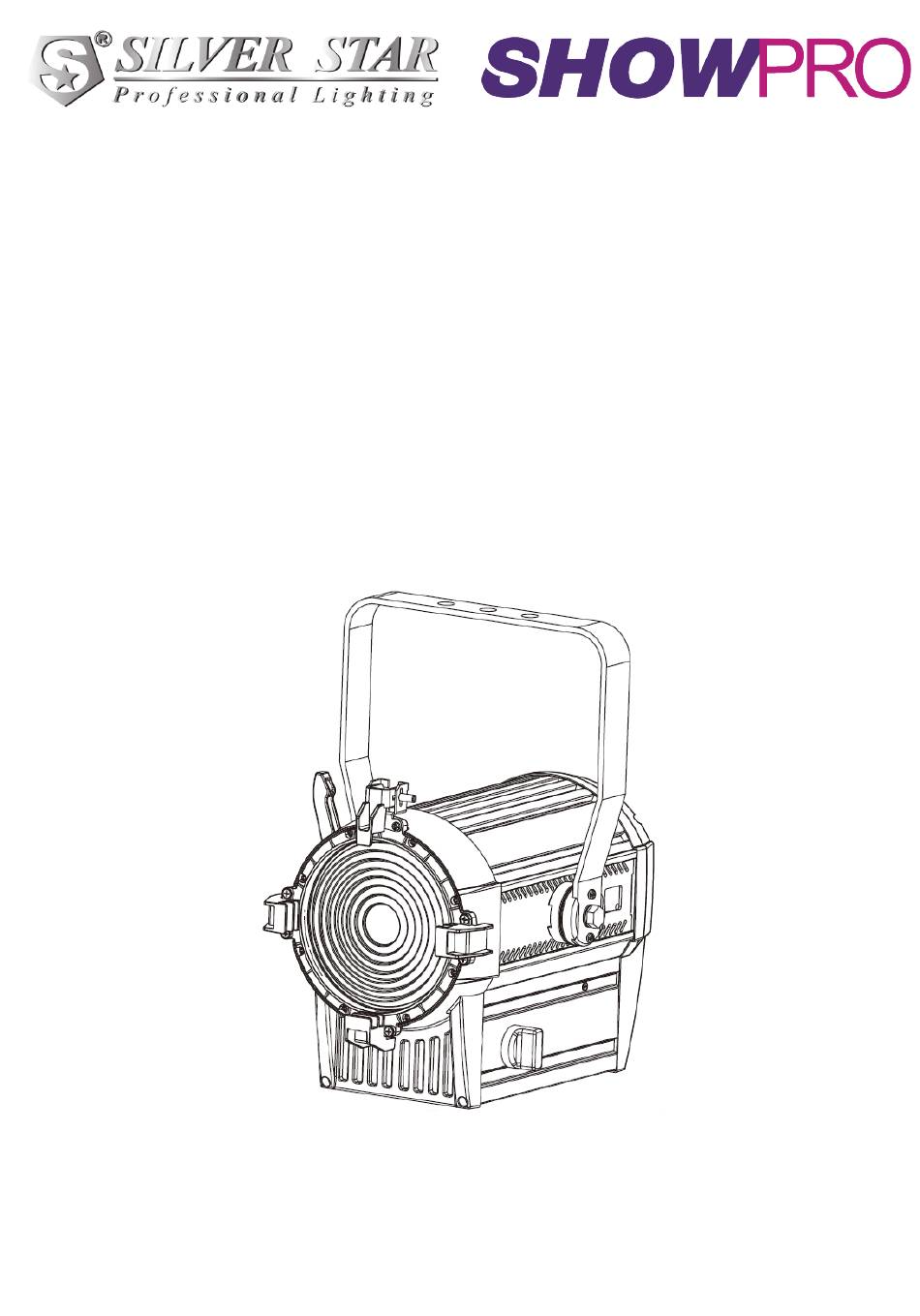

- Page 1 LEDFRE200 USER MANUAL...
-
Page 2: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Fixture Name Light Source 100W 32000K LED 0°~60° Angle Power Consumption 100W DMX512, RDM Control Protocols Voltage Range AC100~240V,50/60Hz IP Rating IP20 0° to 45° Operation Temperature Dimensions 324 x 281 x 389mm Weight 6.1kg DIMENSIONS... -
Page 3: Safety Notes
1.2 Safety Notes IMPORTANT Fixture must be installed by an experienced professional. To maintain the condition and to ensure safe operation, follow the safety instructions and warning notes outlined in this manual. The manufacturer is not liable for any damage caused by the operator not abiding to the ... - Page 4 Keep the product away from flammable materials Keep all combustible materials (fabric, wood, paper etc) at least 500mm away from the fixture. Ensure that there is adequate and unobstructed airflow into the product. Provide a minimum clearance of 150mm around fans and air vents. Do not illuminate surfaces within 3m of the product.
-
Page 5: Installation
2 INSTALLATION 2.1 Mounting Truss installation The LED fixture can be mounted using the support bracket. The bracket should be secured to the mounting surface using an appropriate mounting clamp. When mounting the unit, a safety chain should also be used. 2.2 Power Connections 220 –... -
Page 6: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 Display Navigation Menu: Accesses the menu or returns to a previous menu option. Enter: Selects, stores or confirms the current function, value or option highlighted in the menu. Up: Navigates upwards through the menu list. Increases the numeric value when in a selected ... - Page 7 3.2 Menu Map STATIC DIMMER 0 - 100 DMX512 SLAVE RUN MODE DMMR SENS ADDRESS 001 - 512 DIM1 DIMMER DIM2 DIM3 DIM4 CURVE1 CURVE CURVE2 CURVE3 LIVE PERFORM STUDIO POWER SETTING SLOCK PERSONALITY STD.P SAVE DMX ERROR BLACK RESET **** RESET SELF...
-
Page 8: Dmx Channels
4 . DMX Channels UNO（1CH） Value Function 0 – 255 DIMMER DOS（2CH） Value Function 0 – 255 DIMMER 0 – 255 DIMMER FINE STD.P（3CH） Value Function 0 – 255 DIMMER 0 – 255 DIMMER FINE 000 – 009 OPEN 010 – 099 STROBE (SLOW TO FAST, 0 –...
