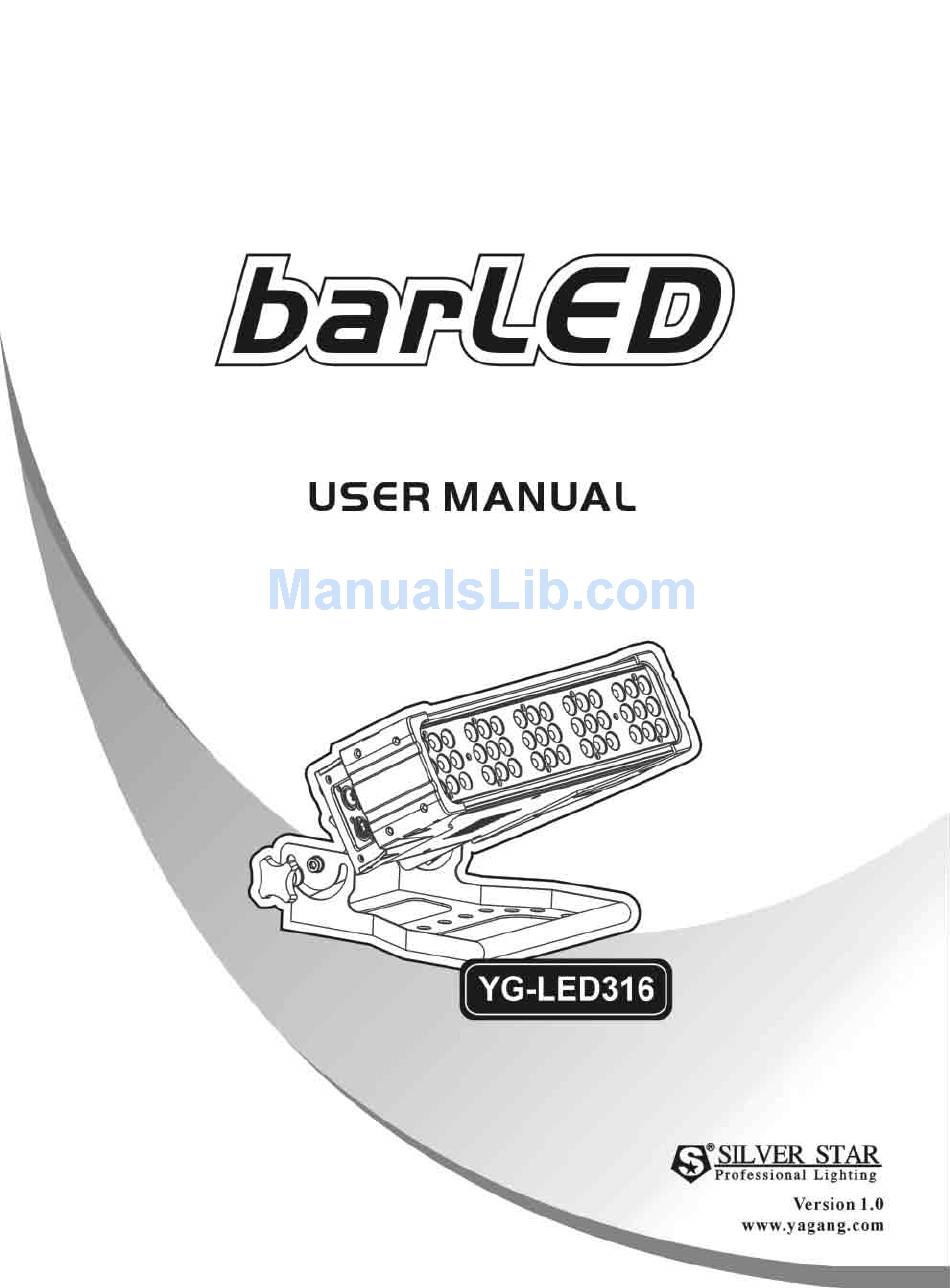

Silver Star barLED YG-LED316 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the barLED YG-LED316 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silver Star barLED YG-LED316

Summary of Contents for Silver Star barLED YG-LED316

  • Page 2 ABLE OF CONTENTS TABLE OF CONTENTS 2008.5.22...

  • Page 3: Product (General)

    PRODUCT (GENERAL) PRODUCT INTRODUCTION PRODUCT FEATURES TECHNICAL SPECIFICATIONS PHOTOMETRIC DATA SAFETY WARNING 1 PRODUCT(GENERAL) 2008.5.22...

  • Page 4: Product Introduction

    PRODUCT INTRODUCTION This product is designed for indoor use. Suitable applications include wash or effect lighting for stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS LED MODULE LED MODULE: Voltage AC 100~240V...50/60Hz Rated Power 45pcs (15 x RED / 15 x GREEN /15 x BLUE) LED/Unit Output/LED Environment Temperature -20 ~40 Cooling Forced air convection Dimensions 430 x 310 x300mm Weight 1 PRODUCT(GENERAL) 2008.5.22...
  • Page 6 PHOTOMETRIC DATA PHOTOMETRIC DATA 2035 104 LUX 10Distance(m) GREEN 120 LUX 2340 10Distance(m) BLUE 42.5 29.2 LUX 10Distance(m) 4830 1408 246 LUX 10Distance(m) WHITE 4560 1344 238 LUX 10Distance(m) 1 PRODUCT(GENERAL) 2008.5.22...

  • Page 7: Safety Warning

    SAFETY WARNING IMPORTANT ALWAYS READ THE USER MANUAL BEFORE OPERATION. PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA. This product must be installed by a qualified professional. Always operate the equipment as described in the user manual.

  • Page 8: Installation

    INSTALLATION MOUNTING POWER CONNECTIONS SETTING UP WITH A DMX512 CONTROLLER 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING 2.3-2 DMX512 ADDRESSING WITH ID ADDRESS 2 INSTALLATION 2008.5.22...

  • Page 9: Power Connections

    MOUNTING UPLIGHT The LED mini BATTEN can be mounted in an upright or sitting position using the supporting brackets. HANGING Clamp safety cable The LED mini BATTEN can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp.
  • Page 10 SETTING UP WITH A DMX512 CONTROLLER 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING (STAGE 1 MODE) Connect the DMX512 controller to the units in series. Each unit has 10 DMX channels so the DMX Addresses should increase by increments of 10 (e.g. 1,11,21,31...) The ID address has not been set so therefore when using the controller Ch9 must be inactive ( CH9=0 ).
  • Page 11 Example: DMX Addr.1 DMX Addr.1 DMX Addr.1 DMX Addr.11 DMX Addr.11 DMX Addr.11 ID Addr.1 ID Addr.2 ID Addr.3 ID Addr.1 ID Addr.2 ID Addr.3 ... . DMX512 The figure above shows a simple DMX layout CONTROLLER which has used three units at each DMX address.

  • Page 12: Display Panel Operation

    DISPLAY PANEL OPERATION BASIC MENU STATIC COLOR AUTO DMX ADDRESSING RUN MODE PERSONALITY ID ADDRESS SETTINGS 3.10 PASSWORD 3.11 EDIT 3.12 FAN SETTING 3 DISPLAY PANEL OPERATION 2008.5.22...
  • Page 13 BASIC MODE DOWN MODE scroll through the main menu or exit from the current menu or function Enter the currently selected menu or confirm the current function value scroll 'UP' through the menu list or increase the value of the current function DOWN scroll 'DOWN' through the menu list or decrease the value of the current function 3 DISPLAY PANEL OPERATION...
  • Page 14 MENU MODE 1. STATIC Red 0~255 Gree 0~255 Blue 0~255 Stro 0~020 2. AUTO Auto 01 Custom 01 Auto 02 Custom 02 Auto 03 Custom 03 Auto 04 Custom 04 Auto 05 Custom 05 Auto 06 Custom 06 Auto 07 Custom 07 Auto 08 Custom 08...

  • Page 15: Static Color

    STATIC COLOR MODE 1. STATIC Red 0~255 Gree 0~255 Blue 0~255 Stro 0~020 STATIC Select Gree Blue Stro and set the value by pressing UP and DOWN Press to save and back to the upper menu The fixture will be automatic in Master running mode under this function AUTO MODE 2.

  • Page 16: Dmx Addressing

    DMX ADDRESSING MODE 3. DMX Addr 1~512 Enter and set the DMX address 1~512 Press SET save the setting. RUN MODE MODE 4. RUN SLAVE Enter the MODE mode to set working mode. mode is for using the DMX512 controller to control the fixtures. SLAVE mode is for Master -- Slave operation, or controlled fixture by Pix-controller.
  • Page 17 PERSONALITY MODE 5. PERSON STAGE 1 BLOCK ARC 1 ARC 1+D PERSONALITY Enter PERSON and select STAGE1 / BLOCK / ARC1 ARC1+D DMX mode ID ADDRESS MODE 6. ID Addr 1~66 ID address Enter and set the ID address 1~066 SETTINGS MODE Password...

  • Page 18: Fan Setting

    3.10 PASSWORD MODE 8. KLOCK Password Enter the KLOCK ode to set password ON/OFF When password is activated, display will demand password each time the fixture is powered on. The factory default password is UP > DOWN > UP > DOWN 3.11 EDIT MODE...

  • Page 19: Using A Dmx512 Controller

    USING A DMX512 CONTROLLER BASIC ADDRESSING CHANNEL ASSIGNMENT BASIC INSTRUCTIONS FOR DMX512 OPERATION (STAGE 1) 4 USING A DMX512 CONTROLLER 2008.5.22...

  • Page 20: Basic Addressing

    BASIC ADDRESSING Connect all of the units in series using standard DMX512 signal cable or the IP65 rated cable provided. Set the DMX512 address in the DMX menu. It is possible to have the same DMX address or independent addresses for each fixture. CHANNEL ASSIGNMENT Note: This product have three DMX512 channel configuration: STAGE 1...
  • Page 21 CHANNEL VALUE FUNCTION Fans, Auto Reset to display Fan setting Fan closed (activated after 5 seconds) Fan low speed (activated after 5 seconds) Fan normal (activated after 5 seconds) Fan high speed (activated after 5 seconds) Fan auto speed (activated after 5 seconds) Auto 1 Auto 2 Auto 3...
  • Page 22 CHANNEL VALUE FUNCTION ID17 ID18 ID19 ID20 ID21 ID22 ID23 ID24 ID25 ID26 ID27 ID28 ID29 ID30 ID31 ID32 ID33 ID34 ID35 ID36 ID37 ID38 ID39 ID40 ID41 ID42 ID43 ID44 ID45 ID46 ID47 ID48 ID49 ID50 ID51 ID52 ID53 ID54 ID55 ID56...
  • Page 23 CHANNEL VALUE FUNCTION ID63 ID64 ID65 ID66 BLOCK BLOCK1,BLOCK2,BLOCK3,BLOCK4,BLOCK5 BLOCK1 BLOCK2 BLOCK3 BLOCK4 BLOCK5 BLOCK1,BLOCK2 BLOCK2,BLOCK3 BLOCK3,BLOCK4 BLOCK4,BLOCK5 BLOCK1,BLOCK2,BLOCK3 BLOCK2,BLOCK3,BLOCK4 BLOCK3,BLOCK4,BLOCK5 BLOCK1,BLOCK5 BLOCK2,BLOCK4 BLOCK1,BLOCK3 BLOCK2,BLOCK5 BLOCK1,BLOCK3,BLOCK5 BLOCK1,BLOCK2,BLOCK4,BLOCK5 BLOCK1,BLOCK2 BLOCK4,BLOCK5 BLOCK1,BLOCK2,BLOCK3,BLOCK4,BLOCK5 4 USING A DMX512 CONTROLLER 2008.5.22...
  • Page 24 BLOCK CHANNEL VALUE FUNCTION BLOCK1-RED BLOCK1-GREE N BLOCK1-BLUE BLOCK2-RED BLOCK2-GREEN BLOCK2-BLUE BLOCK3-RED BLOCK3-GREEN BLOCK3-BLUE BLOCK4-RED BLOCK4-GREEN BLOCK4-BLUE BLOCK5-RED BLOCK5-GREEN BLOCK5-BLUE ARC 1 CHANNEL VALUE FUNCTION GREEN BLUE ARC 1+D CHANNEL VALUE FUNCTION MASTER DIMMER GREEN BLUE 4 USING A DMX512 CONTROLLER 2008.5.22...
  • Page 25 BASIC INSTRUCTIONS FOR DMX512 OPERATION (STAGE 1) MASTER DIMMER CH1 controls the intensity of the currently projected color When the slider is at the highest position (255) the intensity of the output is the maximum RED, GREEN & BLUE COLOR SELECTION CH2, CH3 &...
  • Page 26 APPENDIX TROUBLE SHOOTING MAINTENANCE 5 APPENDIX 2008.5.22...

  • Page 27: Troubleshooting

    TROUBLE SHOOTING LED MODULE SITUATION CAUSE ACTION PART ORDER NUMBER 1) Power connection error 1) Check all power connections No display 2) Power switch damaged 2) Replace power switch 16-03-0030-03 3) Display board damaged 3) Replace display board 26-2A-LED316DISP-00 1) Keyboard damaged 1) Replace keyboard LED MODULE on, 26-2A-LED316DISP-00...

  • Page 28: Maintenance

    MAINTENANCE ITEM Clear cover lense upper cover Lenses Lense base cover LED PCB Power supply LED driver PCB Metal base cover Plastic side cover Power socker Fuse socket Bracket Adjusting knob Display PCB Metal upper cover DMX board 5 APPENDIX 2008.5.22...
