Silver Star SHOWPRO NW8 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
NW8
LEDMOV710
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHOWPRO NW8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silver Star SHOWPRO NW8

Summary of Contents for Silver Star SHOWPRO NW8

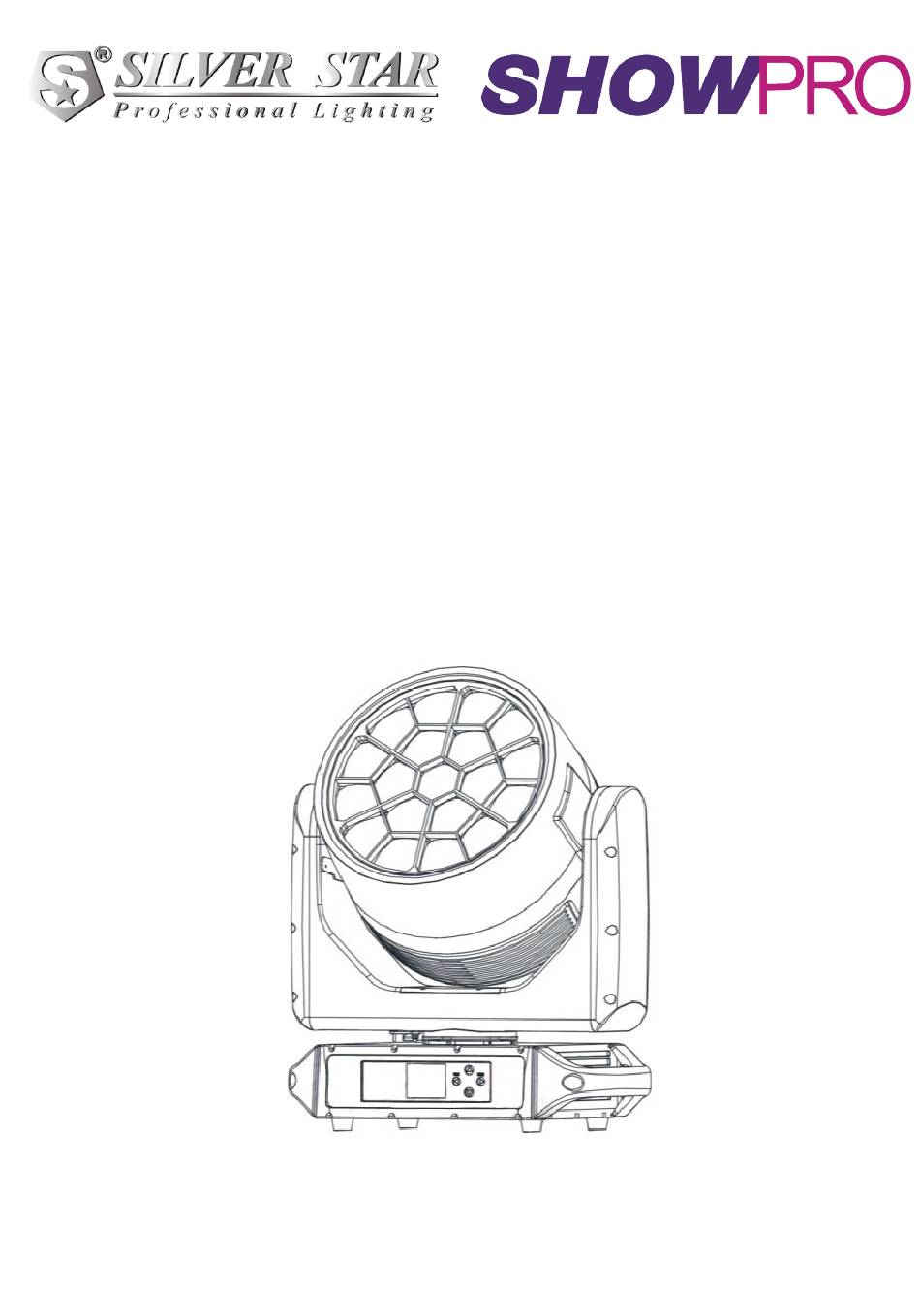

  • Page 1 LEDMOV710 USER MANUAL...
  • Page 2 1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Fixture Name Light Source 19 x 50w RGBL LED + RGB Ring + RGB Mask Angle Beam Angle：3.5°~ 38°，Field Angle: 6°~ 60° Power Consumption 1000w DMX512, RDM, Artnet, sACN, NFC Control Protocols Voltage Range AC100~240V,50/60Hz Current 220V/3.3A IP Rating...
  • Page 3 1.2 Safety Notes IMPORTANT Fixture must be installed by an experienced professional.  To maintain the condition and to ensure safe operation, follow the safety instructions and  warning notes outlined in this manual. The manufacturer is not liable for any damage caused by the operator not abiding to the ...
  • Page 4 Keep the product away from flammable materials Keep all combustible materials (fabric, wood, paper etc) at least 20m away from the fixture.  Ensure that there is adequate and unobstructed airflow into the product. Provide a minimum  clearance of 500mm around fans and air vents. Do not illuminate surfaces within 20m of the product.
  • Page 5 2 INSTALLATION 2.1 Mounting Truss installation Keep all combustible materials (fabric, wood, paper etc) at least 500mm away from the  product. For overhead use, always install a safety cable that can hold at least 10 times the weight of ...
  • Page 6 2.4 DMX512 Requirements Connect a DMX512 cable from the output of a controller or console to the first unit. The fixture  has 3/5-pin XLR connectors for DMX data input and output. Connect the DMX-output of the first fixture in line with the DMX-input of the next fixture and ...
  • Page 7 3 FUNCTIONS AND SETTINGS 3.1 Display Navigation Left (menu): Accesses the menu or returns to a previous menu option.  Right (enter): Selects, stores or confirms the current function, value or option highlighted in the  menu. Up: Navigates upwards through the menu list. Increases the numeric value when in a selected ...
  • Page 8 3.2 Menu Map ADDRESS 001 – 512(Default 001) DMX address setting HSIC Use the menu to select desired channel mode TOUR(Default) PERSON TR16 PIXEL DMX512 (Default) Select Signal Input Default: DMX512 ARTNET CUSTOM 1-2 Set up get into EDIT ARTNET2DMX MENU sACN RUNMODE...
  • Page 9 1200Hz (Default) Sets the PWM frequency 2400Hz 4000Hz LED PWM 6000Hz 25000Hz SAVE (Default) DMX Hold after signal loss ERROR BLACK Blackout after signal loss Display is always on Turns off display after DISPLAY 30s/1min/2min of inactivity 1min (Default) TIME 2min DISPLAY Locks display (passcode is UP,...
  • Page 10 2.xxx.xxx.xxx/ Net switch off IP mode NET SWITCH 10.xxx.xxx.xxx UNIVERSE 0-255 Packet group Settings NETWORK IP MODE DEFAULT IP Default IP CUSTOM IP Customer's IP CUSTOM IP XX.XX.XX.XX Customer's IP setting STATION WiFi settings WIFIMODE SMART SSID YJSS9681 PASSWORD yj000001 LOCAL IP xxx:xxx:xxx:xxx WIFI...
  • Page 11 TIME 0-255 YES/NO Select YES to run the steps user need. Auto Test Auto Test channel 0-255 Manual control channel TITL 0-255 ZOOM 0-255 0-255 GREEN 0-255 BLUE 0-255 LIME 0-255 STROBE 0-255 PRESET COLOUR 0-255 CHANNEL 0-255 STATIC PIXEL 0-255 PIXEL EFFECT 0-255...
  • Page 12 10000K COLOUR 1 See Annex I for details） Preset colour( COLOUR 2 PRESET COLOUR COLOUR 24 CYAN Cyan、Magenta、Yellow MAGENTA YELLOW Factory testing mode. All stepper motors are not controlled by signal. Motors only DEBUG work after the reset. HIDE ALL RESET Select Yes/No to carry out all reset PT RESET Select Yes/No to carry out P/T reset...
  • Page 13 PAN DRIVEIC Pan Drive IC TILT SENSOR Tilt Sensor TILT ENCODER Tilt Encoder TILT DRIVEIC Tilt Drive IC TEMPERATURE Temperature UPDATE SOFTWARE USB-C Update software All passwords of this product are: UP DOWN UP DOWN ENTER...
  • Page 14 4 . DMX Channels HSIC（27CH） Value Function 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 P/T SPEED 0-255 INTENSITY 0-255 0-255 HUE FINE 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K...
  • Page 15 0-255 BLUE (Face mask light strip） Face mask light strip Colour Presets 000-009 Open 010-014 015-019 GREEN 020-024 BLUE 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac...
  • Page 16 180-248 Stop 249-255 Open Colour FX（Face mask light strip） 0-10 Open 11-20 FX1（Associated with CH13-CH15） 21-30 FX2（Associated with CH13-CH15） 31-40 FX3（Associated with CH13-CH15） 41-50 FX4（Associated with CH13-CH15） 51-60 FX5（Associated with CH13-CH15） 61-70 FX6（Associated with CH13-CH15） 71-80 FX7（Associated with CH13-CH15） 81-90 FX8（Associated with CH13-CH15）...
  • Page 17 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104 Pale green 105-109 Ruby red 110-114 Flame red 115-119...
  • Page 18 91-100 FX9（Associated with CH20-CH22） 101-110 FX10（Associated with CH20-CH22） 111-120 FX11（Associated with CH20-CH22） 121-130 FX12 131-140 FX13 141-150 FX14 151-160 FX15 161-170 FX16 171-180 FX17 181-190 FX18 191-200 FX19 201-210 FX20 211-255 Open 0-255 Ring Speed(SPEED 1 —> 100%) 0-255 Ring Dimmer（RGB ring） CONTROL（EXECUTE AFTER 3 SECONDS）...
  • Page 19 231-255 RESERVED TOUR TR16 Value Function (25CH) (30CH) (37CH) 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 P/T SPEED 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 LIME 0-255 LIME FINE 0-255 DIMMER 0-255...
  • Page 20 5600K 6000K 6500K 7000K 8000K 10000K 10000K STATIC PIXEL 0-10 NO FUNCTION 11-255 STATIC PIXEL（See Annex 2 for details） PIXEL EFFECT 0-10 NO FUNCTION 11-255 PIXEL EFFECT（See Annex 3 for details） 0-255 AUTO SPEED ADJUSTMENT(SLOW TO FAST) 0-255 ZOOM 0-255 RED（Face mask light strip）...
  • Page 21 100-104 Pale green 105-109 Ruby red 110-114 Flame red 115-119 Red orange 120-124 Rose 125-129 Honey yellow 130-134 Light Pink 135-139 Deep orange 140-144 Lemon 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminous yellow 175-179 Open...
  • Page 22 181-190 FX18 191-200 FX19 201-210 FX20 211-255 Open 0-255 Face mask light strip speed(SPEED 1 —> 100%) 0-255 Face mask light strip Dimmer 0-255 RED RING（RGB ring） 0-255 GREEN RING（RGB ring） 0-255 BLUE RING（RGB ring） Ring Colour Presets（RGB ring） Open 10-14 15-19 GREEN...
  • Page 23 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminous yellow 175-179 Open 180-248 Stop 249-255 Open Colour FX（RGB ring） 0-10 Open 11-20 FX1（Associated with RGB） 21-30 FX2（Associated with RGB） 31-40 FX3（Associated with RGB） 41-50 FX4（Associated with RGB）...
  • Page 24 11-20 PAN/TILT BLACK ACTIVATED 21-30 PAN/TILT BLACK DEACTIVATED 31-40 PAN INVERT 41-50 TILT INVERT 51-60 PAN/TILT INVERT OFF 61-70 STUDIO 71-80 LIVE 81-90 POWER 91-100 DIM4 101-110 DIM0 111-120 LINEAR 121-130 SQUARE LAW 131-140 INV. SQUARE LAW 141-150 S-CURVE 151-160 1200Hz 161-170 2400Hz...
  • Page 25 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM STROBE PRESET COLOUR 0-10 NO FUNCTION 11-255 PRESET COLOUR（See Annex I for details） NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STATIC PIXEL 0-10...
  • Page 26 020-024 BLUE 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104...
  • Page 27 Colour FX（Face mask light strip） 0-10 Open 11-20 FX1（Associated with RGB） 21-30 FX2（Associated with RGB） 31-40 FX3（Associated with RGB） 41-50 FX4（Associated with RGB） 51-60 FX5（Associated with RGB） 61-70 FX6（Associated with RGB） 71-80 FX7（Associated with RGB） 81-90 FX8（Associated with RGB） 91-100 FX9（Associated with RGB）...
  • Page 28 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104 Pale green 105-109 Ruby red 110-114 Flame red 115-119 Red orange 120-124 Rose...
  • Page 29 101-110 FX10（Associated with RGB） 111-120 FX11（Associated with RGB） 121-130 FX12 131-140 FX13 141-150 FX14 151-160 FX15 161-170 FX16 171-180 FX17 181-190 FX18 191-200 FX19 201-210 FX20 211-255 Open 0-255 Ring speed(SPEED 1 —> 100%) 0-255 Ring Dimmer（RGB ring） CONTROL（EXECUTE AFTER 3 SECONDS） 0-10 NO FUNCTION 11-20...
  • Page 30 PIXEL Value Function (101CH) 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 PT SPEED 0-255 ZOOM 0-255 RED（Face mask light strip） 0-255 GREEN（Face mask light strip） 0-255 BLUE（Face mask light strip） Face mask light strip Colour Presets 000-009 Open 010-014 015-019...
  • Page 31 130-134 Light Pink 135-139 Deep orange 140-144 Lemon 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminous yellow 175-179 Open 180-248 Stop 249-255 Open Colour FX（Face mask light strip） 0-10 Open 11-20 FX1（Associated with RGB） 21-30 FX2（Associated with RGB）...
  • Page 32 0-255 GREEN RING（RGB ring） 0-255 BLUE RING（RGB ring） Ring Colour Presets（RGB ring） 000-009 Open 010-014 015-019 GREEN 020-024 BLUE 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac...
  • Page 33 175-179 Open 180-248 Stop 249-255 Open Colour FX（RGB ring） 0-10 Open 11-20 FX1（Associated with RGB） 21-30 FX2（Associated with RGB） 31-40 FX3（Associated with RGB） 41-50 FX4（Associated with RGB） 51-60 FX5（Associated with RGB） 61-70 FX6（Associated with RGB） 71-80 FX7（Associated with RGB） 81-90 FX8（Associated with RGB）...
  • Page 34 81-90 POWER 91-100 DIM4 101-110 DIM0 111-120 LINEAR 121-130 SQUARE LAW 131-140 INV. SQUARE LAW 141-150 S-CURVE 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 XY RESET 221-230 ZOOM RESET 231-255 RESERVED 0-255 DIMMER STROBE NO FUNCTION 10-99...
  • Page 35 6000K 6500K 7000K 8000K 10000K 10000K 0-255 RED 1 0-255 GREEN 1 0-255 BLUE 1 0-255 LIME 1 0-255 RED 2 0-255 GREEN 2 0-255 BLUE 2 0-255 LIME 2 0-255 RED 3 0-255 GREEN 3 0-255 BLUE 3 0-255 LIME 3 0-255 RED 4...
  • Page 36 0-255 GREEN 9 0-255 BLUE 9 0-255 LIME 9 0-255 RED 10 0-255 GREEN 10 0-255 BLUE 10 0-255 LIME 10 0-255 RED 11 0-255 GREEN 11 0-255 BLUE 11 0-255 LIME 11 0-255 RED 12 0-255 GREEN 12 0-255 BLUE 12 0-255 LIME 12...
  • Page 37 0-255 RED 19 0-255 GREEN 19 0-255 BLUE 19 0-255 LIME 19...
  • Page 38 Annex 1 PRESET Value Colour Names COLOUR 0-10 NO FUNCTION 11-15 RESERVE Loving Amber 0.407 0.321 COLOUR 1 16-20 Light Salmon 0.499 0.321 COLOUR 2 21-25 Scarlet 0.561 0.296 COLOUR 3 26-30 L164 Flame Red 0.659 0.302 31-35 RESERVE Easy White 0.389 0.344 36-40...
  • Page 39 211-215 RESERVE Pale Rose 0.35 0.318 COLOUR 21 216-220 L127 Smokey Pink 0.397 0.265 COLOUR 22 221-225 L192 Flesh Pink 0.41 0.237 226-230 RESERVE Special Rose Pink 0.465 0.193 231-235 RESERVE Moroccan Pink 0.378 0.324 COLOUR 23 236-240 L157 Pink 0.457 0.272 COLOUR 24...
  • Page 40 146-150 16,17 151-155 18,19 156-160 161-165 2,3,4 166-170 5,6,7 171-175 8,9,10 176-180 11,12,13 181-185 14,15,16 186-190 17,18,19 191-195 196-200 2,3,4,5,6,7 201-205 8,9,10,11 206-210 12,13,14,15 211-215 16,17,18,19 216-220 221-225 2,8,9 226-230 3,10,11 231-235 4,12,13 236-240 5,14,15 241-245 6,16,17 246-250 7,18,19 NO FUNCTION 251-255 Annex 3 PIXEL EFFECT...
  • Page 41 66-70 19-1(Single 6000k cycling operation ,the background effect associated with CH6-CH18) 71-75 1-19-1(Single 6000k cycling operation ,the background effect associated with CH6-CH18) 76-80 1-10 and 19-10(1<6000k>&7<6000K>light up in the same time, gathering from 2 RGB rings to 81-85 Red background , illuminace adjustable . 100% green lightness runs(1-19) 86-90 Red background , illuminace adjustable .
